Mahle Motorsport 930244455 - Piston (set) - SMALL BLOCK FORD FLAT TOP

Name: Mahle Motorsport 930244455 - Piston (set) - SMALL BLOCK FORD FLAT TOP
Brand: Mahle Motorsport
SKU: 930244455
Price: 712.99 USD
Availability: InStock

$712.99 USD

Check Availability

Check availability, to reach.

Free shipping over $80 To the USA

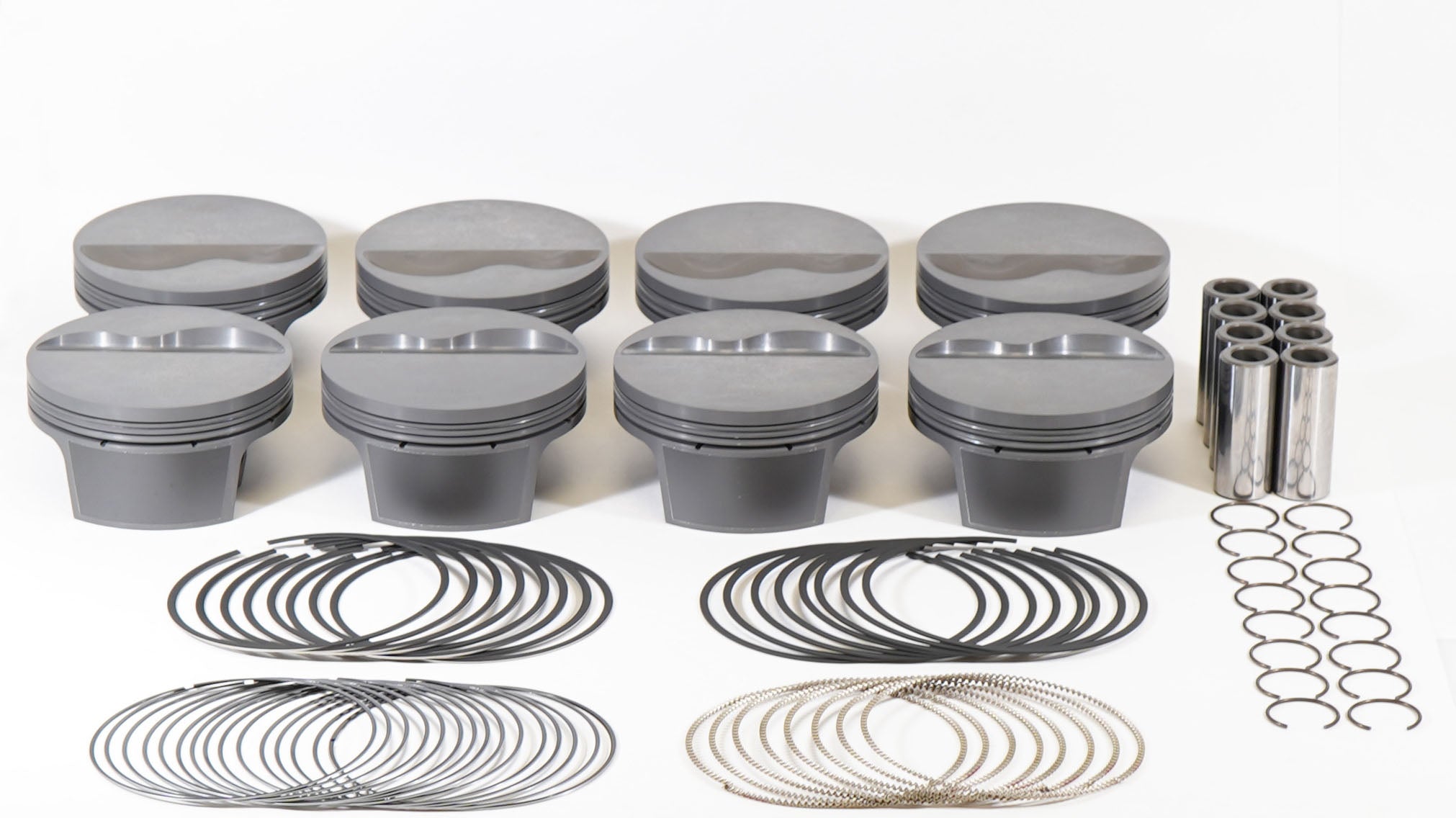

High-compression engine builds centered on a 434 cid displacement call for a purpose-built piston set, and the Mahle Motorsport 930244455 answers that need. Each of the 8 forged 4032 aluminum pistons features a flattop design with 2 valve reliefs, a -6.5cc crown volume, and a 12.2 compression ratio. Pins, rings, and round-wire clips are all included, and the rings are file-fit ready.

Bore: 4.155 in.
Compression Height: 1.245 in.
Stroke: 4.000 in.
Rod Length: 6.250 in.
Piston Mass: 447g
Piston Material: Forged 4032 aluminum
Crown Volume: -6.5cc
Compression Ratio: 12.2
Pin Diameter: 0.927 in. / 23.55mm
Pin Length: 58.1mm
Pin Mass: 118g
Pin Material: Steel, floating
Pin Wall Thickness: 0.168
Piston Ring Thickness: 1.0mm / 1.0mm / 2.0mm
UCR: 1.0mm, 9254 Steel, HV385 coating
LCR: 1.0mm, 9254 Steel, Phosphate coating
OCR: 2.0mm, chrome plated stainless steel, standard tension
Clip Style: Round wire
Package Quantity: Set of 8

Weight: 14 lb

Country of Origin: United States

California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
