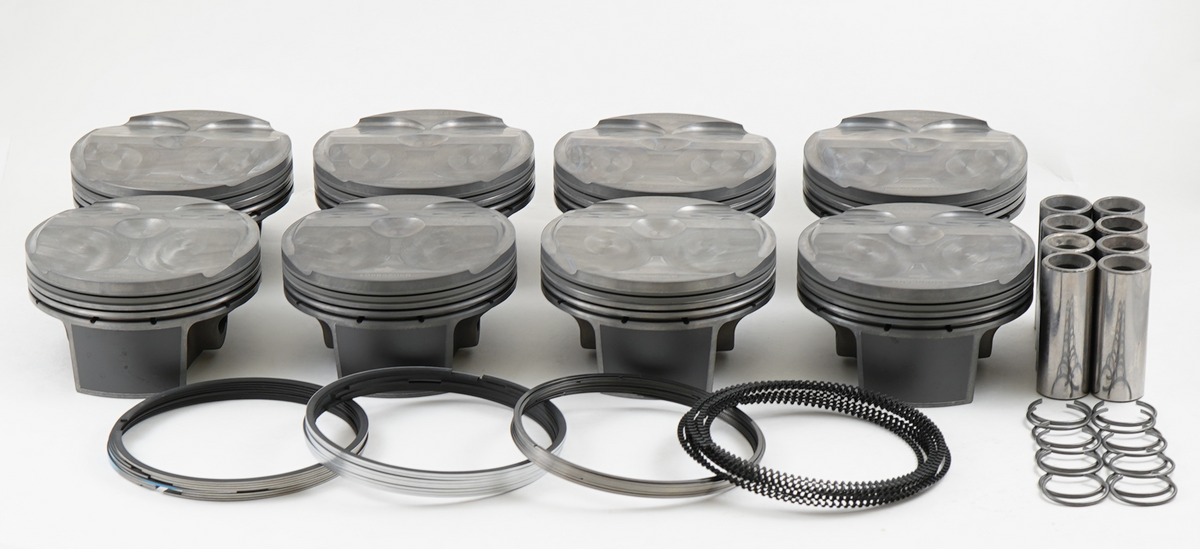

Mahle Motorsport 930258401 - Piston (set) - FORD 5.2L VOODOO DROP-IN FORGED REPLACMENT ASSEMBLY

Name: Mahle Motorsport 930258401 - Piston (set) - FORD 5.2L VOODOO DROP-IN FORGED REPLACMENT ASSEMBLY
Brand: Mahle Motorsport
SKU: 930258401
Price: 1043.58 USD
Availability: InStock

$1,043.58 USD

Out of Stock

This product is currently out of stock. It will be placed on backorder, and shipping can take 2 or more weeks to fulfill your order. and we will notify you as soon as it is back in stock.

Free US shipping on orders over $80

315cid 3.701 x 1.161CH, 3.661stroke,5.933rod,0.827pin,7.8cc,380g,12.0CR, M142P

Specifications

Pin Wall Thickness	0.187
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.2mm, 2.0mm
LCR Thickness	1.2mm
Pin Mass	100g
OCR Thickness	2.0mm
Pin Diameter	21.0mm
Piston Mass	380g
Pin Length	54.3mm
Crown Volume	7.8cc
LCR Material	9254 Steel
UCR Material	9254 Steel
LCR Coating	Chrome
Piston Style	Dome, w/ 4 valve reliefs
Pin Style	Floating
Piston Material	Forged, M142P
UCR Coating	HV385
Title	Mahle Motorsport Piston (set) - 930258401
File Fit	N
OCR Material	Nitrided stainless steel
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
OCR Tension	Standard
Pin Material	Steel
Clips Included	Y
Pins Included	Y
Rings Included	Y

⚠ WARNING: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
