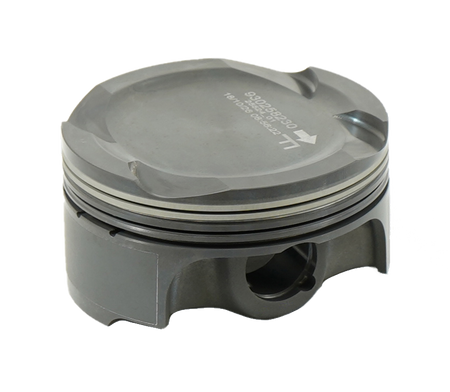

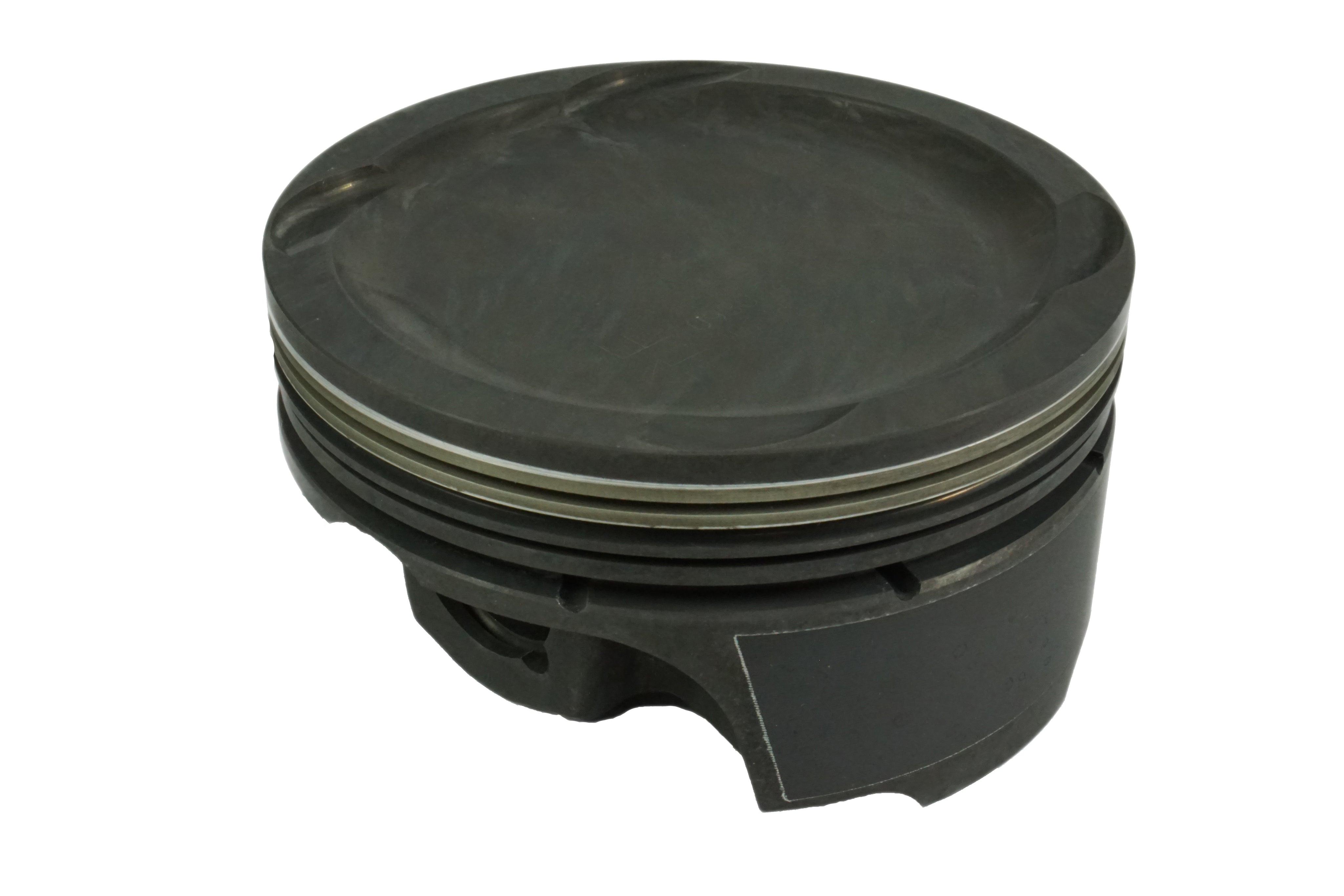

Mahle Motorsport 930258601-1 - Piston (ea) - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO

Contact Us for Availability
Regular price $111.70 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Mahle Motorsport
  • SKU 930258601-1
  • Barcode NA

Do you have questions about this product?

Ask an expert!

314cid 3.701 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-1cc,370g,11.0CR, 2618, SINGLE PISTON

Specifications

Crown Volume -1cc
Pin Wall Thickness 0.177
LCR Thickness 1.0mm
UCR Thickness 1.0mm
Piston Ring Thickness 1.2mm, 1.2mm, 2.5mm
Pin Mass 118g
OCR Thickness 2.0mm
Pin Diameter 22.0mm
Piston Mass 370g
Pin Length 61.1mm
LCR Material 9254 Steel
UCR Material 9254 Steel
OCR Material Chrome plated stainless steel
Piston Style Dome, w/ 4 valve reliefs
Pin Style Floating
Piston Material Forged, 2618
UCR Coating HV385
Title Mahle Motorsport Piston (each) - 930258601-1
Clips Included N
Pins Included N
Rings Included N
LCR Coating Phosphate
Clip Style Round Wire
Package Quantity Sold as a set of 1
OCR Tension Standard
Pin Material Steel
File Fit Y
