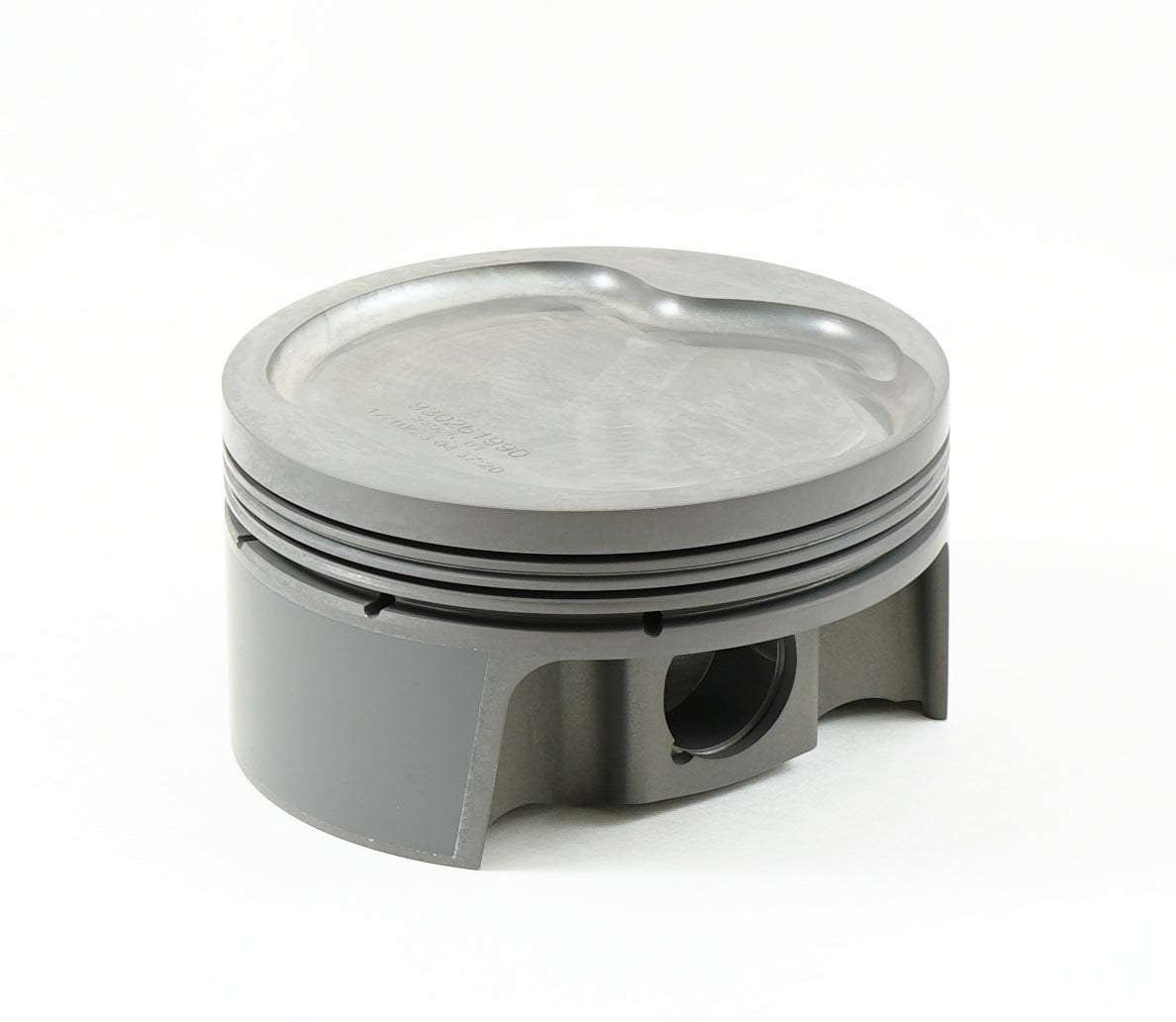

Mahle Motorsport 930261900-1 - Piston (ea) - BIG BLOCK FORD

Name: Mahle Motorsport 930261900-1 - Piston (ea) - BIG BLOCK FORD
Brand: Mahle Motorsport
SKU: 930261900-1
Price: 92.69 USD
Availability: InStock

$92.69 USD

Out of Stock

This product is currently out of stock. It will be placed on backorder, and shipping can take 2 or more weeks to fulfill your order. and we will notify you as soon as it is back in stock.

Free US shipping on orders over $80

528cid 4.500 x 1.525CH, 4.150stroke,6.700rod,0.990pin,-28cc,587g,10.1CR, 4032, SINGLE PISTON

Specifications

Crown Volume	-28cc
Pin Wall Thickness	0.18
LCR Thickness	1.5mm
UCR Thickness	1.5mm
Piston Ring Thickness	1.5mm, 1.5mm, 3.0mm
Pin Mass	148g
Pin Diameter	25.146mm
OCR Thickness	3.0mm
Piston Mass	587g
Pin Length	64.0mm
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
UCR Material	Ductile Iron
Pin Style	Floating
Piston Material	Forged, 4032
Piston Style	Inverted Dome, w/ INT valve relief
Title	Mahle Motorsport Piston (each) - 930261900-1
Clips Included	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
UCR Coating	Plasma Moly
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
File Fit	Y

⚠ WARNING: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
