NGK 3177 V-Power Spark Plug
Product Availability Request
Fill the form and our team will contact you.

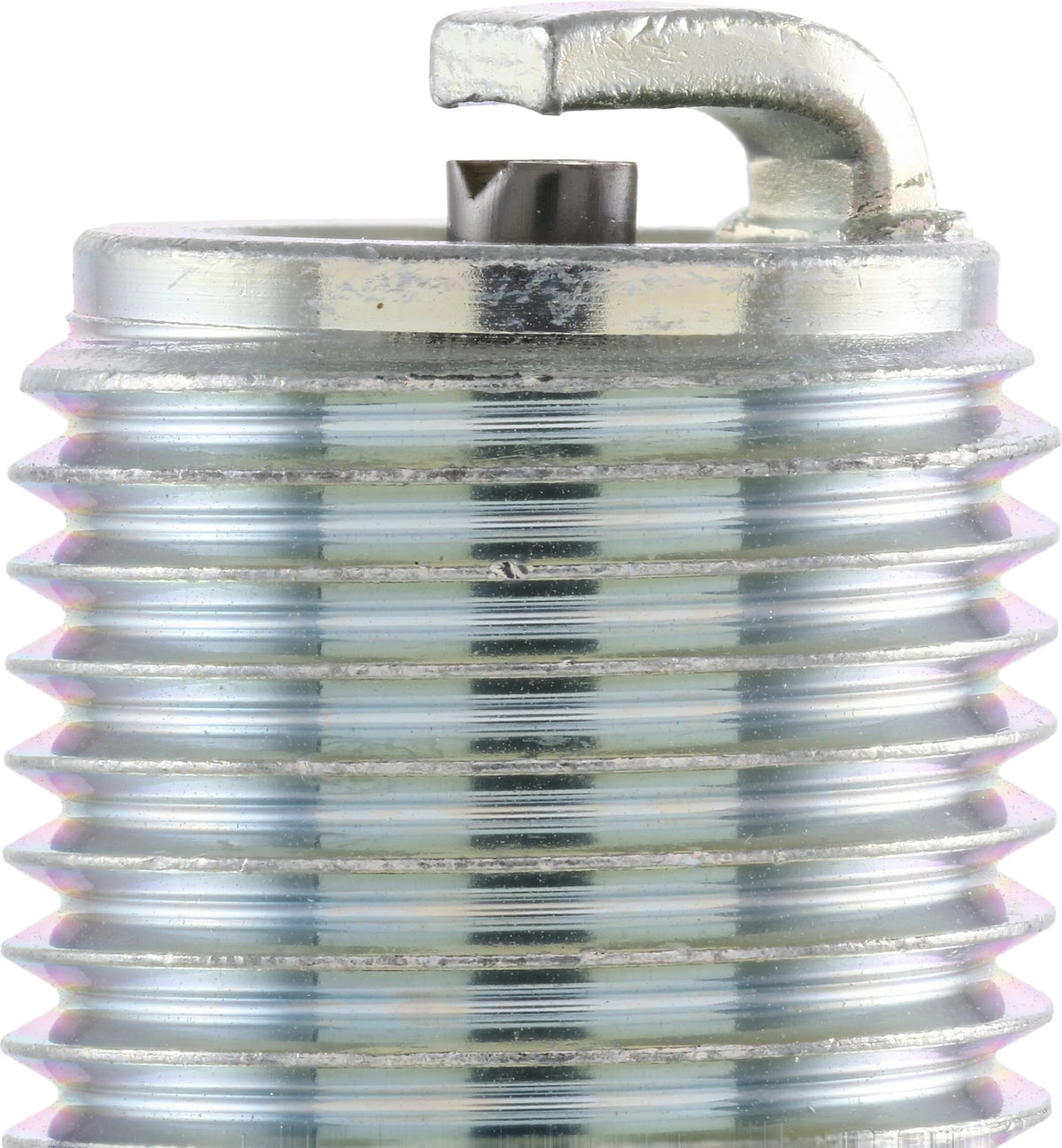

NGK V-Power spark plugs offer reliable performance and improved ignitability over standard nickel plugs. Engineered specifically for OE applications, the special V-cut nickel alloy center electrode and concave ground electrode of NGK's V-Power spark plug increases ignitability providing quicker starts and smoother idle. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode with V-groove provides consistent performance
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
Specifications
| Short Style Spark Plug | No |
| Service Number | BR6EF |
| Stock Number | 3177 |
| Part Number | BR6EF |
| Metallurgy | Copper |
| Dimension | 5000.0 82 |
| Tip Configuration | Standard |
| Gap Style | J-Gap |
| Thread Standard | Metric |
| Ground Electrode Core Material | Nickel |
| Grade Type | Standard Replacement |
| Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Material | Nickel |
| Spark Plug Gap | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Length | 2.07 IN |
| Heat Range | 6 |
| Seat Type | Tapered |
| Reach | 0.689 IN |
| Material | Ceramic |
| Thread Size | M14 - 1.25 |
| Ground Electrode Material | Nickel |
| Resistor | No |
| Insulator Nose Projection | 0.04 IN |
| Electrode Style | Standard |
| Projection | Non-Projected |
| Country of Origin | Japan |
Warranty: 2 Months
