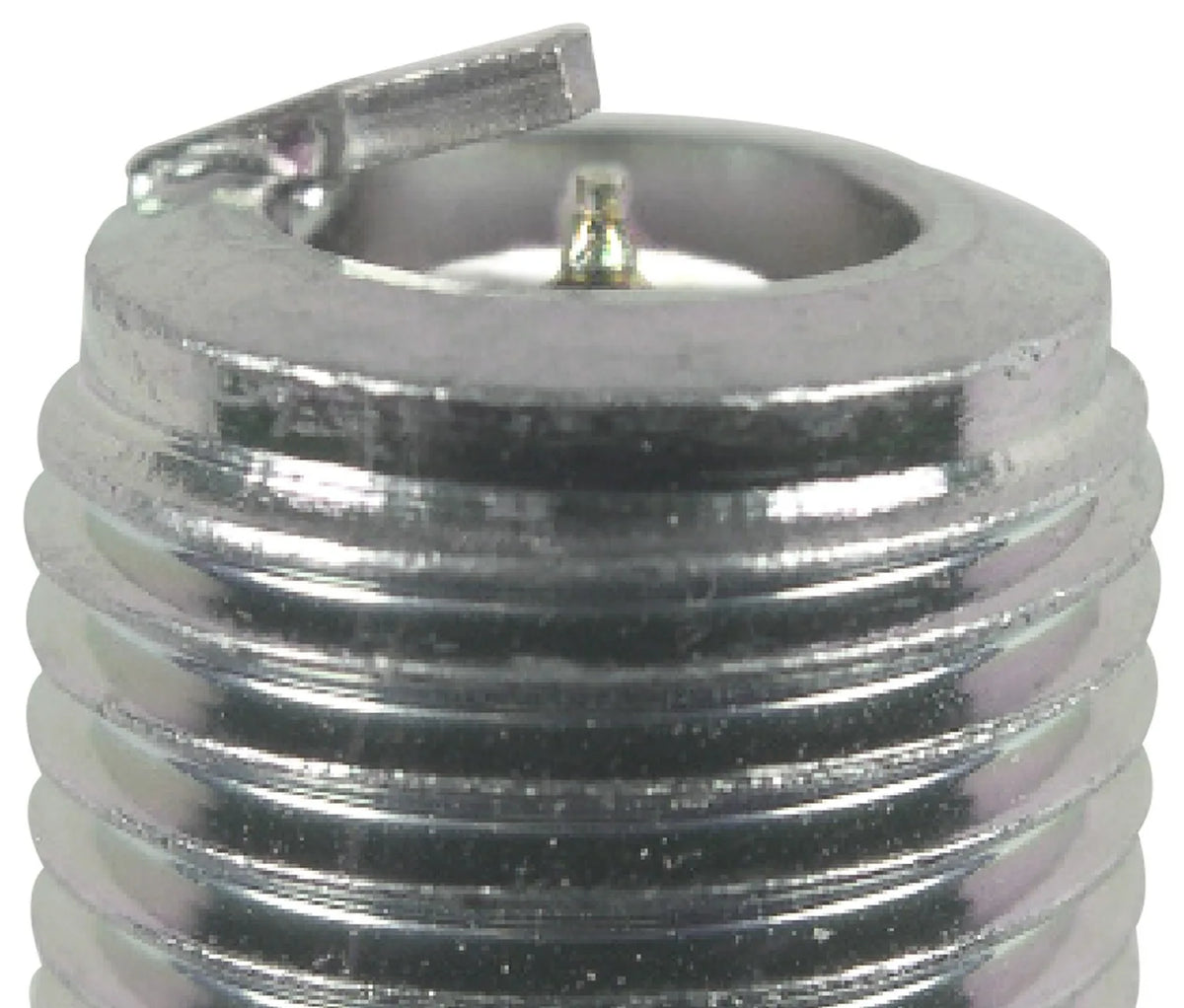

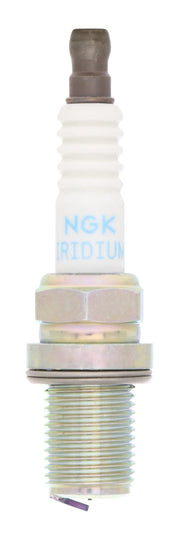

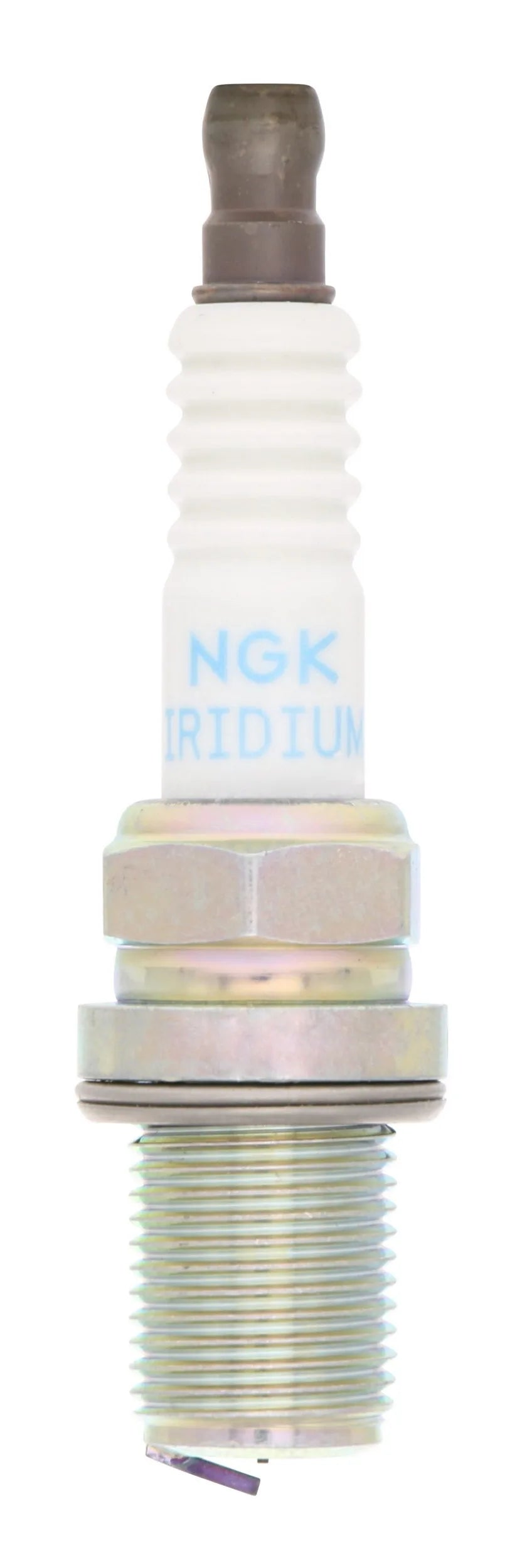

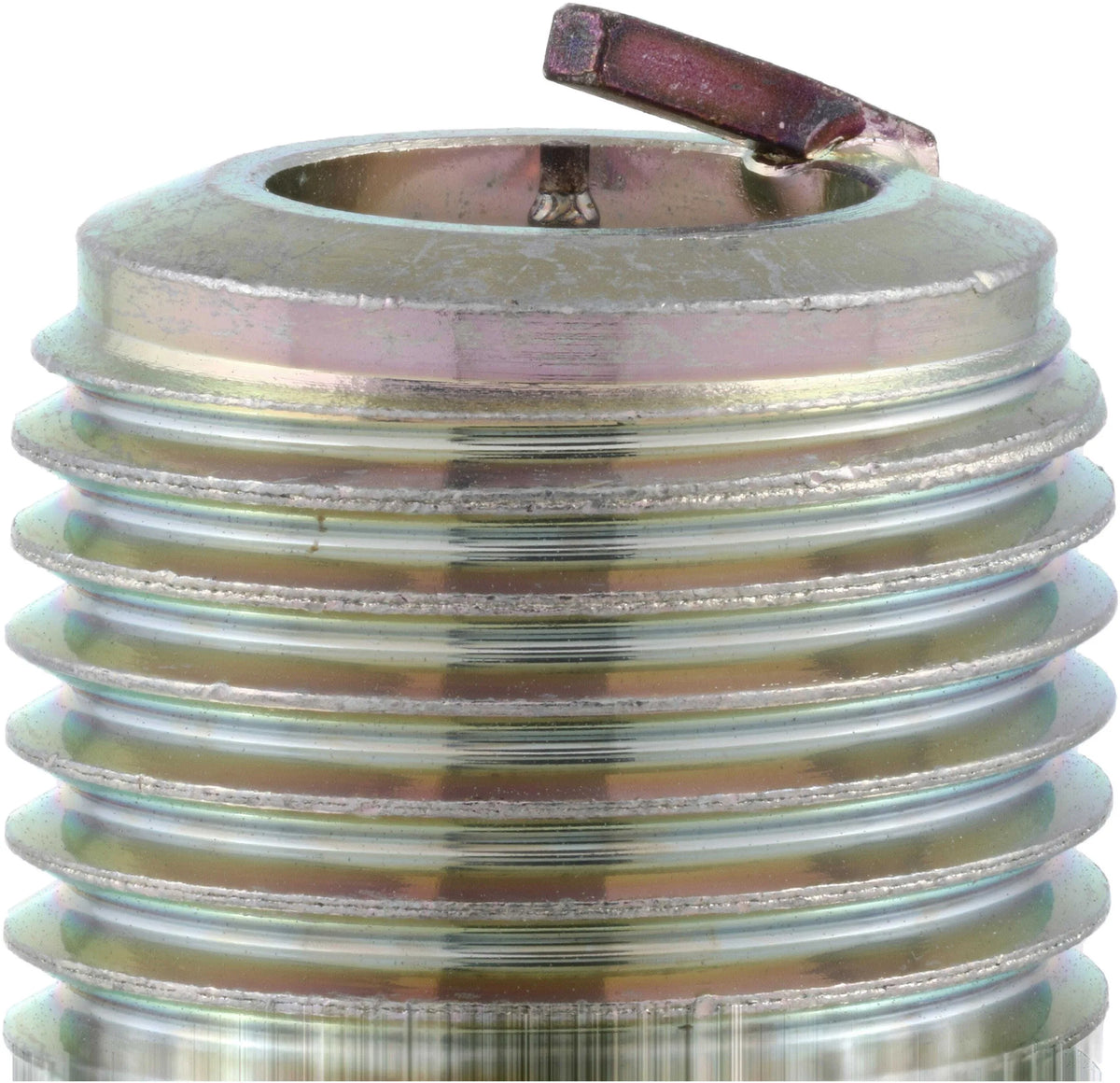

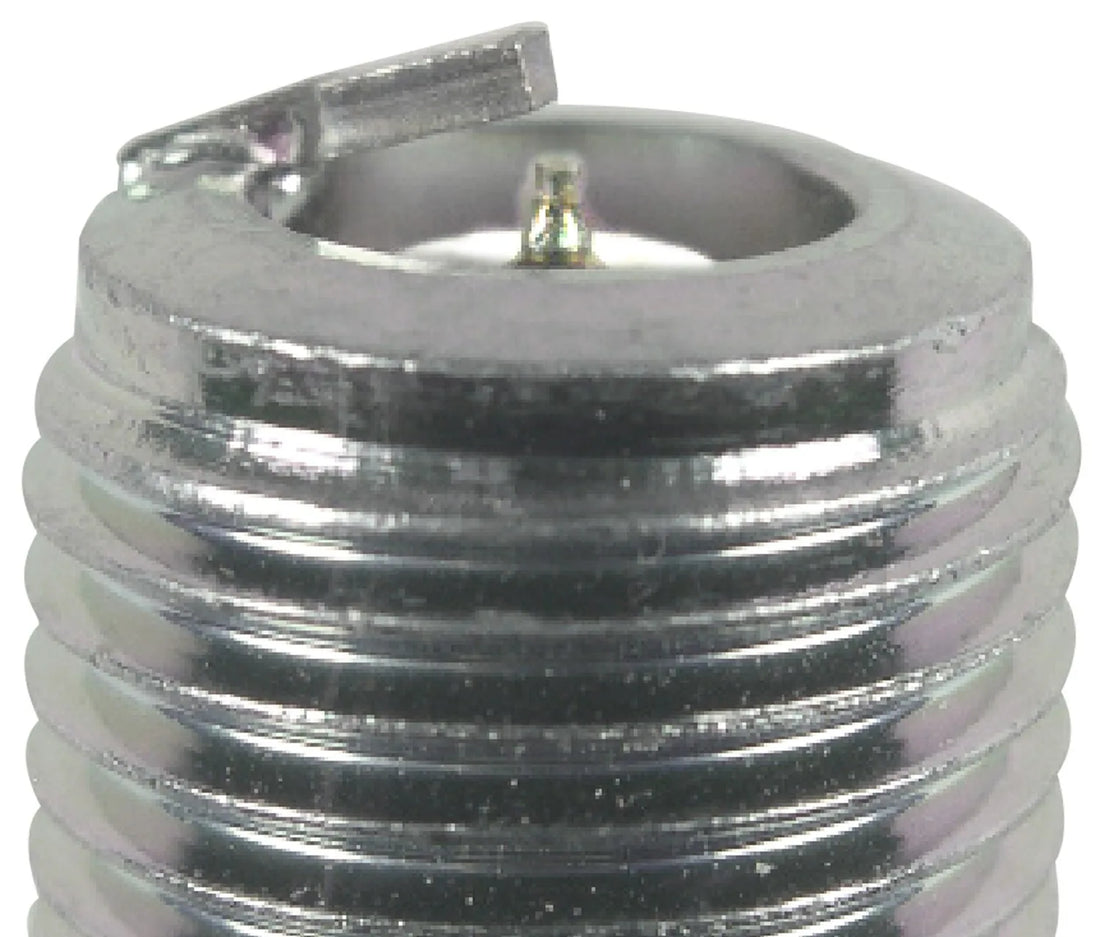

NGK 4894 Racing Spark Plug
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
NGK Racing spark plugs are designed with extreme use in mind and meant to withstand the most grueling racing conditions. NGK Spark Plugs have been powering racing champions and can be found in every racing venue throughout the world. The center electrode of the NGK Racing spark plugs has special configurations and designs to ensure durability and ignitability. NGK Racing plugs bring ultra high performance in a variety of heat ranges. Special configurations are used for a wide variety of racing applications.
- DESIGNED FOR RACING: Low angle tip design built to withstand extreme heat and vibration
- RECOMMENDED USAGE: Racing use only, featuring special configurations and designs to ensure durability and ignitability
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Specifications
| Part Number | R7434-10 |
| Short Style Spark Plug | No |
| Metallurgy | Iridium Platinum |
| Stock Number | 4894 |
| Service Number | R7434-10 |
| Resistor Value | 5000.0 82 |
| Tip Configuration | Pin Type |
| Ground Configuration | Slant |
| Thread Type Standard | Metric |
| Ground Electrode Core Material | Platinum |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Material | Iridium |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Manufacturer Heat Range | 10 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Insulator Material | Ceramic |
| Skirt Length | 0.0 IN |
| Thread Size | M14 - 1.25 |
| Ground Electrode Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.02 IN |
| Electrode Style | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Country of Origin | Japan |
Warranty: 2 Months
