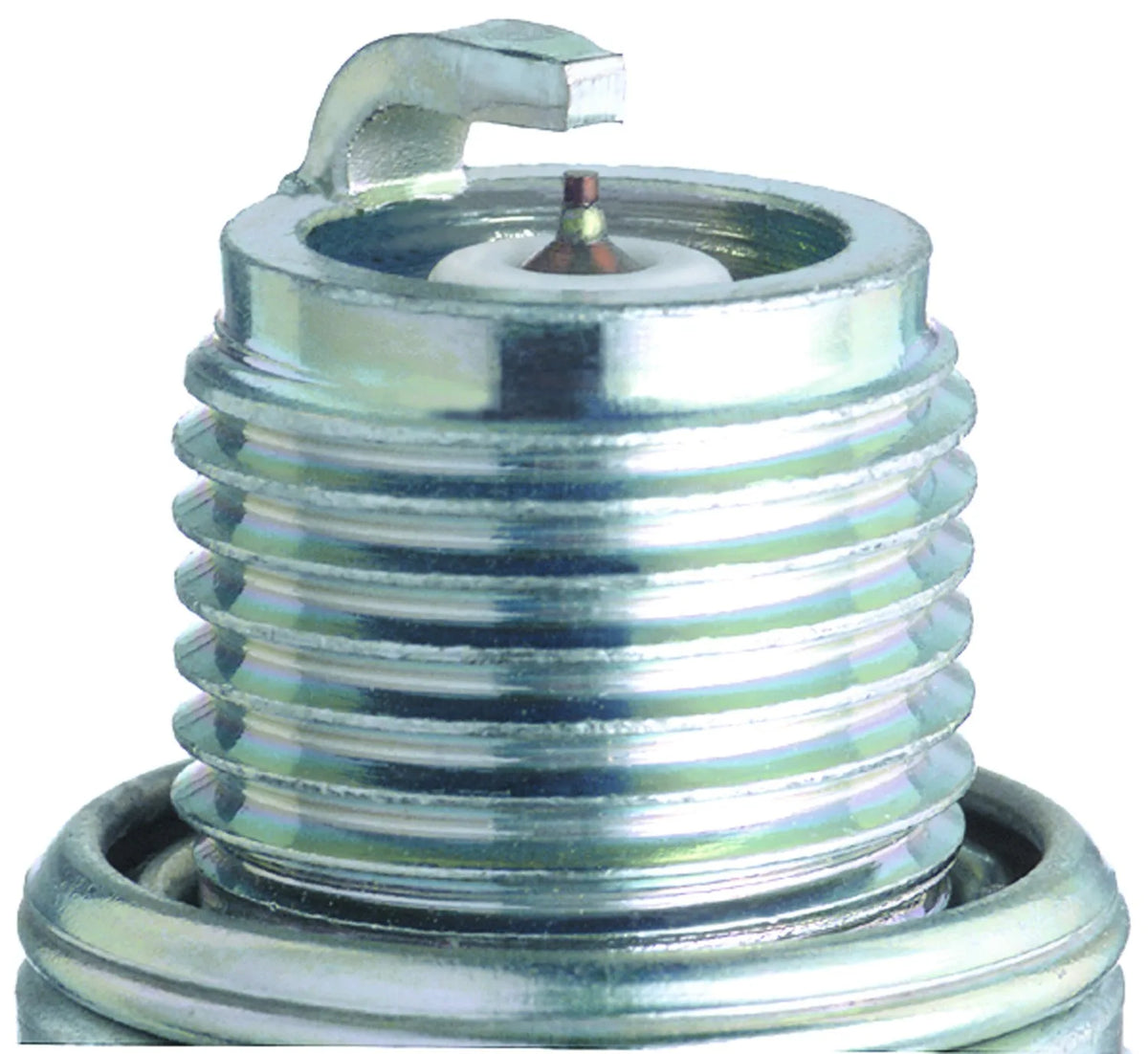

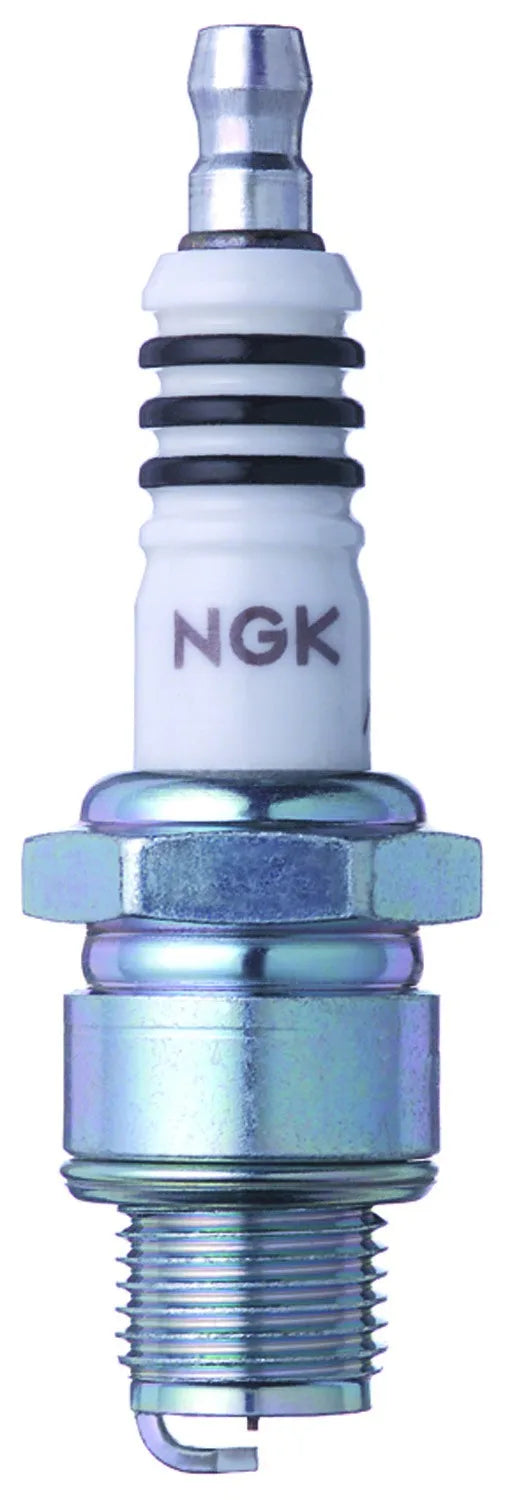

NGK 7001 Iridium IX Spark Plug
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
NGK Iridium IX spark plugs are specifically designed for the performance enthusiast. Iridium IX provides outstanding acceleration, high fuel efficiency and durability. NGK Iridium IX plugs offer extreme ignitability and exceptional anti-fouling. Tapered cut ground electrode provides improved starting, idling and throttle response. The Iridium fine wire center electrode's durability is six times harder than platinum. Iridium alloy's extremely high melting point is perfect for today's engines. For even greater performance consider upgrading to an NGK Ruthenium HX plug.
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
Specifications
| Stock Number | 7001 |
| Metallurgy | Single Iridium |
| Short Style Spark Plug | No |
| Part Number | BR8HIX |
| Service Number | BR8HIX |
| Resistor Value | 5000.0 82 |
| Tip Configuration | Taper Cut |
| Ground Configuration | J-Gap |
| Thread Type Standard | Metric |
| Ground Electrode Core Material | Nickel |
| Grade Type | Performance |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Material | Iridium |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.22 IN |
| Manufacturer Heat Range | 8 |
| Seat Type | Flat |
| Reach | 0.500 IN |
| Insulator Material | Ceramic |
| Skirt Length | 0.0 IN |
| Thread Size | M14 - 1.25 |
| Ground Electrode Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.06 IN |
| Electrode Style | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Country of Origin | Japan |
Warranty: 2 Months
