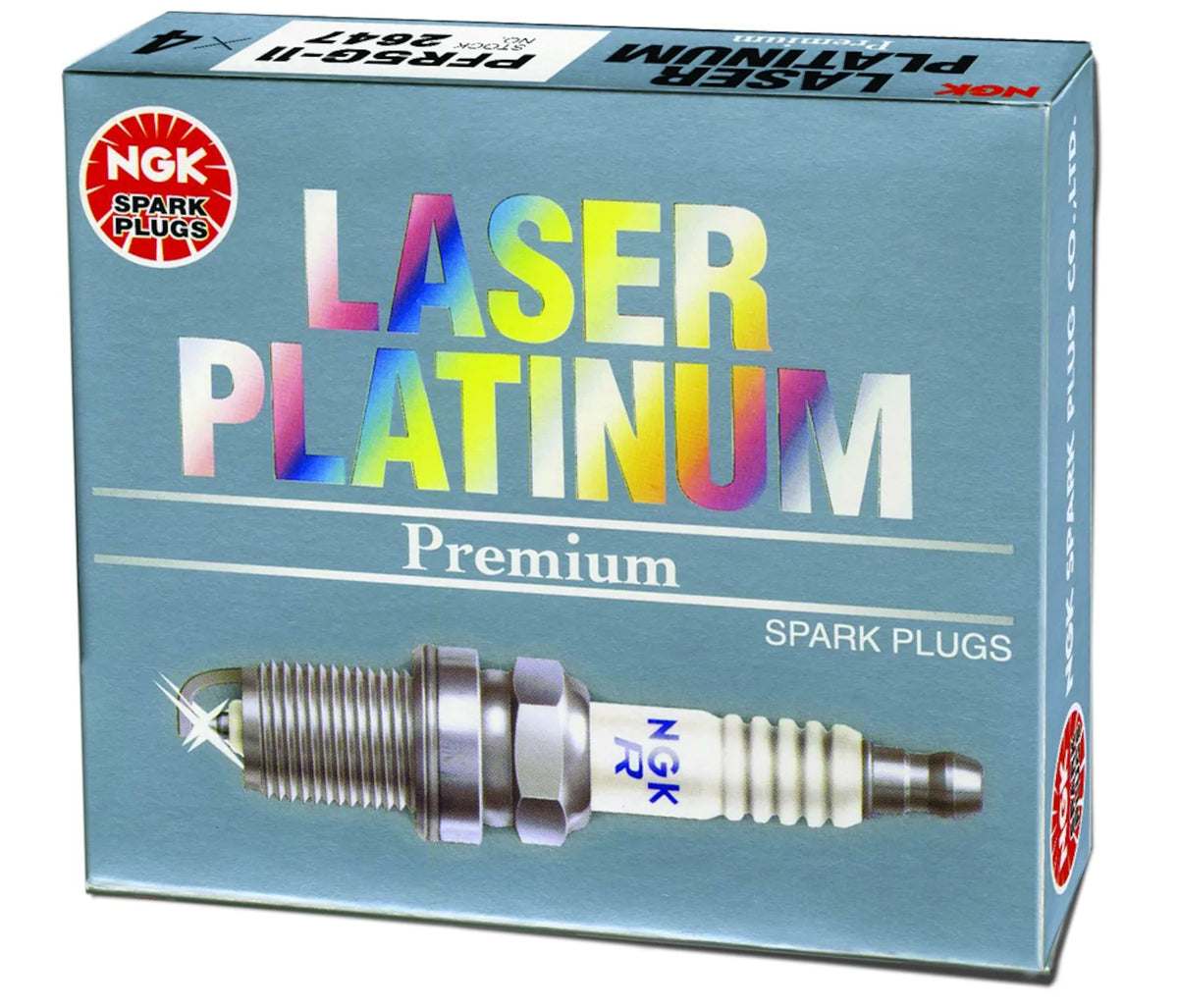

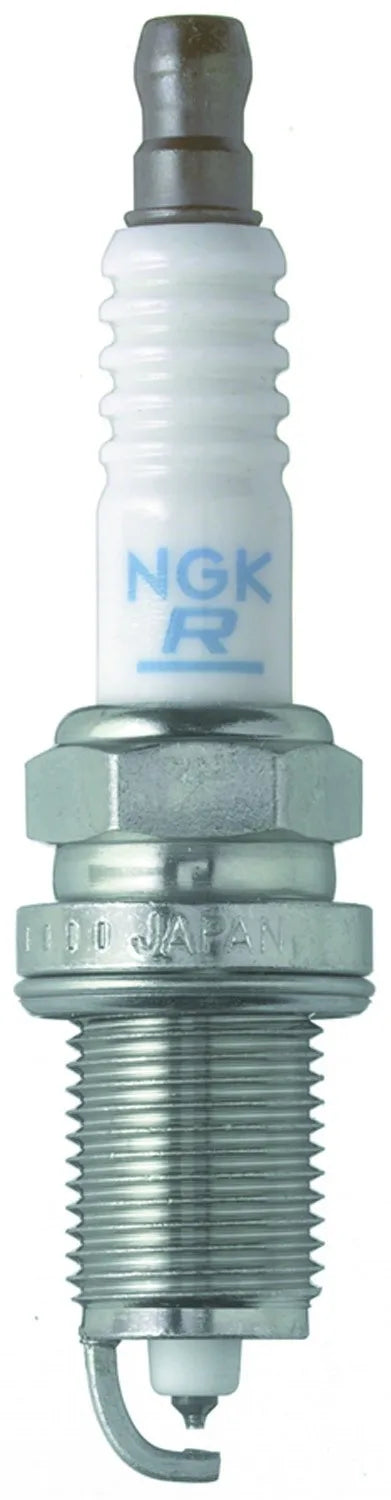

NGK 7790 Laser Platinum Spark Plug
Product Availability Request
Fill the form and our team will contact you.
NGK Laser Platinum spark plugs provide high ignitability and longer service life compared to conventional nickel spark plugs. Laser Platinum plugs are tested to the highest standards to ensure quality and durability. Engineered specifically for OE applications. Laser platinum plugs provide stable idling, superior anti-fouling, improved fuel efficiency and lower emissions. High-grade pure alumina ceramic and 98% pure copper core prevents spark plug from overheating and provides reliable starts. Most Laser Platinum spark plugs feature a platinum pad on the ground electrode for even wear in distributorless ignition systems.
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
- PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs

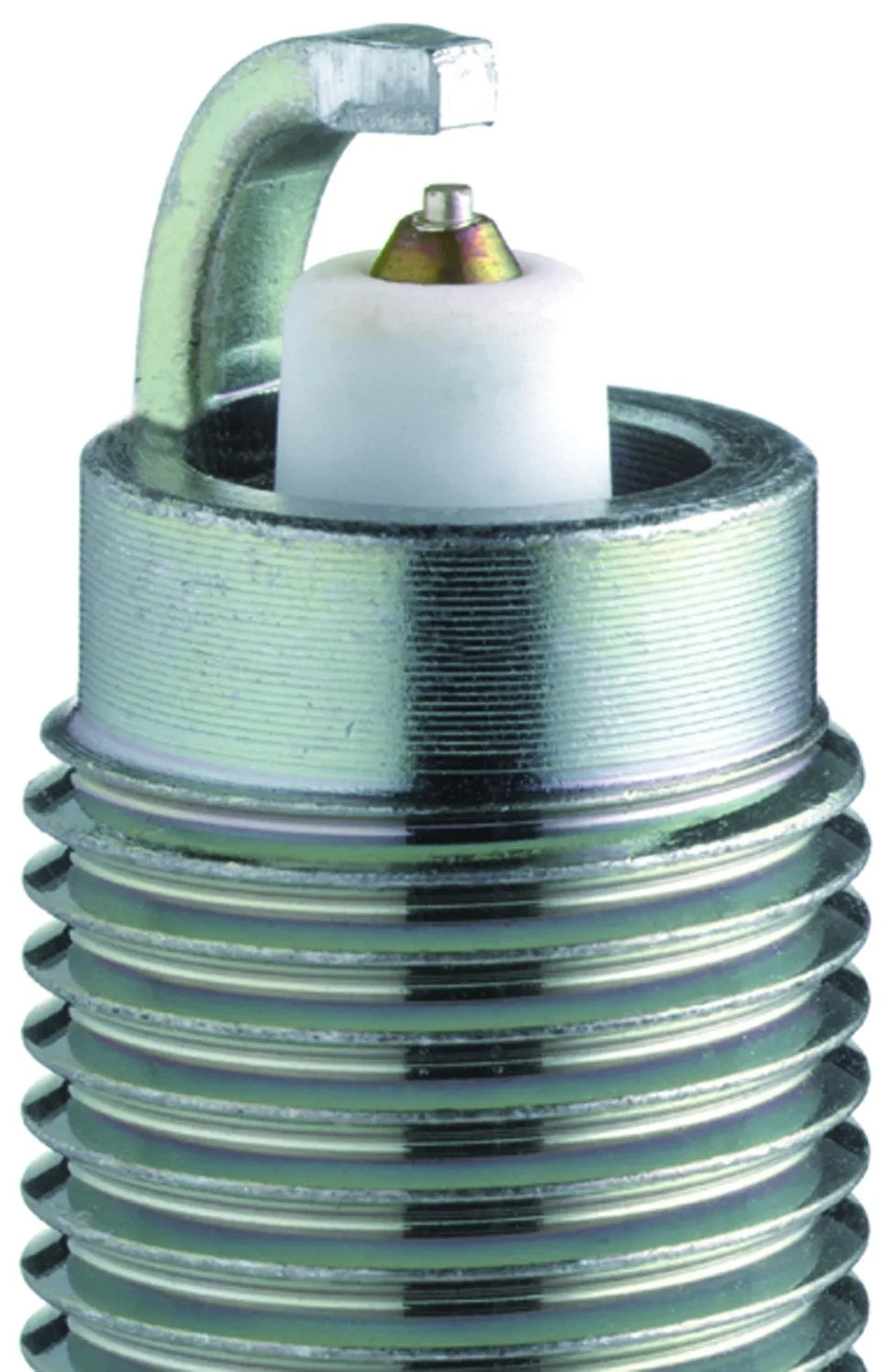

- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
Specifications
| Service Number | PZFR6E-11 |
| Short Style Spark Plug | No |
| Part Number | PZFR6E-11 |
| Stock Number | 7790 |
| Metallurgy | Double Platinum |
| Dimension | 5000.0 82 |
| Tip Configuration | Taper Cut |
| Gap Style | J-Gap |
| Thread Standard | Metric |
| Ground Electrode Core Material | Nickel |
| Grade Type | Performance |
| Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Material | Platinum |
| Spark Plug Gap | .044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Length | 1.99 IN |
| Heat Range | 6 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Material | Ceramic |
| Thread Size | M14 - 1.25 |
| Ground Electrode Material | Platinum |
| Resistor | No |
| Insulator Nose Projection | 0.20 IN |
| Electrode Style | Fine Wire |
| Projection | Long Projection |
| Country of Origin | United States |
Warranty: 2 Months
