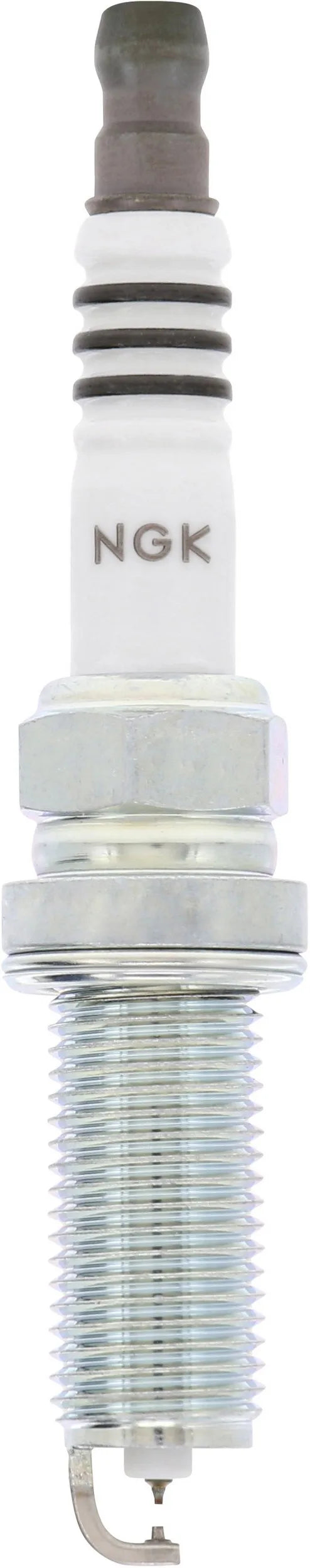

NGK 97292 Ruthenium HX High Ignitability Spark Plug
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for todays modern vehicles. Patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy. Created from advanced OE technology as a high ignitability plug; Ruthenium HX spark plugs come with patented, specialized OEM DFE and PSPE tip designs. NGK Ruthenium HX High Ignitability spark plugs provide a more complete fuel burn resulting in a quicker throttle response, smoother idle and better cold starts. Ruthenium center electrode provides industry leading durability.

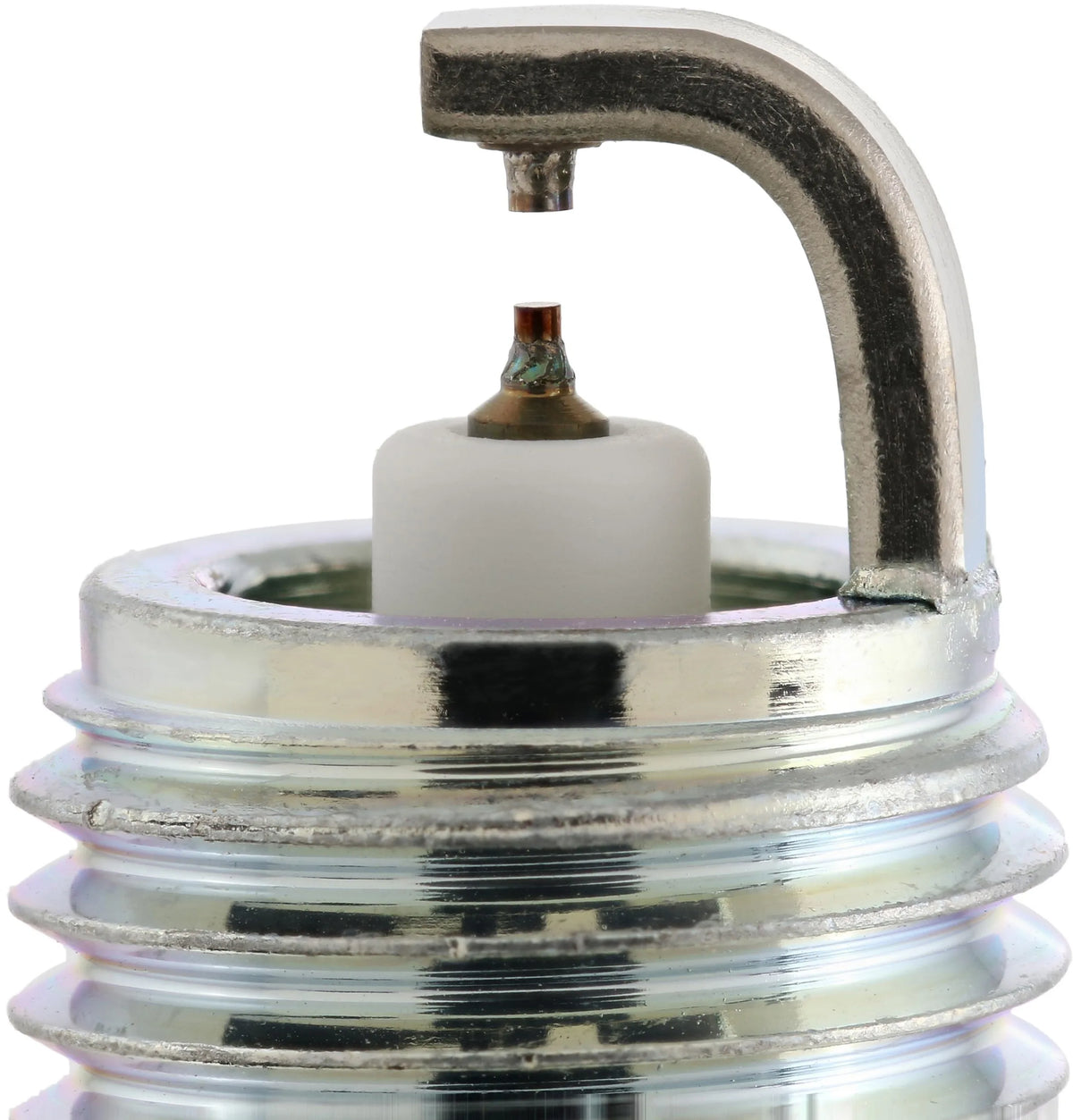

- HIGH IGNITABILITY DOUBLE FINE ELECTRODE DESIGN: Combines 0.6 millimeter ruthenium center with opposed fine wire platinum ground electrode
- RUTHENIUM ALLOY CENTER ELECTRODE: NGK's patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures
- PLATINUM PIN TYPE GROUND ELECTRODE: Provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
Specifications
| Metallurgy | Ruthenium |
| Part Number | LKAR6AHX |
| Short Style Spark Plug | No |
| Stock Number | 97292 |
| Service Number | LKAR6AHX |
| Resistor Value | 5000.0 82 |
| Tip Configuration | Dual Fine Electrode (DFE) - High Ignitability |
| Ground Configuration | J-Gap |
| Thread Type Standard | Metric |
| Ground Electrode Core Material | Nickel |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Material | Ruthenium |
| Pre-Gap Size | .044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 14mm |
| Insulator Height | 1.99 IN |
| Manufacturer Heat Range | 6 |
| Seat Type | Flat |
| Reach | 1.043 IN |
| Insulator Material | Ceramic |
| Skirt Length | 0.0 IN |
| Thread Size | M12 - 1.25 |
| Ground Electrode Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.12 IN |
| Electrode Style | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Country of Origin | Japan |
