Oracle Lighting 3001 TRIGGER 6 SHOOTER Wireless Accessory Control System

TRIGGER 6 SHOOTER Wireless Accessory Control Module

The Trigger 6 SHOOTER Wireless Accessory Control System substantially saves your electronic accessories' installation time! Eliminate the need to run wires under the dash or through the firewall of a vehicle when wiring accessories. It also adds functionality such as an RF remote control for activating installed accessories from outside the vehicle and dimming/flashing functions for installed lighting. In addition, fused circuits with LED indicators notify you of blown fuses. The included battery-powered RF remote utilizes a universal mounting system that will accommodate round surfaces as well as flat surfaces. Its buttons are back-lit and it is programmable for security or use with additional remotes. Several Trigger control boxes and remotes can be used together to control up to 24 accessories. When mounted to a UTV roll bar, the buttons on the remote are more easily accessible than dash switches. No straining against seat belts to reach the dash, just a quick reach up to tap the remote. The Bluetooth App will control on/off and dimming functions as well as flashing when used with LED or conventional lighting. It is simple to set up and allows for user customization. Use the app to "Trigger" lights from outside the vehicle whenever you might need to activate an accessory on demand.

Features

• Accepts 12-24 Volt input
• Manual buttons for individual circuit power on top of control box
• Built in DIN connector for use of conventional toggle switches (harness sold separately)
• Low voltage cut off will shut down the 6 Shooter if battery voltage gets too low
• 100 amp fuse installed on positive input wire for whole system protection
• Six 12-24 volt output harnesses with pre-installed waterproof connectors

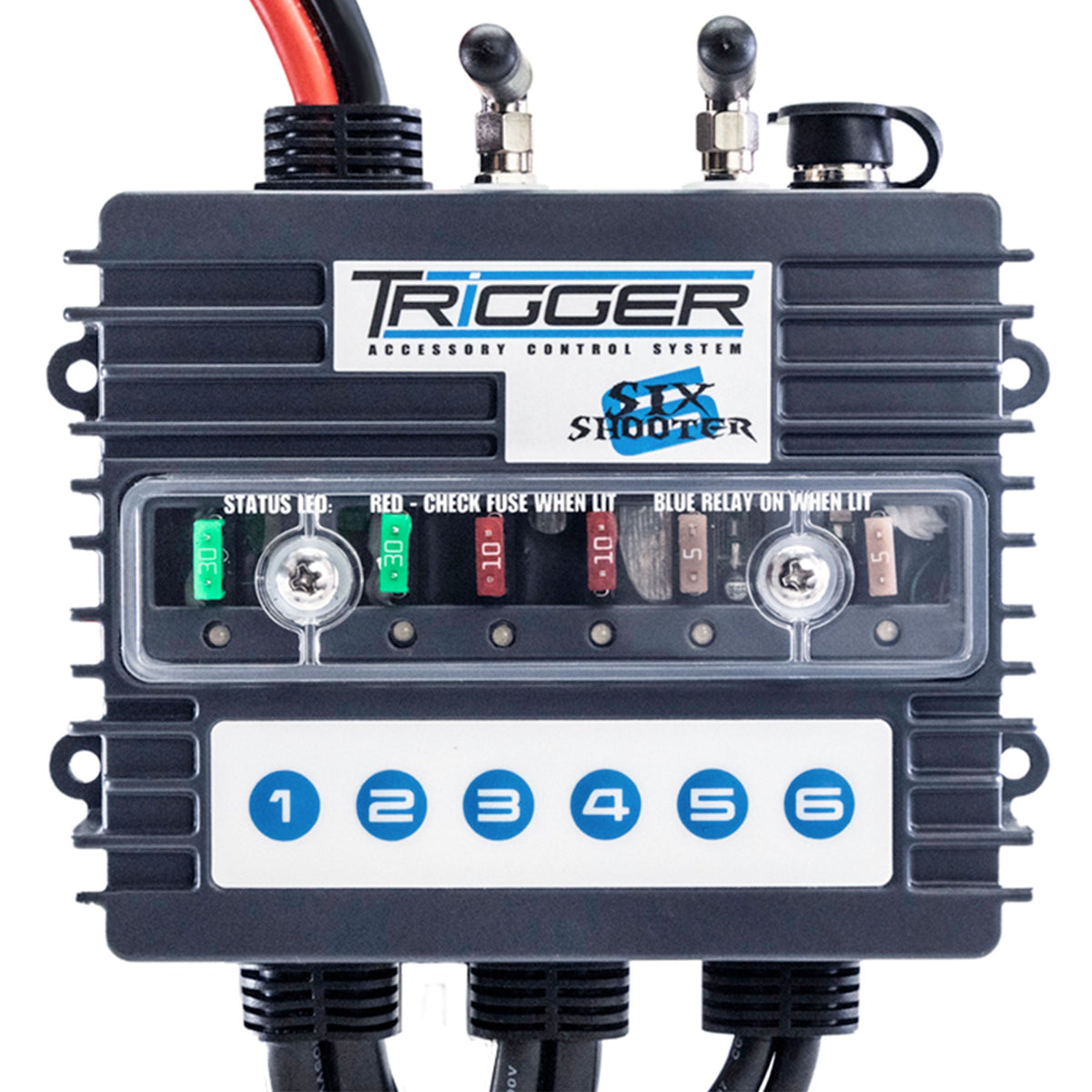

• Built in fuses with o-ring sealed cover: two 30 amp, two 10 amp, two 5 amp
• High intensity LED's indicate circuit status, blue for circuit on, red for blown f
• Waterproof case design, withstands temps from below freezing to 250 degrees F
• 12 to 24 volt input, 3 wires, ground, switched positive, battery positive
• Comes with switch labels too!
• Two 30, two 10, and two 5 amp fused circuits
• Free 3-year warranty that covers manufacturing defects

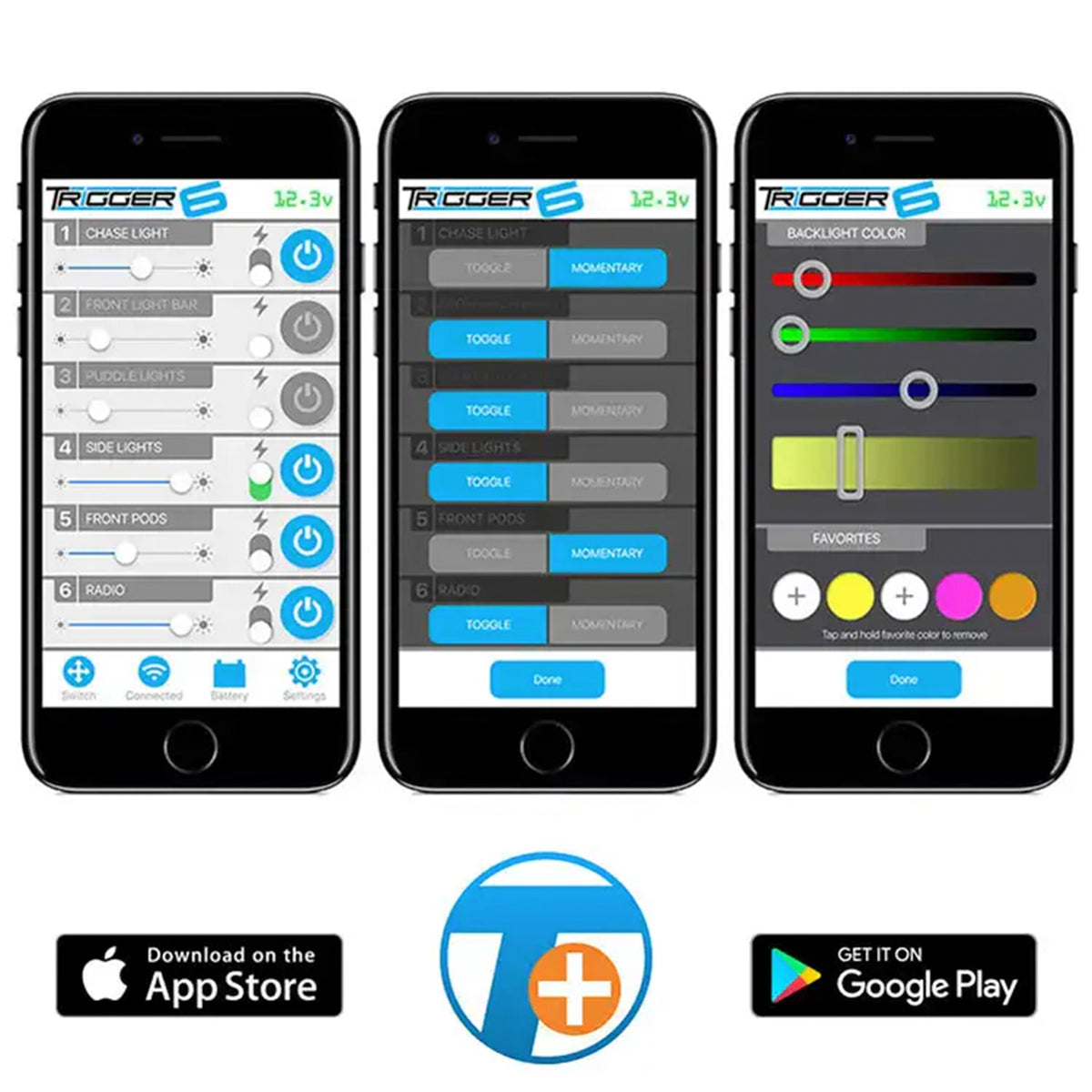

• Built-in Bluetooth battery monitor - see connected battery voltage in real-time on the TRIGGER ACS PLUS app
• Includes six 8-foot-long wire harnesses with waterproof connectors

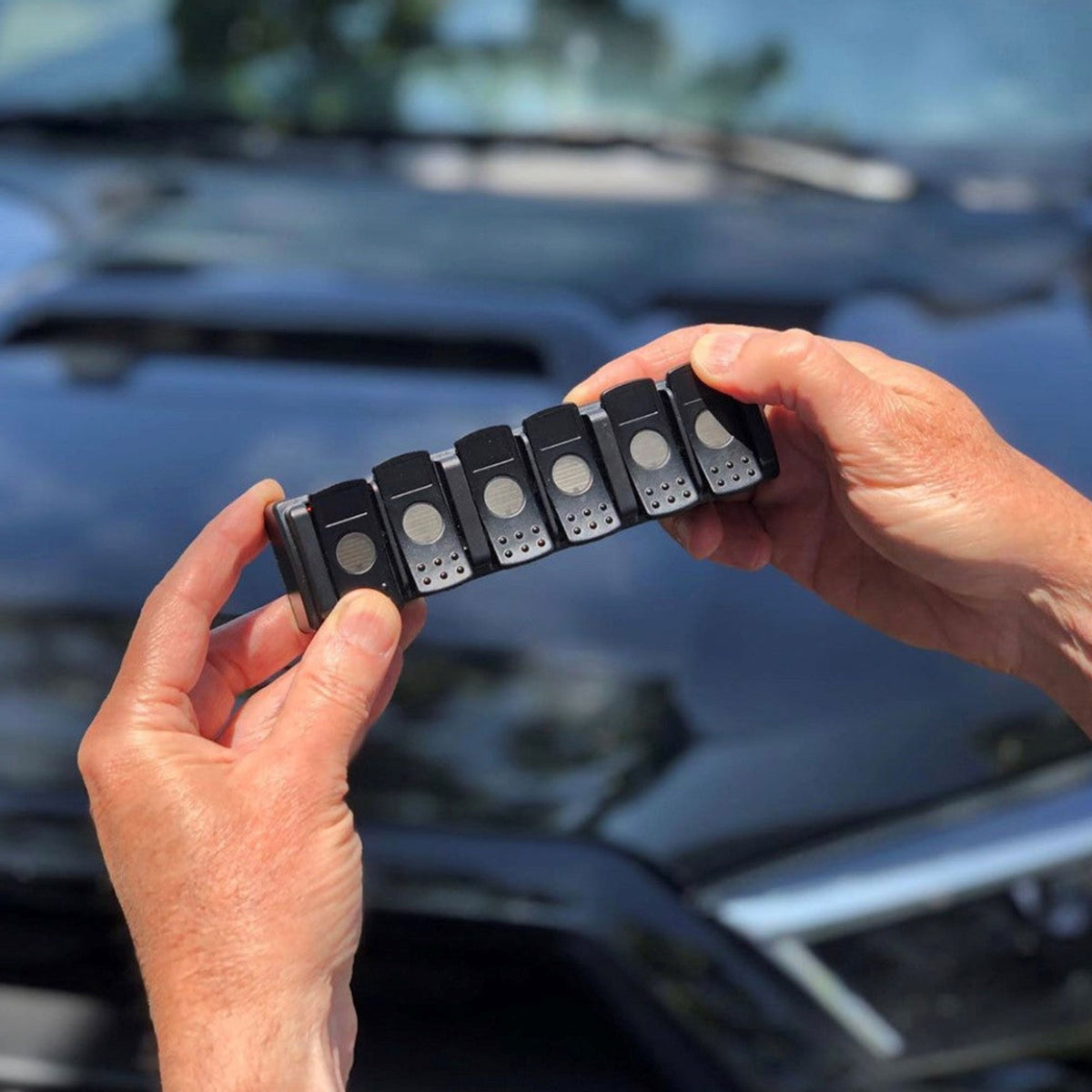

• Wireless back-lit RF remote rocker switch module
• Set custom backlight colors on the remote!
• Backlit switches when optionally connected to 12 Volt power via an 8' long, thin 28 gauge harness
• You can control it from your mobile device with our free TRIGGER ACS PLUS App for iOS/Android!
• RF Remote with rocker-style switches usable inside or outside the vehicle

Specifications

Note: Black

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.

Warranty: 3
