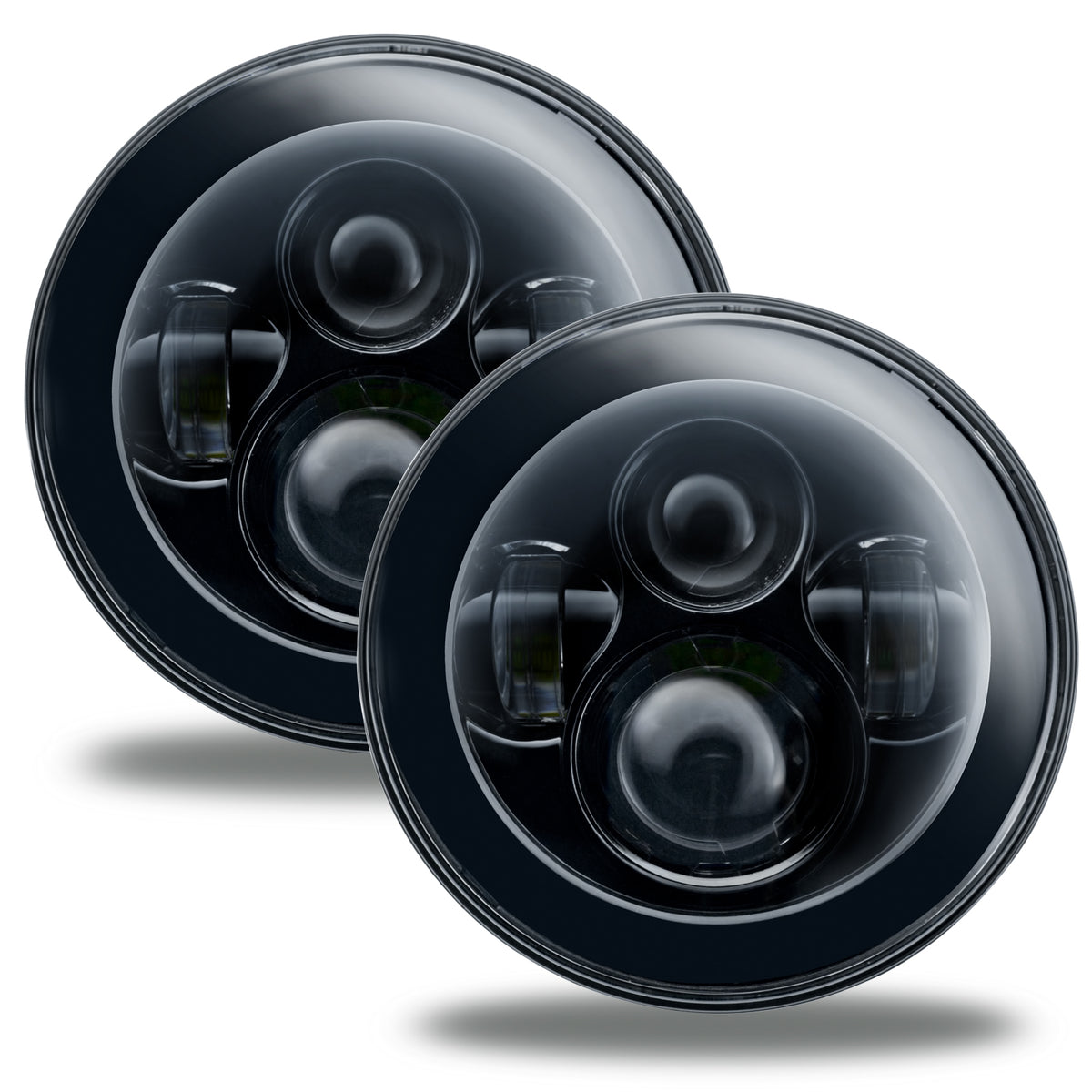

Oracle Lighting 5769-504 7" High Powered LED Headlights - NO HALO - Black Bezel
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
ORACLE Lighting 7" High Powered LED Headlights - NO HALO - Black Bezel

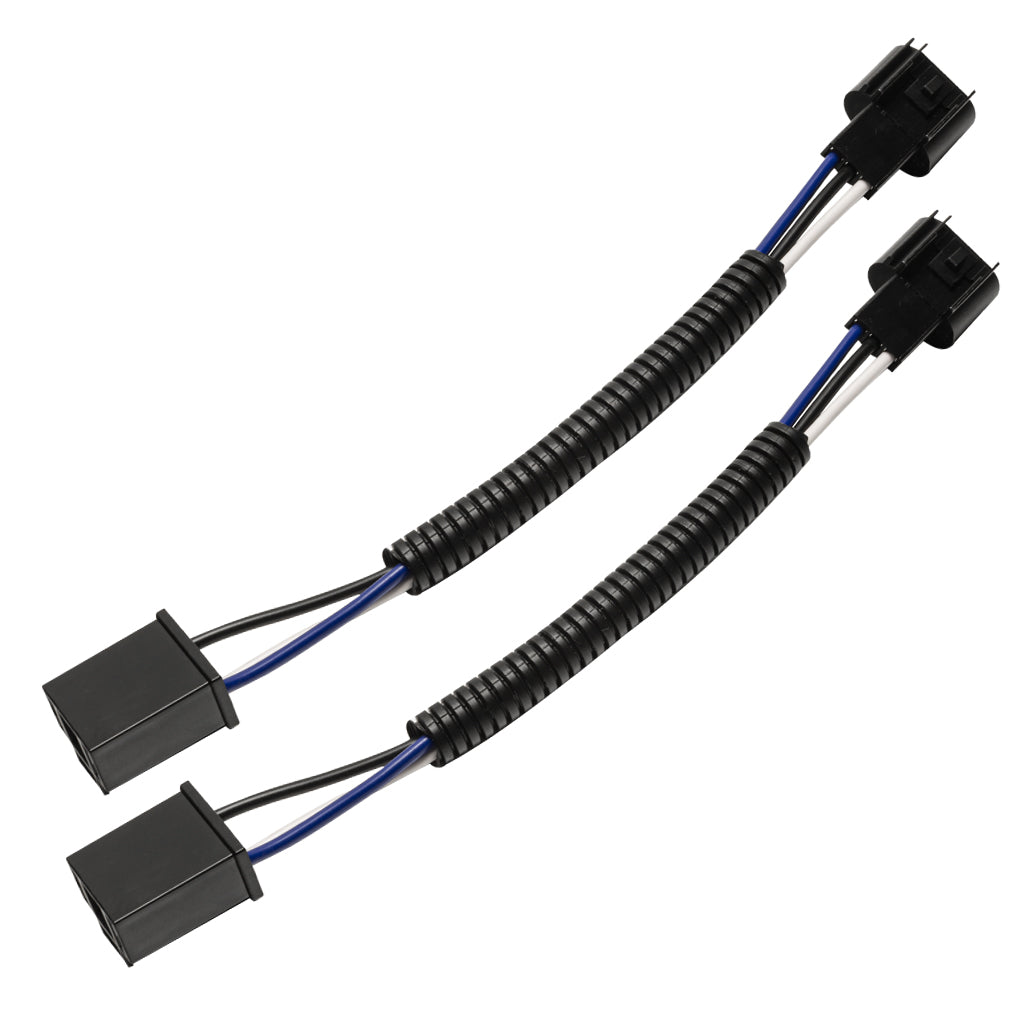

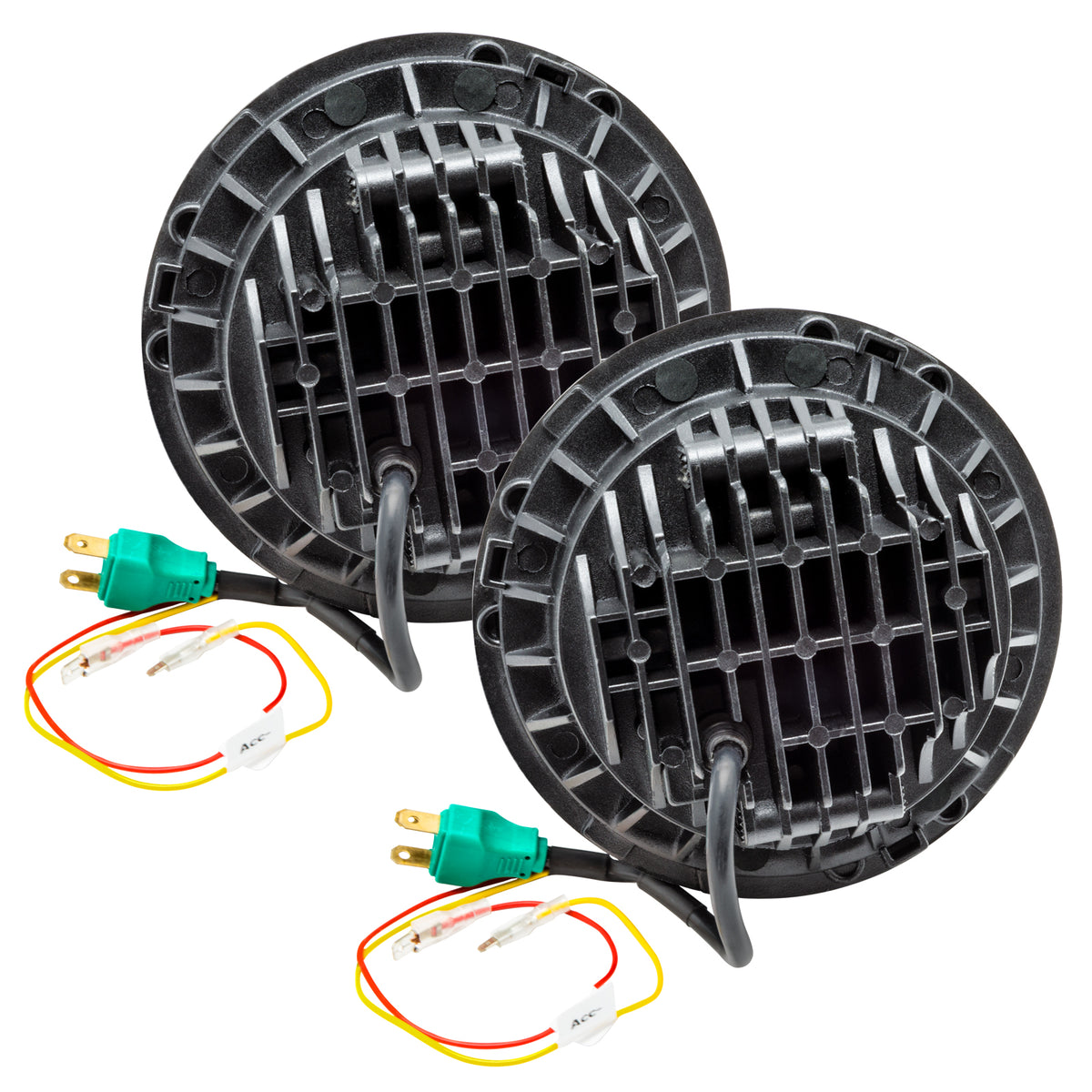

The Ultimate LED replacement headlight option for any vehicle with 7" Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 Plug and Play connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization! Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos. NEW! No need for Anti-Flicker Wiring Adapters- The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues. Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product. Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. Brighter LED Halos- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues. LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output.
Features
- Premium Performance Phillips Luxeon ZES LEDs
Specifications
| Low Beam Wattage | 30W Normal/36W Max |
| Brightness | 3600 LU |
| High Beam Lumens | 3600 |
| Bulb Quantity | 4 |
| Low Beam Lumens | 2200 |
| Amp Draw | 2.50 Amps at 12V DC / 1.30 Amps at 24V DC |
| Amperage Rating | 2.5 68 |
| Warranty | 2 Year |
| Input Voltage of light | 12-24V DC |
| Voltage | 12 2H |
| Secondary Amperage Rating | 1.3 68 |
| High Beam Wattage | 40W Normal/48W Max |
| Housing Color | Black |
| Background Color | Black |
| Bezel Color | Black |
| Terminal Type | Blade |
| Housing Material | Cast Aluminum |
| Lens Color | Clear |
| Bulb Type | H4/H13 |
| Beam Type | High Beam Low Beam |
| Low Beam Bulb Technology | LED |
| Bulb Technology | LED |
| Add-On | N/A |
| Mounting Hardware Included | No |
| Ballast Included | No |
| Automatic Leveling Included | No |
| Adaptive Headlight | No |
| Turn Signal Included | No |
| Adaptive High Beam | No |
| Emergency Warning Lights Included | No |
| Night Vision Included | No |
| LED Color | No Halo |
| Lens Material | PC (Polycarbonate) |
| Headlight Light Projection Technology | Projector |
| Headlight Type | Sealed Beam |
| DOT Approved | Yes |
| Street Legal | Yes |
| Bulbs Included | Yes |
| Adjusting Screw Included | Yes |
| Daytime Running Light Included | Yes |
| High Beam Wattage | 48 99 |
| Wattage | 48 W 99 |
| Bulb Material Color | 6,000K |
| Average Rated Life | 60000 HR |
| Kelvin Temperature | 6000K |
| Bezel Color | Black |
| Automatic On/Off Light | Yes |
| LED Accent Included | Yes |
Note: N/A
Installation Guide: Download PDF
