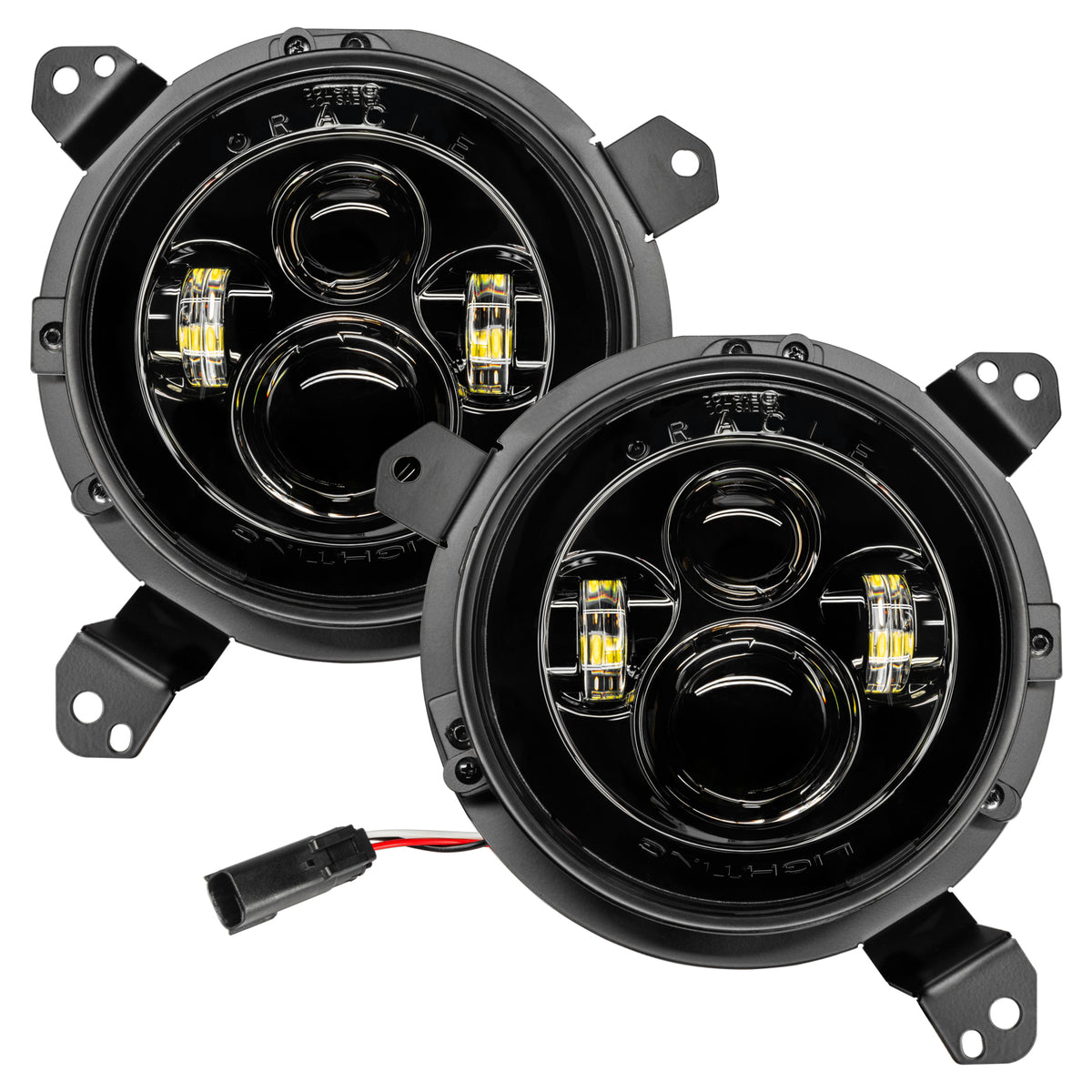

Oracle Lighting 5769J-504 Jeep Wrangler JL/Gladiator JT 7in. High Powered LED Headlights (Pair)
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
ORACLE Lighting Jeep Wrangler JL/Gladiator JT 7in. High Powered LED Headlights (Pair) No Halos
Complete Package for adding High-Performance 7" LED Headlights to your Wrangler JL/Gladiator JT without any fabrication or cutting your factory wiring. This complete Plug-&-Play kit also features Vertical and Horizontal headlight adjustment so you can put the light on the road (where you need it) and not blind oncoming traffic. The Ultimate 7" LED replacement headlight option for the Wrangler JL/Gladiator JT. This rugged solid-state LED design is perfect for the Jeep owner looking for high-quality lighting for better night time visibility without overpaying. Installation is very easy with the included JL/JT-specific "Plug and Play" connectors. You can even choose optional colored Halos for even more customization! Note: DRL wire cannot be used as a power source - Tapping into Park Lights will give manual control over LED accessory during daytime driving - LED accessory will turn on automatically in night mode when switch is set to AUTO - For full automatic control over the LED accessory use fuse F52 in the engine compartment fuse panel.
Features
- Premium Performance Phillips Luxeon ZES LEDs
- High Beam Lumens: 3600 Lumens/4800 Raw Lumens
- Color Temperature: 6000K (Cool White Color)
- Input Voltage of Light: 12-24V DC
- Input Voltage of Halo (If Included): 12V DC
- Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
- Optional: ORACLE Halo Rings Pre-Installed
- Premium Performance Phillips Luxeon ZES LEDs
- Die-Cast Housing with Corrosion Resistant Coating
- Heavy Duty Solid State Electronics
- Hard-coated Polycarbonate Lens
- Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the LED halos.
- Wide Beam Pattern with Sharp Cut-Off Line
- Easy Plug & Play Installation
- 2 Year Warranty
- DOT and SAE Certified
- Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
- Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spikes can not damage the LEDs.
- Brighter/ More Even Light- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
- LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.They deliver a very high efficacy 130LM/W ratio while having lower thermal output.
- Low Beam Wattage: 30W Normal/36W Max
- Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
- High Beam Wattage: 40W Normal/48W Max
Specifications

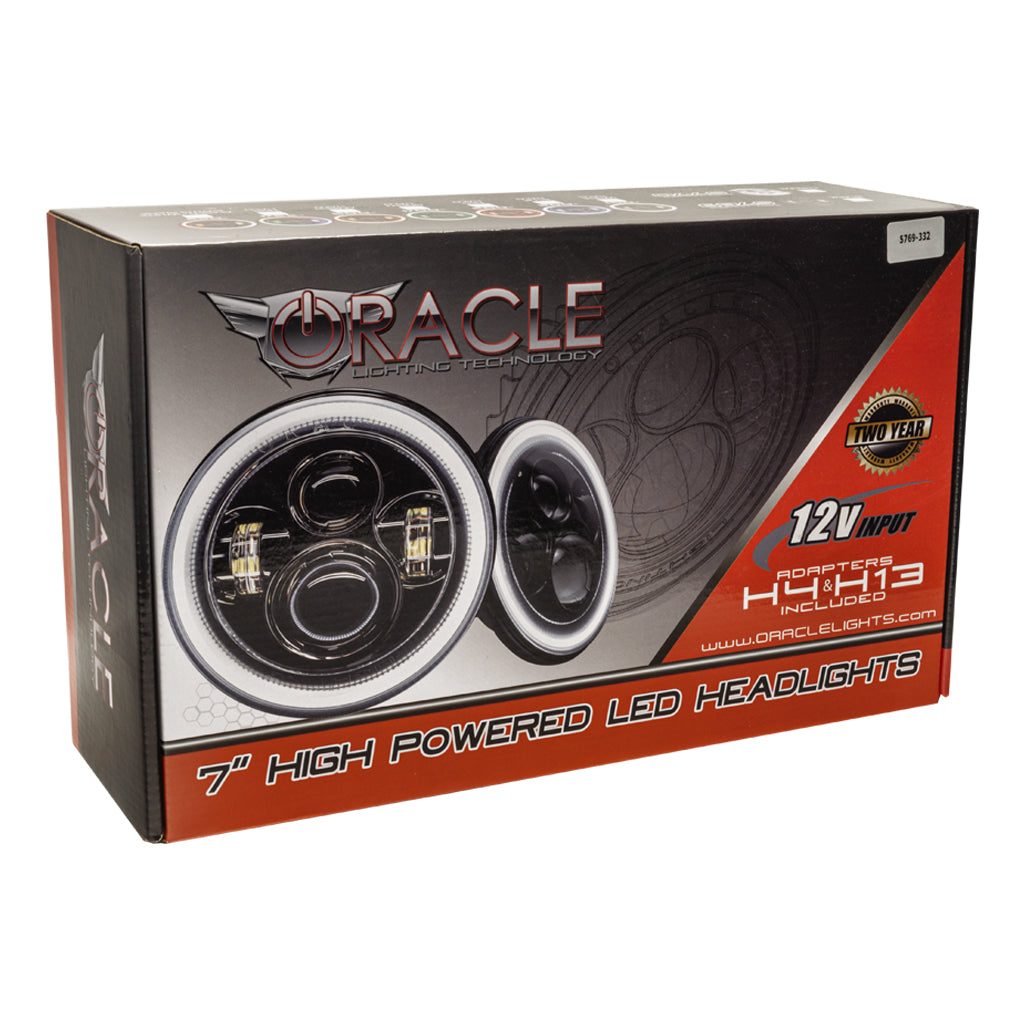

| Contents | (2x) ORACLE 7in. High Performance LED Headlights, (2x) Plug & Play Wiring Adapters, (2x) Direct-Fit Beam Adjustable Headlight Brackets |
| Secondary Amperage Rating | 1.3 68 |
| Voltage | 12 2H |
| Voltage | 12-24V DC |
| Warranty | 2 Year |
| Amperage Rating | 2.5 68 |
| Amp Draw | 2.50 Amps at 12V DC / 1.30 Amps at 24V DC |
| Low Beam Lumens | 2200 |
| Low Beam Wattage | 30W Normal/36W Max |
| Brightness | 3600 LU |
| High Beam Lumens | 3600 |
| Bulb Quantity | 4 |
| High Beam Wattage | 40W Normal/48W Max |
| High Beam Wattage | 48 99 |
| Bulb Material Color | 6,000K |
| Average Rated Life | 60000 HR |
| Kelvin Temperature | 6000K |
| Bezel Color | Black |
| Housing Color | Black |
| Background Color | Black |
| Terminal Type | Blade |
| Housing Material | Cast Aluminum |
| Lens Color | Clear |
| Bulb Type | H4/H13 |
| Beam Type | High Beam Low Beam |
| Low Beam Bulb Technology | LED |
| Bulb Technology | LED |
| Add-On | N/A |
| Ballast Included | No |
| Automatic Leveling Included | No |
| Adaptive Headlight | No |
| Turn Signal Included | No |
| Adaptive High Beam | No |
| Emergency Warning Lights Included | No |
| Night Vision Included | No |
| LED Color | No Halo |
| Lens Material | PC (Polycarbonate) |
| Headlight Light Projection Technology | Projector |
| Headlight Type | Sealed Beam |
| DOT Approved | Yes |
| Street Legal | Yes |
| Bulbs Included | Yes |
| Mounting Hardware Included | Yes |
| Adjusting Screw Included | Yes |
| Daytime Running Light Included | Yes |
| Automatic On/Off Light | Yes |
| LED Accent Included | Yes |
| Wattage | 48 99 |
Note: No Halo
