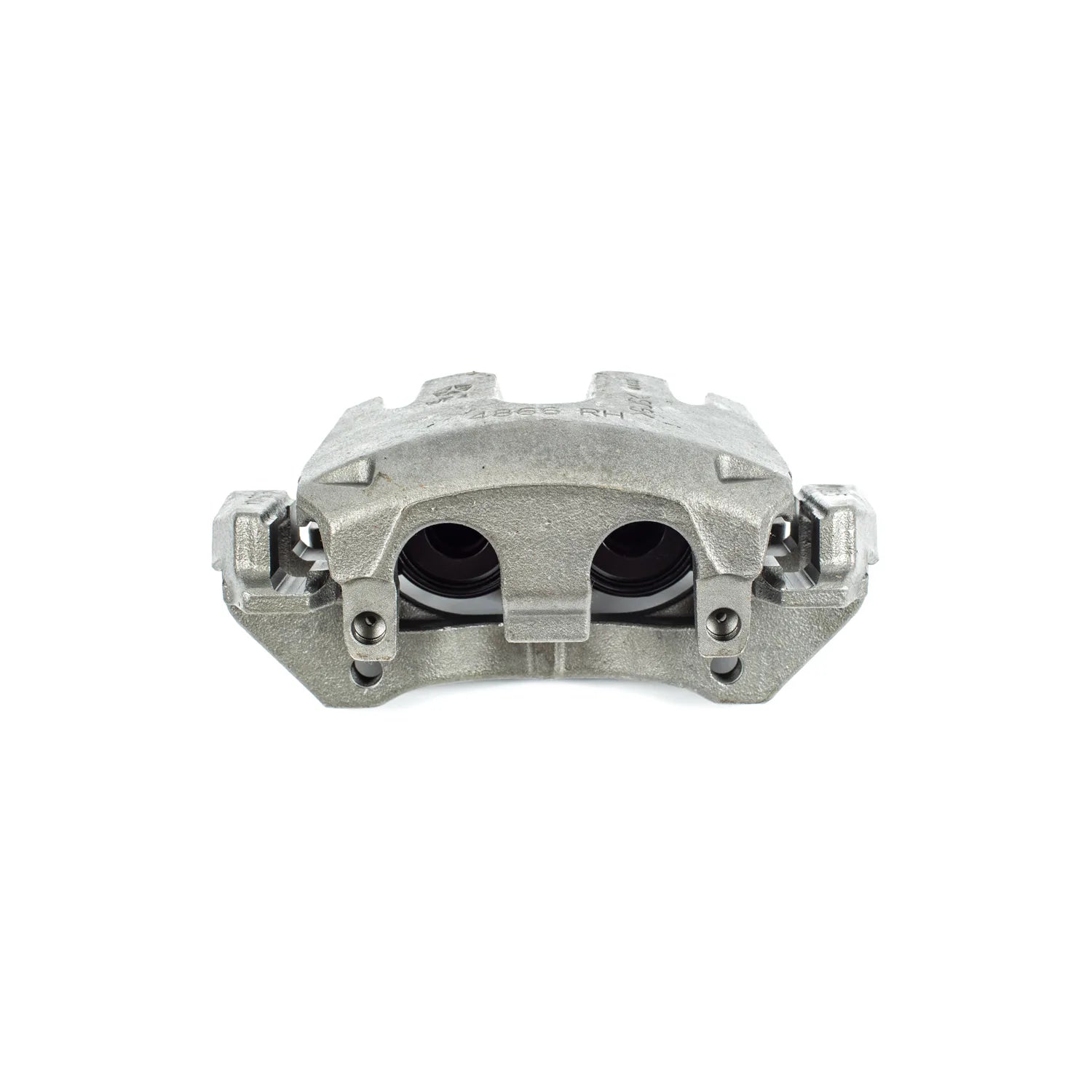

Power Stop L5296 Autospecialty By PowerStop Replacement Brake Caliper
Product Availability Request
Fill the form and our team will contact you.
Autospecialty by PowerStop Brake Calipers (sold individually) are perfect for the DIY and professional installers and bolt on directly in place of the original stock caliper. PowerStop Brake Calipers and brackets are manufactured and engineered to provide the best performance and meet the highest quality standards. Autospecialty by PowerStop Brake Calipers are expertly assembled using new seals, guide pins, dust boots, bleeder screws, and stainless-steel abutment hardware clips. High temperature EPDM rubber dust boots and premium assembly lubricants are used to ensure a smooth caliper operation and durability in the harshest conditions. PowerStop calipers are 100% pressure tested and inspected to guarantee a reliable, high quality brake performance. Autospecialty by PowerStop Brake Calipers deliver a reliable, hassle-free, and durable brake caliper replacement solution for the value-minded consumer!
DIRECT REPLACEMENT CALIPER
- Bolt on ready, no modifications necessary
- 100% Pressure tested and inspected for high quality brake performance.
- New seals, caliper guide pins, dust boots, bleeder screws, stainless steel brake pad attachment hardware and mounting brackets.
- High temperature EPDM rubber dust boots
- Premium lubricant is used to ensure a smooth caliper operation and durability in the harshest conditions.
Floating Caliper with Bracket
Specifications
| Grade Type | Standard Replacement |
| Mounting Hole Thread | M14 - 1.5 |
| Front Right Pad Contact Height | 0.00 mm |
| Lower Seal Groove 1 | 52.60 mm |
| Rear Upper Pad Contact Width | 194.59 mm |
| Mount to Mount Distance | 140.00 mm |
| Left Guide Pin Bore | 0.00 mm |
| Right Guide Pin Depth | 0.00 mm |
| Front Left Pad Contact Height | 0.00 mm |
| Mounting Hole Thread Diameter | 1.50 mm |
| Right Ear Thickness | 18.49 mm |
| Left Ear Bore | 22.51 mm |
| Guide Pin to Pin Distance | 160.00 mm |
| Caliper Piston Bore 4 | 48.00 mm |
| Caliper Body Opening | 87.63 mm |
| Right Guide Pin Bore | 0.00 mm |
| Caliper Piston Bore 1 | 48.00 mm |
| Left Bracket Opening | 36.40 mm |
| Front Right Pad Contact Length | 30.49 mm |
| Bleeder Screw Thread | M10 - 1.0 |
| Front Lower Pad Contact Width | 168.45 mm |
| Piston Bore Length 3 | 45.98 mm |
| Piston Bore Length 4 | 45.96 mm |
| Ear Bore to Bore Distance | 160.00 mm |
| Inlet Thread Diameter | 10.00 mm |
| Rear Right Pad Contact Height | 0.00 mm |
| Bleeder Screw Thread Pitch | 1.00 mm |
| Casting Ear Size | M10 - 1.25 |
| Piston Bore Length 2 | 45.90 mm |
| Bleeder Screw Thread Diameter | 10.00 mm |
| Left Mount Thickness | 25.41 mm |
| Caliper Piston Bore 3 | 48.00 mm |
| Rear Left Pad Contact Length | 23.08 mm |
| Rear Left Pad Contact Height | 0.00 mm |
| Rear Lower Pad Contact Width | 194.89 mm |
| Inlet Port Thread | M10 - 1.0 |
| Piston Bore Length 1 | 45.73 mm |
| Caliper Piston Bore 2 | 48.00 mm |
| Left Guide Pin Depth | 0.00 mm |
| Upper Seal Groove 2 | 53.52 mm |
| Upper Seal Grove 1 | 53.50 mm |
| Left Ear Thickness | 18.34 mm |
| Right Ear Bore | 22.50 mm |
| Inlet Thread Pitch | 1.00 mm |
| Right Bracket Opening | 36.65 mm |
| Right Mount Thickness | 25.40 mm |
| Front Upper Pad Contact Width | 168.09 mm |
| Front Left Pad Contact Length | 30.35 mm |
| Rear Right Pad Contact Length | 23.20 mm |
| Lower Seal Groove 2 | 52.63 mm |
| Country of Origin | China |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 3 Months
