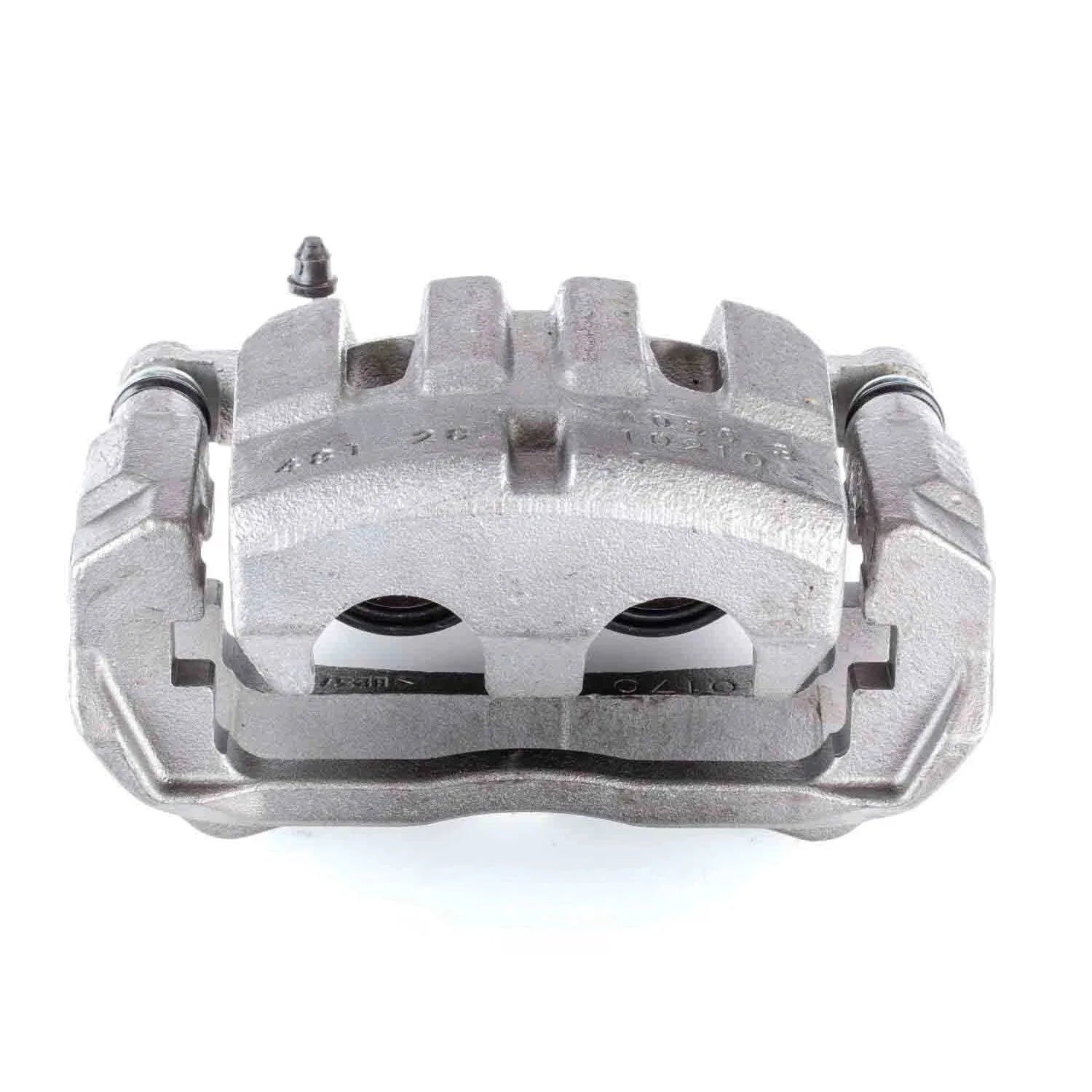

Power Stop L5509 Autospecialty By PowerStop Replacement Brake Caliper
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
Autospecialty by PowerStop Brake Calipers (sold individually) are perfect for the DIY and professional installers and bolt on directly in place of the original stock caliper. PowerStop Brake Calipers and brackets are manufactured and engineered to provide the best performance and meet the highest quality standards. Autospecialty by PowerStop Brake Calipers are expertly assembled using new seals, guide pins, dust boots, bleeder screws, and stainless-steel abutment hardware clips. High temperature EPDM rubber dust boots and premium assembly lubricants are used to ensure a smooth caliper operation and durability in the harshest conditions. PowerStop calipers are 100% pressure tested and inspected to guarantee a reliable, high quality brake performance. Autospecialty by PowerStop Brake Calipers deliver a reliable, hassle-free, and durable brake caliper replacement solution for the value-minded consumer!
DIRECT REPLACEMENT CALIPER
- Bolt on ready, no modifications necessary
- 100% Pressure tested and inspected for high quality brake performance.
- New seals, caliper guide pins, dust boots, bleeder screws, stainless steel brake pad attachment hardware and mounting brackets.
- High temperature EPDM rubber dust boots
- Premium lubricant is used to ensure a smooth caliper operation and durability in the harshest conditions.
Floating Caliper with Bracket
Specifications
| Grade Type | Standard Replacement |
| Mounting Hardware Included | No |
| Color | Silver |
| Mounting Hole Thread | M14 - 1.5 |
| Thread Size | M14 - 1.5 |
| Mount to Mount Distance | 150.00 mm |
| End Type | Banjo |
| Right Bracket Opening | 33.01 mm |
| Right Ear Thickness | 12.00 mm |
| Right Guide Pin Depth | 63.81 mm |
| Pad Wear Sensor Included | Yes |
| Piston Material | Phenolic |
| Left Ear Thickness | 12.00 mm |
| Front Left Pad Contact Length | 16.25 mm |
| Rear Upper Pad Contact Width | 171.89 mm |
| Inlet Port Thread | M8 - 1.0 |
| Measurement System | Metric |
| Front Left Pad Contact Height | 16.55 mm |
| Lower Seal Groove 1 | 52.70 mm |
| Rear Right Pad Contact Length | 16.31 mm |
| Ear Bore to Bore Distance | 185.00 mm |
| Casting Ear Size | N/A |
| Right Ear Bore | 10.20 mm |
| Left Guide Pin Bore | 12.33 mm |
| Upper Seal Grove 1 | 53.70 mm |
| Piston Bore Length 2 | 52.10 mm |
| Bleeder Screw Thread Diameter | 8.00 mm |
| Bleeder Screw Thread | M10 - 1.0 |
| Front Lower Pad Contact Width | 152.00 mm |
| Left Ear Bore | 10.20 mm |
| Piston Bore Length 3 | 52.10 mm |
| Right Mount Thickness | 19.29 mm |
| Caliper Type | Floating |
| Rear Left Pad Contact Height | 16.57 mm |
| Rear Lower Pad Contact Width | 171.90 mm |
| Quantity | 2 |
| Piston Bore Length 4 | 52.10 mm |
| Front Upper Pad Contact Width | 151.95 mm |
| Piston Quantity | 1 |
| Bleeder Screw Size | 9mm |
| Inlet Thread Diameter | 10.00 mm |
| Rear Right Pad Contact Height | 16.61 mm |
| Mounting Hole Thread Diameter | 1.50 mm |
| Front Right Pad Contact Height | 16.59 mm |
| Lower Seal Groove 2 | 52.70 mm |
| Bleeder Screw Thread Size | M8 - 1.0 |
| Bleeder Screw Thread Pitch | 1.00 mm |
| Front Right Pad Contact Length | 16.29 mm |
| Inlet Thread Pitch | 1.00 mm |
| Caliper Piston Bore 4 | 48.10 mm |
| Rear Left Pad Contact Length | 16.42 mm |
| Left Bracket Opening | 32.98 mm |
| Inlet Thread Size | M10 - 1.0 |
| Weight | 15.45 lb |
| Caliper Body Opening | 69.00 mm |
| Left Mount Thickness | 19.31 mm |
| Construction Type | Two-Piece |
| Caliper Piston Bore 2 | 48.10 mm |
| Right Guide Pin Bore | 12.16 mm |
| Caliper Piston Bore 1 | 48.10 mm |
| Piston Diameter | 48.10 mm |
| Caliper Piston Bore 3 | 48.10 mm |
| Piston Bore Length 1 | 52.10 mm |
| Left Guide Pin Depth | 63.60 mm |
| Upper Seal Groove 2 | 53.70 mm |
| Guide Pin to Pin Distance | 185.00 mm |
| Mounting Hole Diameter | 14.00 mm |
| Caliper Casting Material | Cast Iron |
| Caliper Finish | Uncoated |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 3 Months
