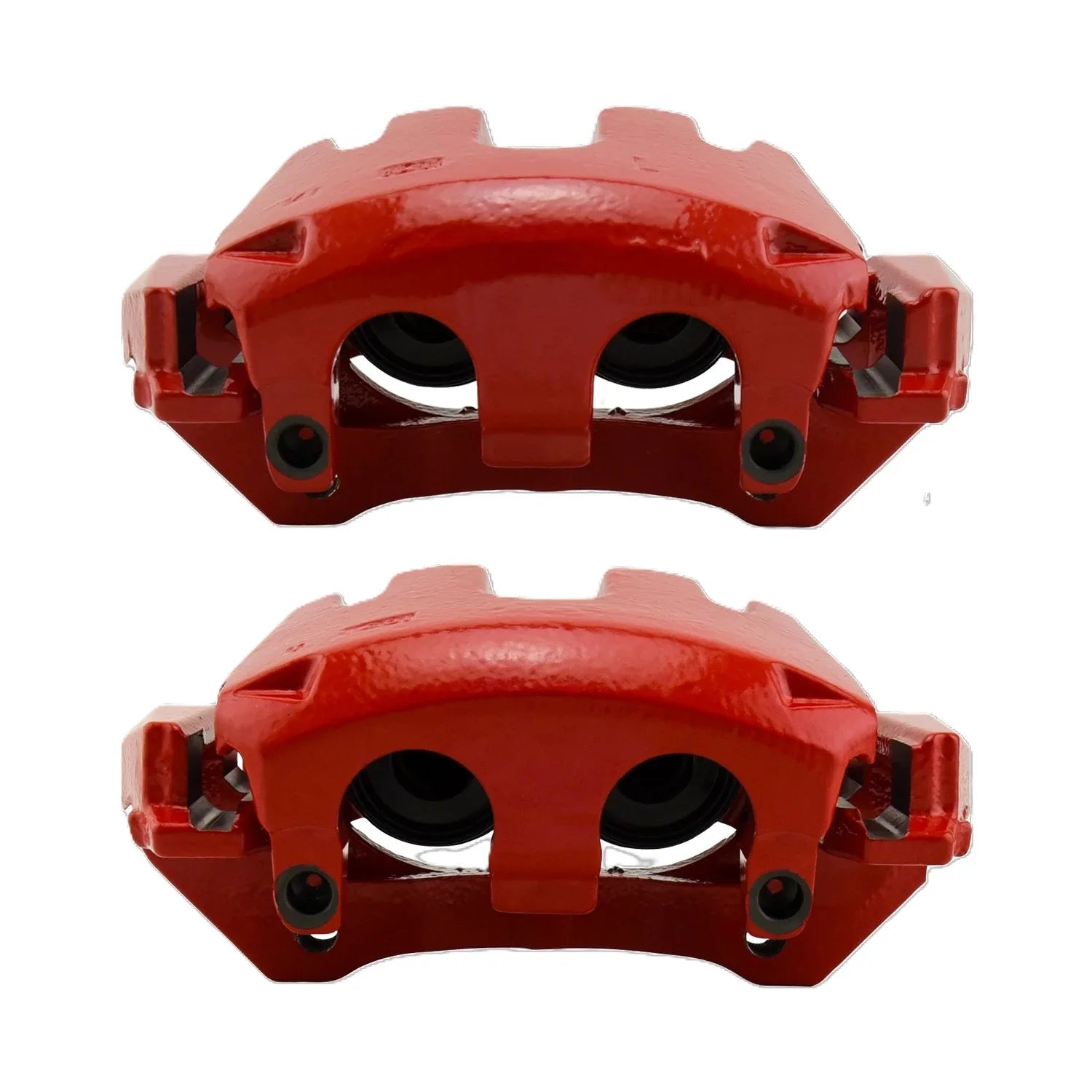

Power Stop S5296 Red Powder Coated Calipers
Product Availability Request
Fill the form and our team will contact you.
PowerStop Powder Coated Brake Calipers are made specifically with the enthusiast in mind. These calipers (sold as pairs) bolt directly in place of the original stock calipers and look great behind any set of wheels. PowerStop Brake Calipers are engineered to provide the best performance and reliability, and are coated with a durable electrostatic high-temperature red powder coat. The easy-to-clean coating provides resistance to rust and corrosion thus extending the life of your calipers. PowerStop calipers are 100% pressure tested and inspected to verify piston operation to guarantee a reliable, high quality brake performance. Expertly assembled with everything needed for a brake upgrade using new seals, caliper slide pins/bolts, dust boots, bleeder screws, and stainless-steel pad attachment hardware. High temperature EPDM rubber dust boots and premium lubricants ensure a smooth caliper operation and durability in the harshest conditions. PowerStop Powder Coated Brake Calipers are finished in a high-temp powder coating and designed to enhance both the performance and custom look of your vehicle!
HIGH-TEMP RED POWDER COATED CALIPERS (PAIR)

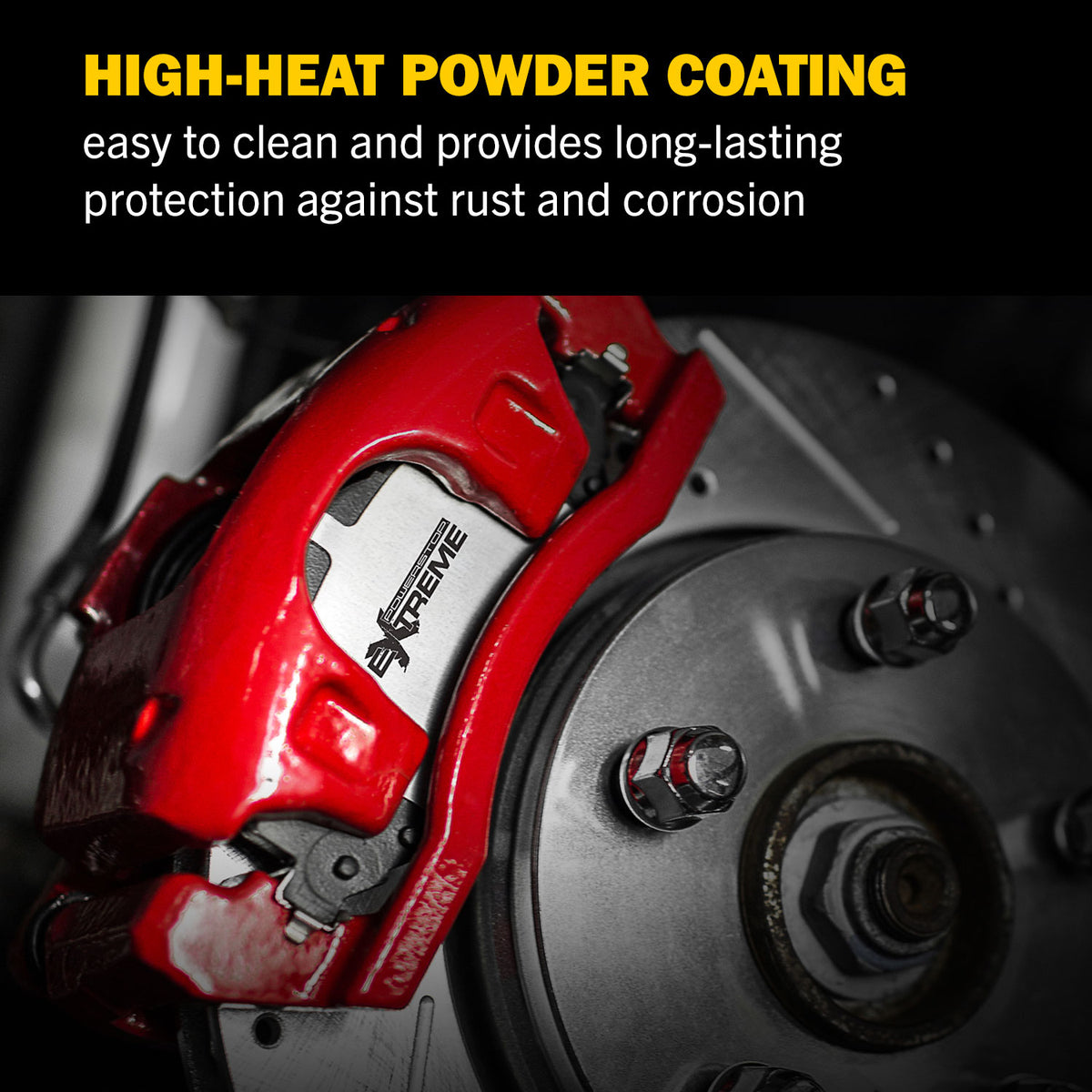

- High-Temp red powder coating keeps calipers looking new longer
- Easy to clean powder coating helps to resist rust and corrosion and extends the life of calipers.
- Bolt on ready, no modifications necessary

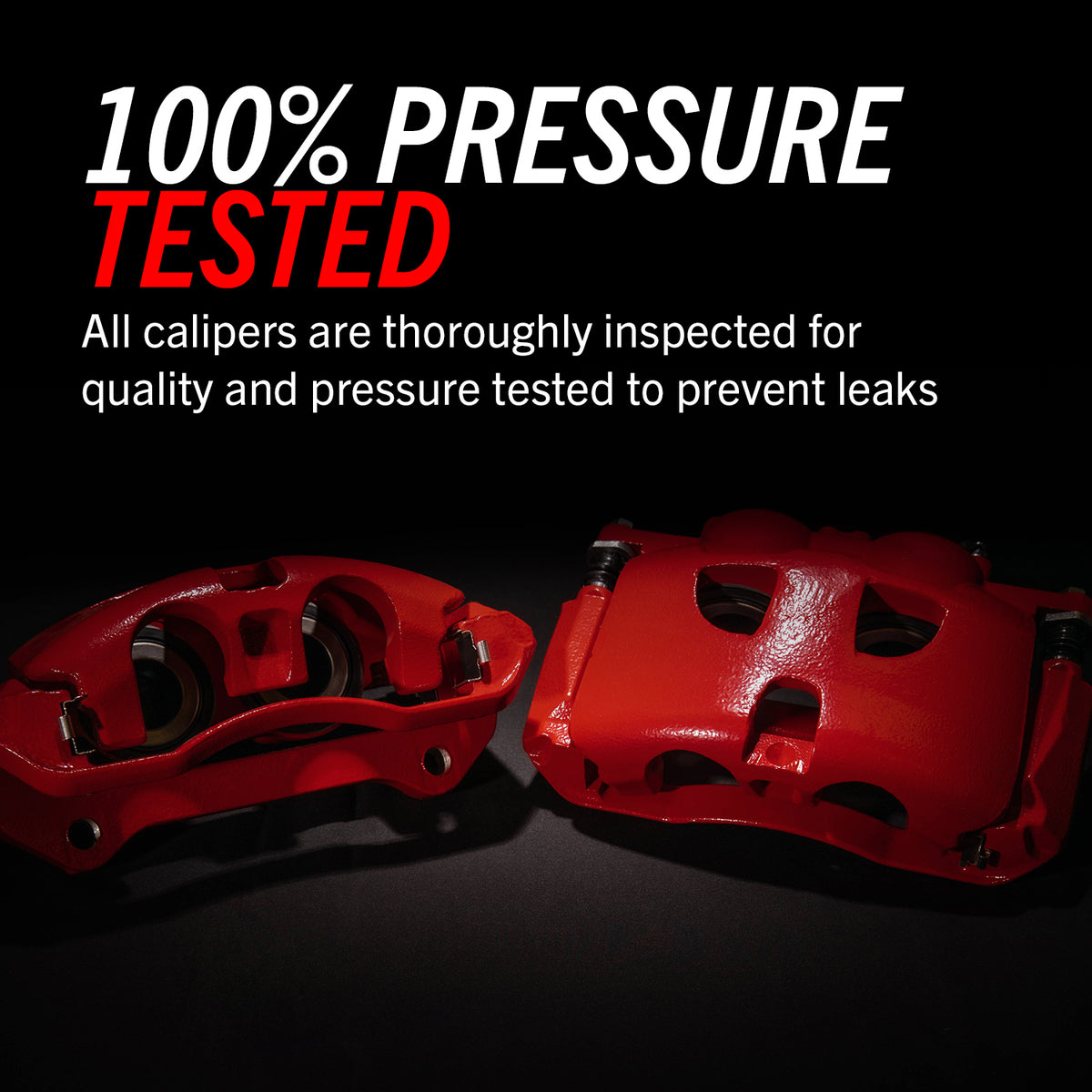

- 100% Pressure tested and inspected for high quality brake performance.
- New seals, caliper guide pins, dust boots, bleeder screws, stainless steel brake pad attachment hardware and mounting brackets.
- High-Temp EPDM rubber dust boots
- Premium lubricant is used to ensure a smooth caliper operation and durability in the harshest conditions.
Floating Caliper with Bracket
Specifications
| Grade Type | Performance |
| Front Left Pad Contact Length | 30.35 mm |
| Rear Right Pad Contact Length | 23.20 mm |
| Rear Lower Pad Contact Width | 194.89 mm |
| Casting Ear Size | M10 - 1.25 |
| Inlet Port Thread | M10 - 1.0 |
| Bleeder Screw Thread Diameter | 10.00 mm |
| Left Guide Pin Depth | 0.00 mm |
| Left Mount Thickness | 25.41 mm |
| Left Bracket Opening | 36.40 mm |
| Rear Left Pad Contact Height | 0.00 mm |
| Caliper Piston Bore 4 | 48.00 mm |
| Upper Seal Groove 2 | 53.52 mm |
| Piston Bore Length 2 | 45.90 mm |
| Inlet Thread Pitch | 1.00 mm |
| Left Guide Pin Bore | 0.00 mm |
| Right Guide Pin Depth | 0.00 mm |
| Right Ear Thickness | 18.49 mm |
| Ear Bore to Bore Distance | 160.00 mm |
| Upper Seal Grove 1 | 53.50 mm |
| Right Mount Thickness | 25.40 mm |
| Right Bracket Opening | 36.65 mm |
| Front Right Pad Contact Height | 0.00 mm |
| Rear Left Pad Contact Length | 23.08 mm |
| Lower Seal Groove 2 | 52.63 mm |
| Piston Bore Length 3 | 45.98 mm |
| Bleeder Screw Thread | M10 - 1.0 |
| Inlet Thread Diameter | 10.00 mm |
| Bleeder Screw Thread Pitch | 1.00 mm |
| Front Left Pad Contact Height | 0.00 mm |
| Rear Right Pad Contact Height | 0.00 mm |
| Front Right Pad Contact Length | 30.49 mm |
| Front Upper Pad Contact Width | 168.09 mm |
| Piston Bore Length 4 | 45.96 mm |
| Front Lower Pad Contact Width | 168.45 mm |
| Rear Upper Pad Contact Width | 194.59 mm |
| Caliper Body Opening | 87.63 mm |
| Left Ear Bore | 22.51 mm |
| Mounting Hole Thread | M14 - 1.5 |
| Left Ear Thickness | 18.34 mm |
| Right Ear Bore | 22.50 mm |
| Caliper Piston Bore 2 | 48.00 mm |
| Mounting Hole Thread Diameter | 1.50 mm |
| Right Guide Pin Bore | 0.00 mm |
| Guide Pin to Pin Distance | 160.00 mm |
| Mount to Mount Distance | 140.00 mm |
| Caliper Piston Bore 1 | 48.00 mm |
| Caliper Piston Bore 3 | 48.00 mm |
| Lower Seal Groove 1 | 52.60 mm |
| Piston Bore Length 1 | 45.73 mm |
| Country of Origin | China |
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 3 Months
