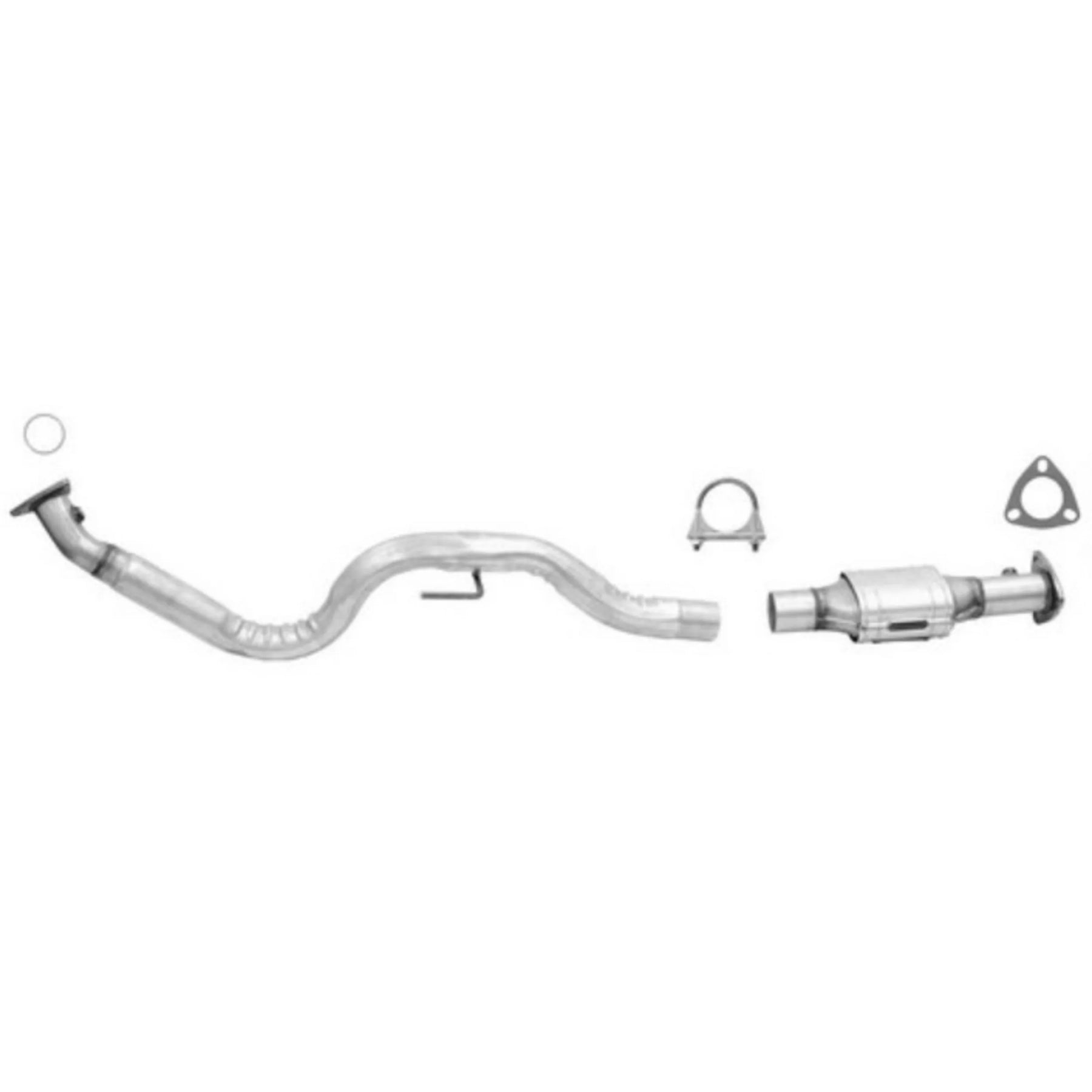

Walker Exhaust 14745 Ultra EPA Direct Fit Catalytic Converter Overall Length 69.00 IN

At 69 inches in overall length, the Walker Exhaust 14745 is a premium-grade stainless-steel catalytic converter with a ceramic substrate featuring an oval body measuring 3.5 inches in height, 5.5 inches in width, and 12 inches in body length. Fits the 2003-2013 Chevrolet Express 2500 and Express 3500 and GMC Savana 2500 and Savana 3500 with the 4.8L V8 and 6.0L V8. The converter connects via a 4-bolt welded flange inlet and a 3-bolt welded flange outlet with a 2.5-inch outside diameter, with included inlet and outlet gaskets and no additional mounting hardware beyond the provided gasket. Equipped with dual oxygen sensor ports located before and after the converter for emissions monitoring, and with an attached heat shield for undercarriage protection, this EPA-compliant converter for specific vehicle applications is backed by Walker's warranty: 25,000 miles or 40,000 kilometers for emissions, and 5 years, 50,000 miles, or 80,000 kilometers for structural integrity.

• Body Height: 3.500 IN
• Material: Stainless Steel
• Body Width: 5.500 IN
• Quantity: 1
• Heat Shield Attached: Yes
• Inlet Quantity: 1
• Inlet Type: 4 Bolt Welded Flange
• Mounting Hardware Included: Gasket Only
• Outlet Outside Diameter: 2.50 IN
• Outlet Quantity: 1
• Outlet Type: 3 Bolt Welded Flange
• Overall Length: 69.00 IN
• Grade Type: Premium
• O2 Sensor Ports: 2
• Substrate Material: Ceramic
• Application Type: Specific
• O2 Sensor Location: Pre and Post Converter
• Body Length: 12.000 IN
• Shape: Oval
• Catalyst Type: Standard
• Clamp Qty: 1
• Inlet Gasket: Yes
• Inlet Gasket Qty: 1
• Inlet Hardware: No
• Outlet Gasket: Yes
• Outlet Gasket Qty: 1
• Outlet Hardware: No
• EPA: Compliant

Not legal for sale or use in CA, CO or NY.
