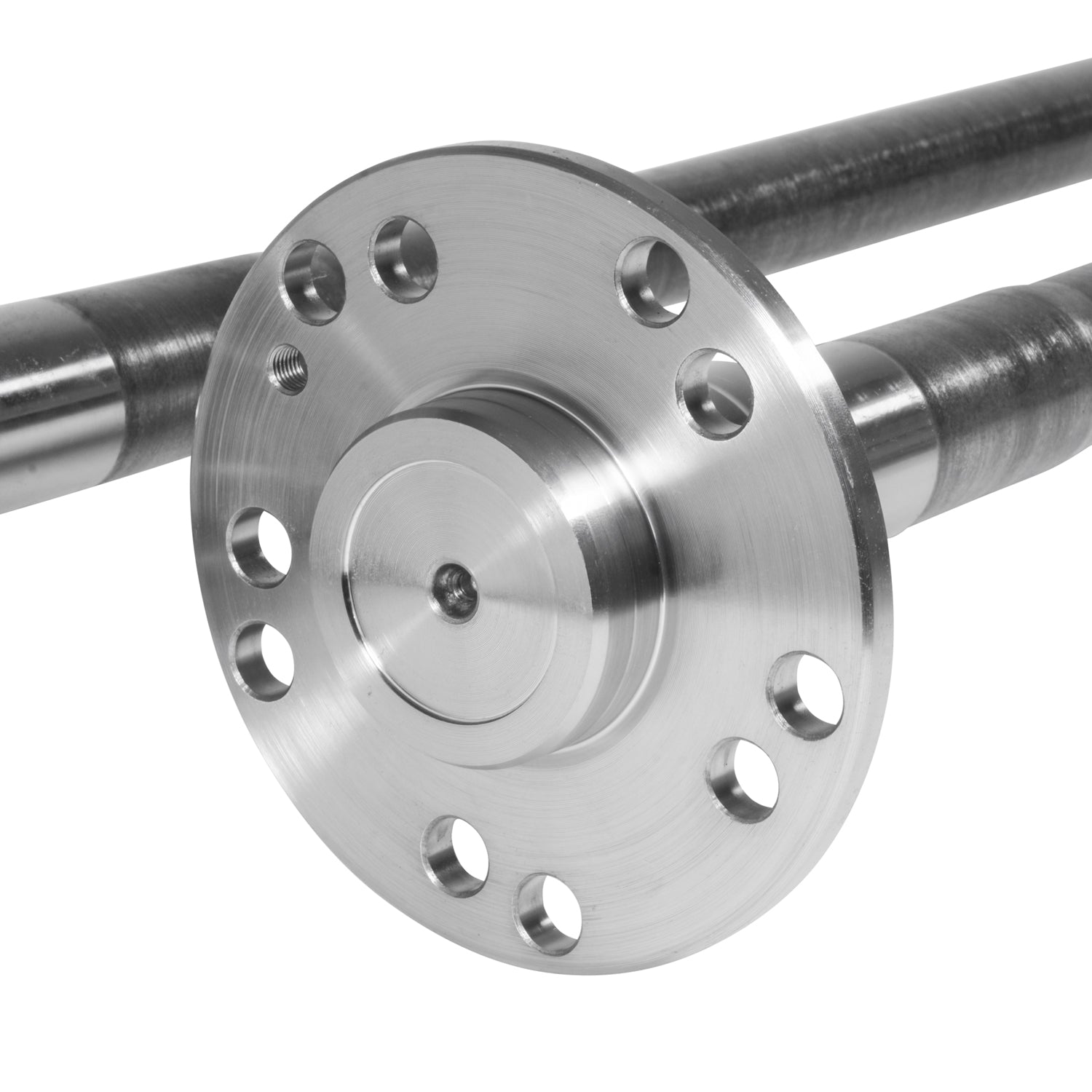

Yukon Gear YAWAK-001 Drive Axle Shaft Assembly
Couldn't load pickup availability
Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability.
Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.
Features
- Fits Dana 44/M220 differential

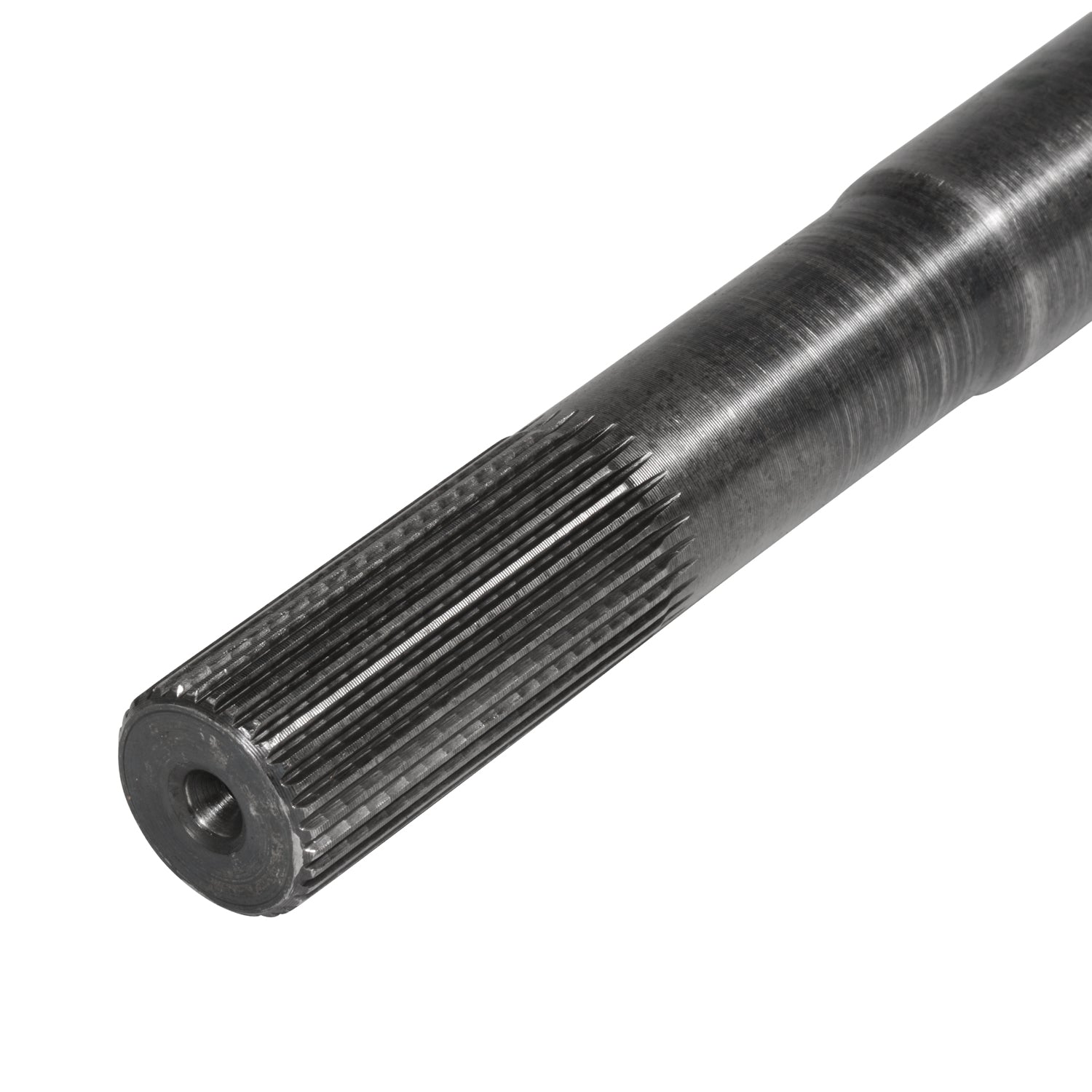

- 32 spline
- LH axle shaft measures 32.2” long
- RH axle shaft measures 33.9” long
- For both sides
- Heavy duty 4340 chromoly construction

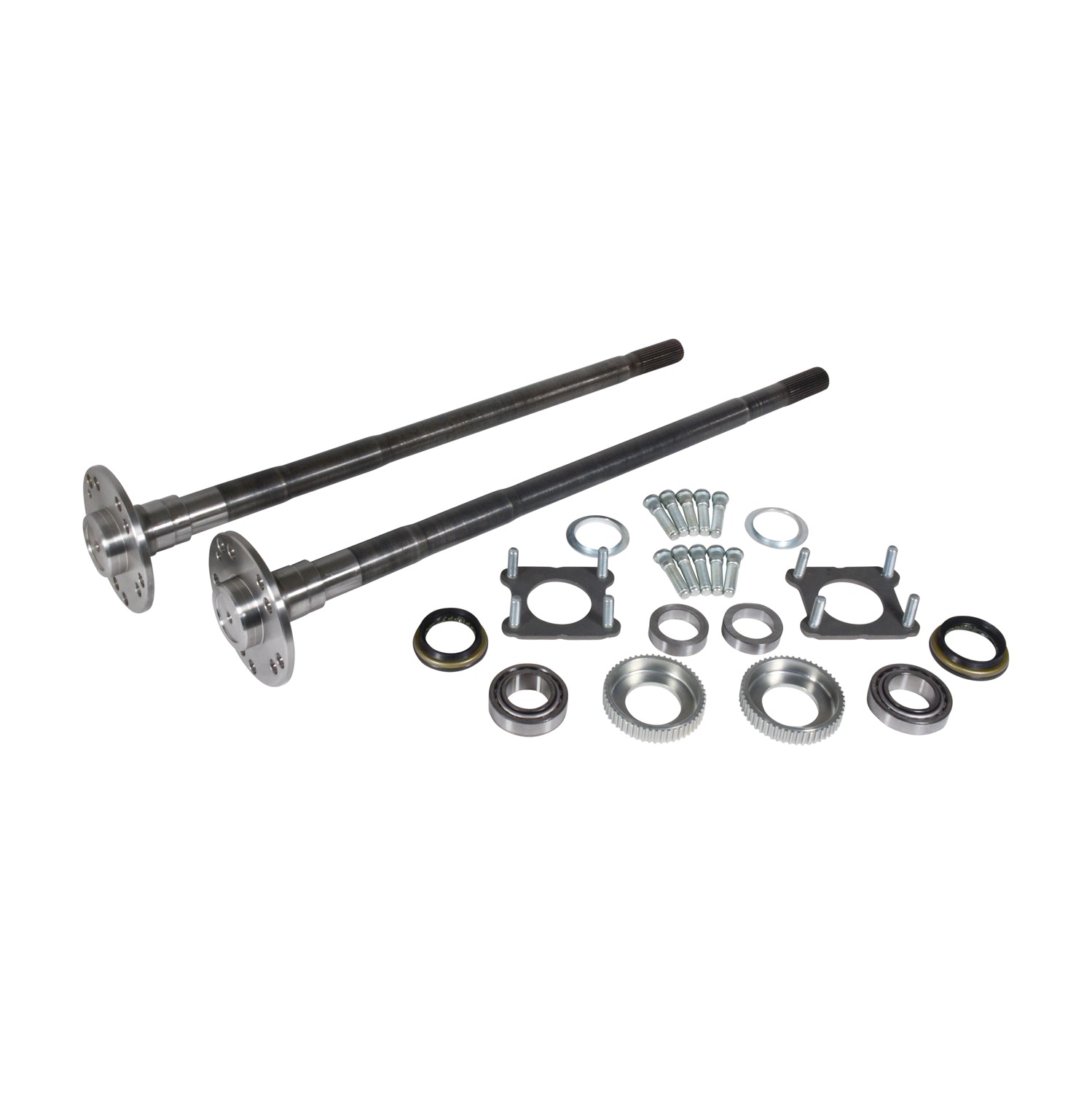

- Includes two axle shafts, axle bearings, seals, bearing retainers, wheel studs, ABS ring, and dust shield
Specifications
| AAP Selling Package Quantity UOM | EA |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| ABS Tone Ring Included | Yes |
| Axle Shaft Seal Included | Yes |
| California Proposition 65 | Not Applicable |
| Inboard Spline Quantity | 32 |
| Shaft Length | 32.2, 33.9 IN |
| Shaft Material | 4340 Nickel Chromoly Steel |
Note: Fits with Axle Code DRF = Wide Track M220; And with DSE or DSH = E-Locker Rear Axle; Large Bearing Axles = 1.771" ID / 3.150" OD Bearing
Short Description: Chromoly Axle Shaft
Invoice Description: YA WAK-001
Definition: Drive Axle Shaft Assembly
Installation Guide: Download PDF
