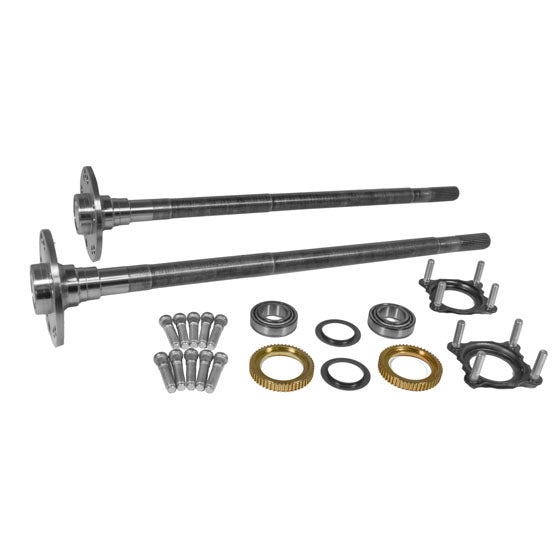

Yukon Gear YAWAK-003 Drive Axle Shaft Assembly
Product Availability Request
Fill the form and our team will contact you.
Yukon performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced heat treating to create an axle of unmatched quality and durability.
Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.
Features
- Fits Dana 35 differential
- 29 spline
- LH and RH axle shafts measure 32.3” long
- For both sides
- Heavy duty 4340 chromoly construction
- Includes two axle shafts, axle bearings, seals, bearing retainers, wheel studs, ABS ring, and dust shield
Specifications
| AAP Selling Package Quantity UOM | EA |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| ABS Tone Ring Included | Yes |
| Axle Shaft Seal Included | Yes |
| California Proposition 65 | Not Applicable |
| Inboard Spline Quantity | 29 |
| Shaft Length | 32.3 IN |
| Shaft Material | 4340 Nickel Chromoly Steel |
Note: Fits with Axle Code DRZ = D35/ M200 Rear; Both Left & Right Axles = 32.3" Long; Small Bearing (Set10) Axle = 1.562" ID / 2.875" OD Bearing; Double Drilled Flange 5 x 5" & 5 x 5.5" Bolt Pattern
Short Description: Chromoly Axle kit
Invoice Description: YA WAK-003
Definition: Drive Axle Shaft Assembly
Installation Guide: Download PDF
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018-2020 | Jeep | Wrangler | Sport S |
| 2018-2020 | Jeep | Wrangler | Sport |
| 2018-2020 | Jeep | Wrangler | Unlimited Sahara |
| 2018-2020 | Jeep | Wrangler | Unlimited Sport S |
| 2018-2020 | Jeep | Wrangler | Unlimited Sport |
5 applications listed.
