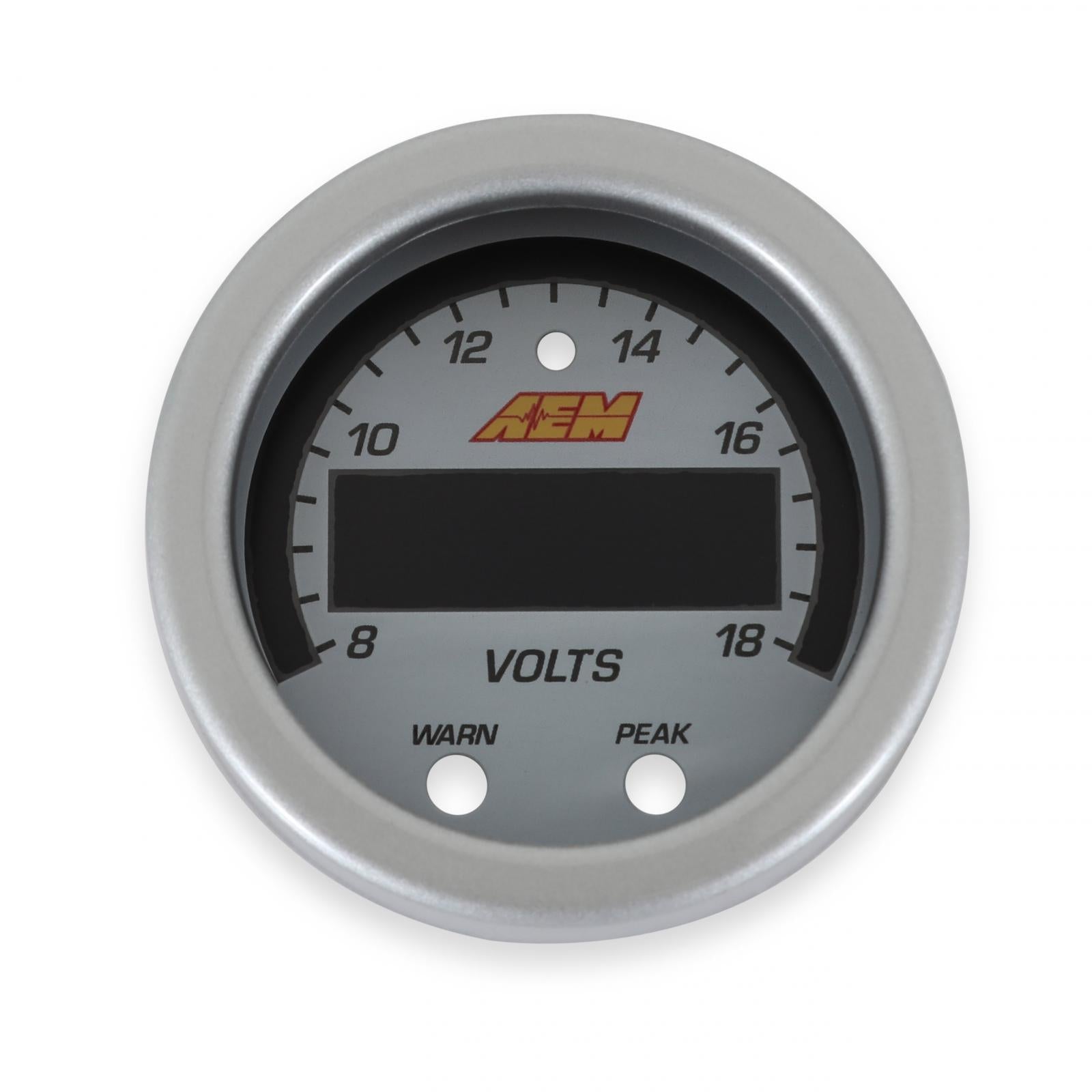

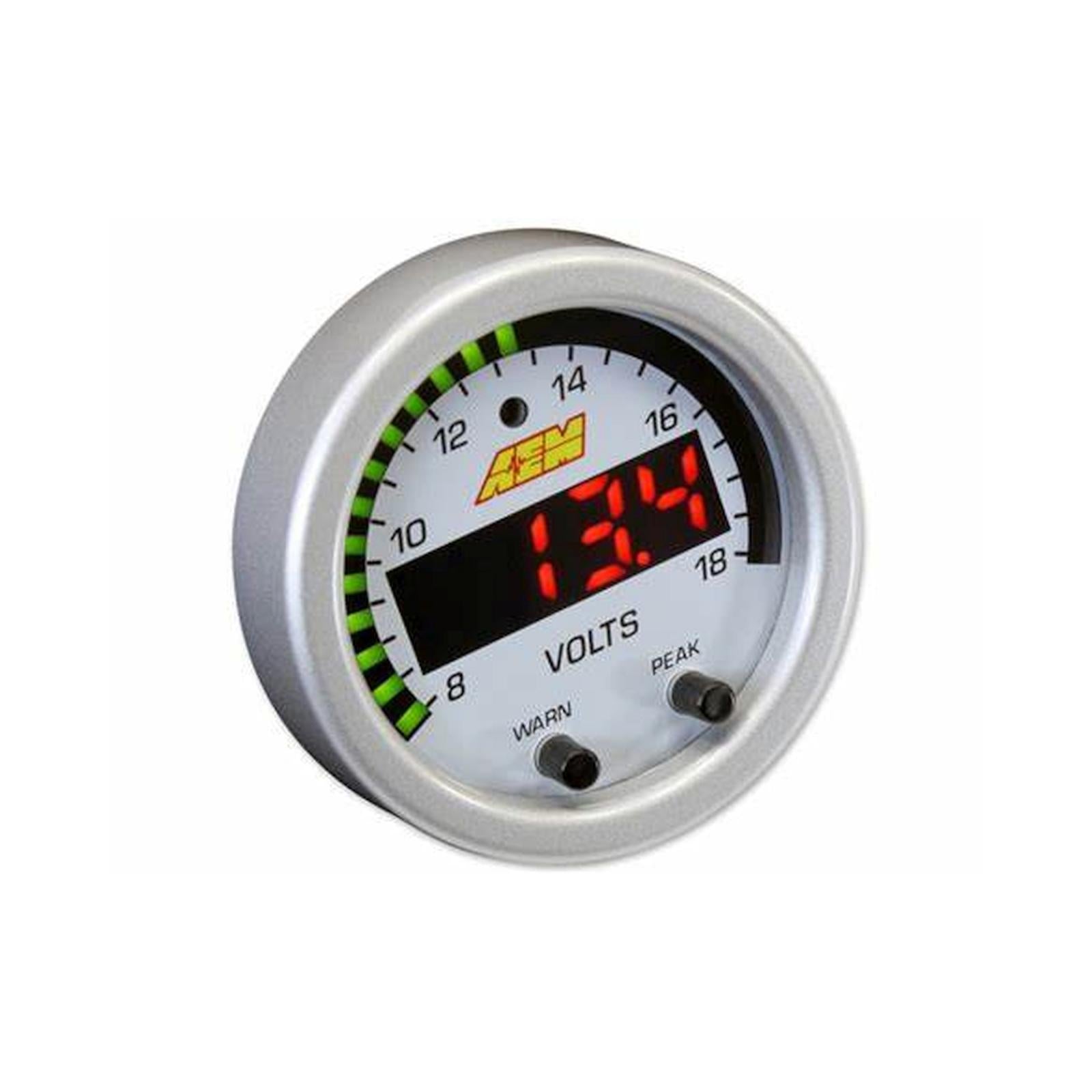

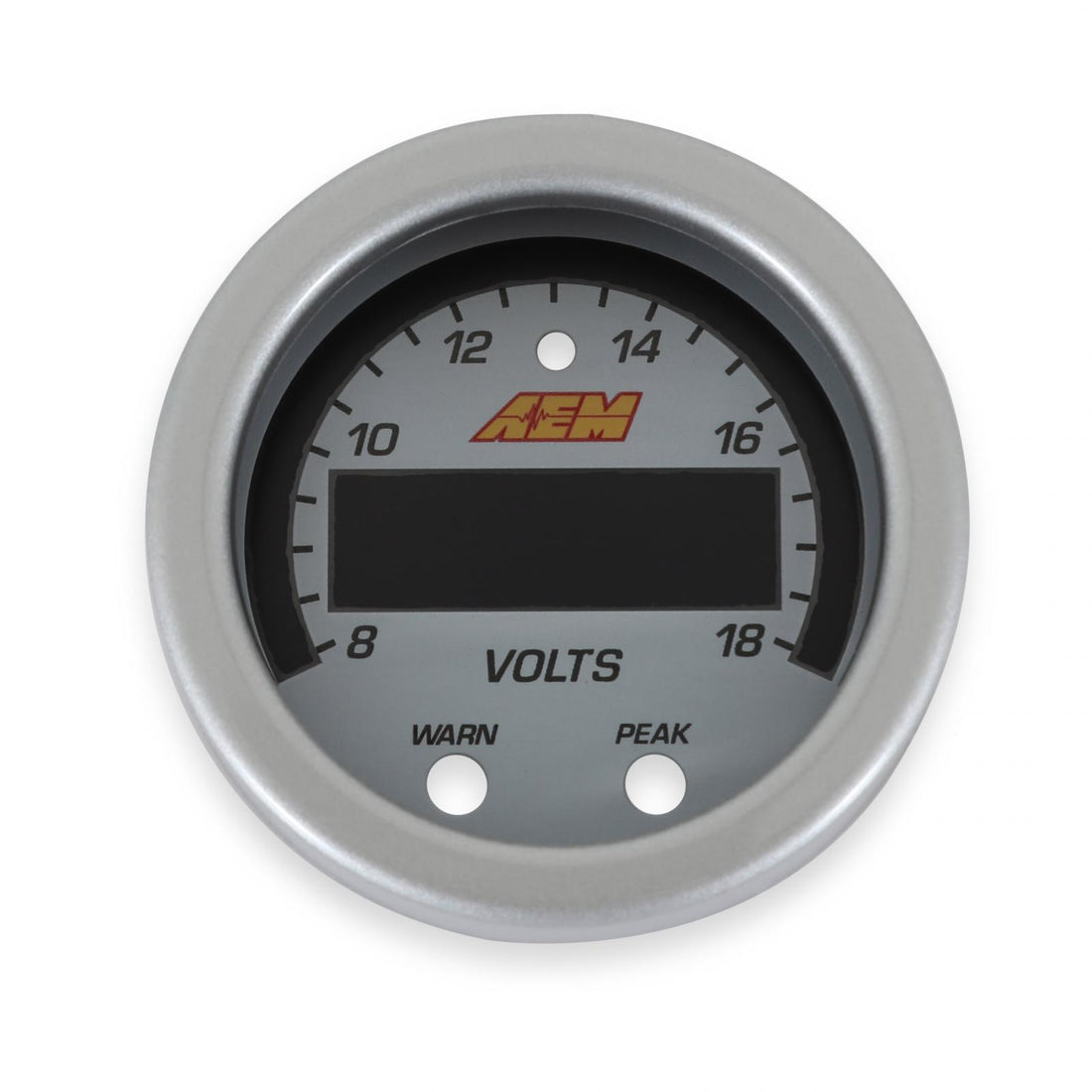

AEM Electronics 30-0303-ACC - X-Series Volt Gauge Accessory Kit Silver Bezel and White Faceplate AEM Electronics

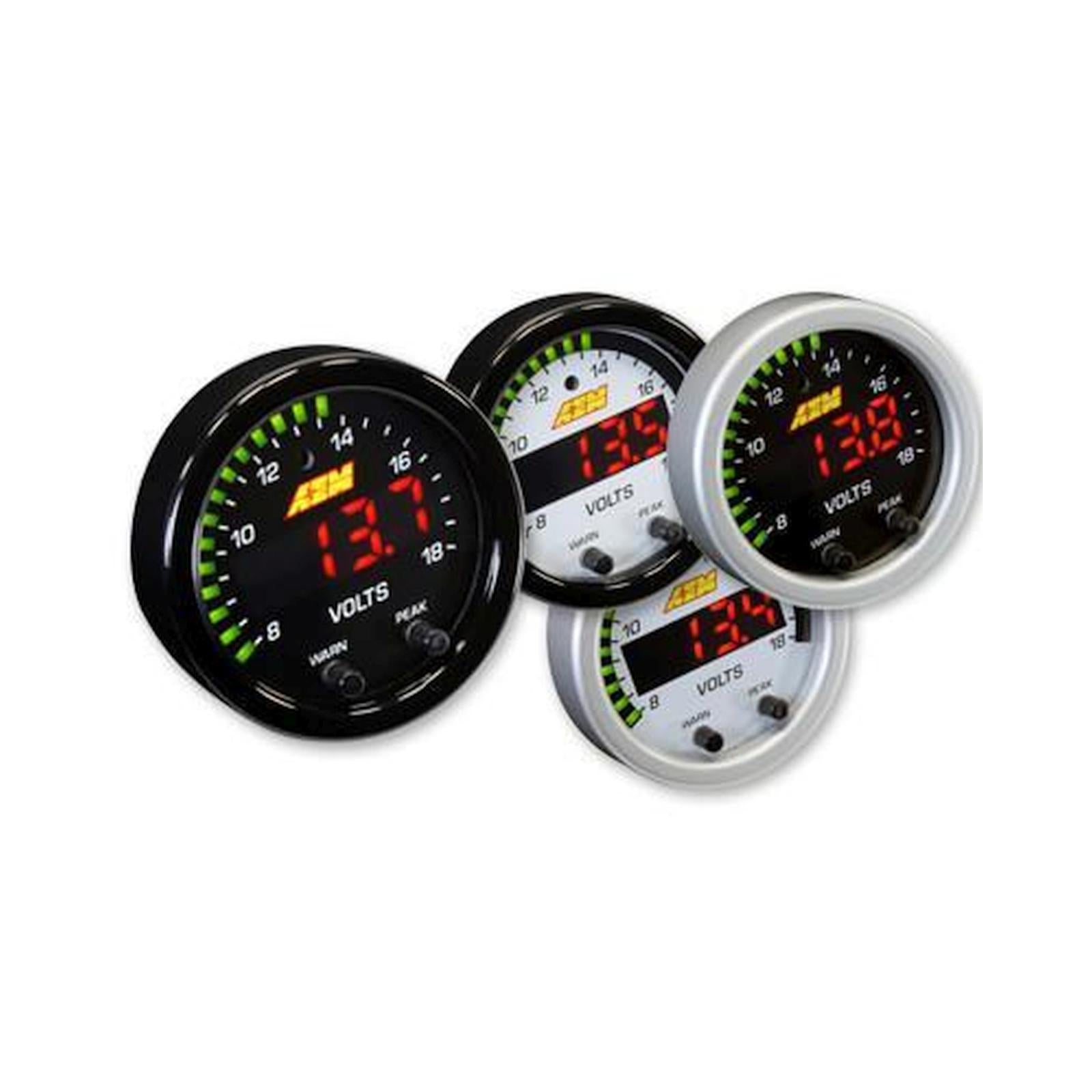

AEM's 30-0303 X-Series Digital Voltmeter gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features!

It is a must for users who want highly a accurate voltage readout in their high performance vehicle.

• Easer to read
• Visual improvements include a bright center LED display that is 87 percent larger than our original digital gauges and provides better readability. A sweeping green LED needle lines the edge of the gauge face for quick reference. A 33 percent overall increase in the gauge face display makes it easier to see at a glance
• Easier to Mount
• Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825 inch, with a cup depth of only 0.200. inch This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere
• SMARTER INTERFACE
• X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall on the Volts gauge. All X-Series gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Slim 0.825 inch overall gauge depth and 0.200 inch cup depth - mount them virtually anywhere!
• Programmable LED is 87 percent larger than original AEM gauges
• 24 green outer LEDs for quick reference to system voltage
• Peak/Recall via gauge face buttons

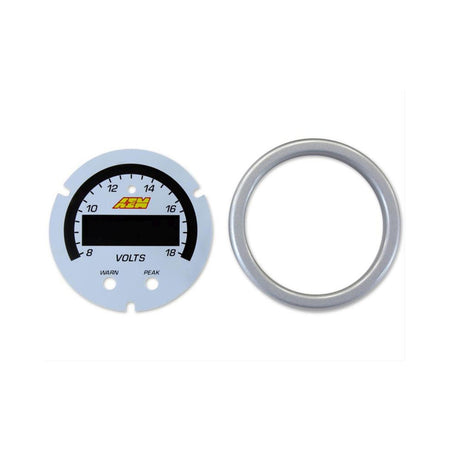

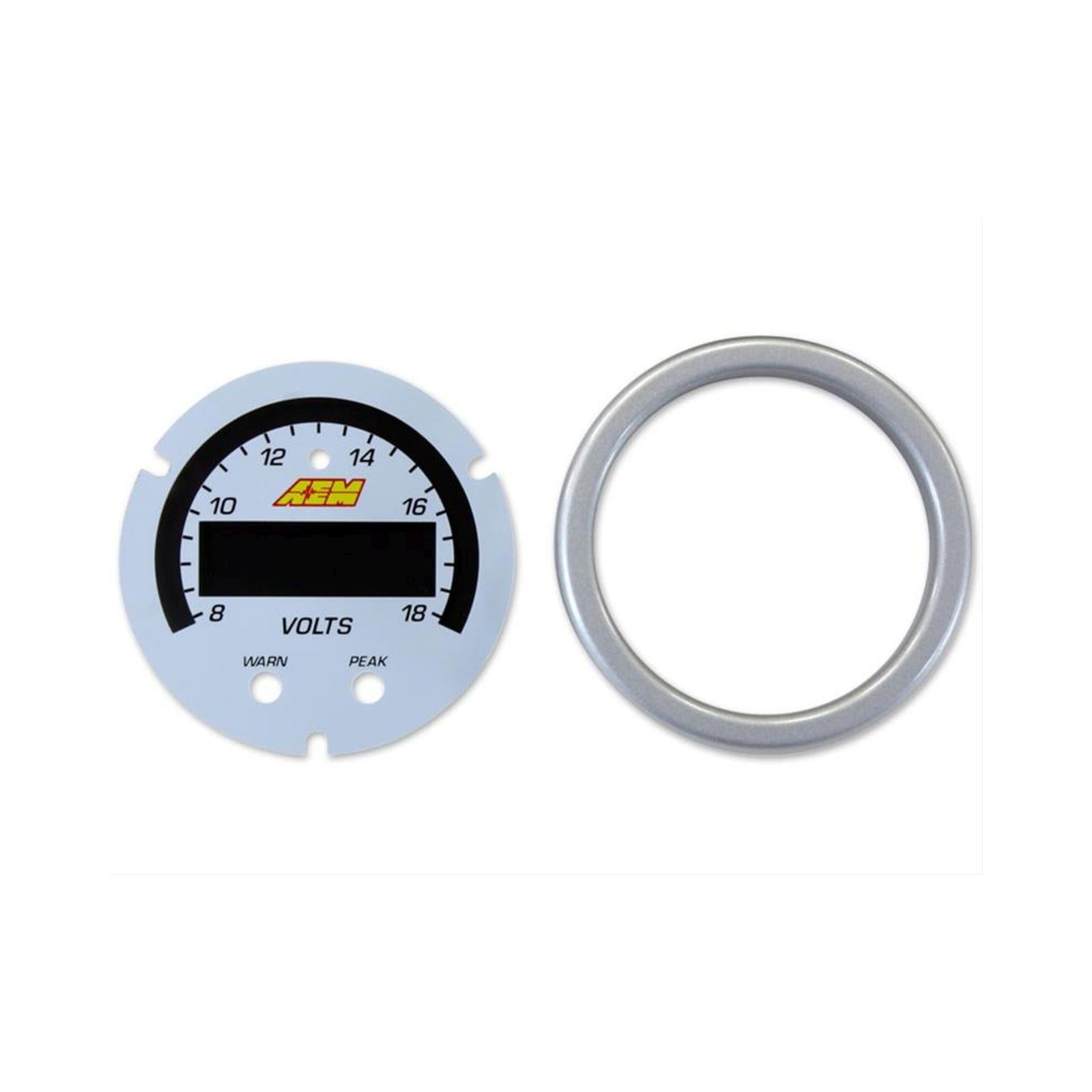

• Optional silver bezel with white faceplate accessory kit available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection

Details:

• Brand: AEM
• Bezel Color: Black
• Bezel Material: Plastic
• Diameter: Digital
• Warranty: Manufacturer's 1 Year Warranty

Warranty

Manufacturer's 1 Year Warranty

Specifications
