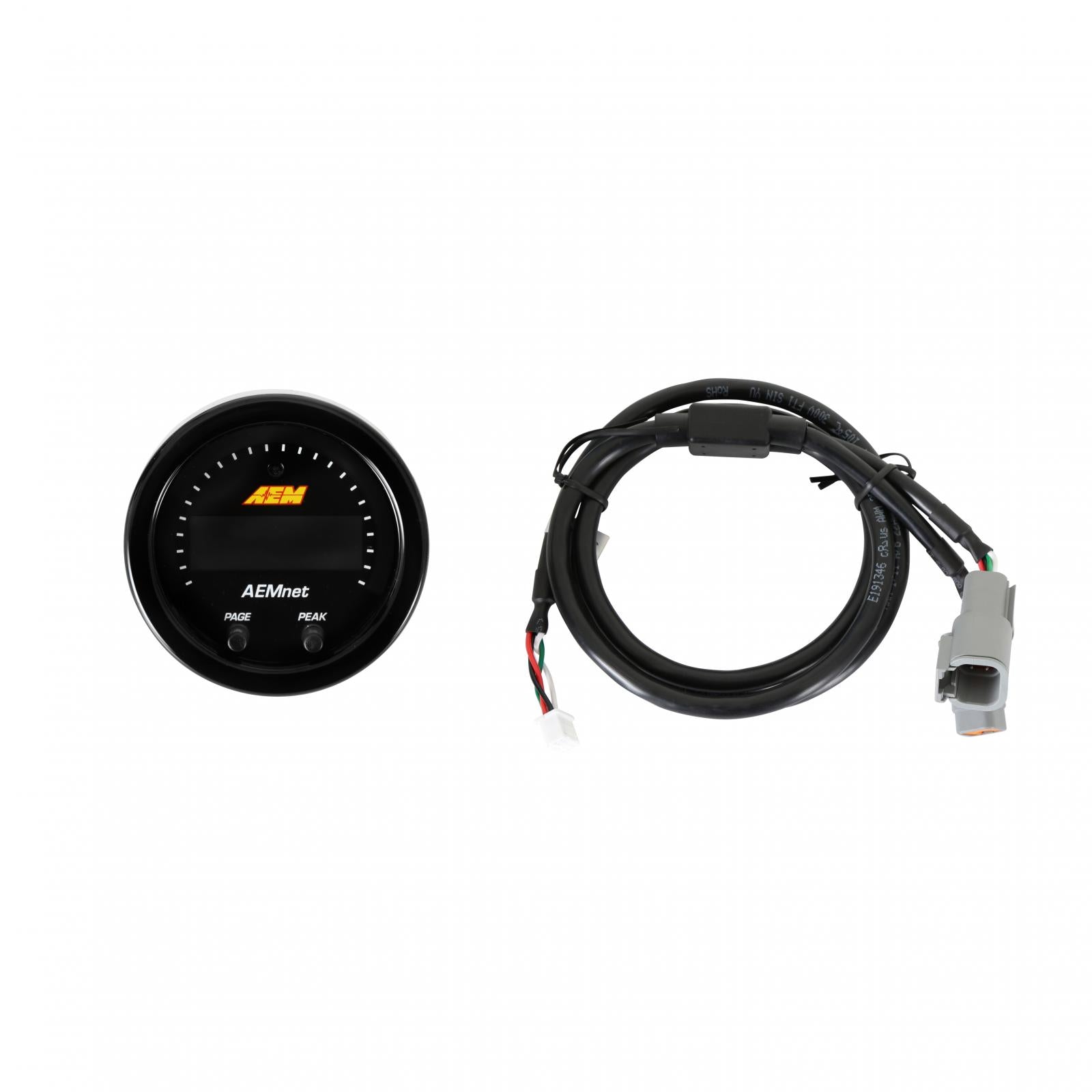

AEM Electronics 30-0312 - X-Series AEMnet Can Bus Gauge Kit Black Bezel and Black Faceplate AEM Electronics

AEM's X-Series Obdii gauge (PN 30-0311) puts multiple channels of data at your fingertips by reading the CAN bus stream of your vehicle's OBD port and transmitting those channels to the gauge display.

It reads Diagnostic Trouble Codes (DTCs) and gives you the ability to clear codes.

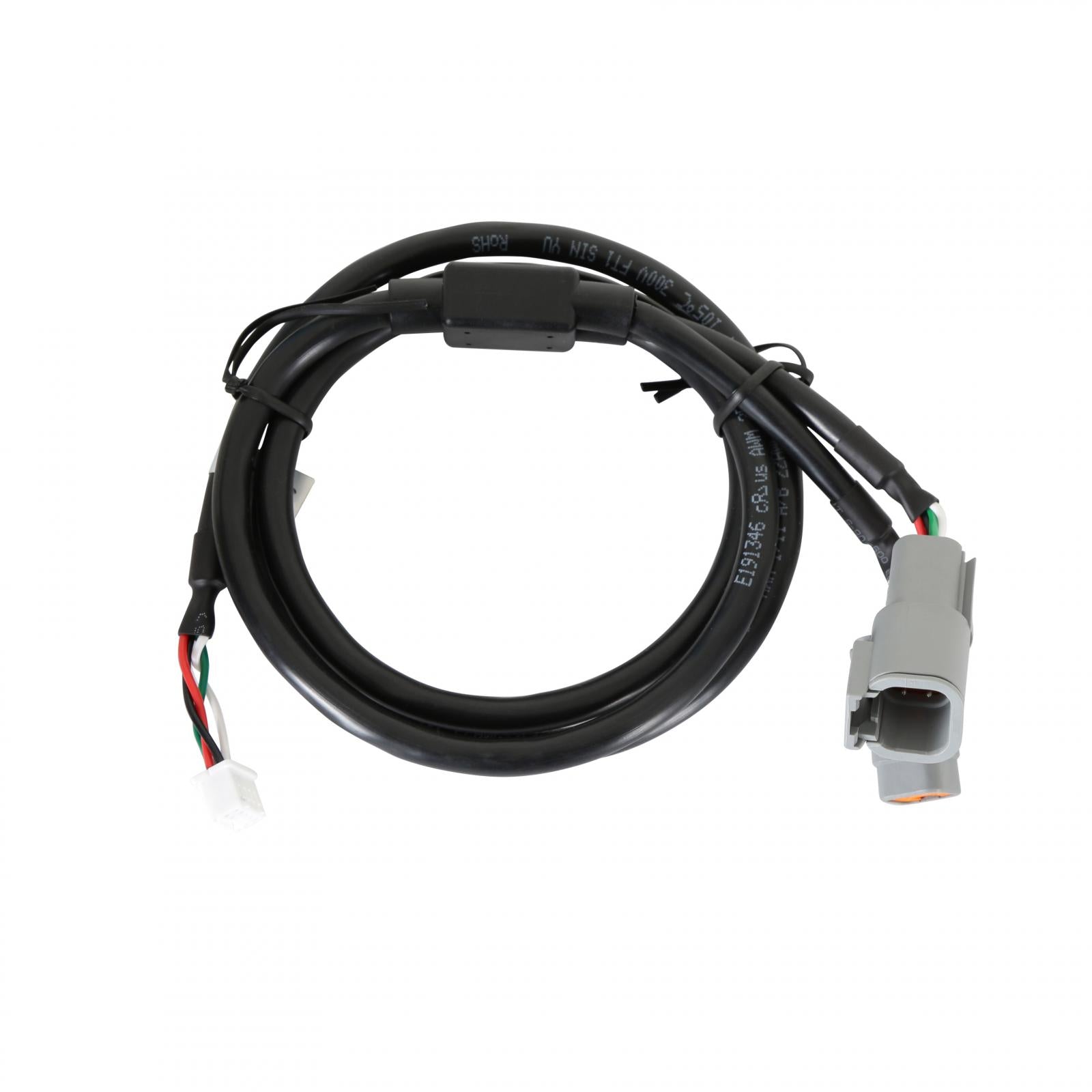

Wiring is as simple as connecting the gauge to your vehicle's Obdii port using the supplied connector!

Because the X-Series Obdii gauge reads Obdii parameters transmitted through a vehicle's CAN datastream, it will only work on 2008+ model year vehicles.

• EASY TO USE

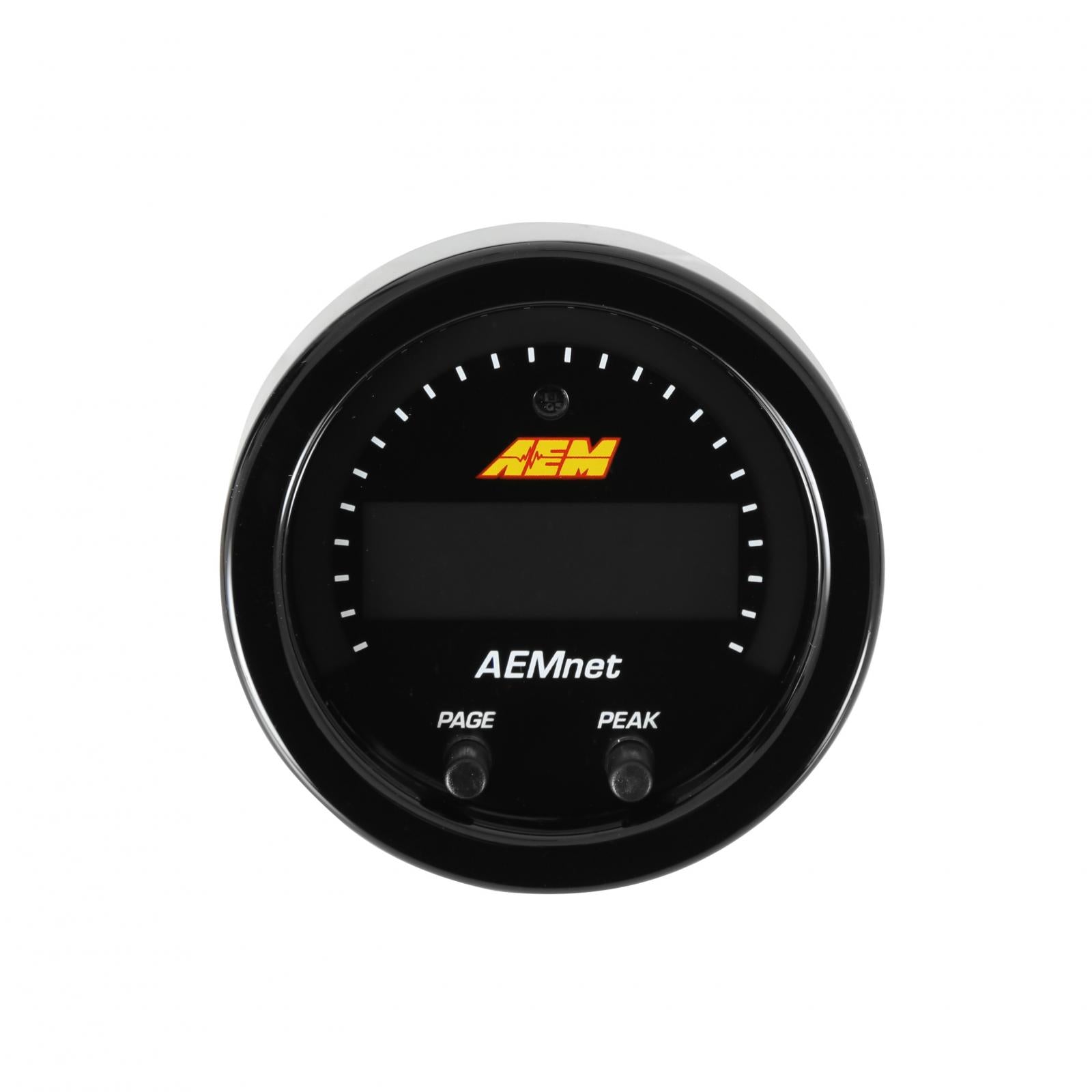

• Use the 'Page' button on the gauge face to scroll through available channels of data transmitted through the OBD port. Possible channels are listed below and may include IAT, EGT, RPM, Ethanol percent, MAF, Fuel Pressure, Manifold Pressure, Boost Pressure, TPS, Vehicle Speed, Lambda and more (channel availability is ultimately dependent upon what channels are programmed to transmit by the vehicle manufacturer)
• READ & Clear Trouble CODES
• The 'DTC' button tells the gauge to scan for trouble codes and will report any stored DTCs, allowing you to look them up and determine the course of repair. This button also allows users to cleat DTCs once the problem is resolved
• The X-Series AEM OBD2 Gauge (PN 30-0311) has a bright four-digit LED display that is 87 percent larger than our original digital gauges and provides better readability. A sweeping LED needle lines the edge of the gauge face for quick reference. A 33 percent overall increase in the gauge face display makes it easier to see at a glance. X-Series Gauges come with a black bezel and faceplate, and an optional silver bezel/white faceplate accessory kit is available (PN 30-0311-ACC, sold separately)

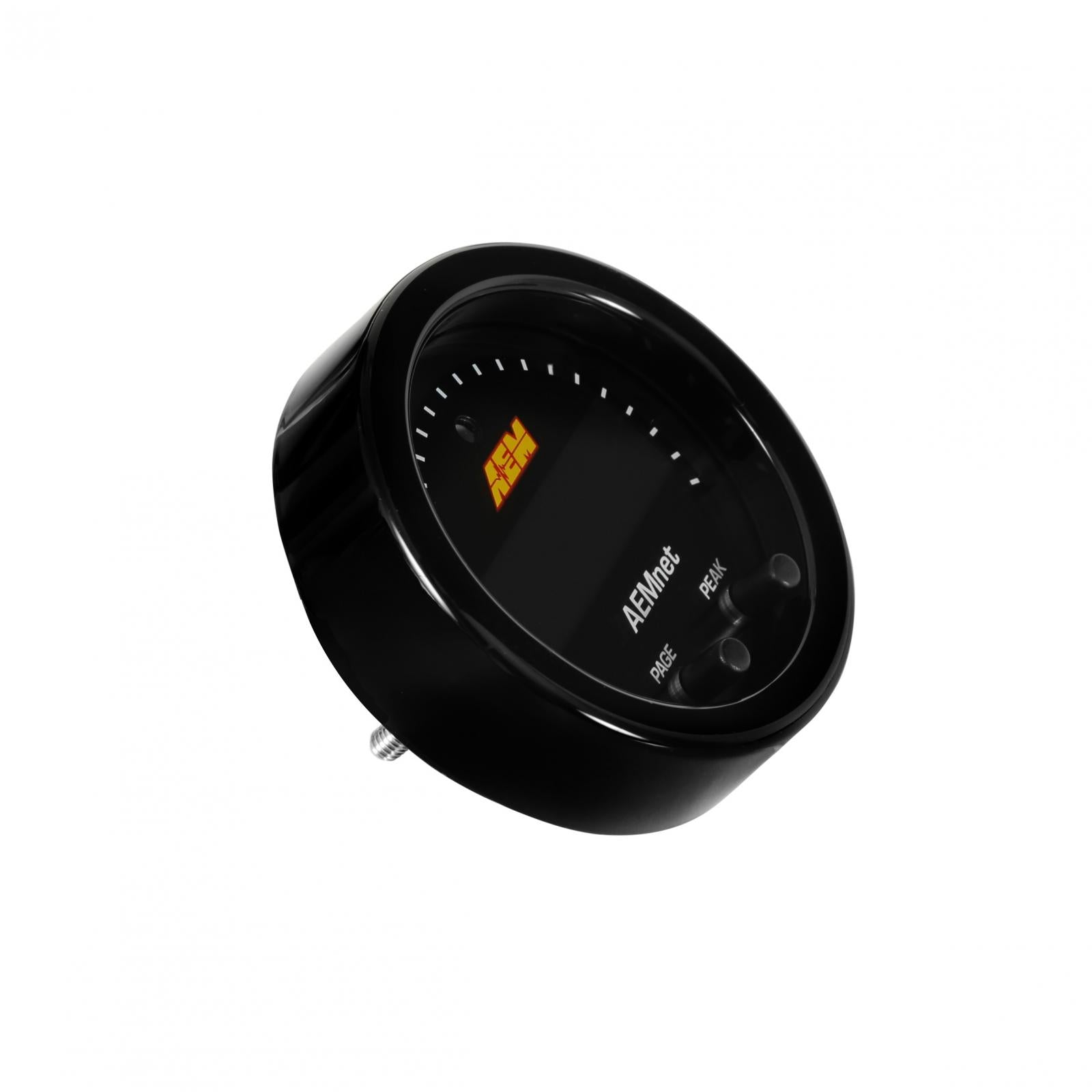

• Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825 inch, with a cup depth of only 0.200. inch This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Slim 0.825 inch overall gauge depth and 0.200 inch cup depth - mount them virtually anywhere!
• Programmable center LED is 87 percent larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• Reads data channels from 2008+ MY vehicles through the Obdii port!
• Reads and clears Diagnostic Trouble Codes (DTCs)!
• Optional silver bezel and white faceplate accessory kit available (sold separately)
• Auto dimming sensor delivers ideal display brightness

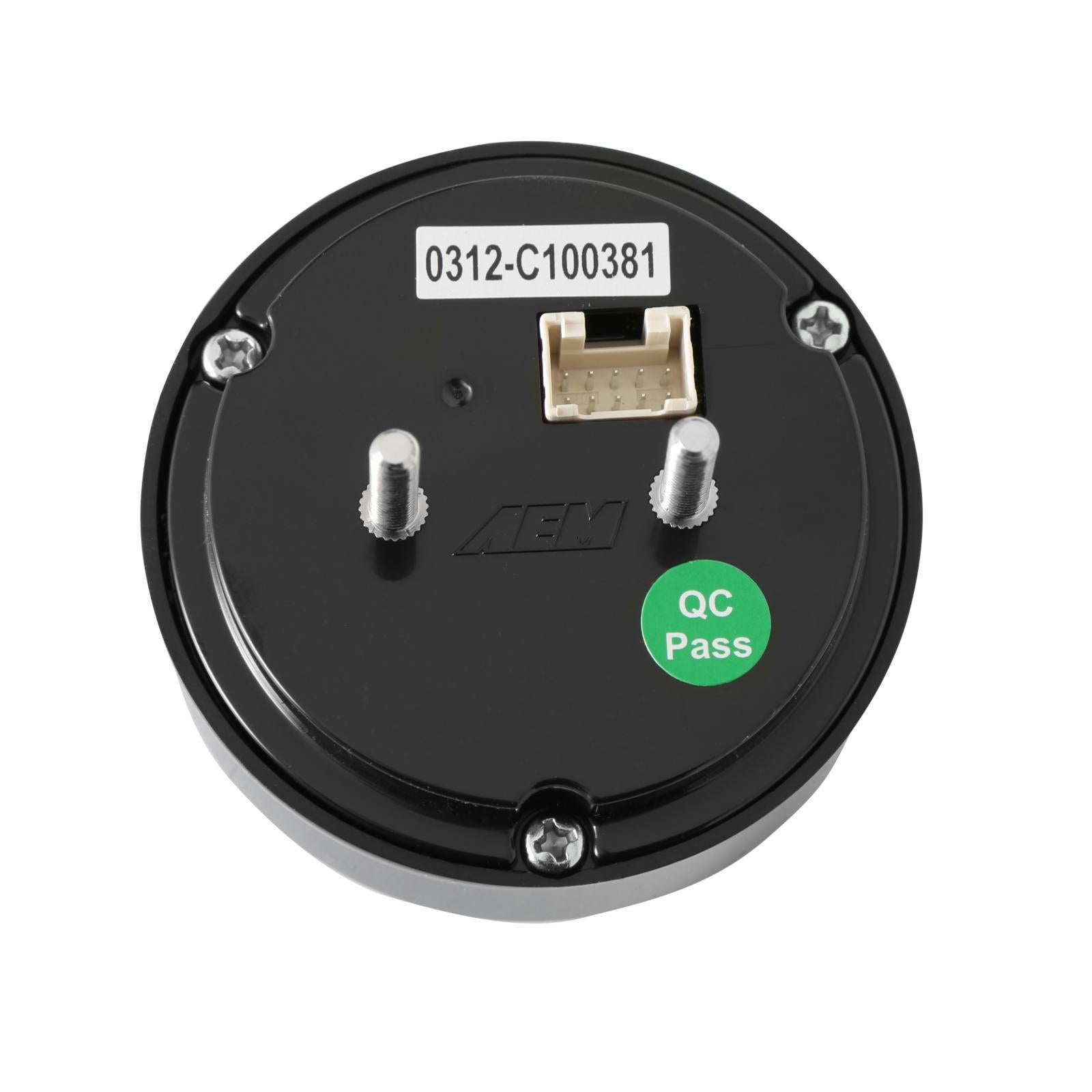

• Positive locking connectors provide secure connection

Details:

• Brand: AEM
• Gauge Diameter: 2 1/16 Inch
• Warranty: Manufacturer's 1 Year Warranty

Warranty

Manufacturer's 1 Year Warranty
