Bilstein 24-185417 - Suspension Shock Absorber Rear Monotube Ford F-150 2003-1997 F-150 Heritage 2004 B8 5100 Bilstein
Product Availability Request
Fill the form and our team will contact you.

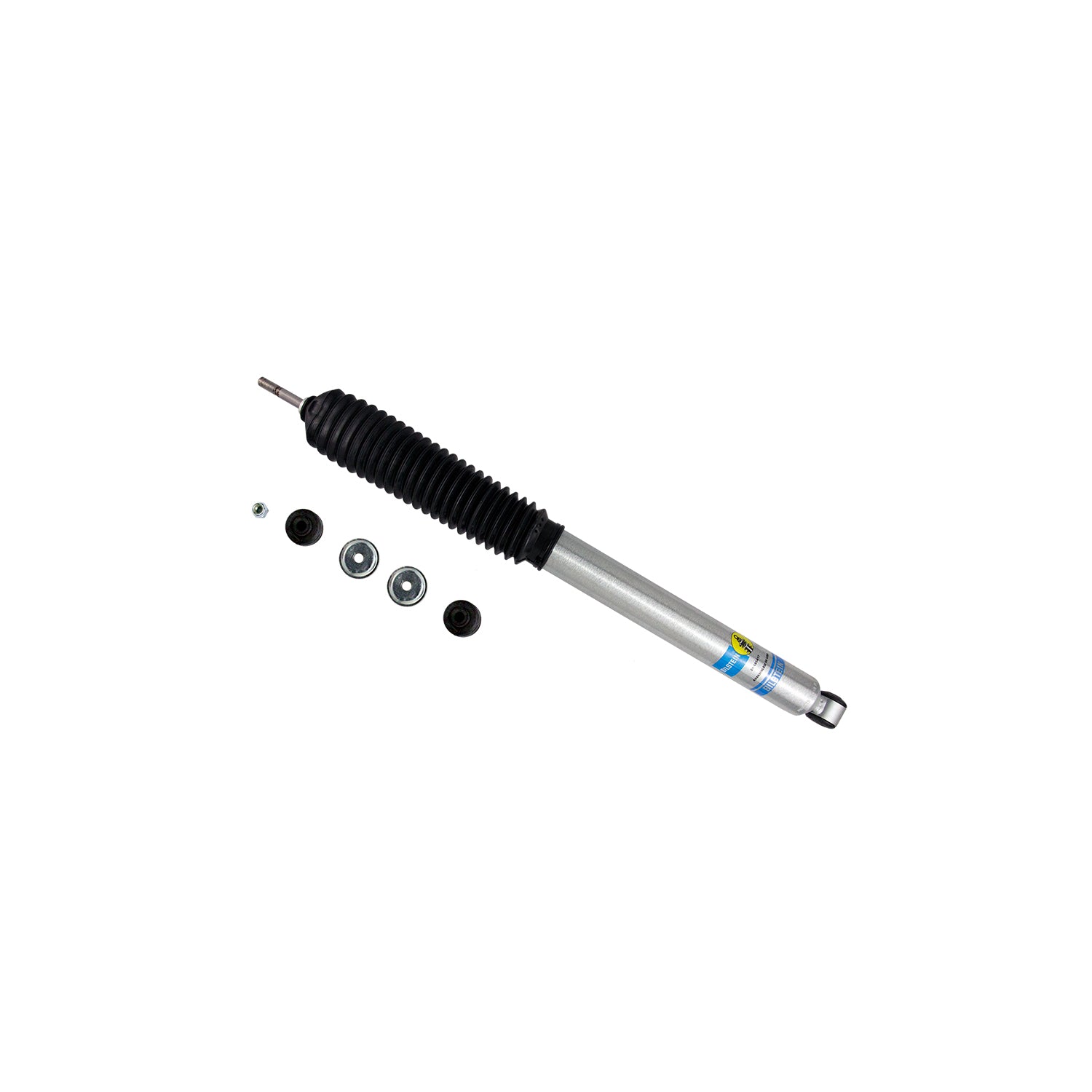

46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
B8 5100 - Suspension Shock Absorber
Ford F150 2WD; '97-03; R; B8 5100; 3" li
Specifications
| Upper Mount Type | Stem |
| Body Design | Smooth Body (Non-Coilover) |
| Extended Length (MM) | 694.0 |
| Internal Design | Monotube |
| Finish | Zinc Plated |
| Series | B8 5100 |
| Collapsed Length (IN) | 16.38 |
| Boot Included | Black Bellows |
| Lower Mount Type | Eye 12mm |
| Title | Bilstein Shock Absorbers |
| Reservoir | No |
| Extended Length (IN) | 27.32 |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 416.0 |
| Stroke/Travel Length (IN) | 10.94 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 277.9 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
