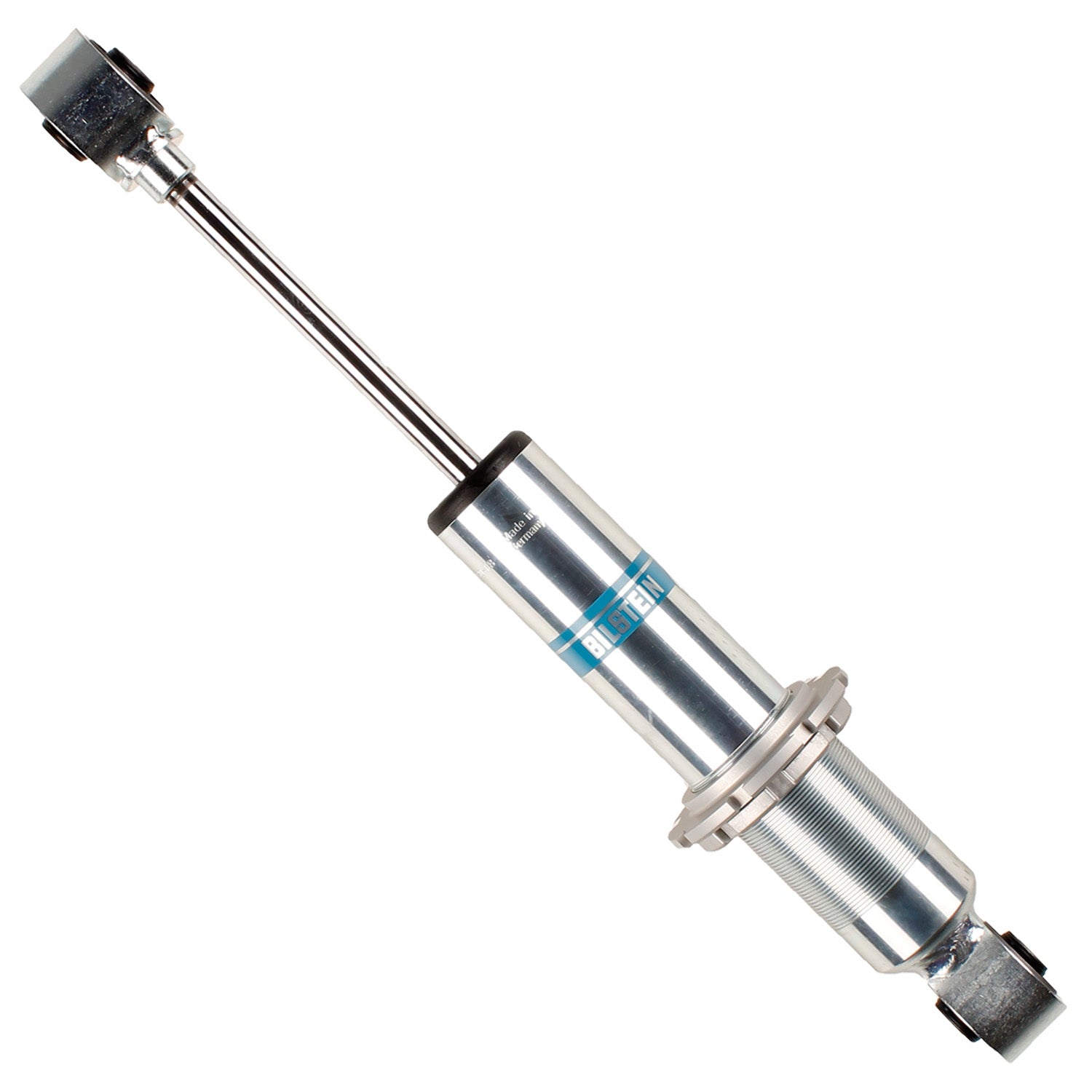

Bilstein 24-186520 - Suspension Shock Absorber M 7100 Classic (Coilover) Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Available for standard and coilover applications in a wide variety of lengths
- Self-adjusting deflective disc valving
M 7100 Classic (Coilover) - Suspension Shock Absorber
5.9" TRAVEL COILOVER OFF-ROAD
Specifications
| Optional Reservoir Clamp | N/A |
| Reservoir | No |
| Title | Bilstein Shock Absorbers |
| Rebound @0.52m/s | 3030 |
| Upper Mount Type | Eye 14.2mm |
| Body Design | Threaded Body (Coilover) |
| Collapsed Length (MM) | 313.5 |
| Extended Length (IN) | 18.22 |
| Finish | Zinc Plated |
| Lower Mount Type | Eye 14.2mm |
| Mount Type | Eye-to-Eye |
| Collapsed Length (IN) | 12.34 |
| Compression @0.52m/s | 965 |
| Extended Length (MM) | 463.0 |
| Internal Design | Monotube |
| Series | M 7100 Classic (Coilover) |
| Spring Seat Included | Lower |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Spring Hardware | Single Rate (2.5in) |
| Piston Diameter | 46mm |
| Shaft Diameter (mm) | 14.0 |
| Stroke/Travel Length (mm) | 149.9 |
| Stroke/Travel Length (IN) | 5.90 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
