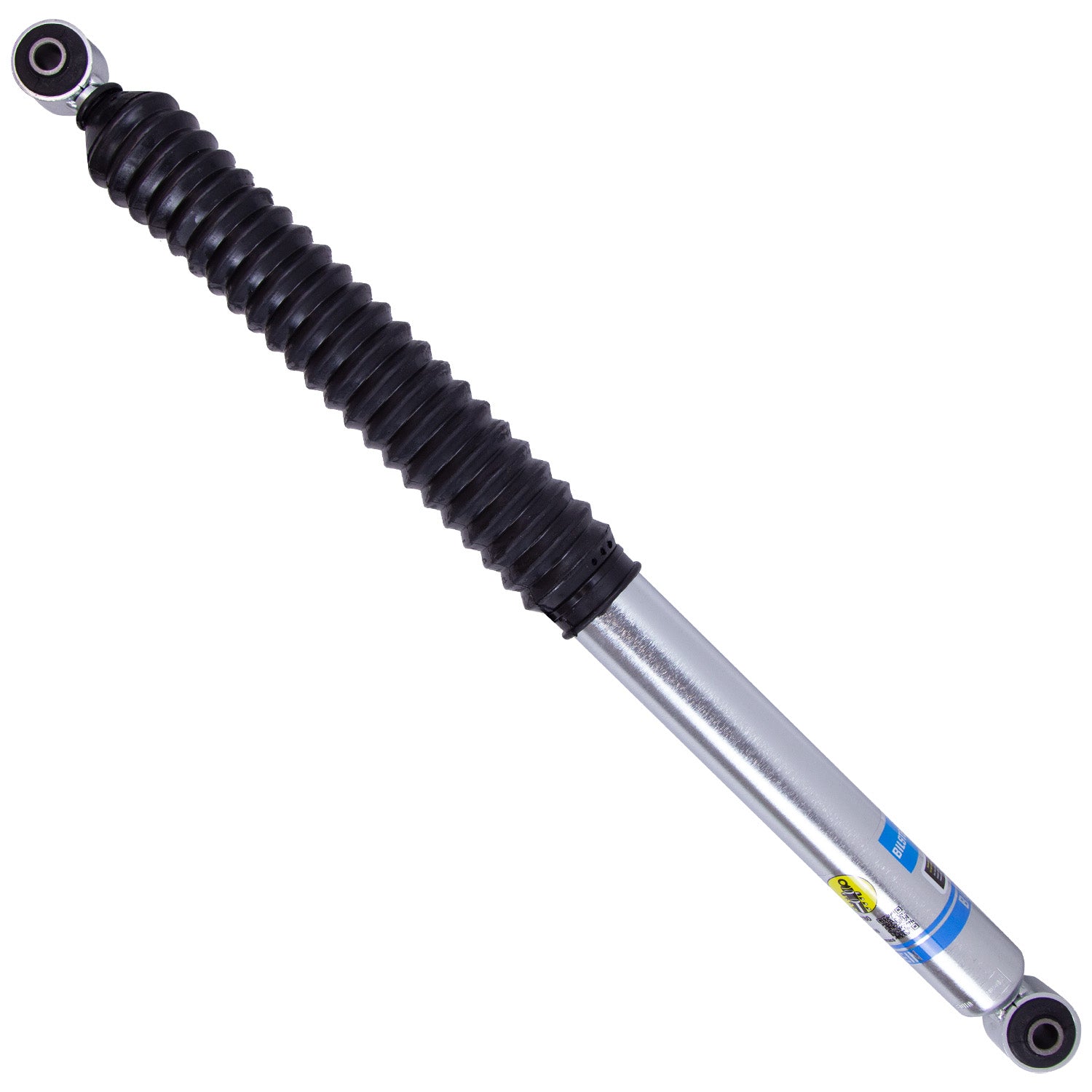

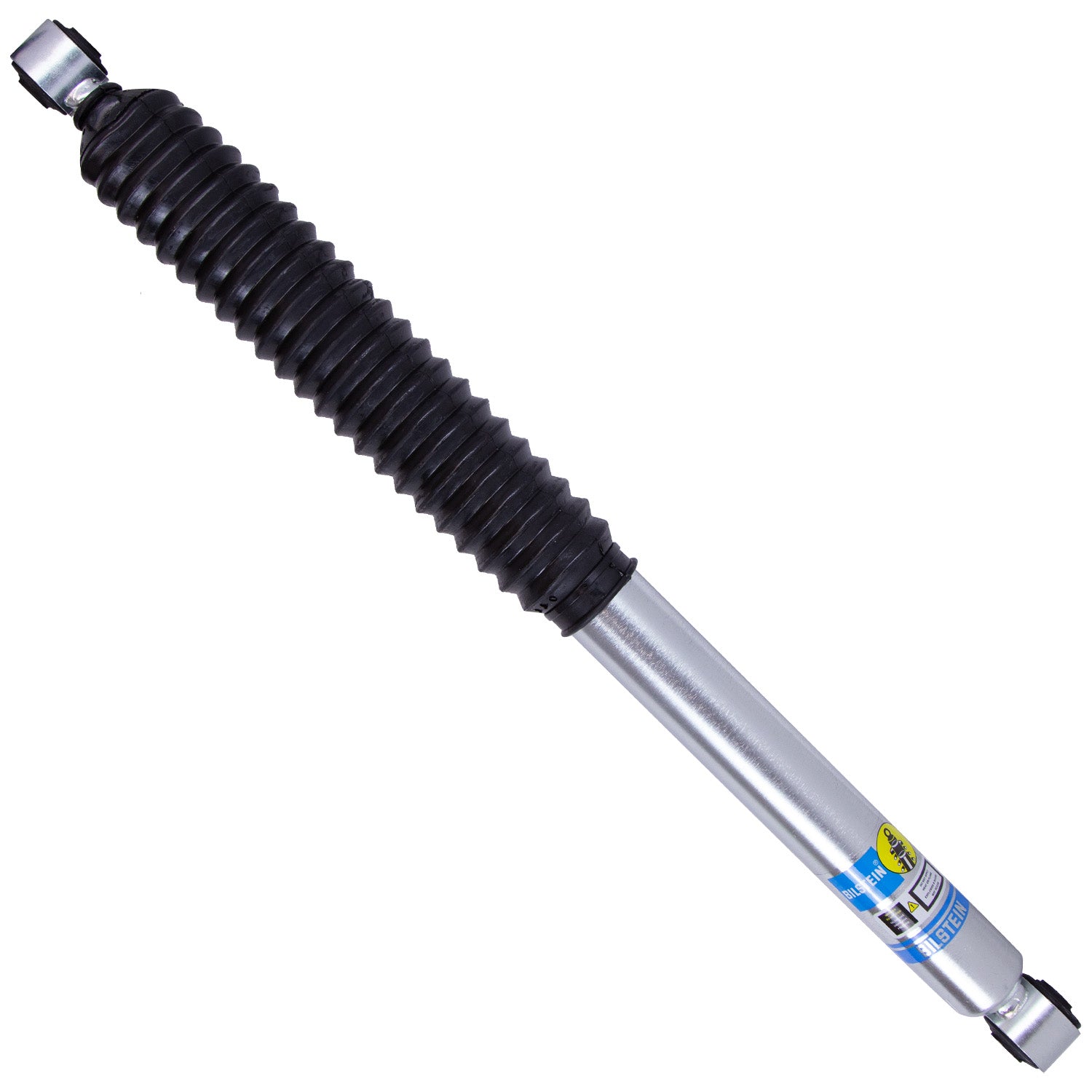

Bilstein 24-285780 - Suspension Shock Absorber Rear Monotube Ram 3500 2025-2013 2-3 Inch B8 5100 Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
B8 5100 - Suspension Shock Absorber
RAM 3500 4WD; 13+; R; B8 5100; 2-3" Lift
Specifications
| Collapsed Length (IN) | 19.57 |
| Extended Length (IN) | 29.88 |
| Extended Length (MM) | 759.0 |
| Series | B8 5100 |
| Title | Bilstein Shock Absorbers |
| Boot Included | Black Bellows |
| Lower Mount Type | Eye 14.4mm |
| Upper Mount Type | Eye 14.4mm |
| Internal Design | Monotube |
| Reservoir | No |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Non-coilover) |
| Finish | Zinc Plated |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Collapsed Length (MM) | 497.0 |
| Piston Diameter | 46mm |
| Stroke/Travel Length (IN) | 10.31 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (mm) | 261.9 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
Shipping Information
Free shipping is available for eligible orders.
Shipping: For USA - Up to 50lbs.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
