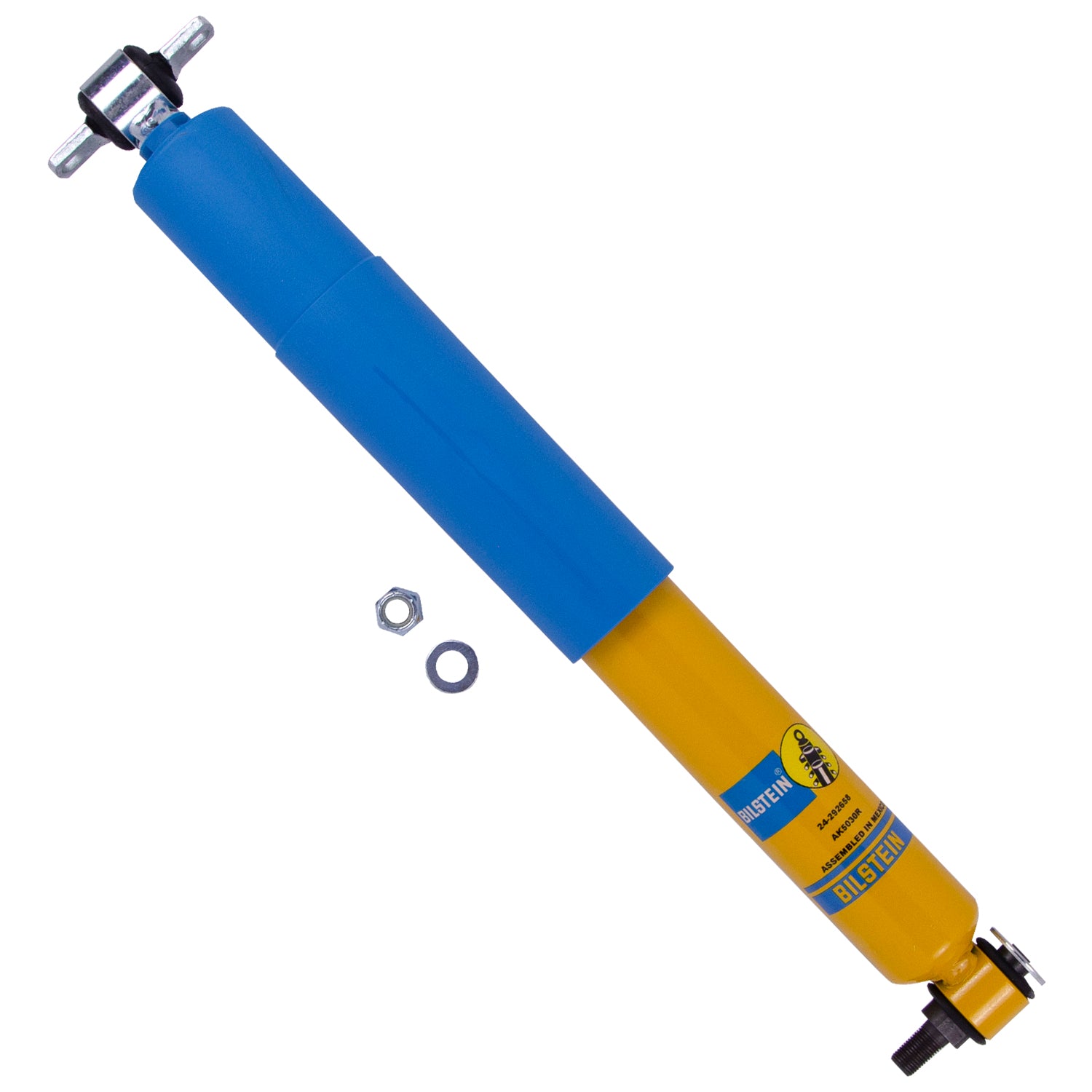

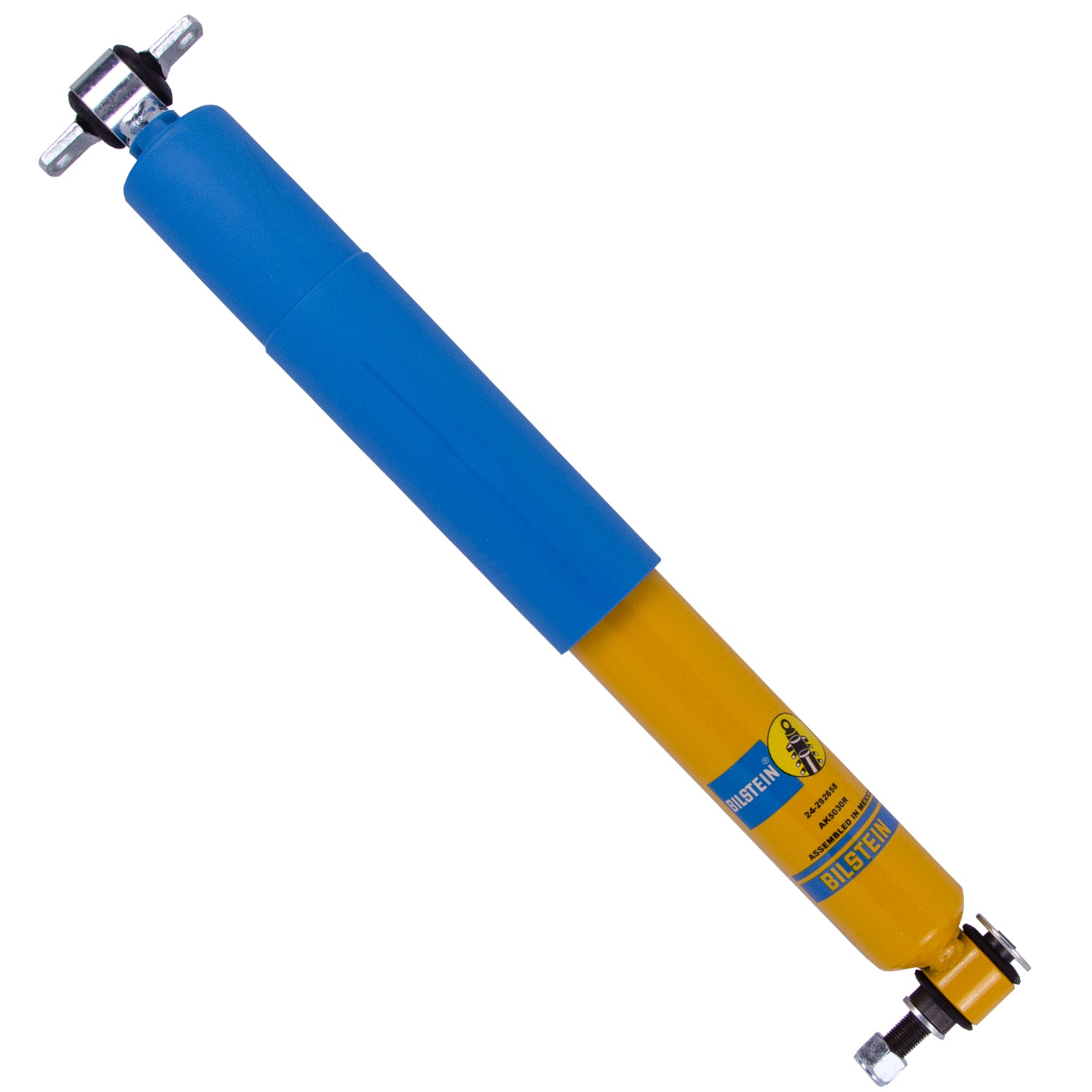

Bilstein 24-292658 - Suspension Shock Absorber AK Series Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.
Features & Benefits
- Monotube design ensures consistent, fade-free performance in all conditions
- Direct fit (OE) mounting design
- Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions
AK Series - Suspension Shock Absorber
GM G/H body Motorsport rear AK5030R
Specifications
| Upper Mount Type | Bar Pin |
| Boot Included | Blue Straight |
| Adjustable Damping | Non-Adjustable |
| Compression @0.52m/s | 805 |
| Collapsed Length (IN) | 13.11 |
| Title | Bilstein Shock Absorbers |
| Body Design | Stock Mount Smooth Body |
| Piston Type | Digressive |
| Rebound @0.52m/s | 2730 |
| Extended Length (IN) | 20.28 |
| Extended Length (MM) | 515.0 |
| Lower Mount Type | Cantilever |
| Series | AK Series |
| Body Material | Steel |
| Finish | Yellow Paint |
| Internal Design | Monotube |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Spring Hardware | N/A |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 333.0 |
| Shaft Diameter | 11mm |
| Stroke/Travel Length (mm) | 182.1 |
| Stroke/Travel Length (IN) | 7.17 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
