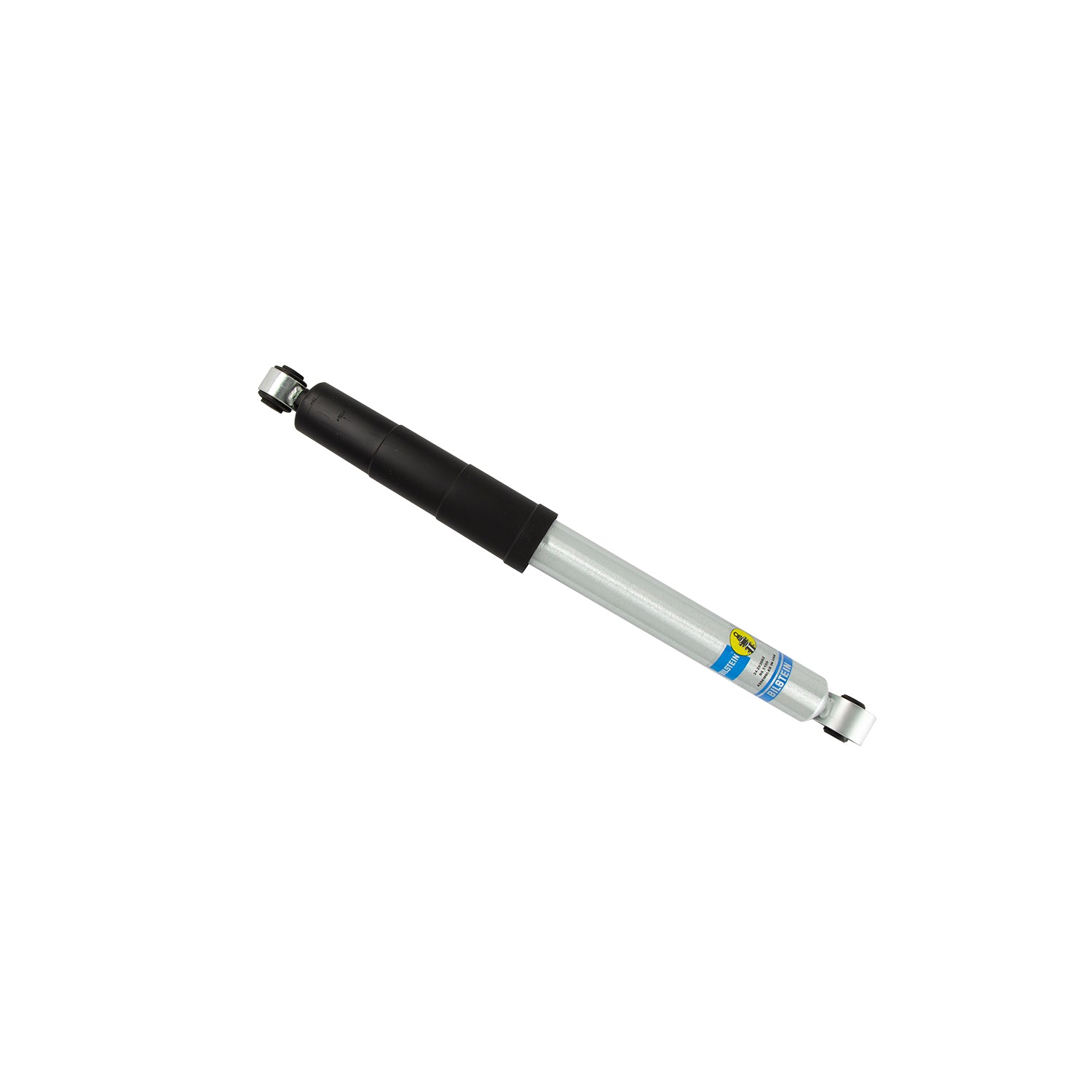

Bilstein 24-293082 - Suspension Shock Absorber Rear Monotube Silverado 1500 2013-2007 Sierra 1500 2013-2007 B8 5100 Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Patented digressive valving instantly reacts to changing surface conditions
- Vehicle specific tuning
B8 5100 - Suspension Shock Absorber
GM C/K1500; '07-13; R; B8 5100GM C/K1500
Specifications
| Finish | Zinc Plated |
| Collapsed Length (IN) | 16.53 |
| Body Design | Smooth Body (Non-Coilover) |
| Internal Design | Monotube |
| Reservoir | No |
| Lower Mount Type | Eye 14.1mm |
| Collapsed Length (MM) | 419.8 |
| Extended Length (MM) | 645.0 |
| Extended Length (IN) | 25.39 |
| Upper Mount Type | Eye 14.1mm |
| Series | B8 5100 |
| Title | Bilstein Shock Absorbers |
| Boot Included | Black Straight |
| Adjustable Damping | Non-Adjustable |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Piston Diameter | 46mm |
| Shaft Diameter | 11mm |
| Stroke/Travel Length (mm) | 225.0 |
| Stroke/Travel Length (IN) | 8.86 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
