Bilstein 24-296823 - Suspension Shock Absorber SMX Series Monotube
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.

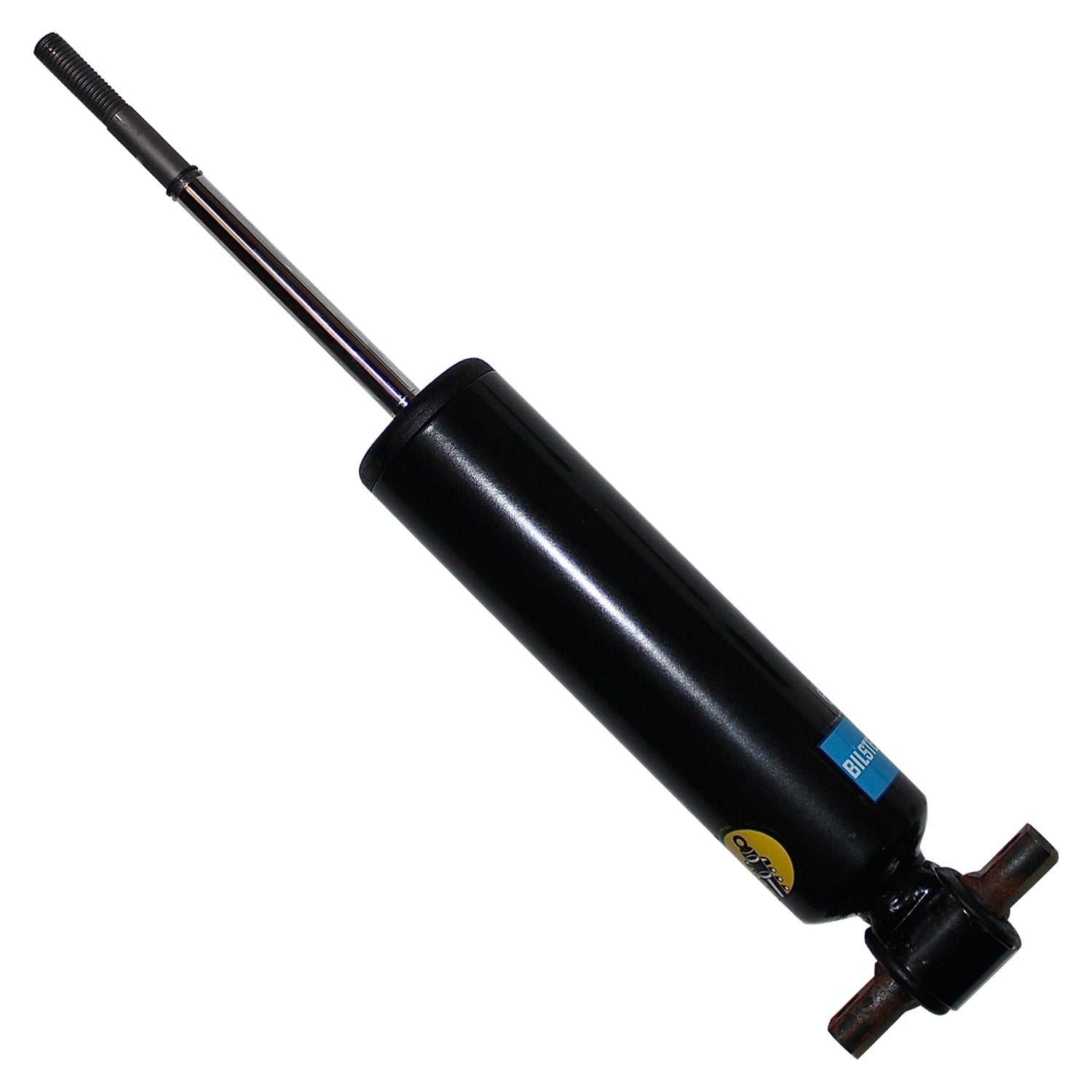

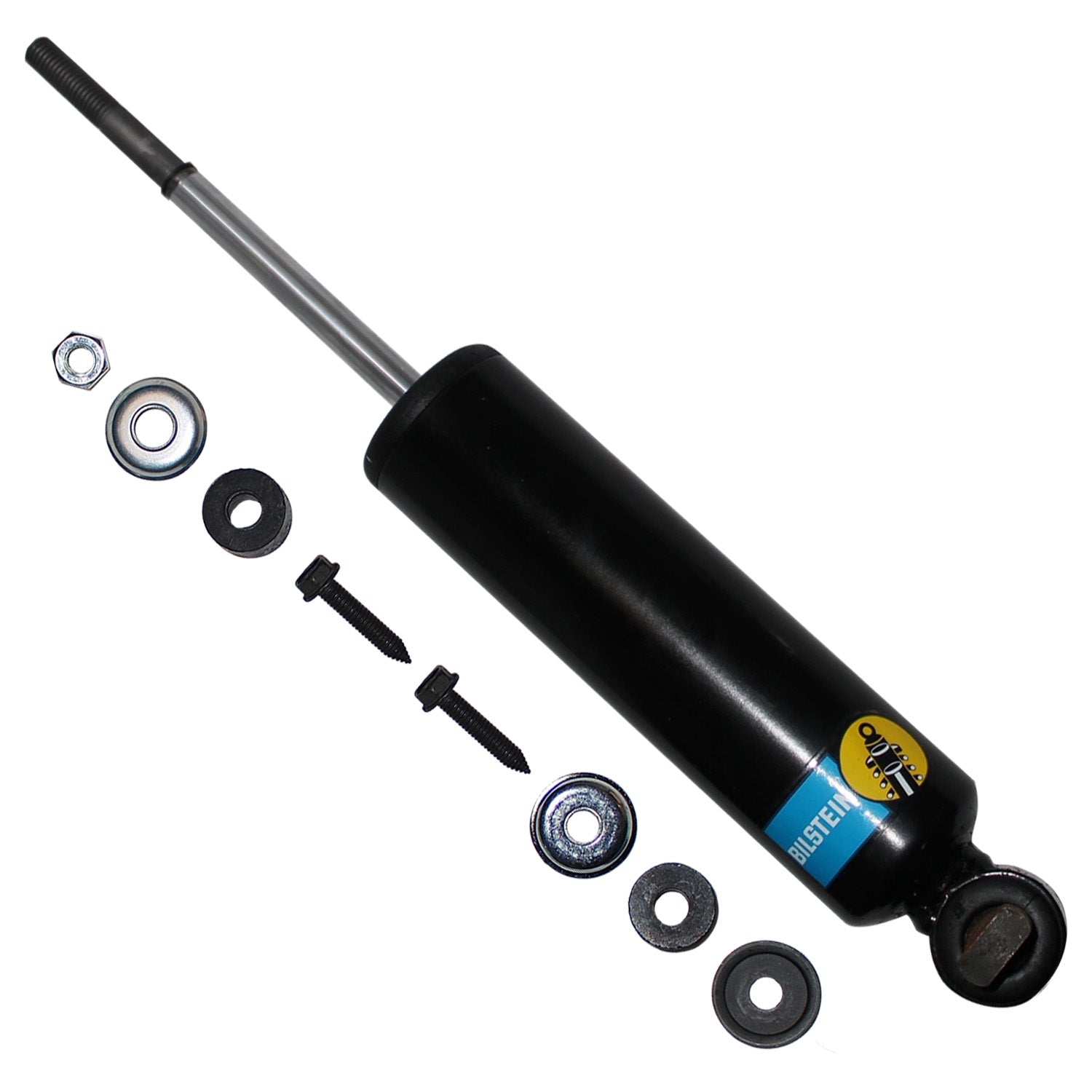

This 46mm monotube shock absorber, Bilstein part number 24-296823, is engineered for motorsports applications requiring stock mount suspension components. The shock features a 46mm piston diameter with a linear piston type and 11mm shaft diameter, paired with non-adjustable damping tuned for consistent performance. Rebound and compression characteristics are rated at 1200 and 225 respectively at 10 inches per second, delivering fade-free operation across various track conditions. The boot is not included. The spring seat is not included.
- Piston diameter: 46mm
- Shaft diameter: 11mm
- Piston type: Linear
- Internal design: Monotube
- Body material: Steel
- Body design: Stock mount, smooth body
- Finish: Black paint
- Upper mount type: Stem
- Lower mount type: Bar pin
- Adjustable damping: Non-adjustable
- Rebound @ 10"/sec: 1200
- Compression @ 10"/sec: 225
- Extended length: 12.01 inches (305.0 mm)
- Collapsed length: 8.27 inches (210.0 mm)
- Stroke/travel length: 3.74 inches (95.0 mm)
- Boot included: No
- Spring seat included: No
- Series: SMX Series
Weight: 3.24 lb
Country of Origin: United States
