Bilstein 25-287806 - Suspension Shock Absorber B8 8100 (Bypass) Monotube
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
60mm Shock Absorber

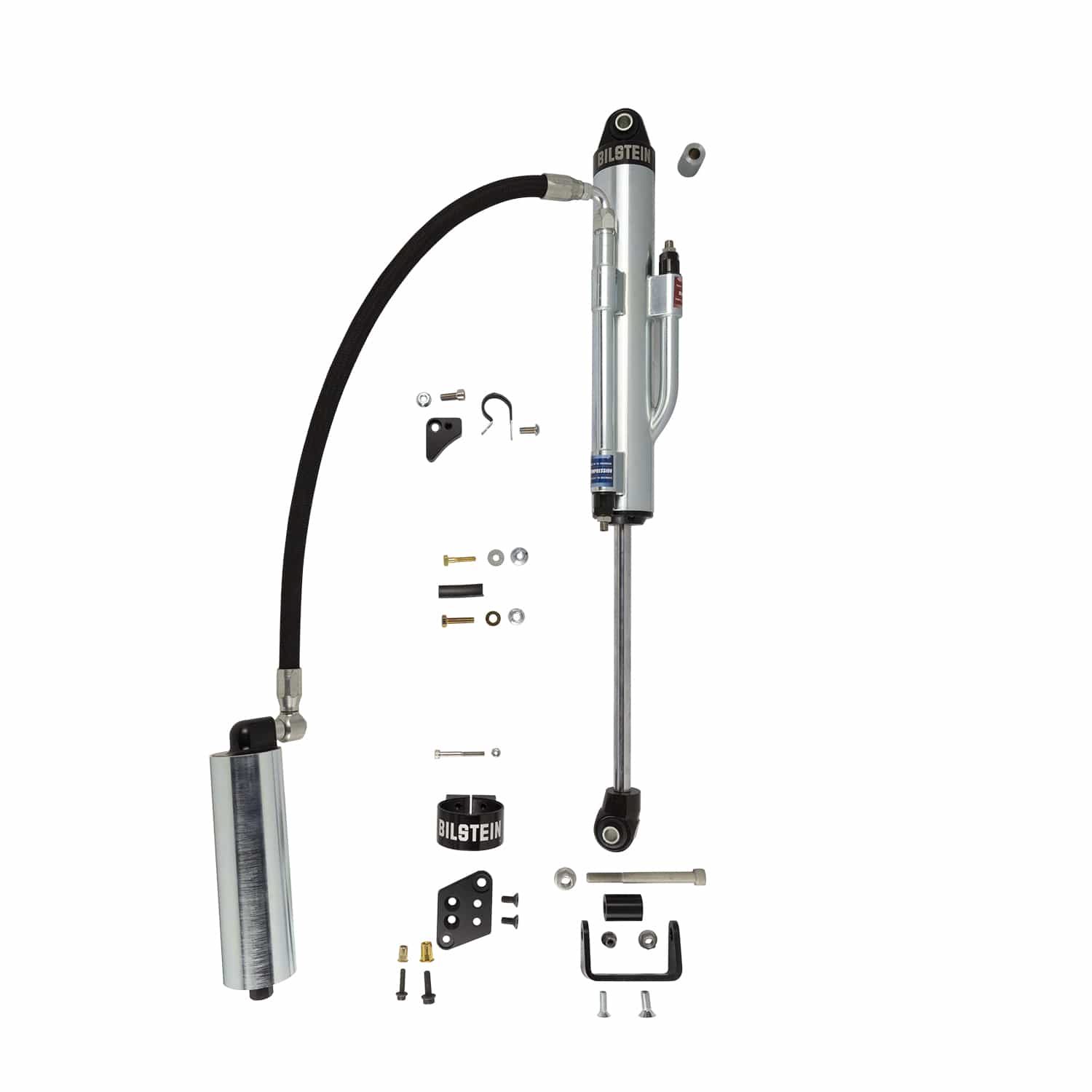

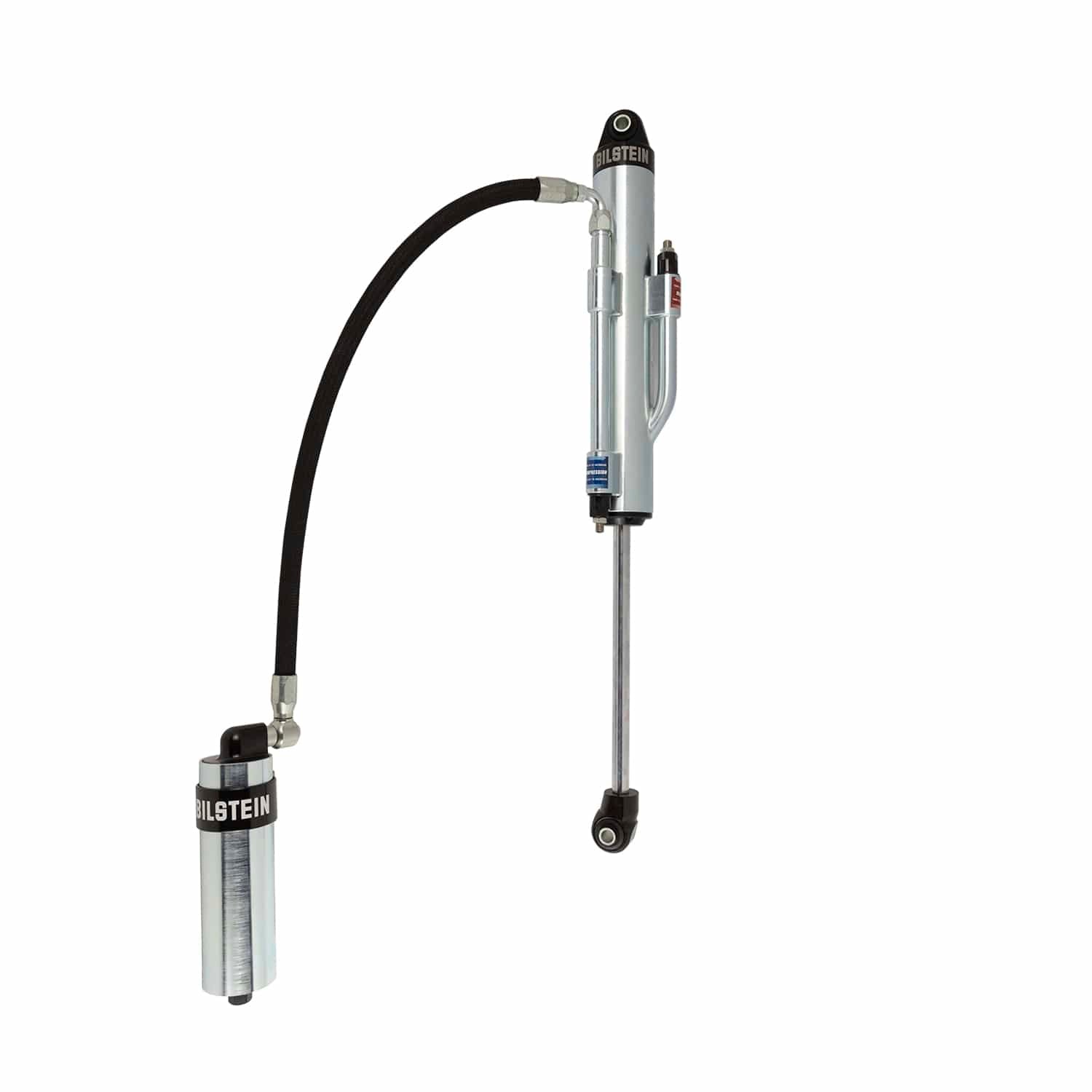

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Features
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
Specifications
| Boot Included | No |
| Collapsed Length (IN) | 18.11 |
| Internal Design | Monotube |
| Series | B8 8100 (Bypass) |
| Lower Mount Type | Eye 12.8mm |
| Extended Length (IN) | 29.13 |
| Body Design | Bypass Body (Non-Coilover) |
| Extended Length (MM) | 740.0 |
| Upper Mount Type | Eye 12.8mm |
| Reservoir | Yes |
| Finish | Zinc Plated |
| Adjustable Damping | Double Adjustable – Compression and Rebound |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Prop 65 (Y/N) | Y |
| Collapsed Length (MM) | 460.0 |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
Short Description: Shock
Invoice Description: Jeep JL 4 Door,'18-,LF,3.5" Lift,B8 8100
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
