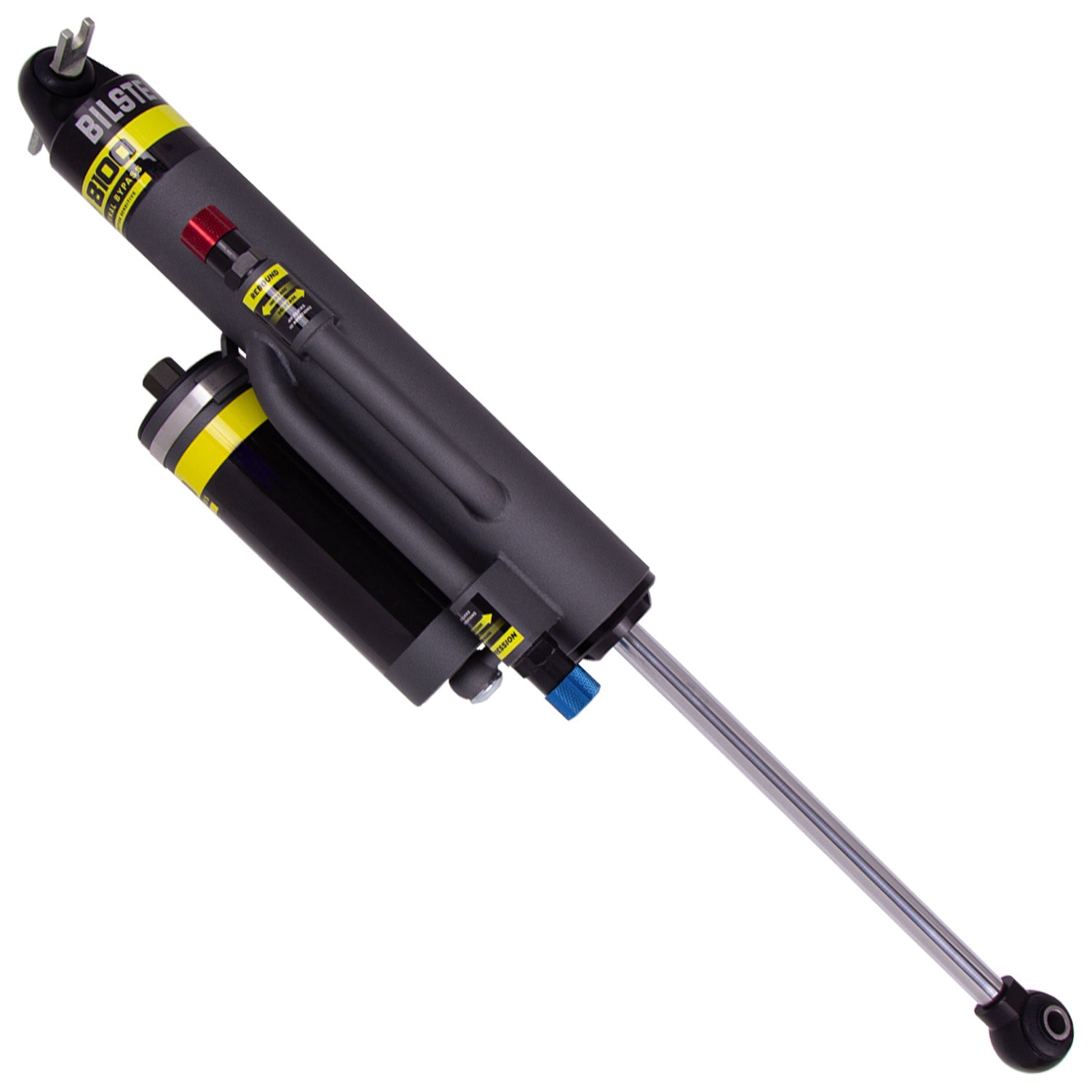

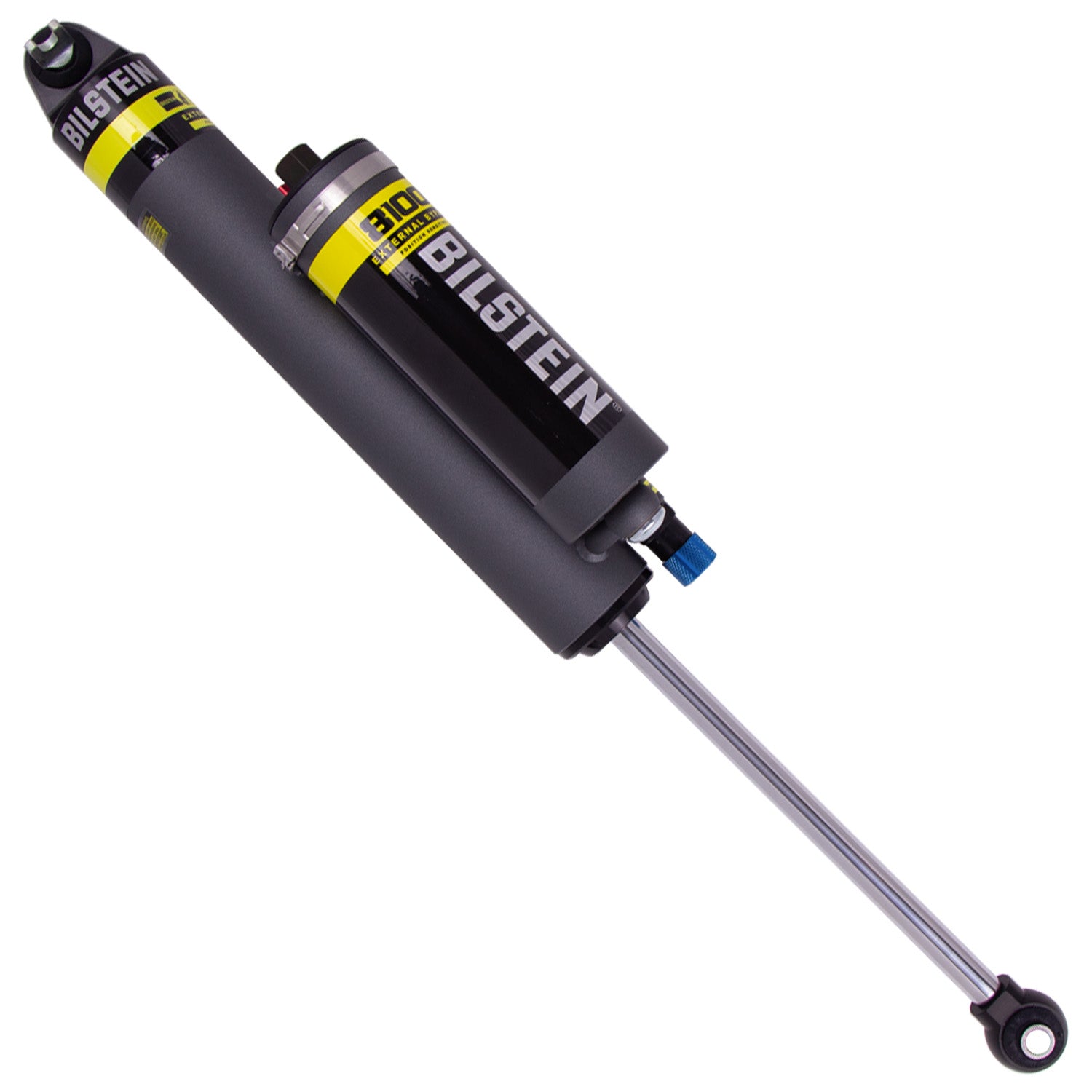

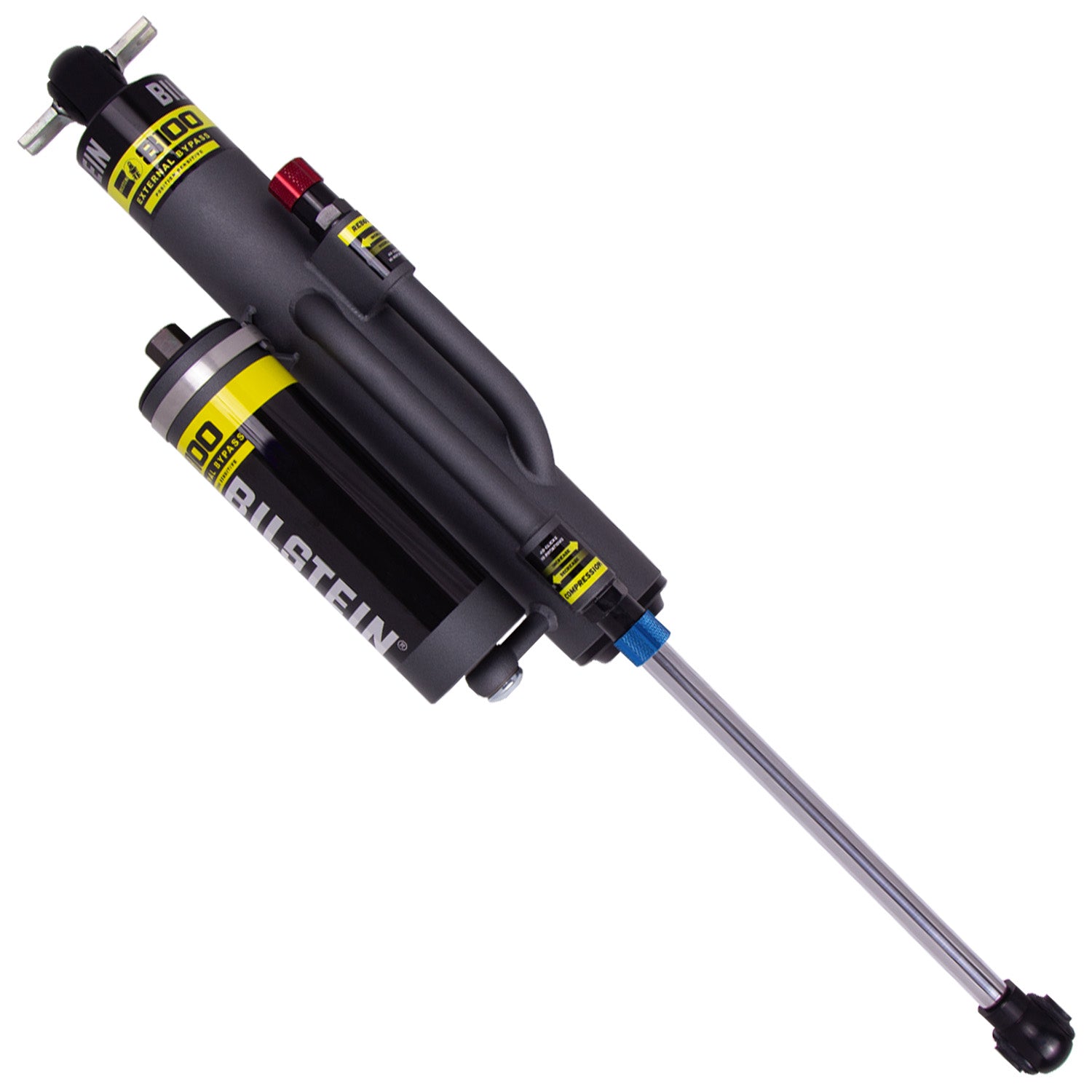

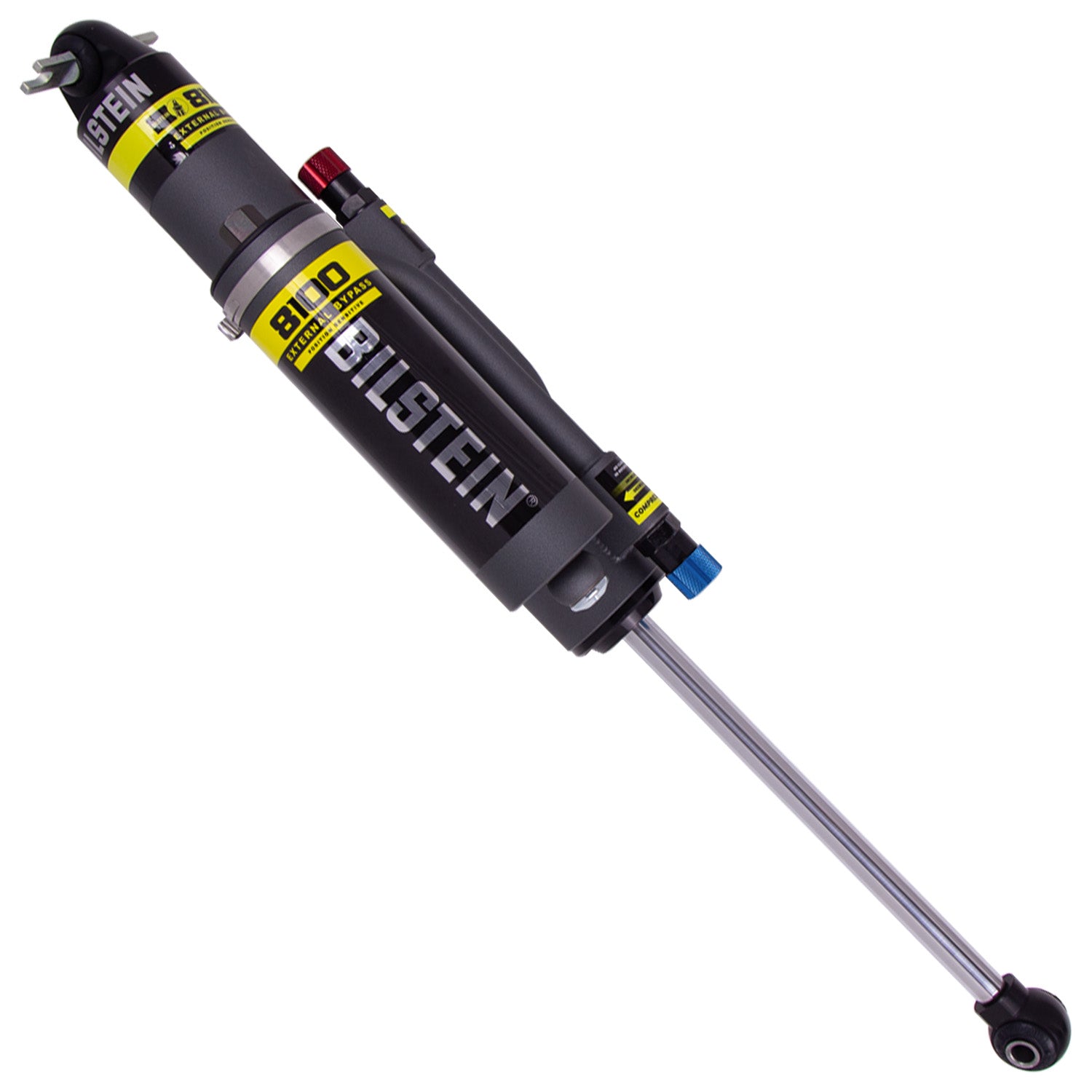

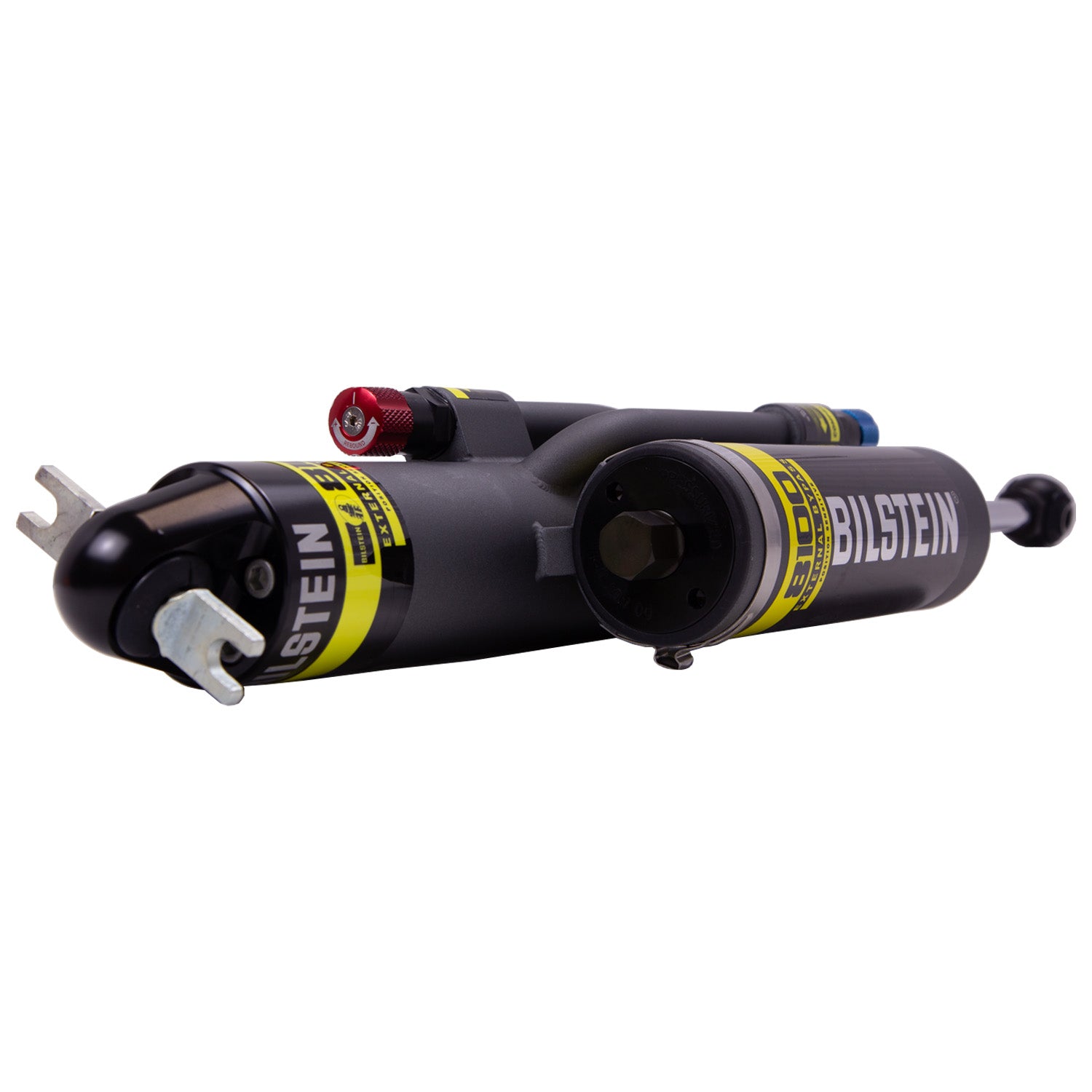

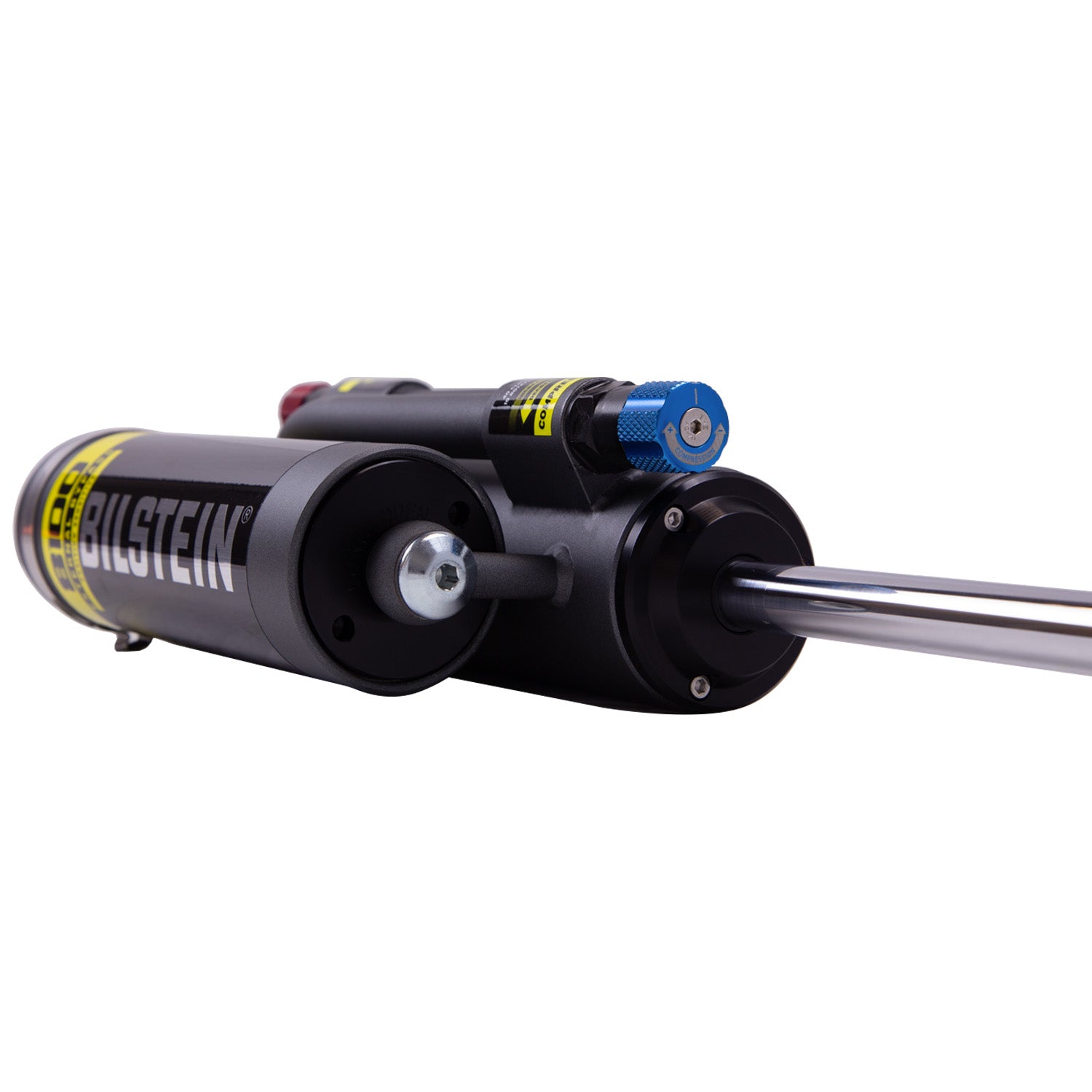

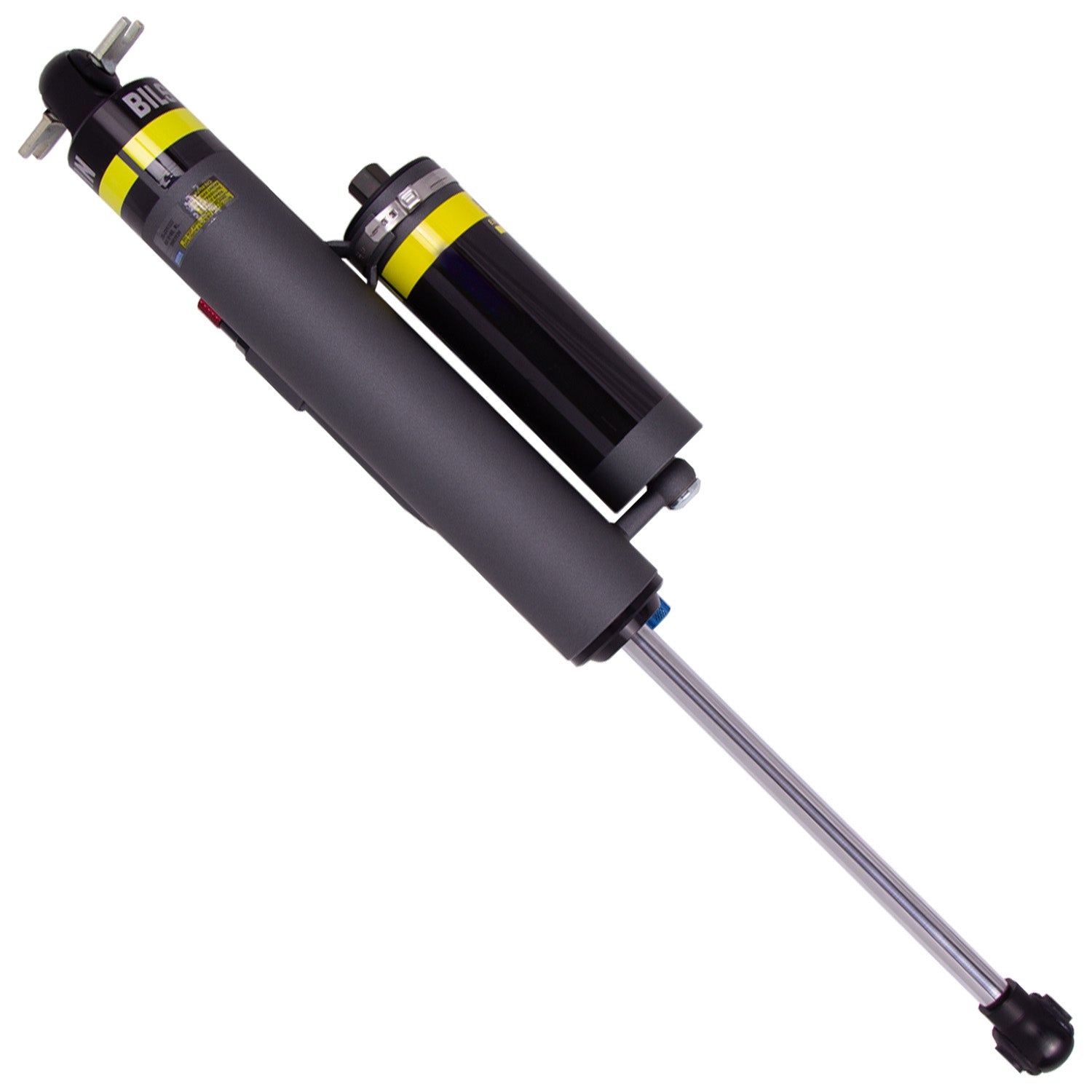

Bilstein 25-291322 Suspension Shock Absorber Rear Left Monotube B8 8100 Bypass
Product Availability Request
Fill the form and our team will contact you.
60mm Shock Absorber
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Features & Benefits
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
B8 8100 (Bypass) - Suspension Shock Absorber
Jeep Wrangler JK; 07-18; RL; 8100 Bypass
Specifications
| Internal Design | Monotube |
| Adjustable Damping | Double Adjustable Compression and Rebound with Click Adjuster Knobs |
| Lower Mount Type | Eye 12.1mm |
| Extended Length (IN) | 27.83 |
| Boot Included | No |
| Title | Bilstein Shock Absorbers |
| Spring Seat Included | No |
| Collapsed Length (IN) | 17.17 |
| Reservoir | Yes |
| Series | B8 8100 (Bypass) |
| Extended Length (MM) | 707.0 |
| Finish | EVO Grey |
| Upper Mount Type | Bar Pin |
| Body Design | Bypass Body (Non-Coilover) |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Collapsed Length (MM) | 436.0 |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
