Bilstein 25-332315 - Suspension Shock Absorber B8 8100 Black Hawk Monotube 2022-2026 Toyota Tundra
Product Availability Request
Fill the form and our team will contact you.
60mm Shock Absorber

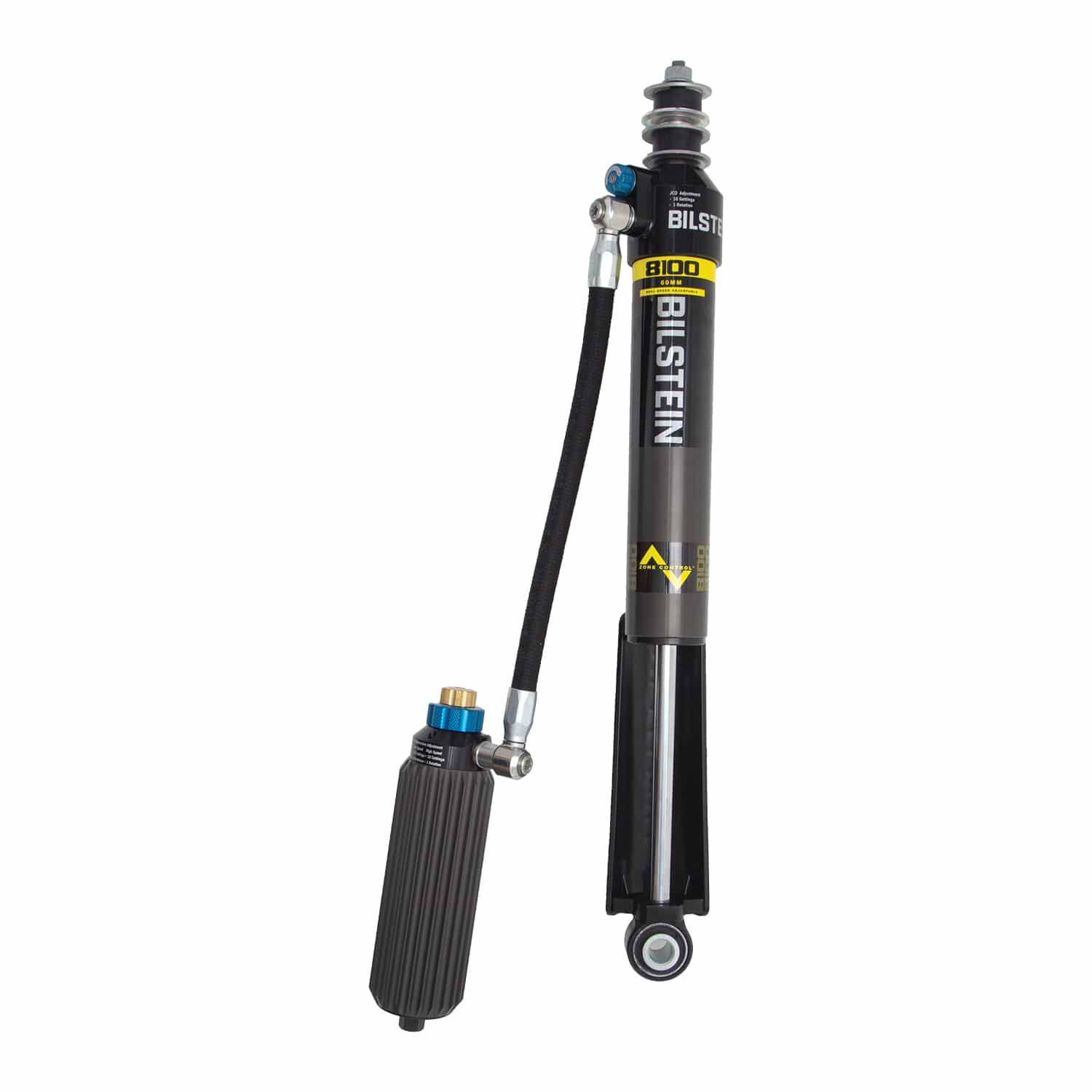

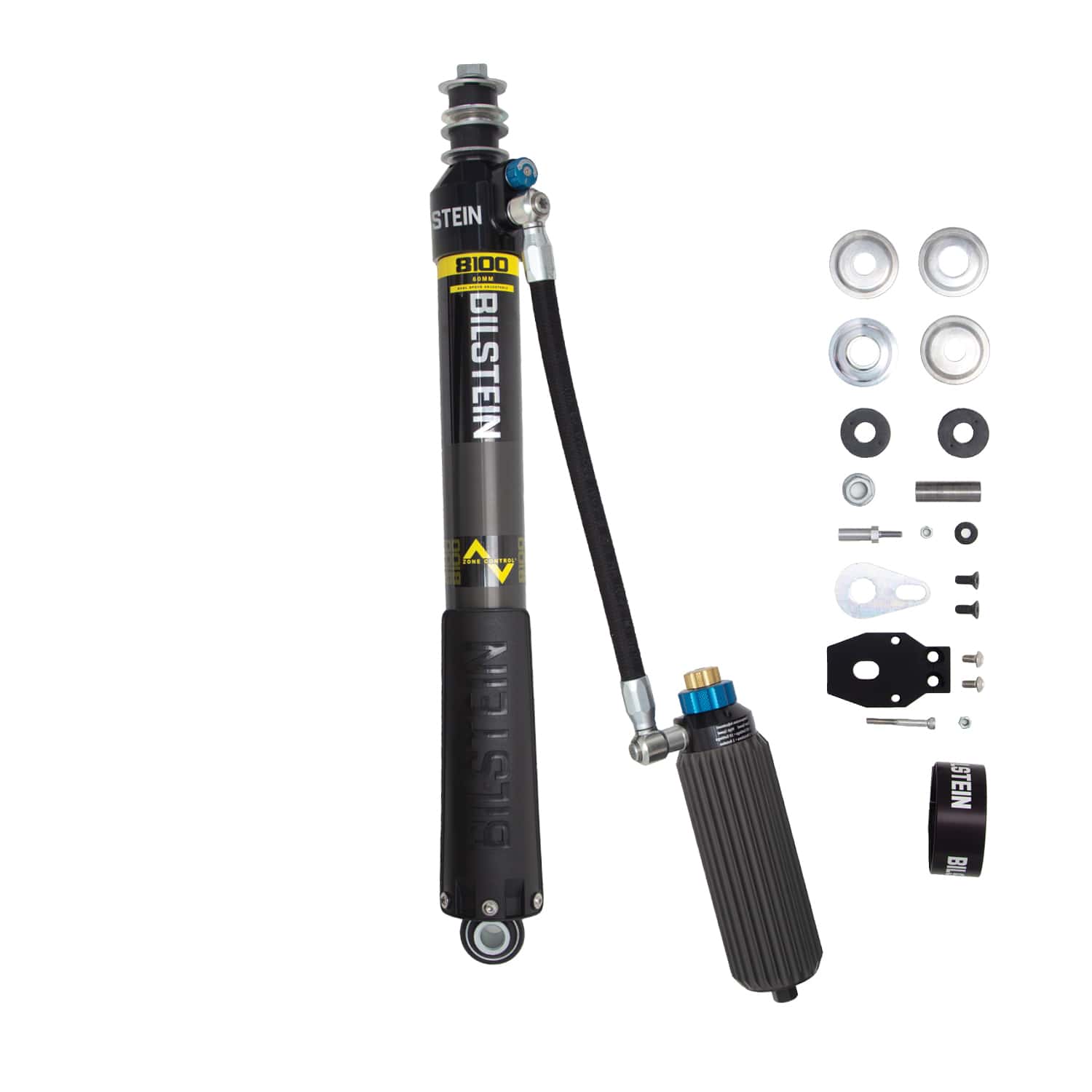

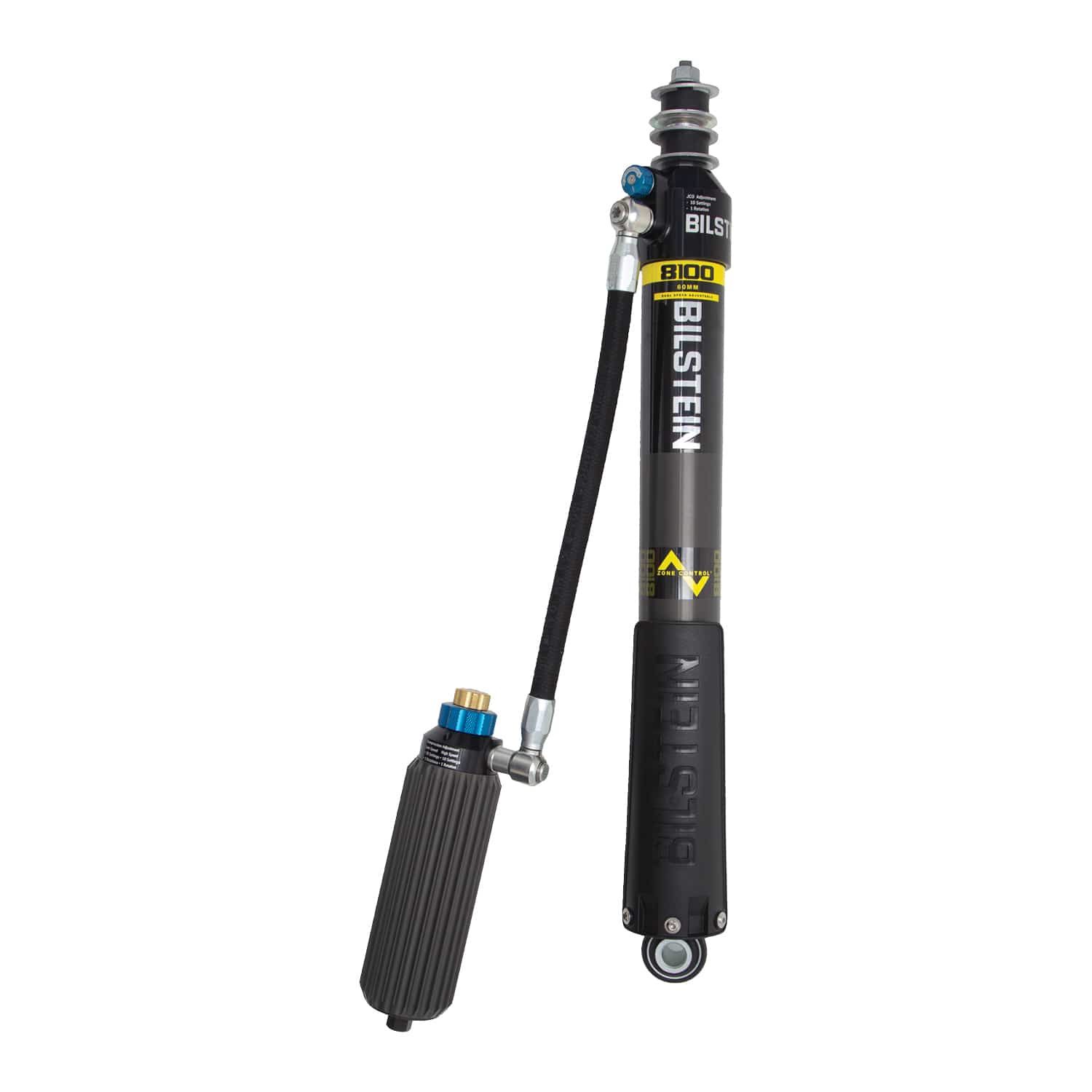

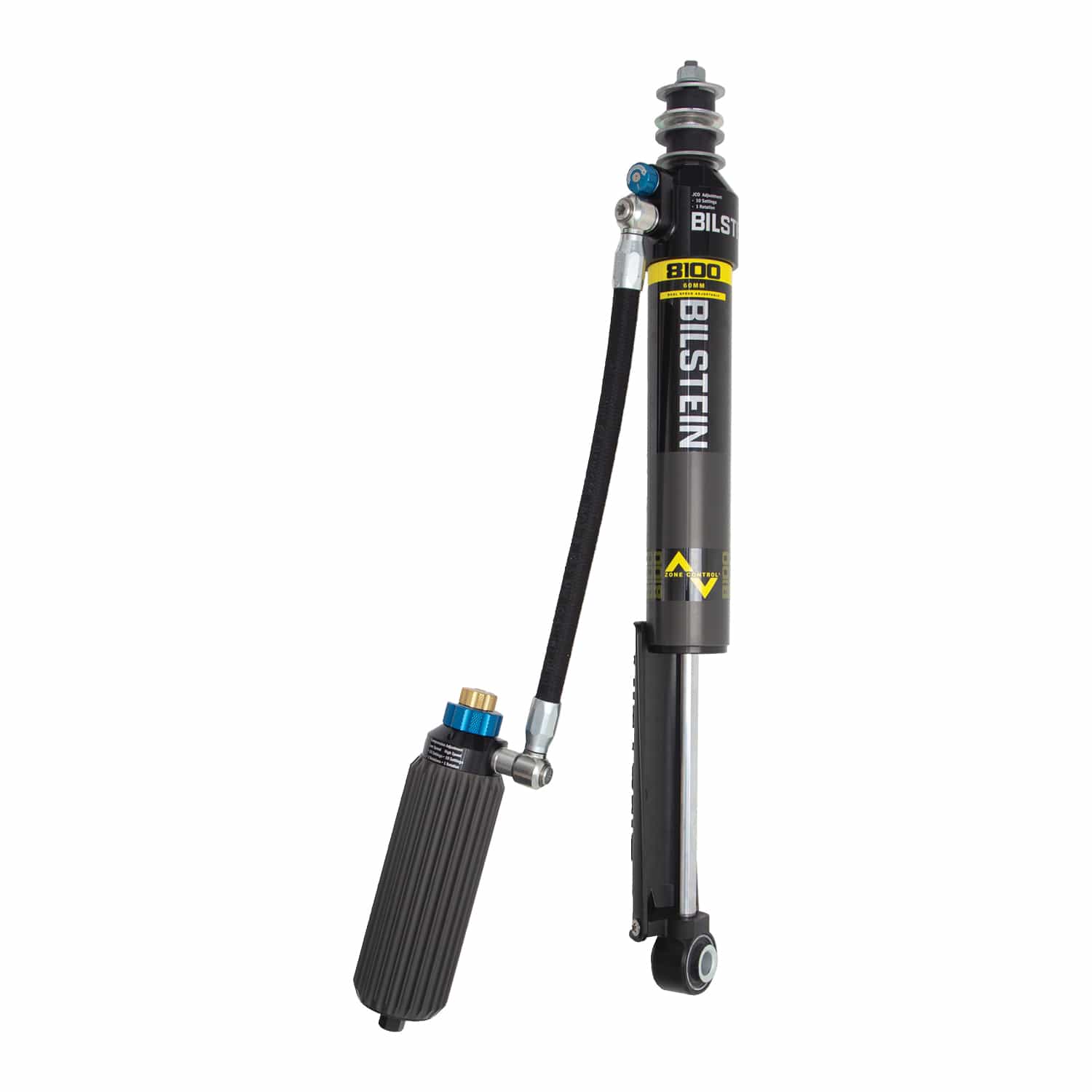

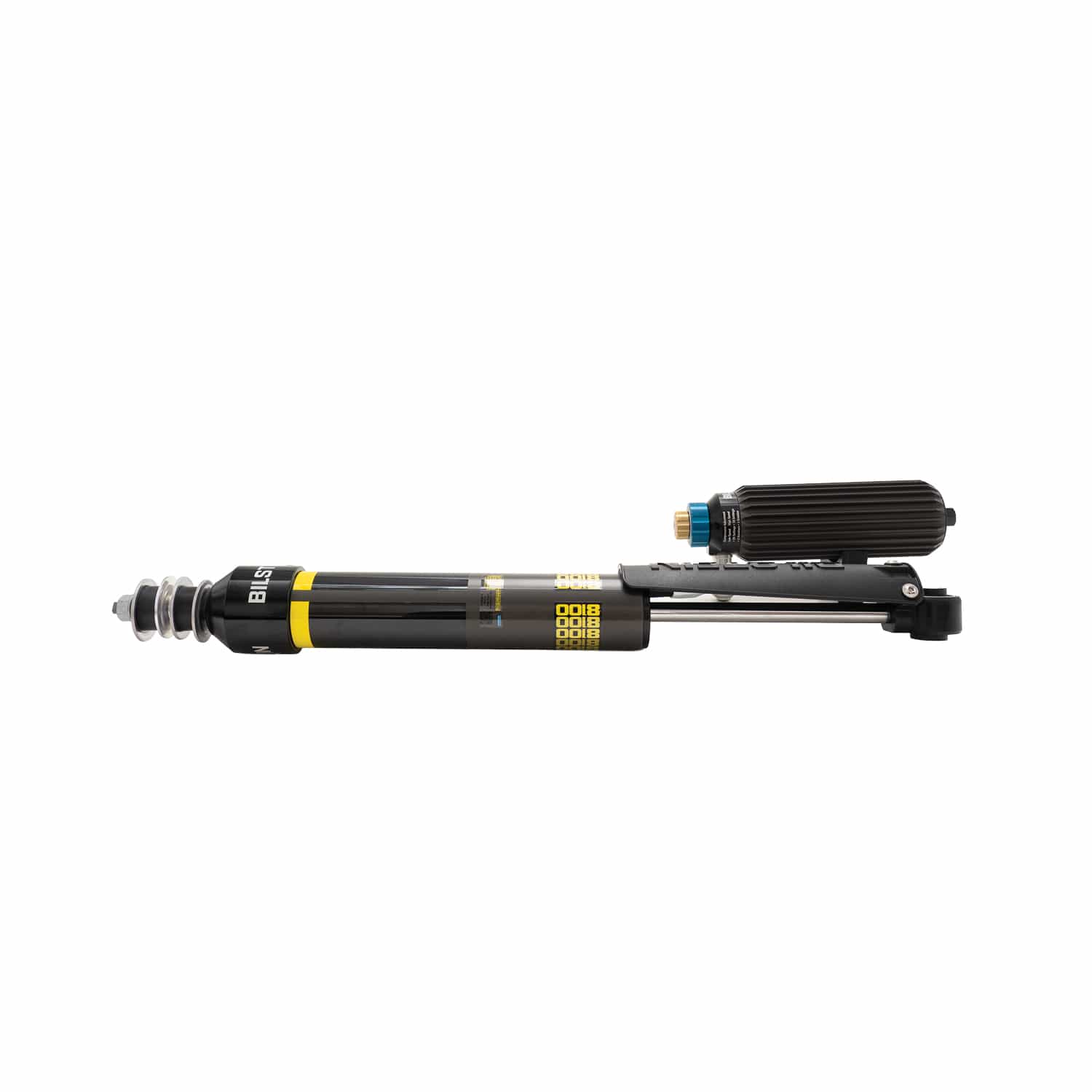

BILSTEIN B8 8100 Black Hawk 3-Way adjustable shock absorbers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.
Features
- Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
- ZoneControl®: Position sensitive damping controlled by independent pistons

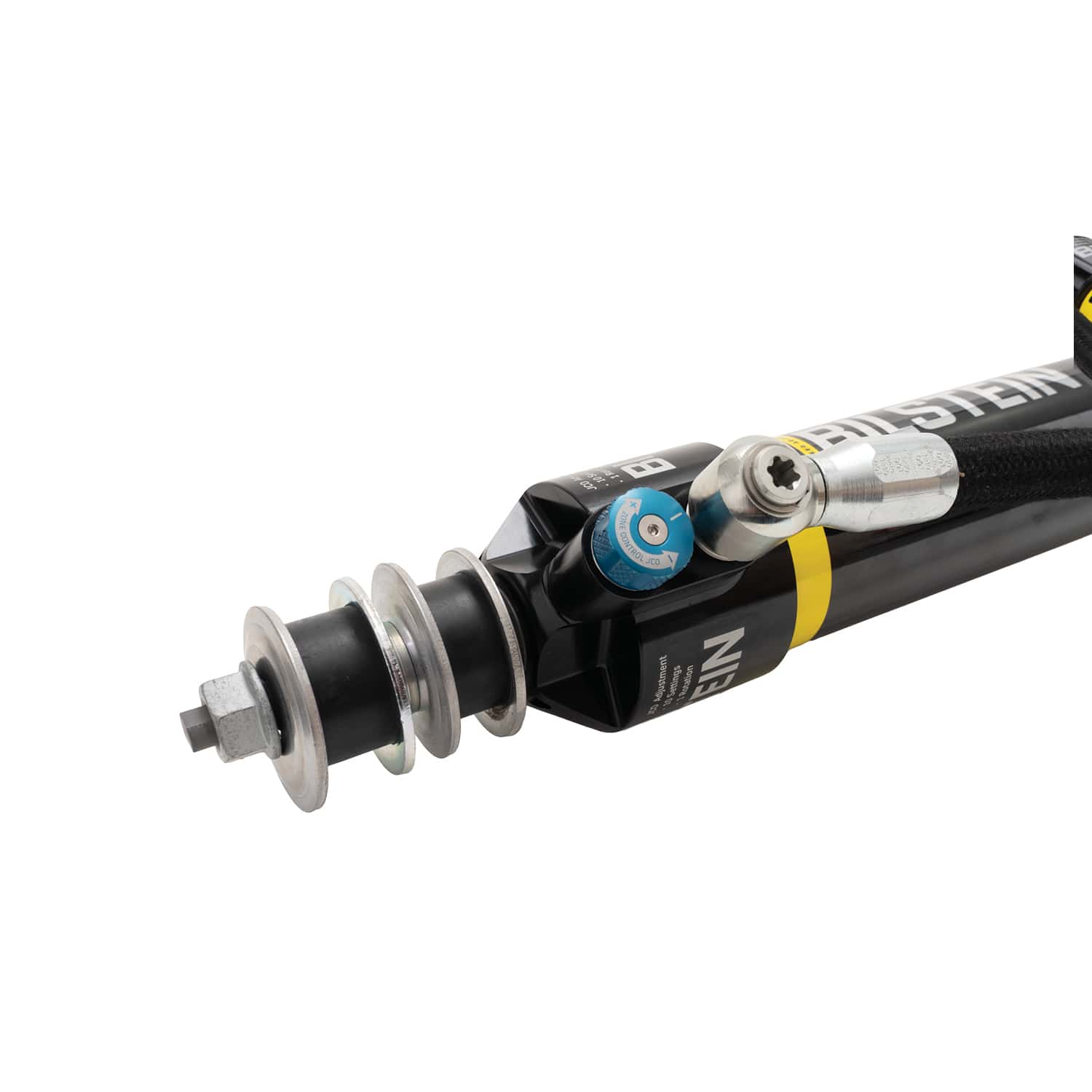

- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
Specifications
| Prop 65 (Y/N) | Y |
| Piston Diameter | 60mm |
| Series | B8 8100 Black Hawk |
| Lower Mount Type | Eye 19.1mm |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Finish | EVO Grey |
| Body Material | Aluminum |
| Reservoir | Yes - Finned Aluminum |
| Rock Shield Included | Yes |
| Collapsed Length (IN) | 16.78 |
| Body Design | 60mm ID Smooth Body (Non-Coilover) |
| Boot Included | No |
| Collapsed Length (mm) | 426.3 |
| Shaft Diameter | 18mm |
| Segment | Light Truck |
| PartType | Shocks / Struts |
| Spring Seat Included | No |
| Internal Design | Monotube |
| Extended Length (mm) | 639.5 |
| Upper Mount Type | Stem |
| Extended Length (IN) | 25.18 |
Short Description: Shock
Invoice Description: TUNDRA 22+; RL; 8100 BLACK HAWK; 0-1"
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2026 | Toyota | Tundra | 1794 Edition |
| 2022-2026 | Toyota | Tundra | Capstone |
| 2022-2026 | Toyota | Tundra | Limited |
| 2022-2026 | Toyota | Tundra | Platinum |
| 2022-2026 | Toyota | Tundra | SR5 |
| 2022-2026 | Toyota | Tundra | SR |
6 applications listed.
