Bilstein 25-335903 - Suspension Shock Absorber B8 8100 (ZoneControl R DSA) Monotube 2019-2026 Ram 2500
Product Availability Request
Fill the form and our team will contact you.
60mm Shock Absorber

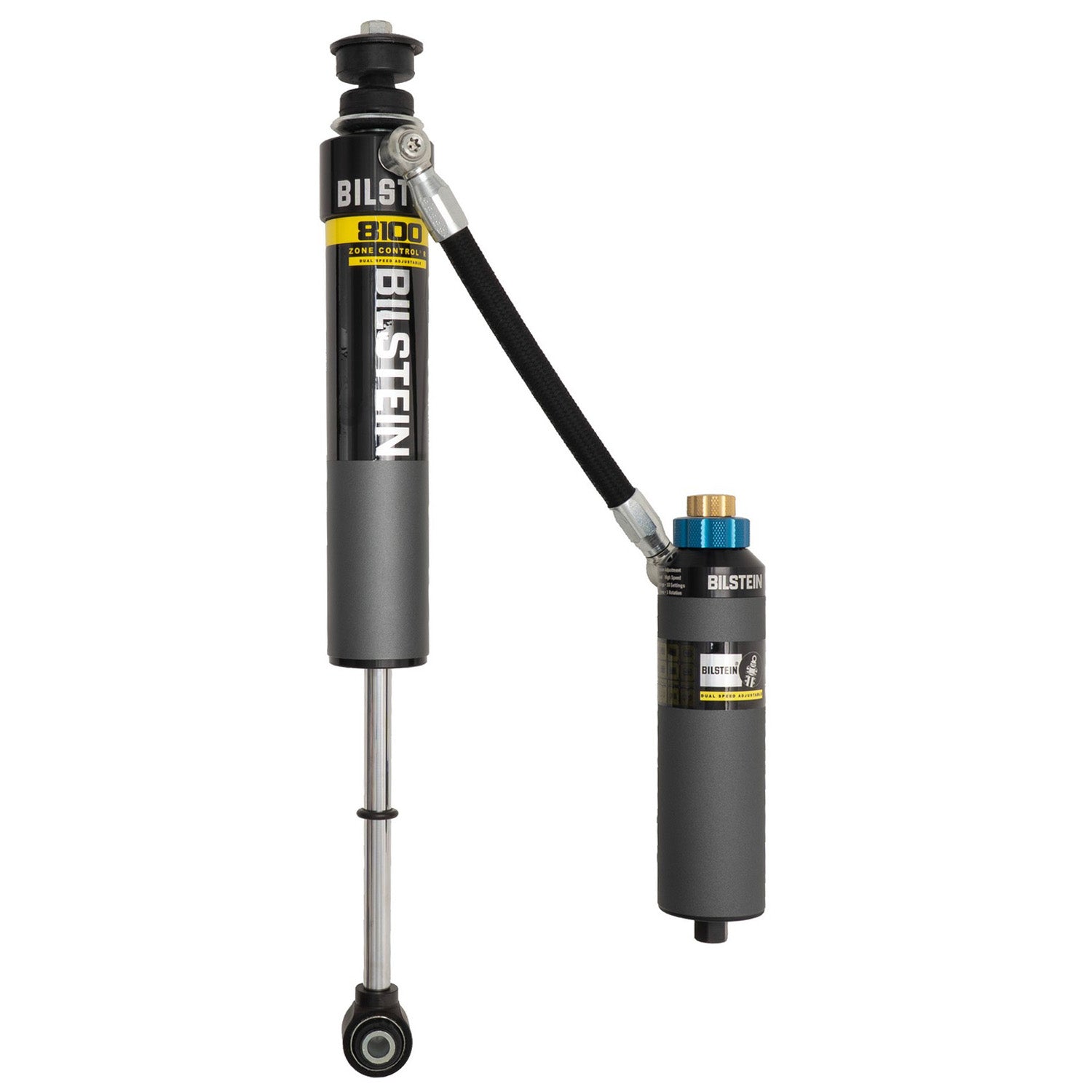

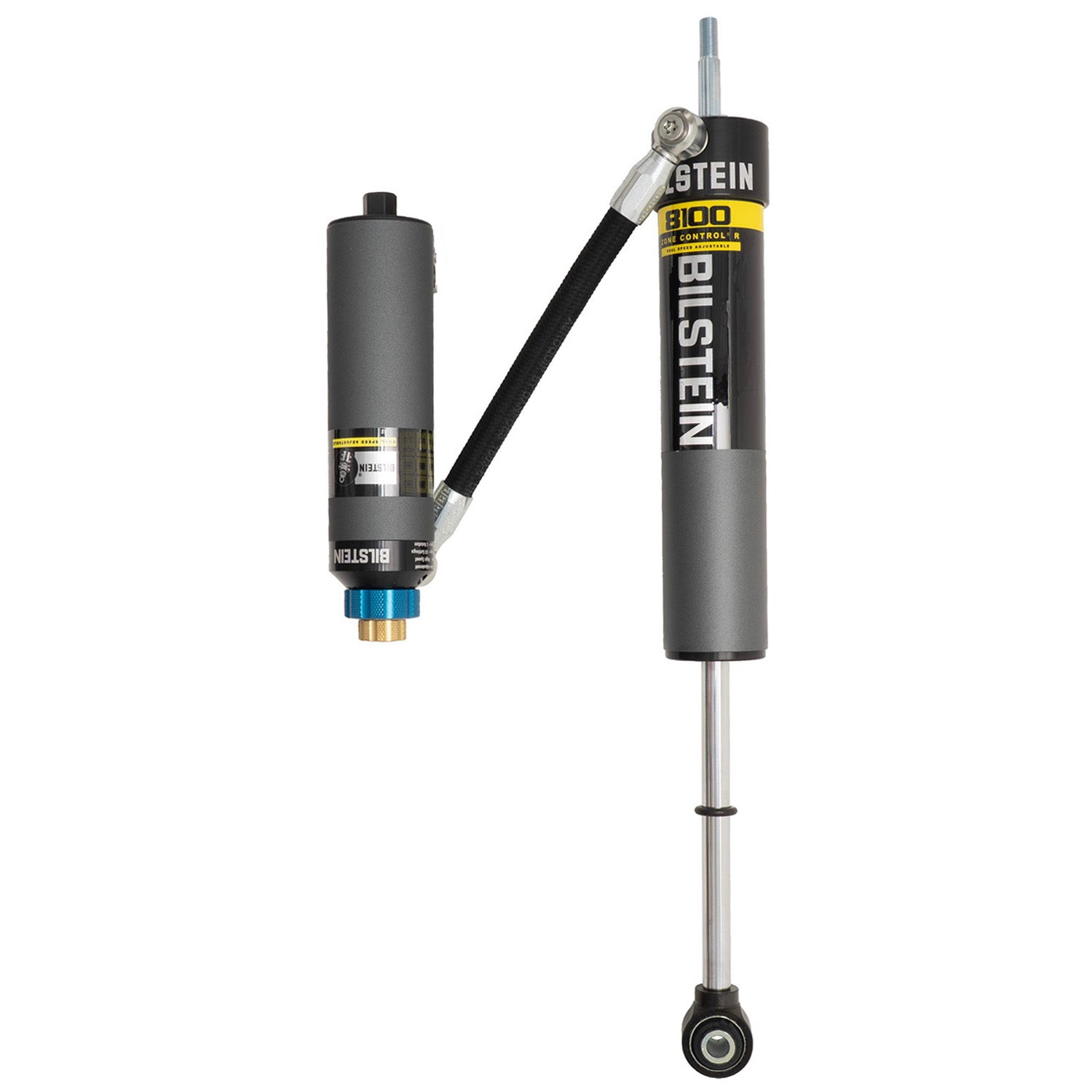

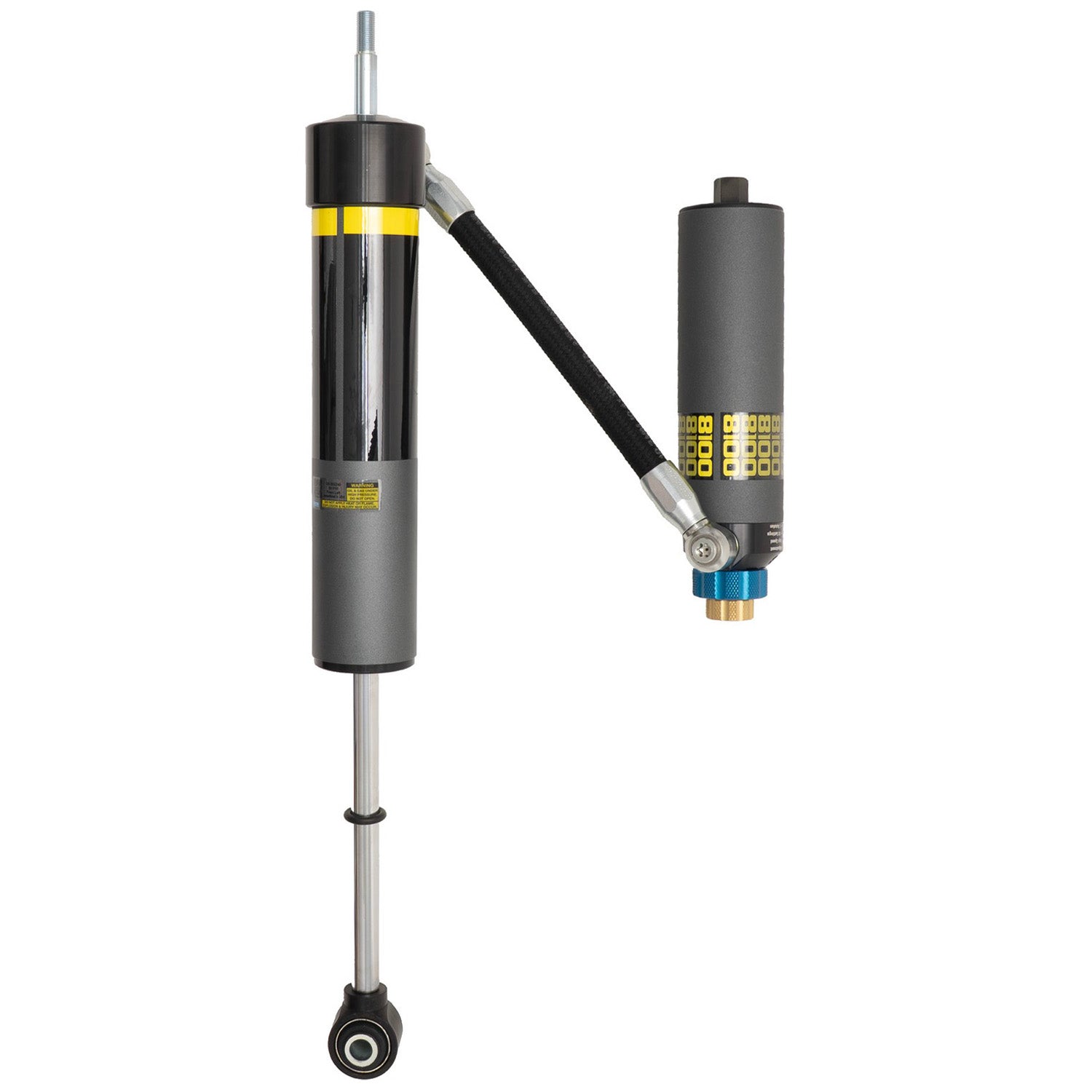

The B8 8100 (ZoneControl R DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs.Β Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface. ZoneControl R is a revolutionary double piston technology delivering position sensitive rebound damping which eliminates harsh suspension top-out events and the need for an external limit strap. Each B8 8100 (DSA) offers a unique remote or piggyback reservoir solution for an easy, hassle free installation.Β These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 (ZoneControl R DSA) offers unmatched levels of adjustable ride comfort and control.
Features
- The B8 8100 (ZoneControl R DSA) reservoir shock absorber is an adjustable large bore 60mm (2.65" OD) direct fit solution for lifted trucks and SUVs
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression to tailor your ride to any surface
- ZoneControl R is a revolutionary double piston technology delivering position sensitive rebound damping which eliminates harsh suspension top-out events and the need for an external limit strap
Specifications
| Boot Included | No |
| Extended Length (IN) | 22.99 |
| Extended Length (MM) | 584.0 |
| Series | B8 8100 (ZoneControl R DSA) |
| Upper Mount Type | Stem |
| Lower Mount Type | Eye 14.1mm |
| Adjustable Damping | Double Adjustable Compression with Click Adjuster Knobs |
| Collapsed Length (IN) | 14.65 |
| Internal Design | Monotube |
| PartType | Shocks / Struts |
| Spring Seat Included | No |
| Collapsed Length (MM) | 372.2 |
| Body Design | Smooth Body (Non-Coilover) |
| Segment | Light Truck |
| Reservoir | Yes |
| Finish | EVO Grey |
| Prop 65 (Y/N) | Y |
| Piston Diameter | 60mm |
| Shaft Diameter | 18mm |
Short Description: Shock
Invoice Description: RAM 2500 4WD;19+;FR;8100 ZC R DSA EVO;2"
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019-2026 | Ram | 2500 | Big Horn |
| 2019-2021 | Ram | 2500 | Laramie Longhorn |
| 2019-2026 | Ram | 2500 | Laramie |
| 2021-2026 | Ram | 2500 | Limited Longhorn |
| 2019-2026 | Ram | 2500 | Limited |
| 2019-2026 | Ram | 2500 | Lone Star |
| 2023-2026 | Ram | 2500 | Rebel |
| 2019-2026 | Ram | 2500 | Tradesman |
| 2026 | Ram | 2500 | Warlock |
9 applications listed.
