Bilstein 41-326343 - Suspension Shock Absorber and Coil Spring Assembly B8 8112 (ZoneControl CR DSA+) Monotube 2003-2009 Toyota/Lexus
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.

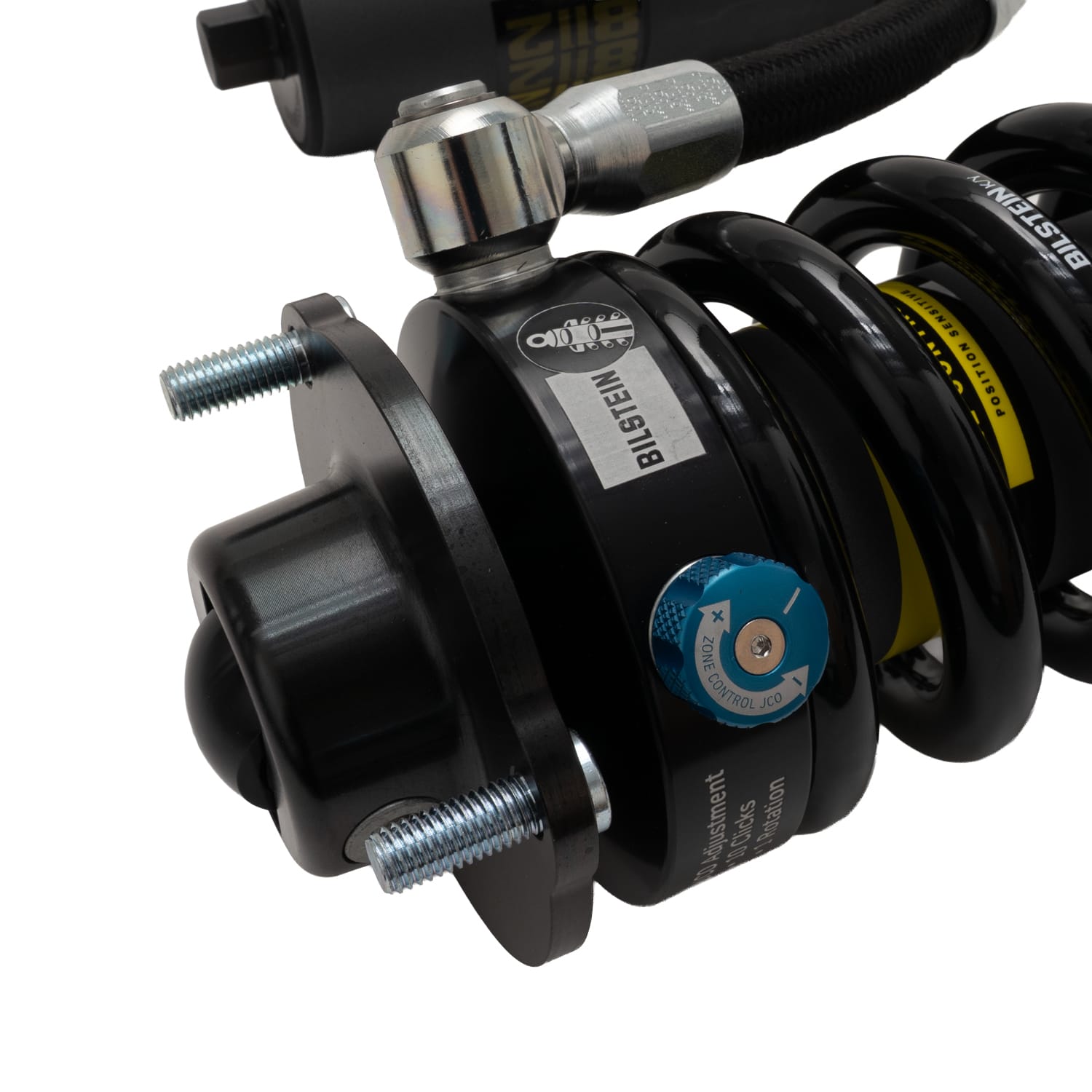

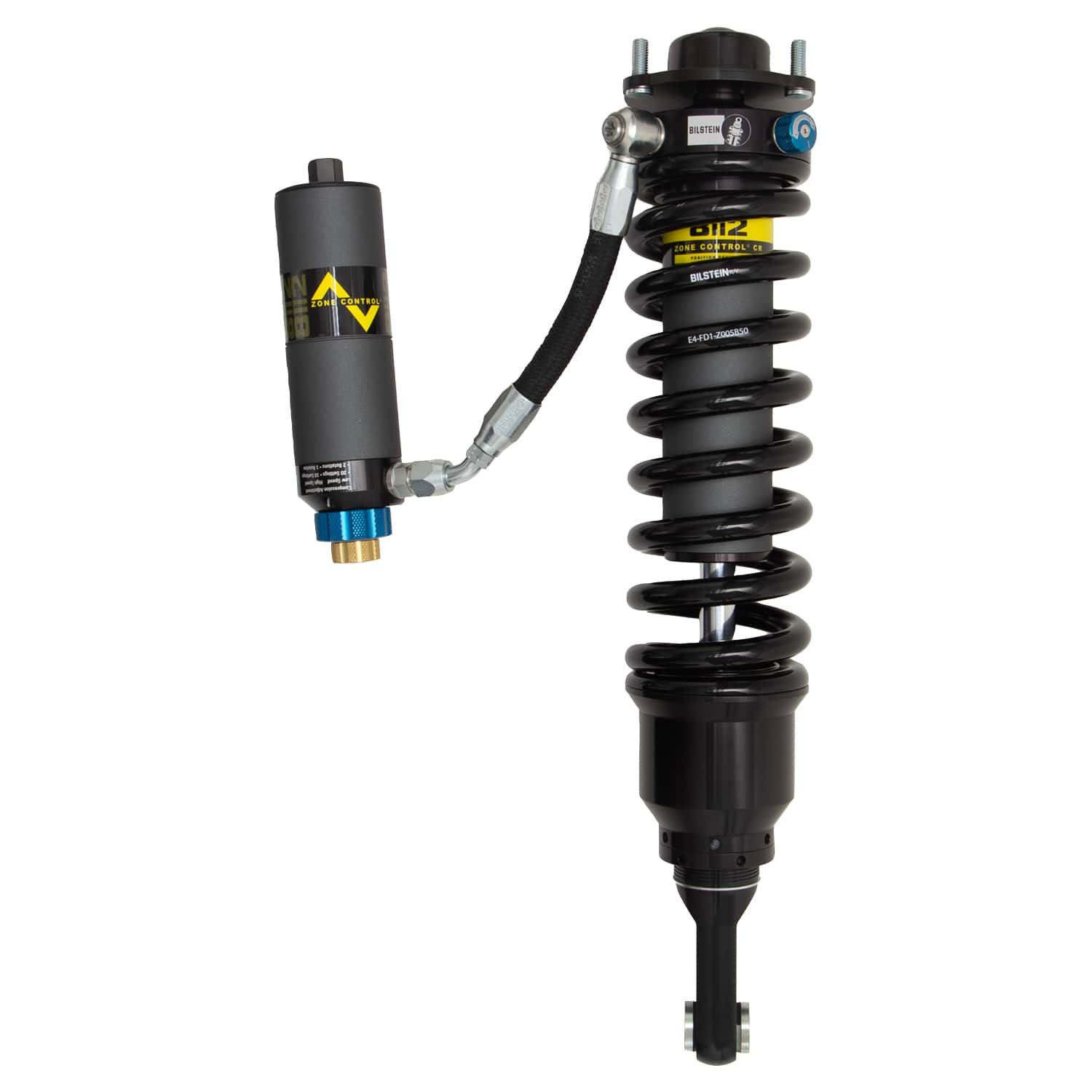

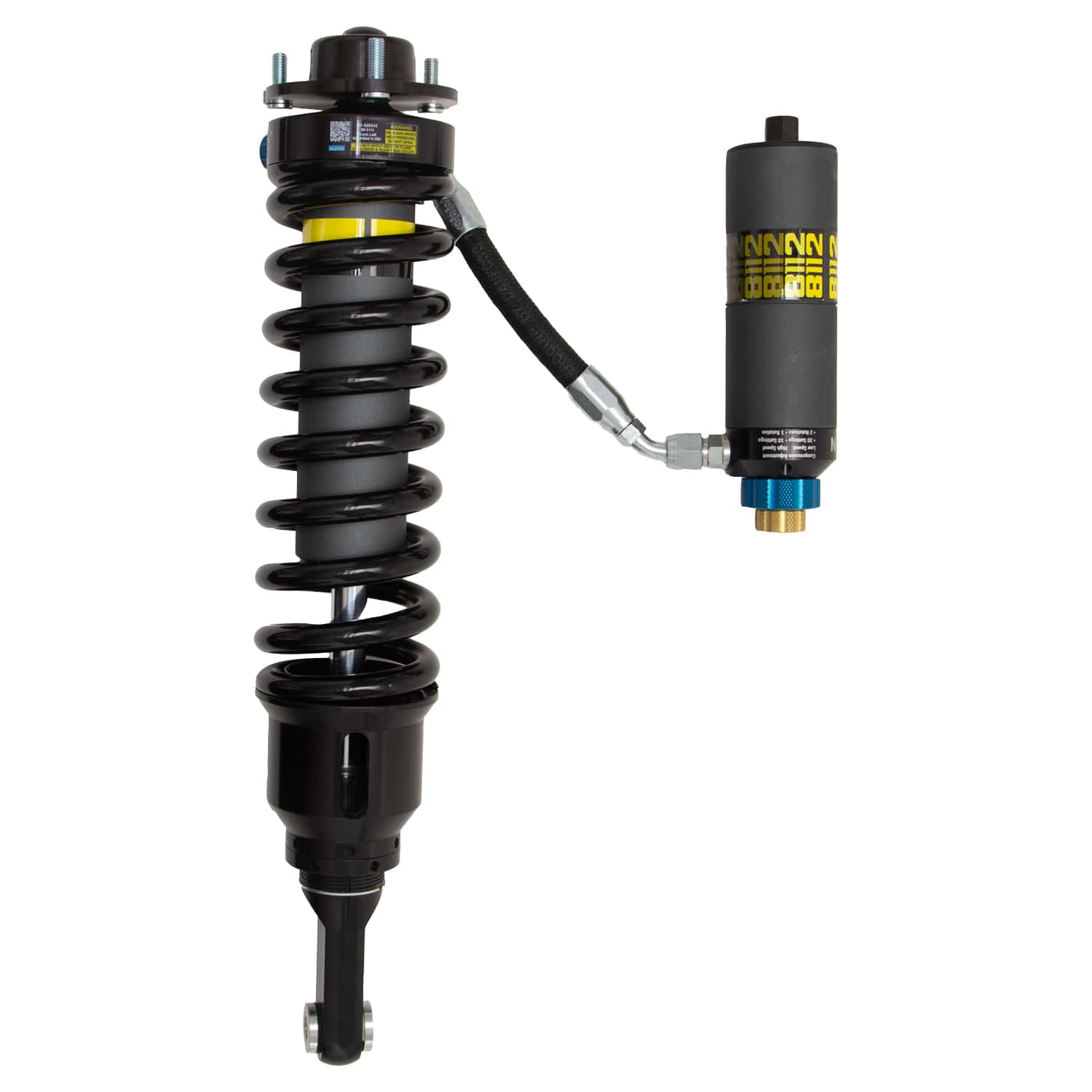

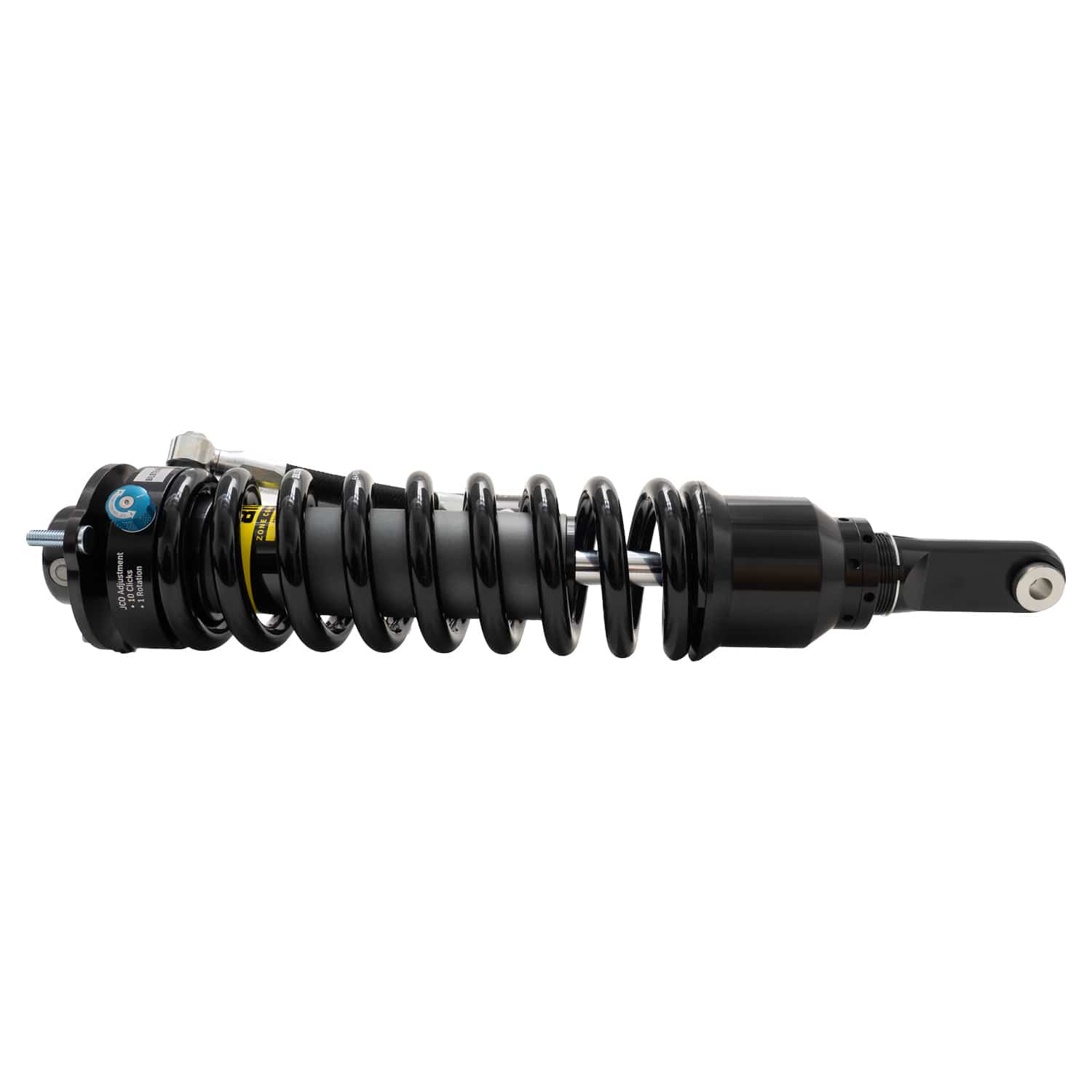

This steel monotube coilover module (Bilstein B8 8112 ZoneControl CR DSA+, part 41-326343) incorporates a 60mm piston diameter and ZoneControl CR technology that delivers position-sensitive damping across 3 compression zones and 2 rebound zones, controlled by 3 independent pistons. Fits the 2003-2009 Lexus GX470 and Toyota 4Runner, and the 2007-2009 Toyota FJ Cruiser. Click adjuster knobs enable Dual Speed Adjustment of both low and high speed compression, plus an adjustable JCO internal hydraulic bump stop. The unit includes a 60mm remote reservoir for increased oil capacity and cooling, a threaded spring seat for ride height adjustability ranging from 0 to 3 inches depending on application, and a bolt-on anodized reservoir chassis mount. The boot is not included.
- Front Main Spring Rate: 600 lbs/in
- Body Material: Steel
- Body Design: Smooth Body (Coilover)
- Internal Design: Monotube
- Piston Diameter: 60mm
- Shaft Diameter: 22.0 mm
- Upper Mount Type: Special
- Lower Mount Type: Eye 14.1mm
- Spring Seat Included: Yes
- Reservoir: Yes
- Boot Included: No
- Extended Length: 22.24 in / 564.8 mm
- Collapsed Length: 17.43 in / 442.6 mm
- Finish: Dampers EVO Grey / Springs Black
- Segment: Light Truck
Country of Origin: United States
