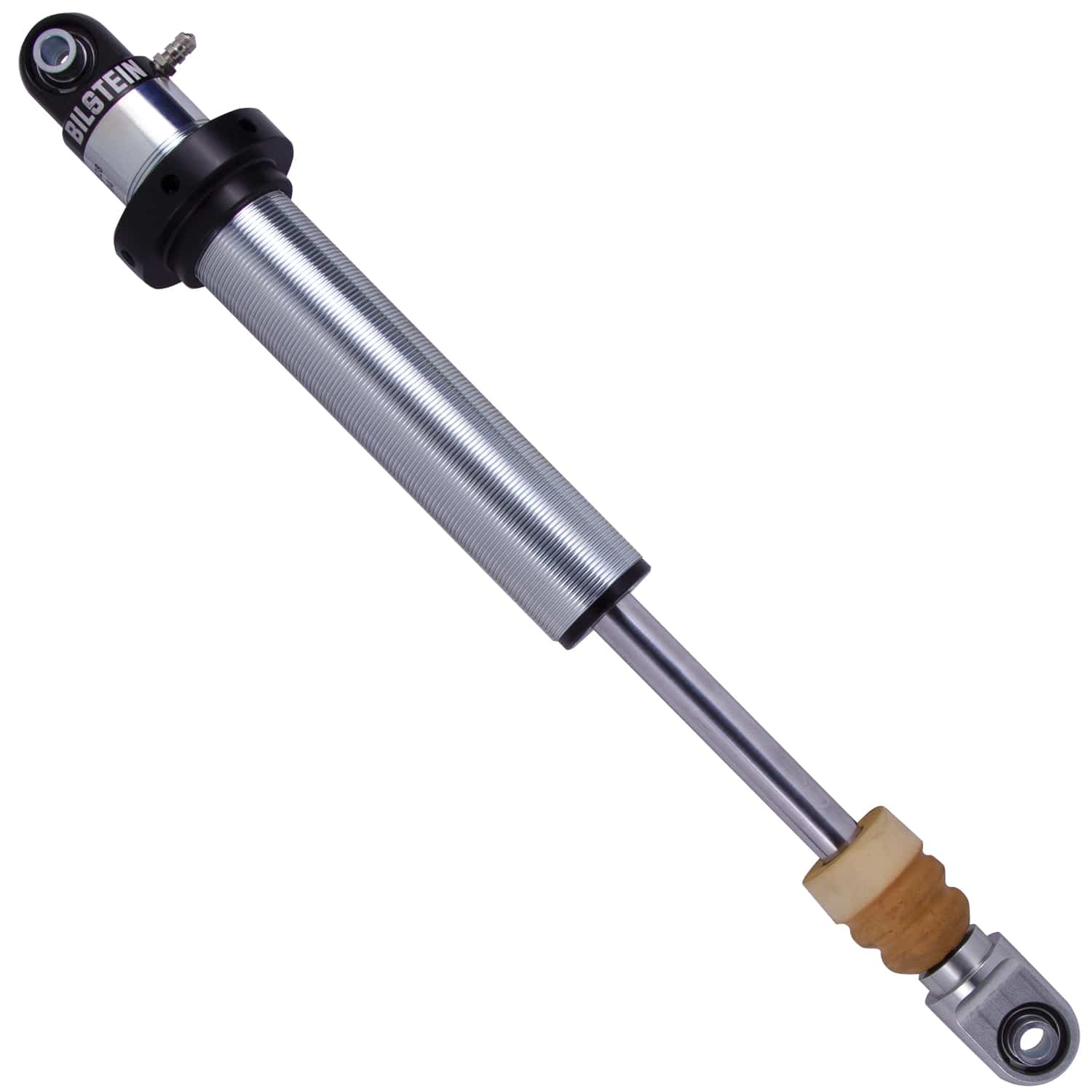

Bilstein 33-243528 - Suspension Shock Absorber 46mm Coil-Carrier 8 Inch 9200 Series Monotube M 9200 (Coil Carrier) Bilstein
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Features & Benefits
- 46mm monotube design
- Designed to hold the coils in place
- To be used in conjunction with Bypass shocks
M 9200 (Coil Carrier) - Suspension Shock Absorber
46mm Coil-Carrier, 8", 9200 Series
Specifications
| Lower Mount Type | Eye .5x1.5in |
| Optional Reservoir Clamp | N/A |
| Internal Design | Monotube |
| Title | Bilstein Shock Absorbers |
| Series | M 9200 (Coil Carrier) |
| Body Design | Threaded Body (Coilover) |
| Mount Type | Eye-to-Eye |
| Finish | Zinc Plated |
| Reservoir | Yes |
| Extended Length (IN) | 23.00 |
| Extended Length (MM) | 584.2 |
| Boot Included | N/A |
| Upper Mount Type | Eye .5x1.5in |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Compression @0.52m/s | Coil Carrier No Valving |
| Rebound @0.52m/s | Coil Carrier No Valving |
| Collapsed Length (IN) | 15.00 |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 381.0 |
| Stroke/Travel Length (mm) | 203.2 |
| Shaft Diameter (mm) | 22.0 |
| Stroke/Travel Length (IN) | 8.00 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
