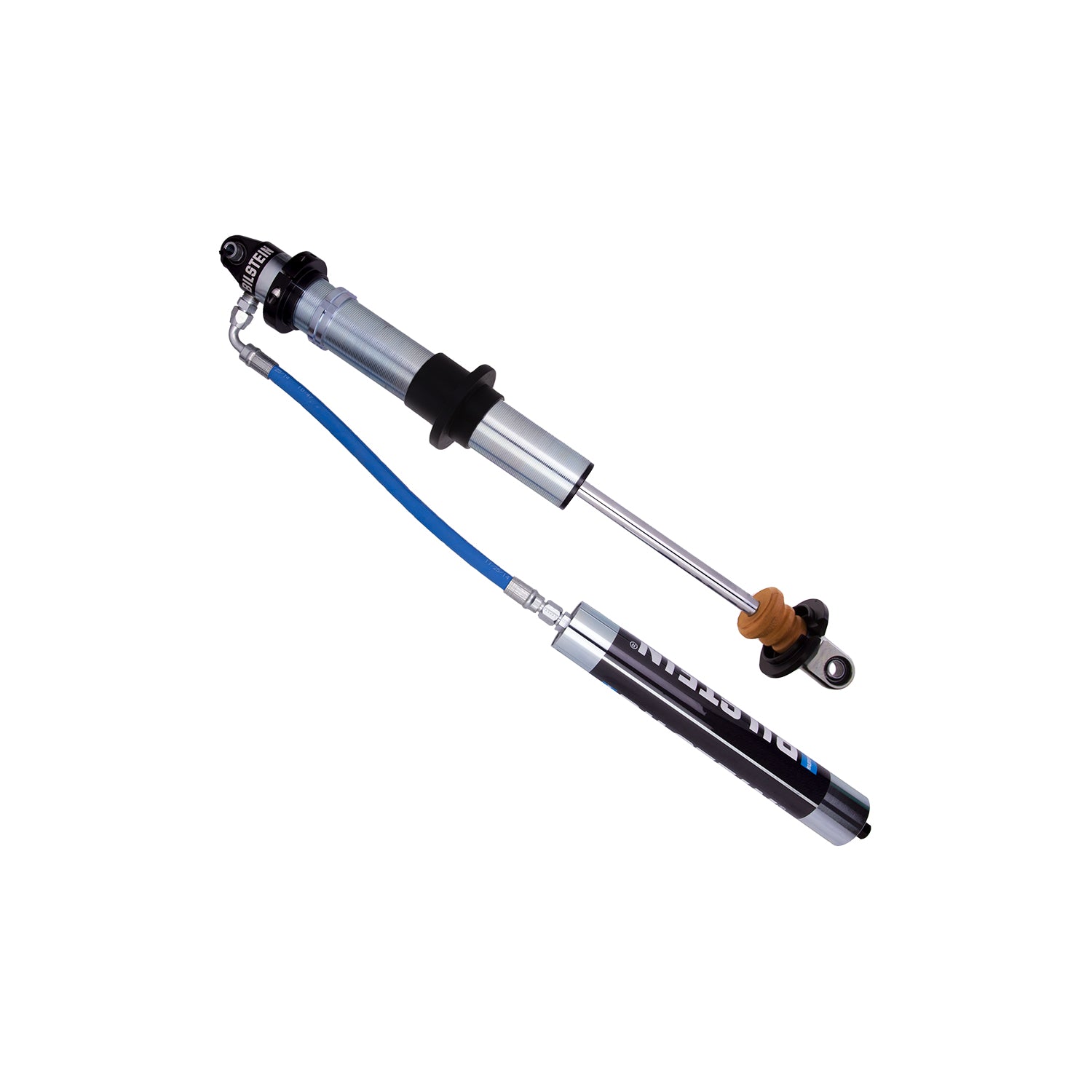

Bilstein 33-244488 - Suspension Shock Absorber M 9200 (Coilover) Monotube

Name: Bilstein 33-244488 - Suspension Shock Absorber M 9200 (Coilover) Monotube
Brand: Bilstein
SKU: 33-244488
Price: 781.00 USD
Availability: InStock

$781.00 USD

Out of Stock

This product is currently out of stock. It will be placed on backorder, and shipping can take 2 or more weeks to fulfill your order. and we will notify you as soon as it is back in stock.

Free US shipping on orders over $80

Warranty 3 Months

60mm Monotube Shock Absorber

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Features & Benefits

Available in 46mm and 60mm monotubes
Threaded body with dual-rate coilover hardware
Multiple stroke lengths available ranging from 8" to 16"

M 9200 (Coilover) - Suspension Shock Absorber

60mm Coilover, 12", 255/100, 9200 Series

Specifications

Collapsed Length (MM)	546.1
Boot Included	N/A
Body Design	Threaded Body (Coilover)
Series	M 9200 (Coilover)
Compression @0.52m/s	1000
Extended Length (IN)	33.50
Lower Mount Type	Eye .5x1.5in
Internal Design	Monotube
Finish	Zinc Plated
Mount Type	Eye-to-Eye
Rebound @0.52m/s	2550
Extended Length (MM)	850.9
Upper Mount Type	Eye .5x1.5in
Reservoir	Yes
Optional Reservoir Clamp	N/A
Title	Bilstein Shock Absorbers
Spring Seat Included	No
Segment	Motorsports
PartType	Shocks / Struts
Piston Diameter	60mm
Collapsed Length (IN)	21.50
Stroke/Travel Length (IN)	12.00
Shaft Diameter (mm)	22.0
Stroke/Travel Length (mm)	304.8

⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation Guide: Download PDF

Sold by Specification. This is an engine build part, chosen by its measurements rather than by year, make and model. Match the specifications to your build. If you are unsure, check with your mechanic or dealership. Making sure it fits is the customer's responsibility.

A vehicle fitment list isn’t available for this part.

Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
