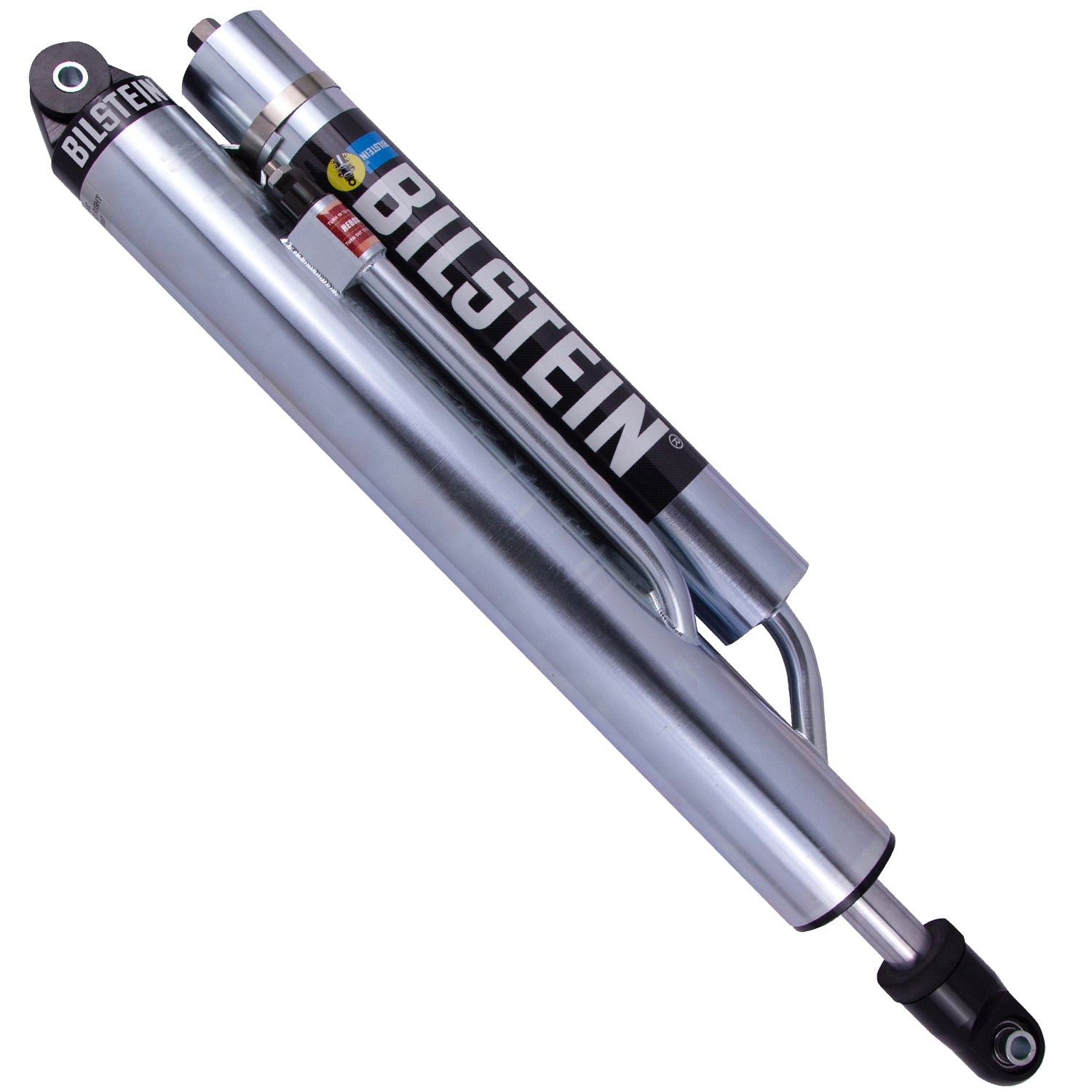

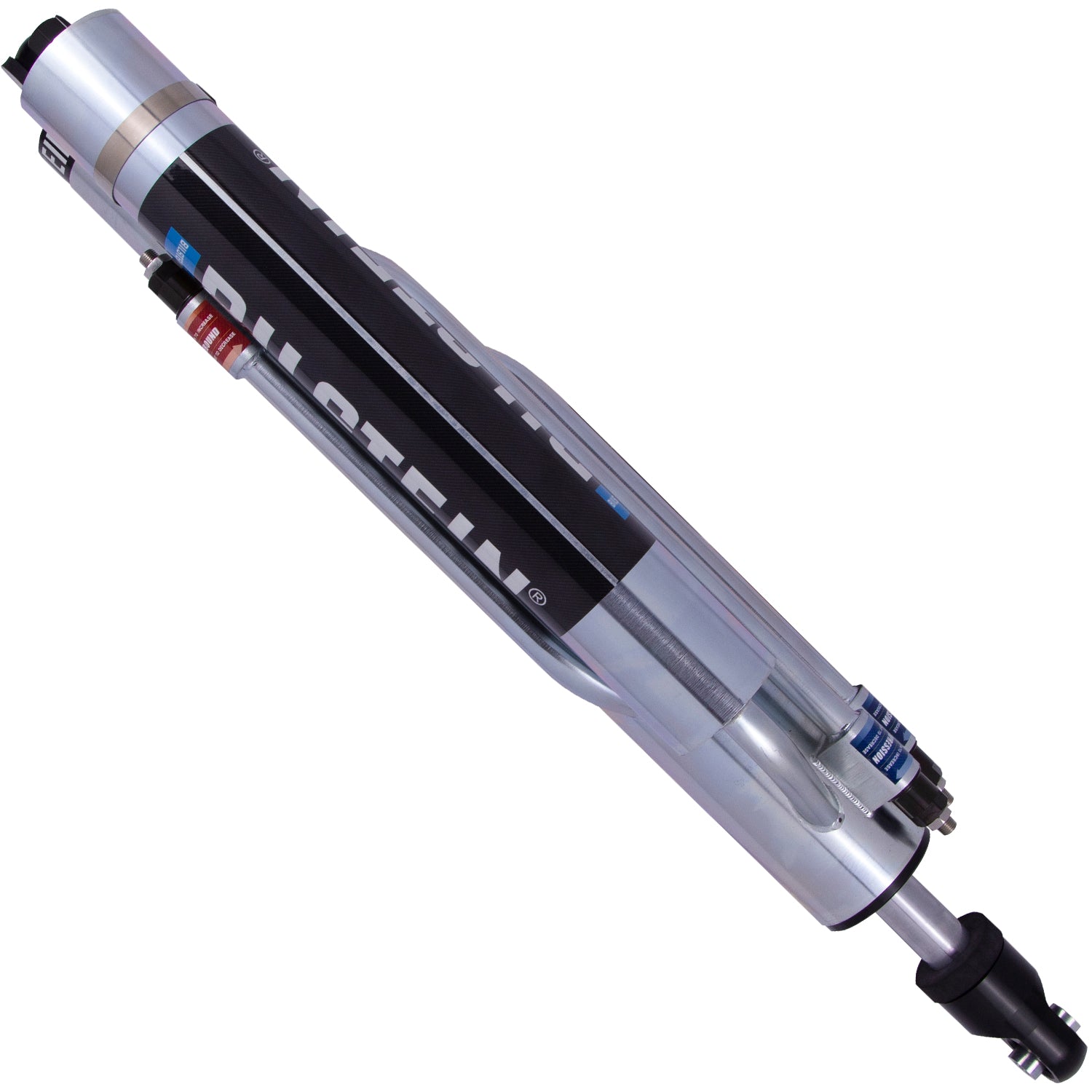

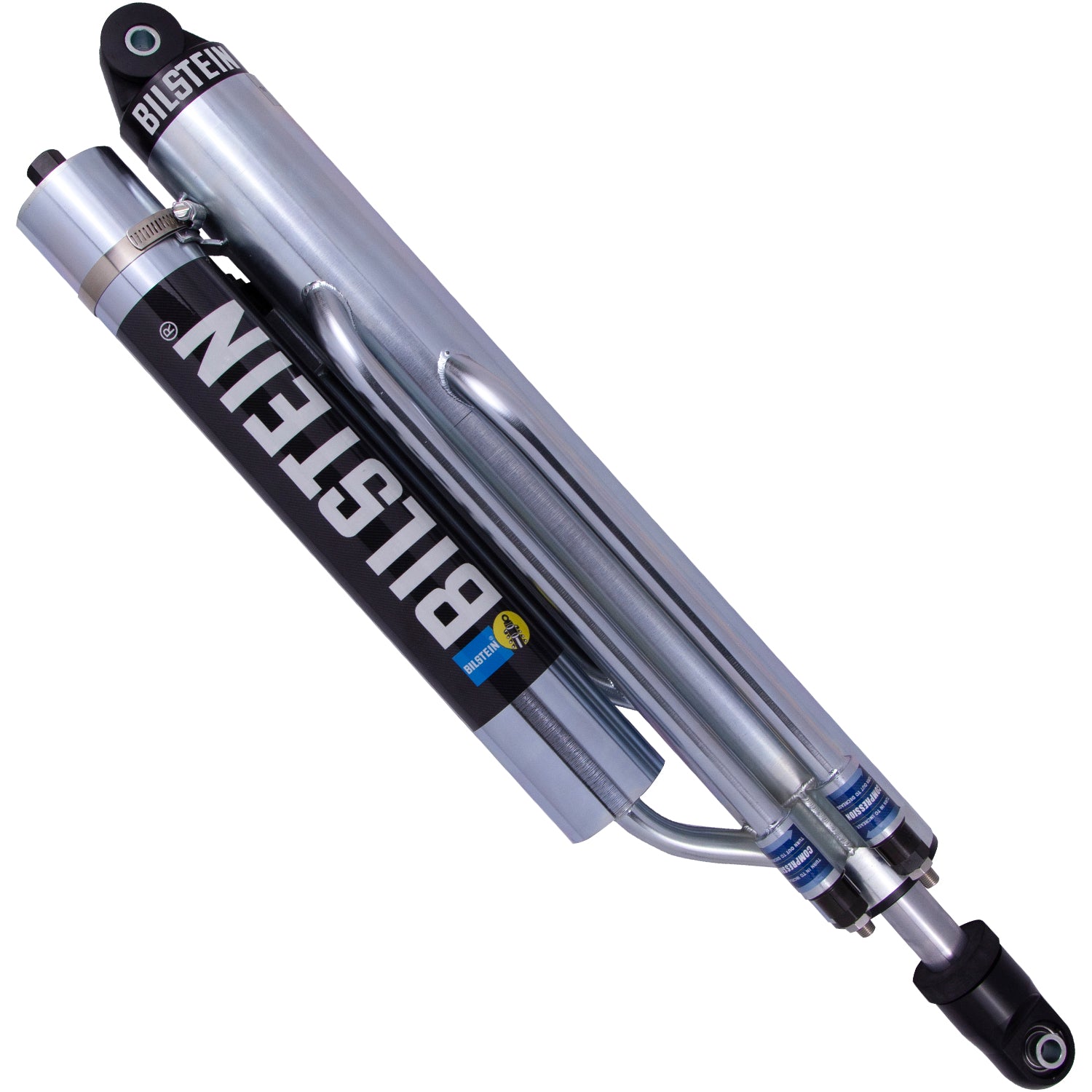

Bilstein 33-250687 - Suspension Shock Absorber M 9200 (Bypass) Monotube Right
Product Availability Request
Fill the form and our team will contact you.
70mm Monotube Shock Absorber
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Features & Benefits
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8" to 18"
M 9200 (Bypass) - Suspension Shock Absorber
70mm, 3 Tube Bypass, 16" Stroke, Right
Specifications
| Compression @0.52m/s | Custom |
| Body Design | 3-Tube Bypass Screw Top |
| Optional Reservoir Clamp | N/A |
| Finish | Zinc Plated |
| Upper Mount Type | Eye .5x1.5in |
| Collapsed Length (MM) | 673.1 |
| Mount Type | Eye-to-Eye |
| Extended Length (IN) | 42.50 |
| Boot Included | N/A |
| Position | Right |
| Lower Mount Type | Eye .5x1.5in |
| Series | M 9200 (Bypass) |
| Reservoir | Yes |
| Internal Design | Monotube |
| Rebound @0.52m/s | Custom |
| Title | Bilstein Shock Absorbers |
| Extended Length (MM) | 1079.5 |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Piston Diameter | 70mm |
| Collapsed Length (IN) | 26.50 |
| Shaft Diameter | 1-1/8 in. |
| Stroke/Travel Length (IN) | 16.00 |
| Shaft Diameter (mm) | 28.6 |
| Stroke/Travel Length (mm) | 406.4 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
Shipping Information
Free shipping is available for eligible orders.
Shipping: Free to the USA.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
