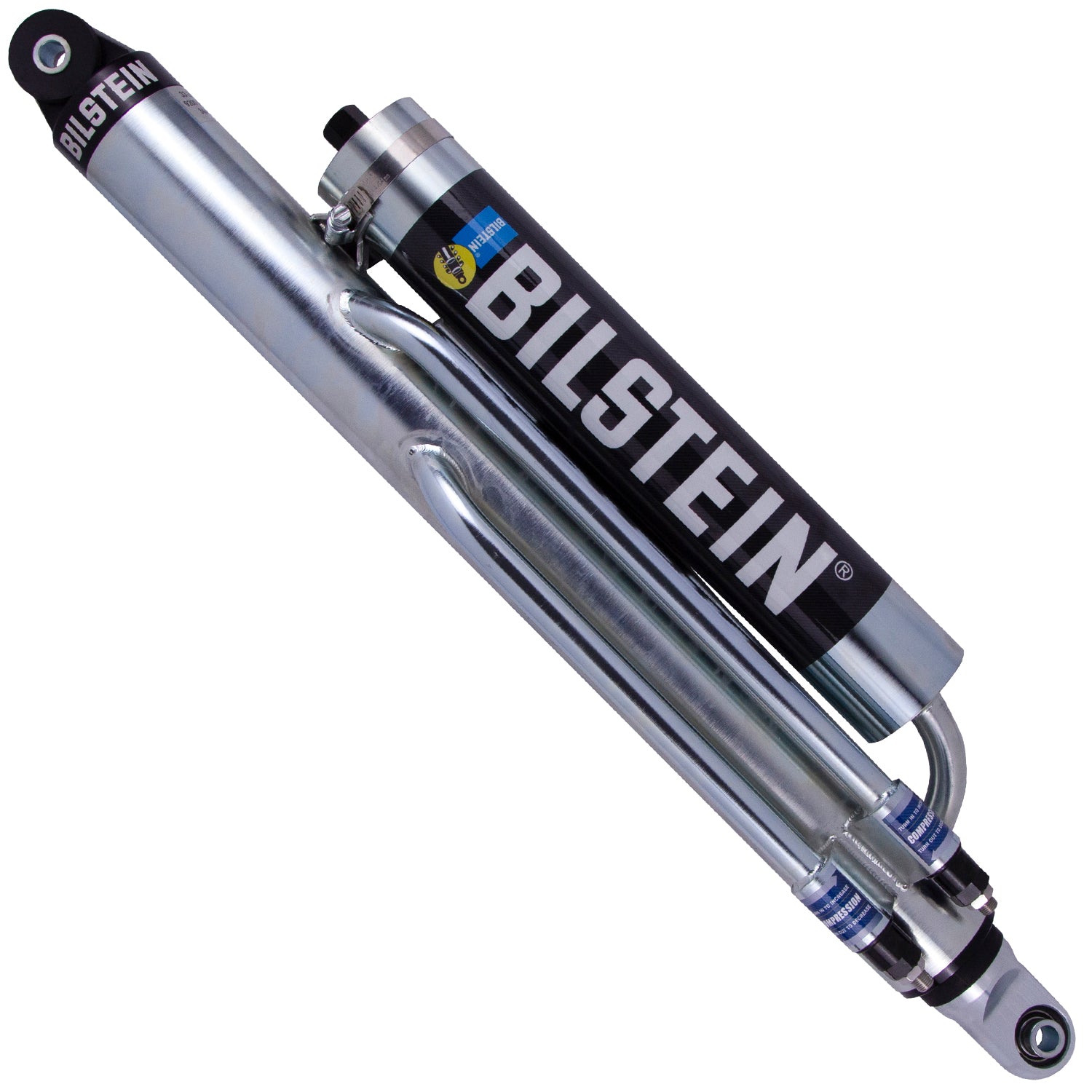

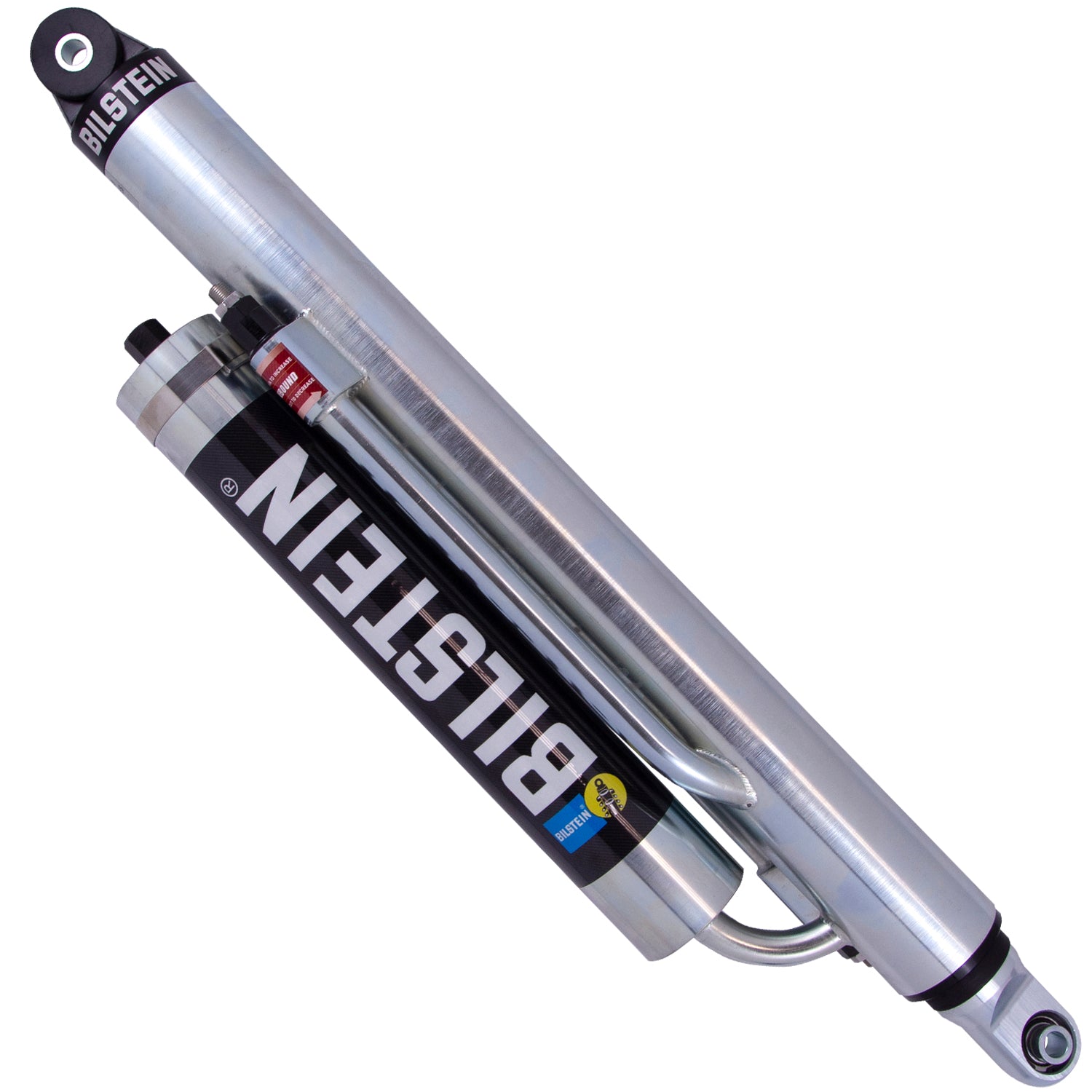

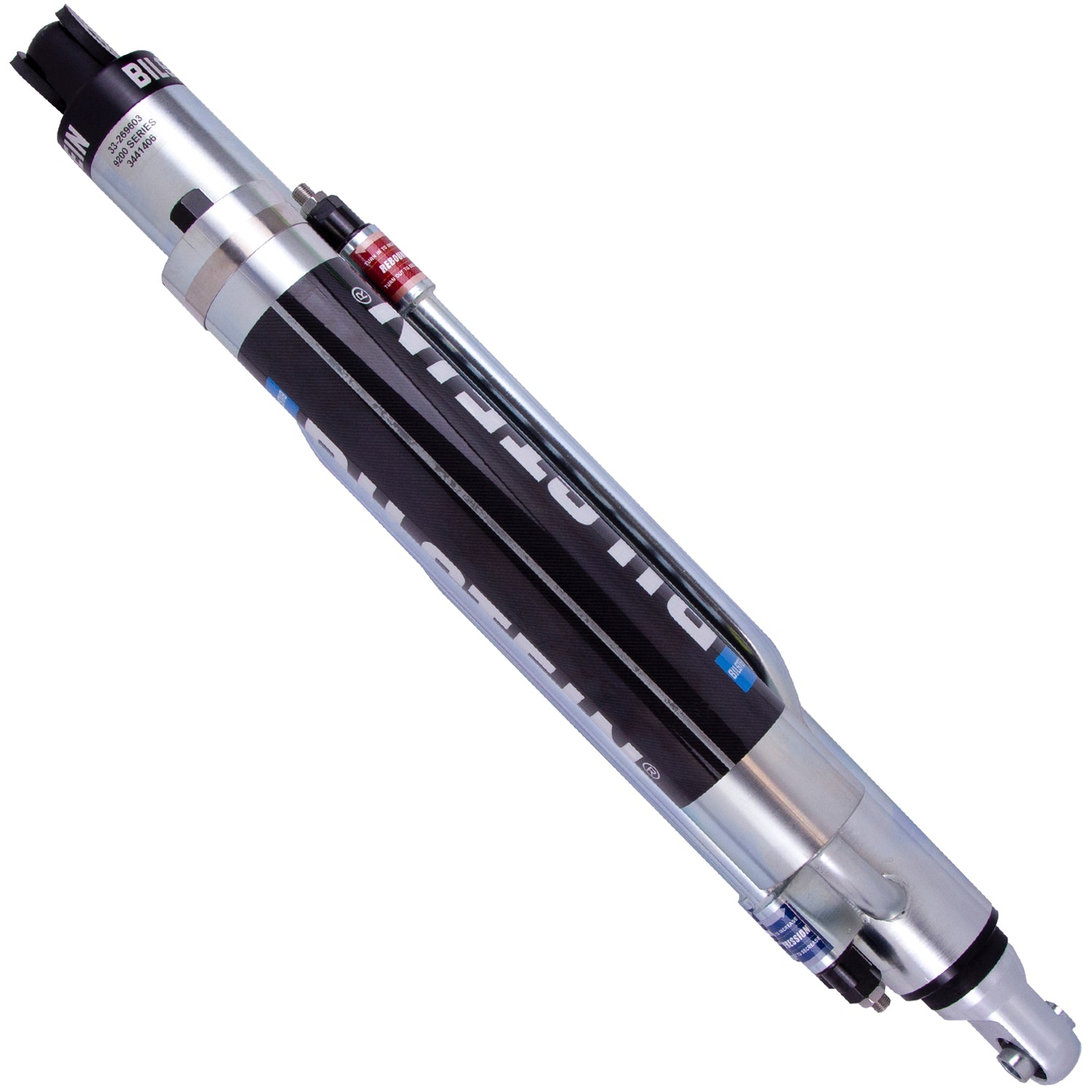

Bilstein 33-269580 - Suspension Shock Absorber M 9200 (Bypass) Monotube Left
Product Availability Request
Fill the form and our team will contact you.
60mm Monotube Shock Absorber
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Features & Benefits
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8" to 18"
M 9200 (Bypass) - Suspension Shock Absorber
60mm, 3-Tube, 14" Stroke, Left, Standard
Specifications
| Internal Design | Monotube |
| Optional Reservoir Clamp | N/A |
| Compression @0.52m/s | Custom |
| Collapsed Length (MM) | 622.3 |
| Body Design | 3-Tube Bypass Screw Top |
| Extended Length (IN) | 38.50 |
| Boot Included | N/A |
| Upper Mount Type | Eye .5x1.5in |
| Finish | Zinc Plated |
| Mount Type | Eye-to-Eye |
| Reservoir | Yes |
| Extended Length (MM) | 977.9 |
| Series | M 9200 (Bypass) |
| Rebound @0.52m/s | Custom |
| Lower Mount Type | Eye .5x1.5in |
| Position | Left |
| Title | Bilstein Shock Absorbers |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Collapsed Length (IN) | 24.50 |
| Piston Diameter | 60mm |
| Stroke/Travel Length (IN) | 14.00 |
| Shaft Diameter (mm) | 22.0 |
| Stroke/Travel Length (mm) | 355.6 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
Please check the product description for the manufacturer’s application details, or ask a specialist — we’ll confirm whether it fits your vehicle before you buy.
Shipping Information
Free shipping is available for eligible orders.
Shipping: Free to the USA.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
