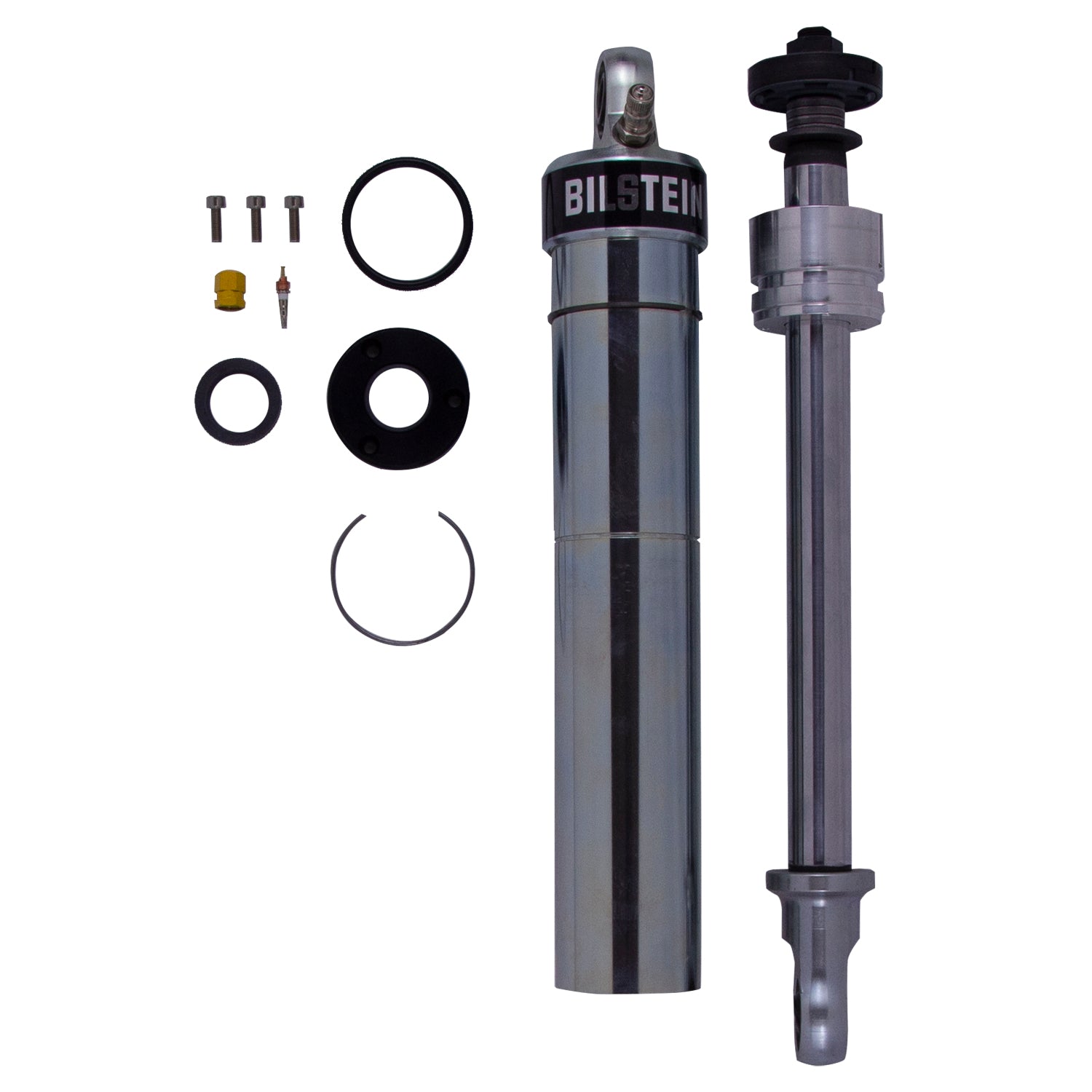

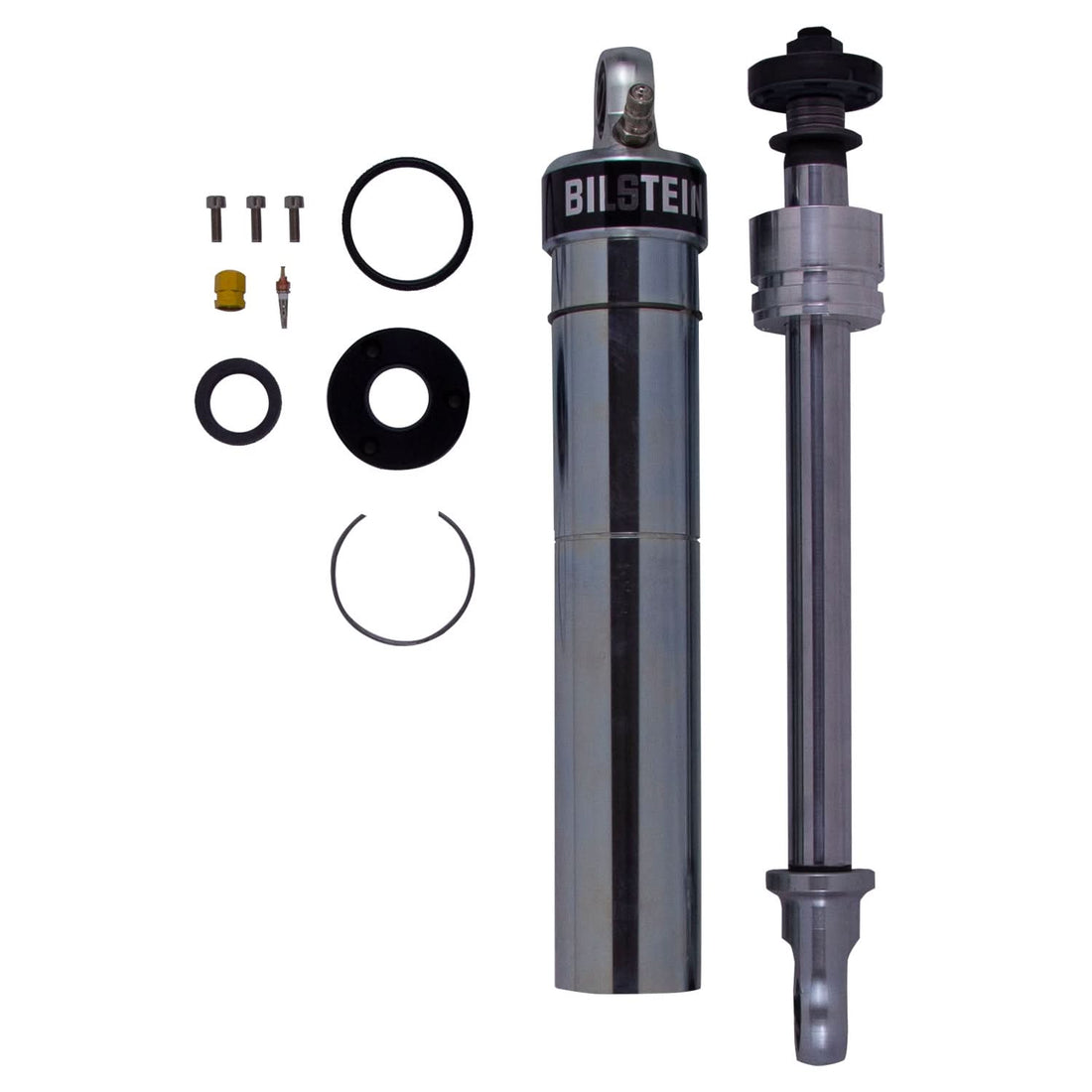

Bilstein 33-286877 - Suspension Shock Absorber EM46 Series Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications. The shock absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately). EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.
Features & Benefits
- Utilizes emulsion technology to regulate spring rate characteristics through variation of oil and nitrogen volume for limitless tuning combinations
- Smooth zinc plated OD body design allows for optional standard and coilover applications
- 22mm case hardened, centerless ground chrome shaft provides optimal displacement, brute tensile strength and resists chipping and scratching
EM46 Series - Suspension Shock Absorber
EM46-D70N0, 7” dig, non-adj emulsion
Specifications
| Extended Length (MM) | 562.8 |
| Collapsed Length (MM) | 359.3 |
| Adjustable Damping | Non-Adjustable |
| Extended Length (IN) | 22.16 |
| Finish | Zinc Plated |
| Series | EM46 Series |
| Title | Bilstein Shock Absorbers |
| Body Material | Steel |
| Body Design | Smooth Body Screw Top (Non-coilover) |
| Internal Design | Monotube |
| Boot Included | No |
| Collapsed Length (IN) | 14.15 |
| Piston Type | Digressive |
| Lower Mount Type | 1/2in Heim |
| Upper Mount Type | 1/2in Heim |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Spring Hardware | B4-BOA-0000117 |
| Piston Diameter | 46mm |
| Stroke/Travel Length (mm) | 203.2 |
| Shaft Diameter | 22mm |
| Stroke/Travel Length (IN) | 8.00 |
