Bilstein 33-297965 - Suspension Shock Absorber SNS2 BV 7 Inch Non Adjustable Digressive C3-R8 Monotube SNS2 Series (BV) Bilstein
Product Availability Request
Fill the form and our team will contact you.

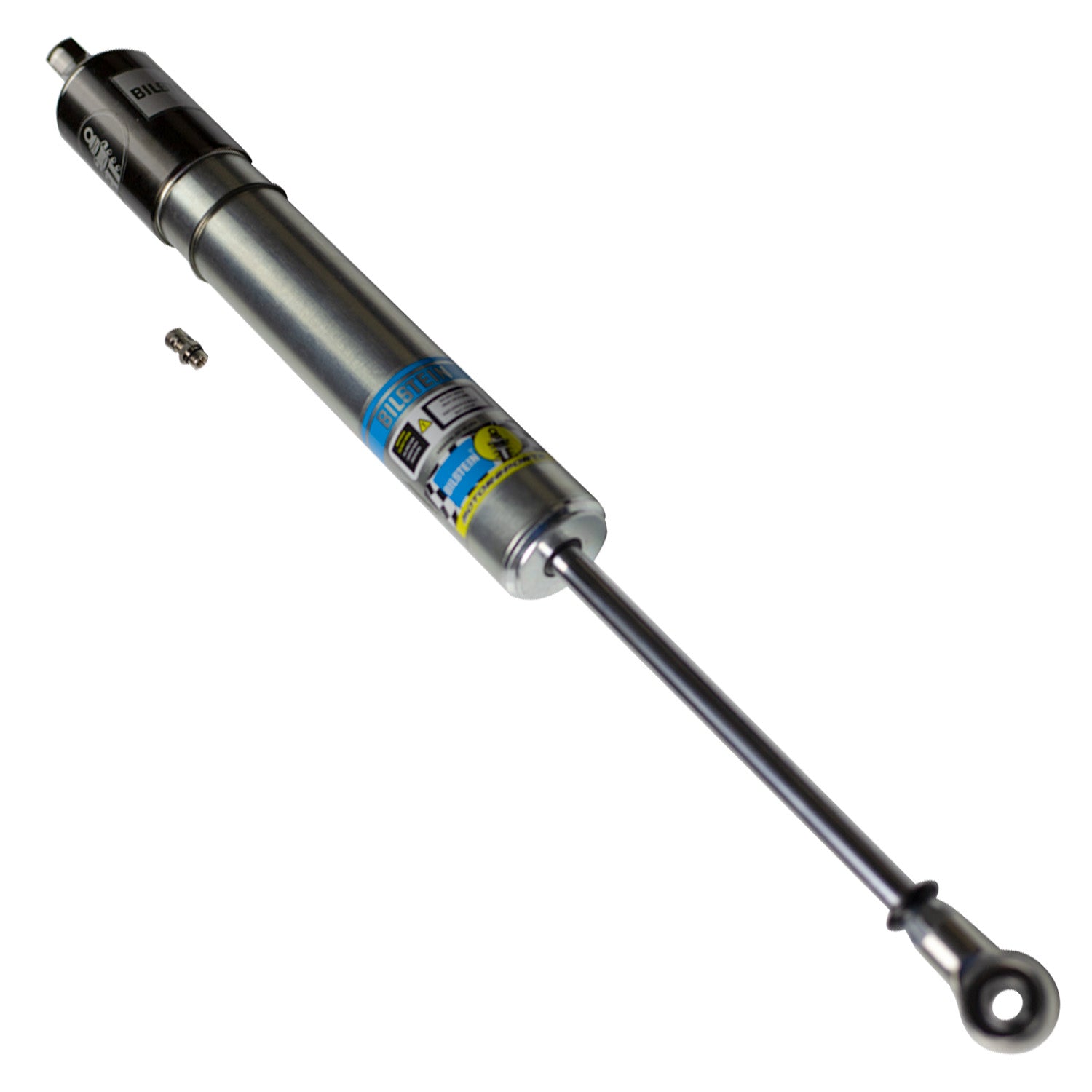

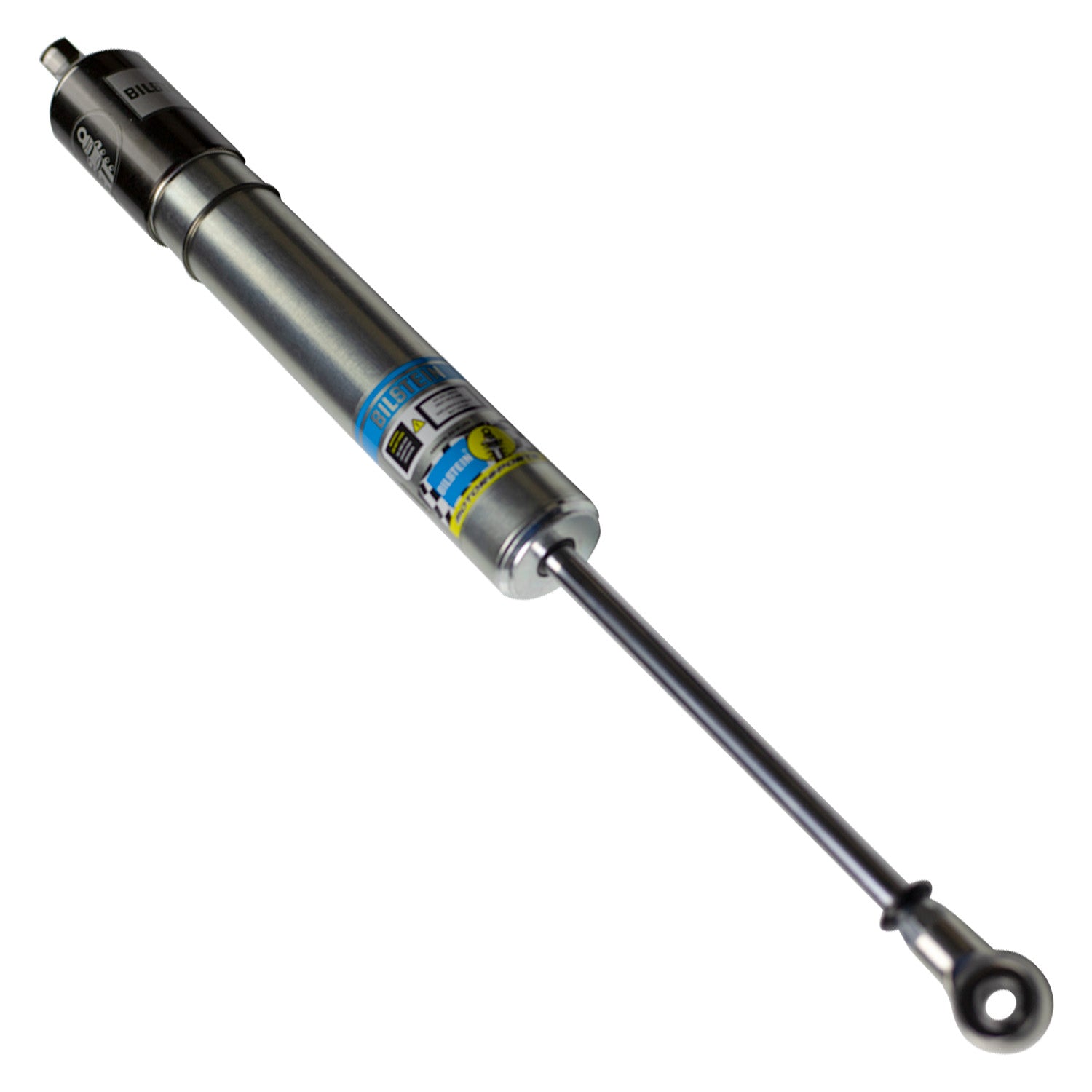

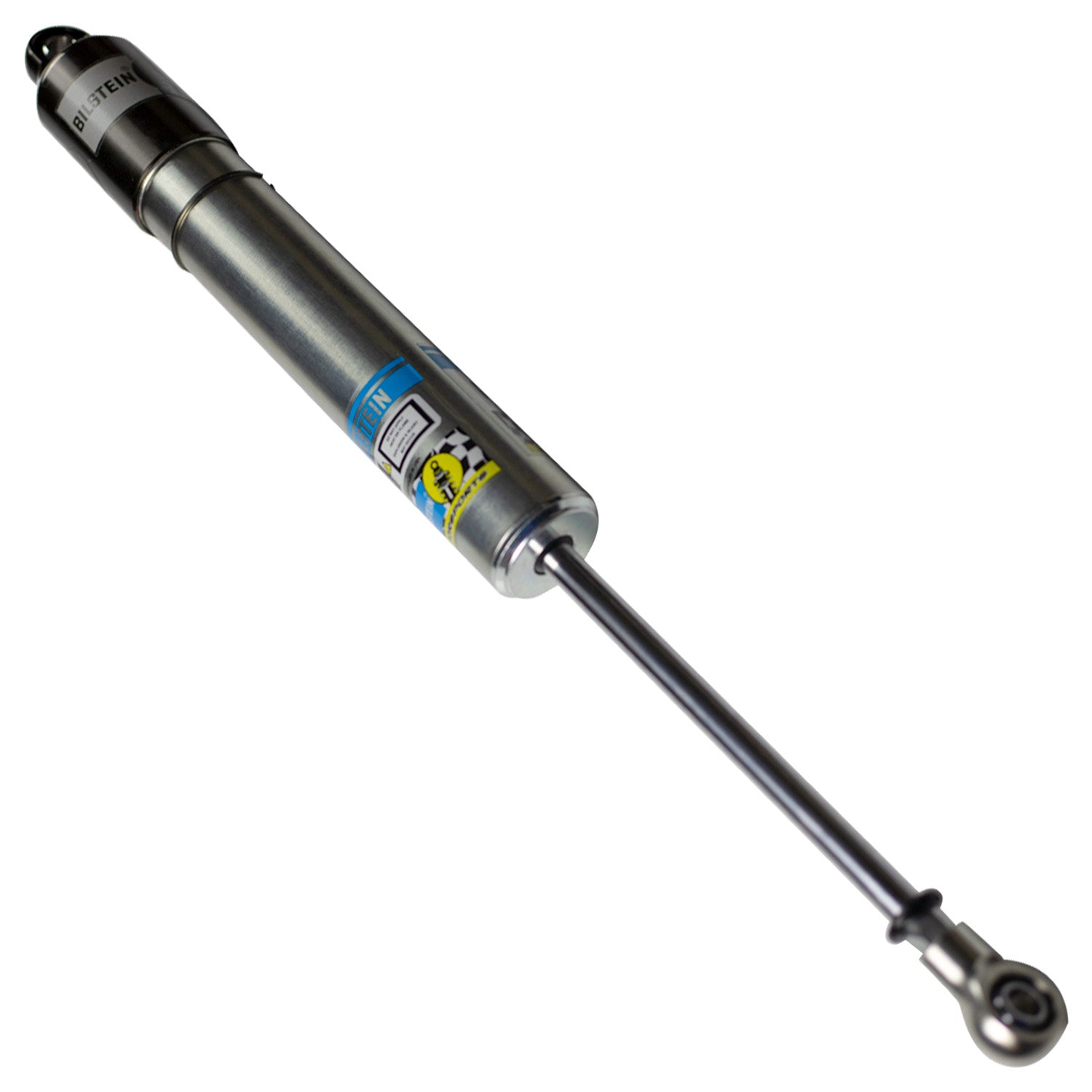

46mm Monotube Shock Absorber

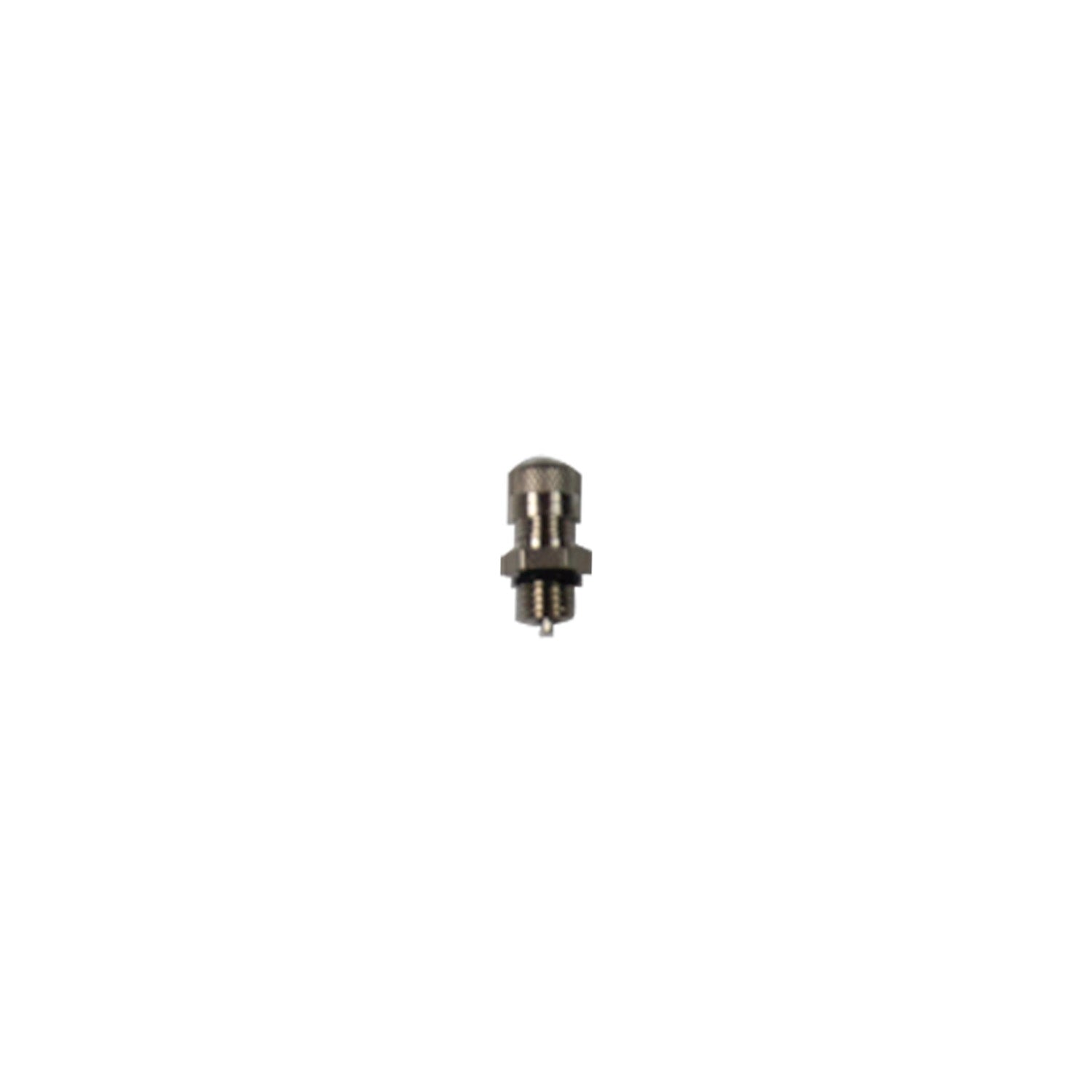

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims. These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately). SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.
Features & Benefits
- Base Valve design delivers ultra low rod pressures and elminates gas preload
- Modular steel body design allows racer rebuildability
- Comes with IMCA-legal plug assembly installed (SNS2 Series)
SNS2 Series (BV) - Suspension Shock Absorber
SNS2 BV, 7" Non Adj. Dig. C3-R8
Specifications
| Adjustable Damping | Non-Adjustable |
| Extended Length (MM) | 486.8 |
| Internal Design | Monotube |
| Collapsed Length (IN) | 13.35 |
| Upper Mount Type | 1/2in Heim |
| Piston Type | Digressive |
| Body Design | Smooth Body Screw Top (Non-coilover) |
| Series | SNS2 Series (BV) |
| Lower Mount Type | 1/2in Heim |
| Boot Included | No |
| Finish | Zinc Plated |
| Title | Bilstein Shock Absorbers |
| Extended Length (IN) | 19.16 |
| Body Material | Steel |
| Spring Seat Included | No |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Spring Hardware | B4-BOA-0000117 |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 339.0 |
| Stroke/Travel Length (mm) | 147.8 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 5.82 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
Shipping Information
Free shipping is available for eligible orders.
Shipping: For USA - Up to 50lbs.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
