Bilstein 33-298214 - Suspension Shock Absorber SNS2 Series (BV) Monotube
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.

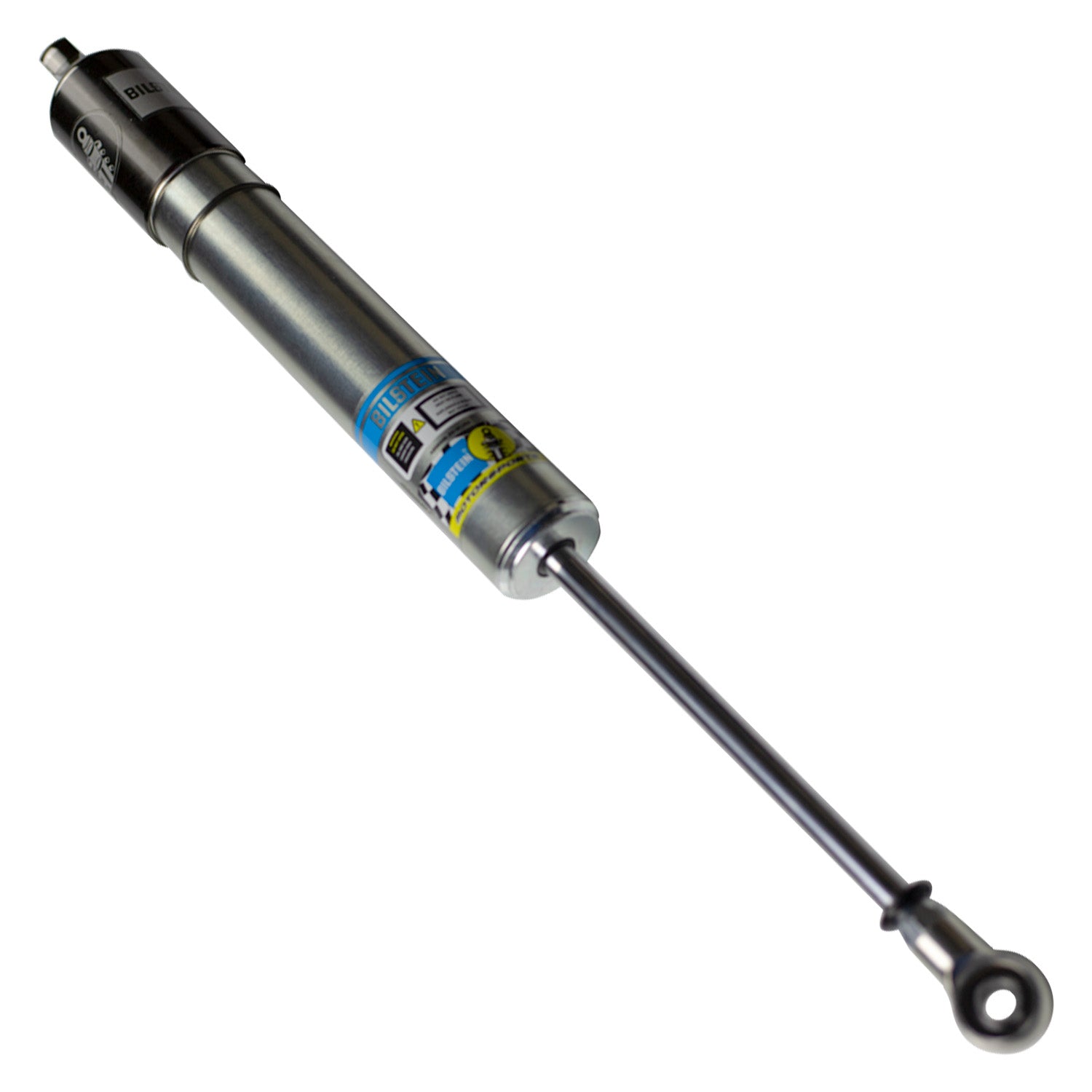

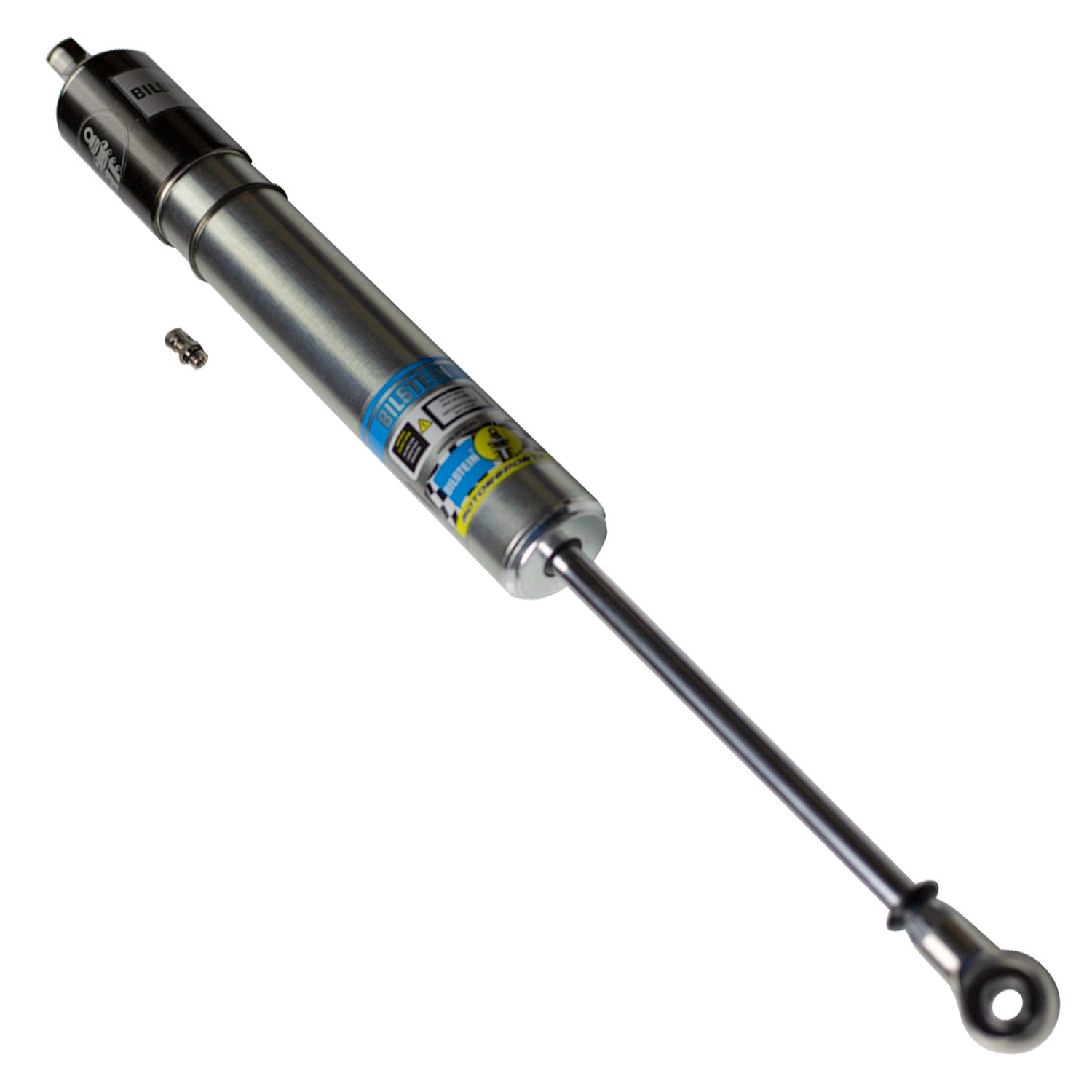

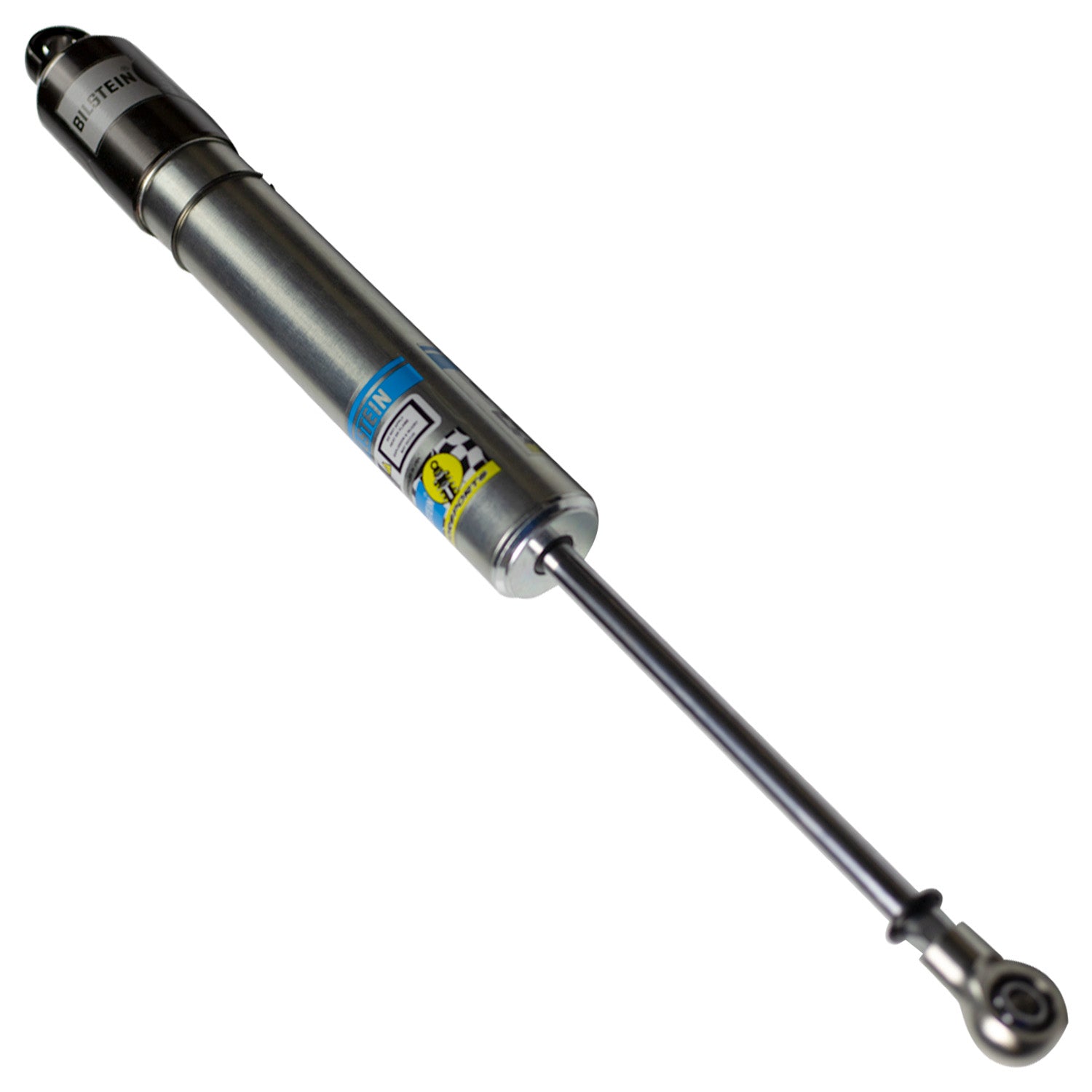

This 46mm monotube shock absorber from Bilstein (part number 33-298214) is a single-stage damper with a steel body and external nitrogen fill valve. The shock features a digressive piston design with base valve assembly and 1/2-inch heim joints at both upper and lower mounts. The smooth body screw-top design allows it to be converted to a coilover application with a separate kit. The boot is not included. The spring seat is not included.
- Part number: 33-298214
- Series: SNS2 Series (BV)
- Piston diameter: 46mm
- Shaft diameter: 14mm
- Design: 9" Non-adjustable digressive
- Internal design: Monotube
- Body material: Steel, zinc-plated finish
- Body design: Smooth body screw top (non-coilover)
- Collapsed length: 15.87 inches (403.2 mm)
- Extended length: 23.79 inches (604.4 mm)
- Stroke/travel length: 7.92 inches (201.2 mm)
- Upper mount type: 1/2-inch heim
- Lower mount type: 1/2-inch heim
- Adjustable damping: No
- Boot included: No
- Spring seat included: No
- Spring hardware part number: B4-BOA-0000117
Weight: 5.38 lb
Country of Origin: United States
