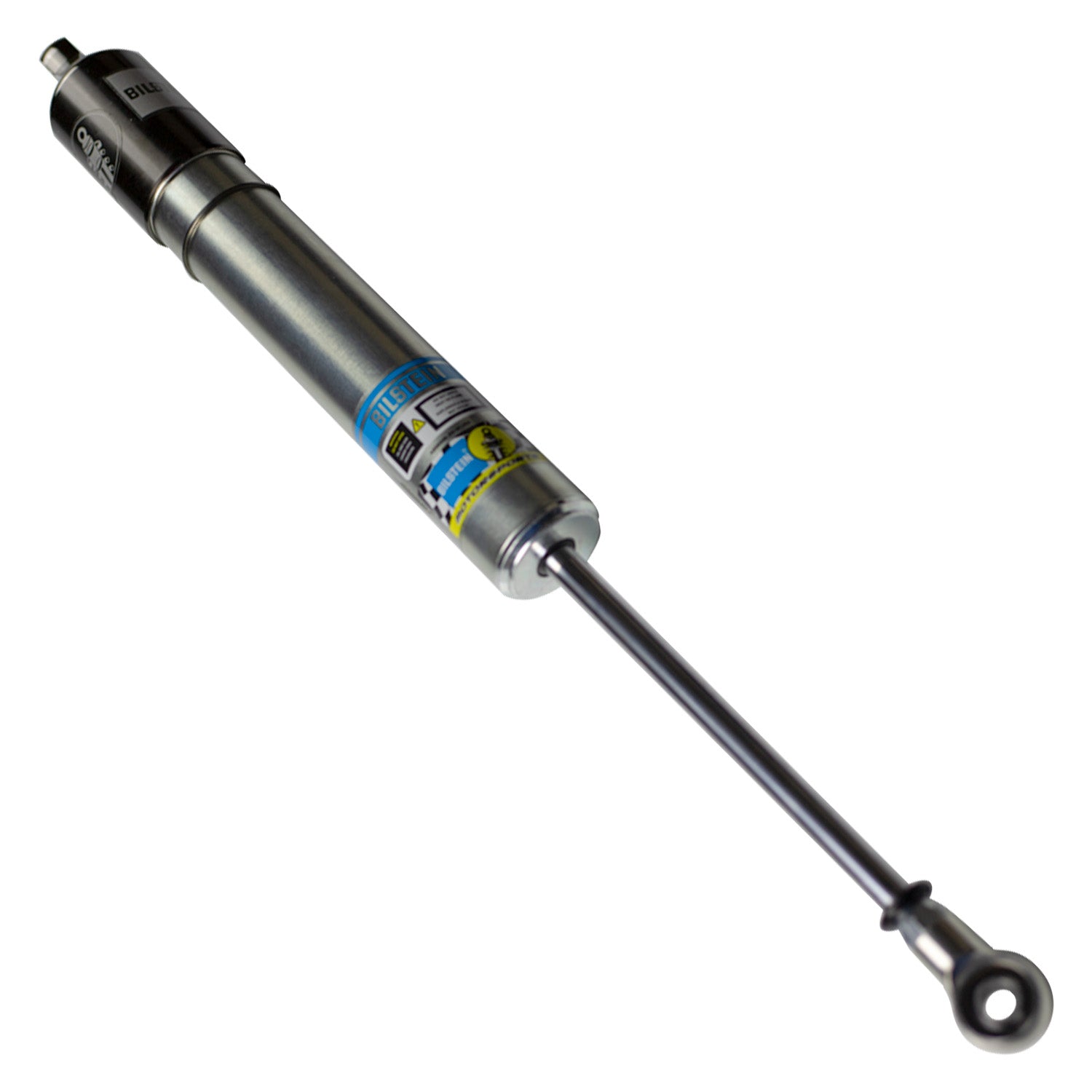

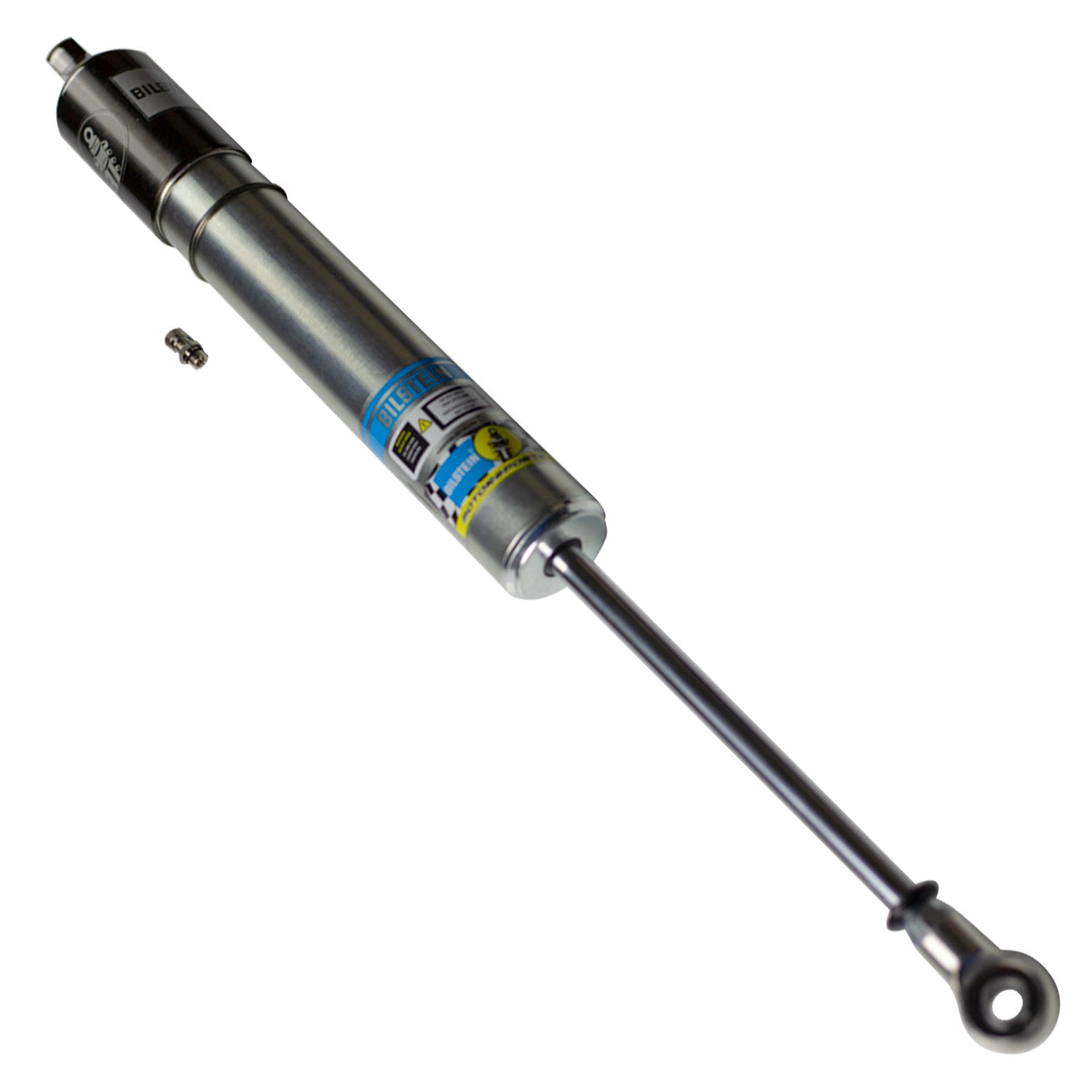

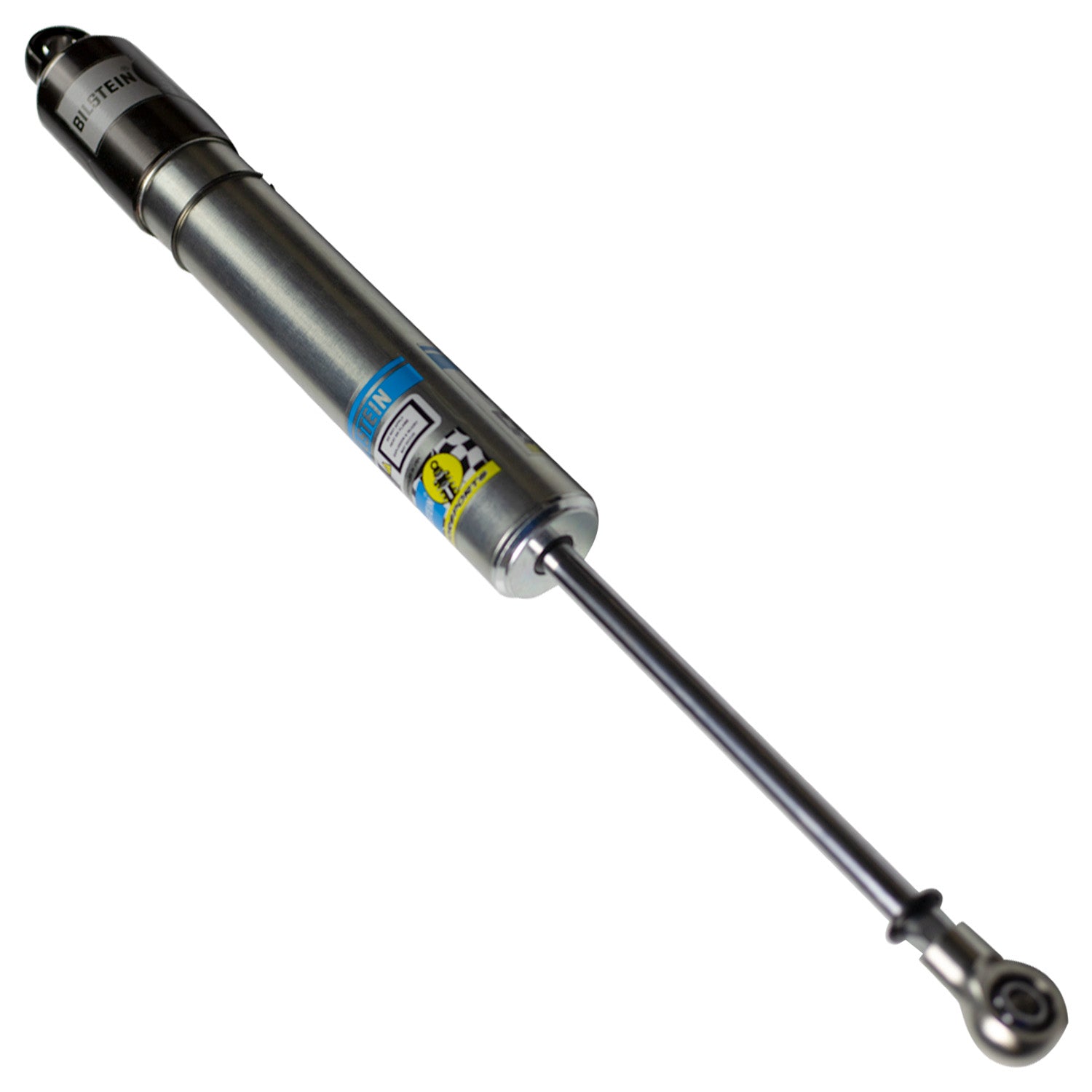

Bilstein 33-298245 - Suspension Shock Absorber SNS2 Series (BV) Monotube
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.

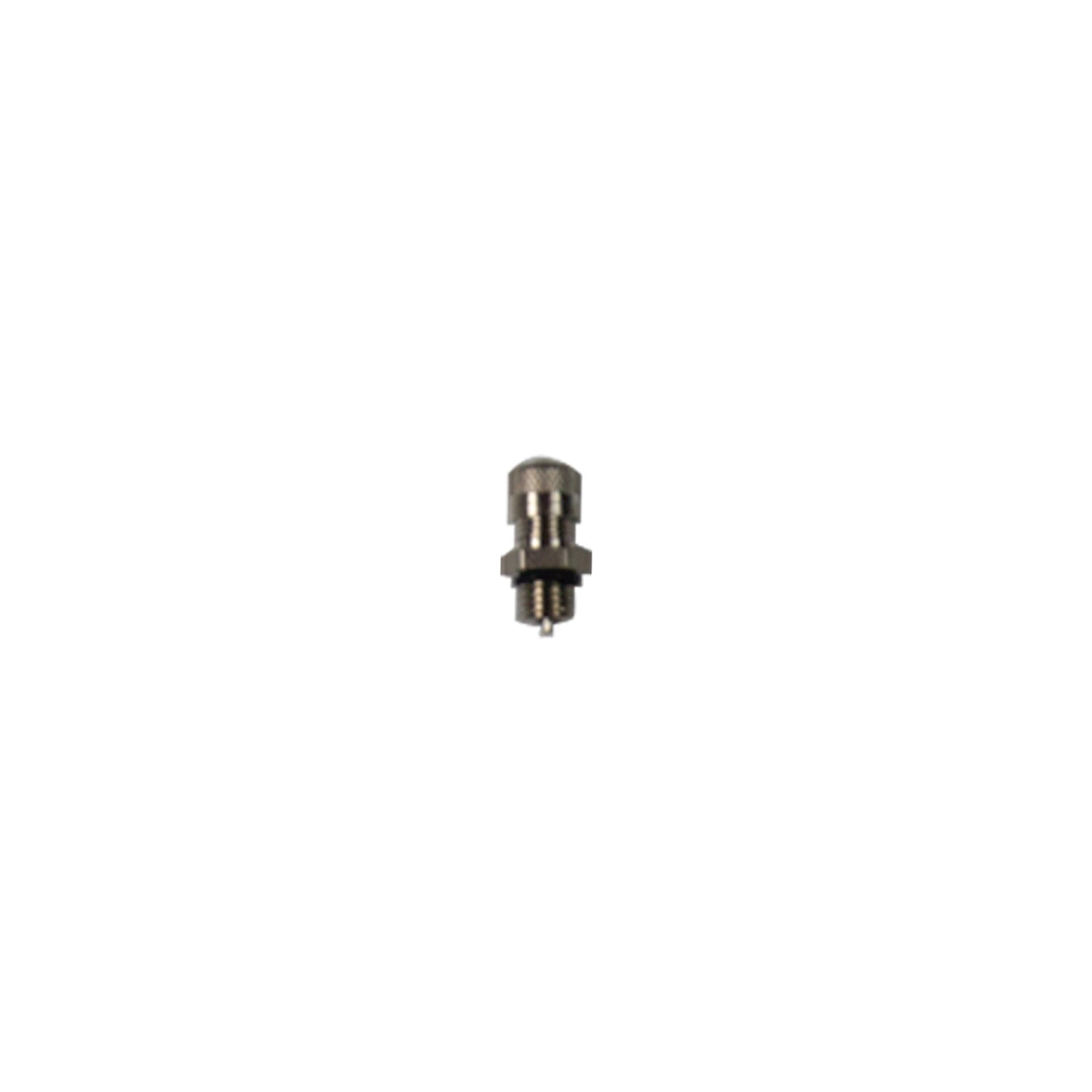

A monotube shock absorber with a 46mm piston diameter, this is Bilstein part number 33-298245 in the SNS2 Series (BV). The unit features an all-steel smooth body construction with a 9-inch collapsed length, external nitrogen fill valve, and base valve design that delivers low rod pressures and eliminates gas preload. With a digressive piston and modular steel body, this shock absorber is designed for rebuildability and tuning flexibility through base valve technology, supplied with an IMCA-legal plug assembly installed. The boot is not included. The spring seat is not included.
- Series: SNS2 Series (BV)
- Internal Design: Monotube
- Body Material: Steel
- Body Design: Smooth Body Screw Top (Non-coilover)
- Piston Type: Digressive
- Piston Diameter: 46mm
- Shaft Diameter: 14mm
- Finish: Zinc Plated
- Adjustable Damping: Non-Adjustable
- Upper Mount Type: 1/2in Heim
- Lower Mount Type: 1/2in Heim
- Extended Length: 23.79 in (604.4 mm)
- Collapsed Length: 15.87 in (403.2 mm)
- Stroke/Travel Length: 7.92 in (201.2 mm)
- Boot Included: No
- Spring Seat Included: No
- Spring Hardware: B4-BOA-0000117
Weight: 5.38 lb
Country of Origin: United States
