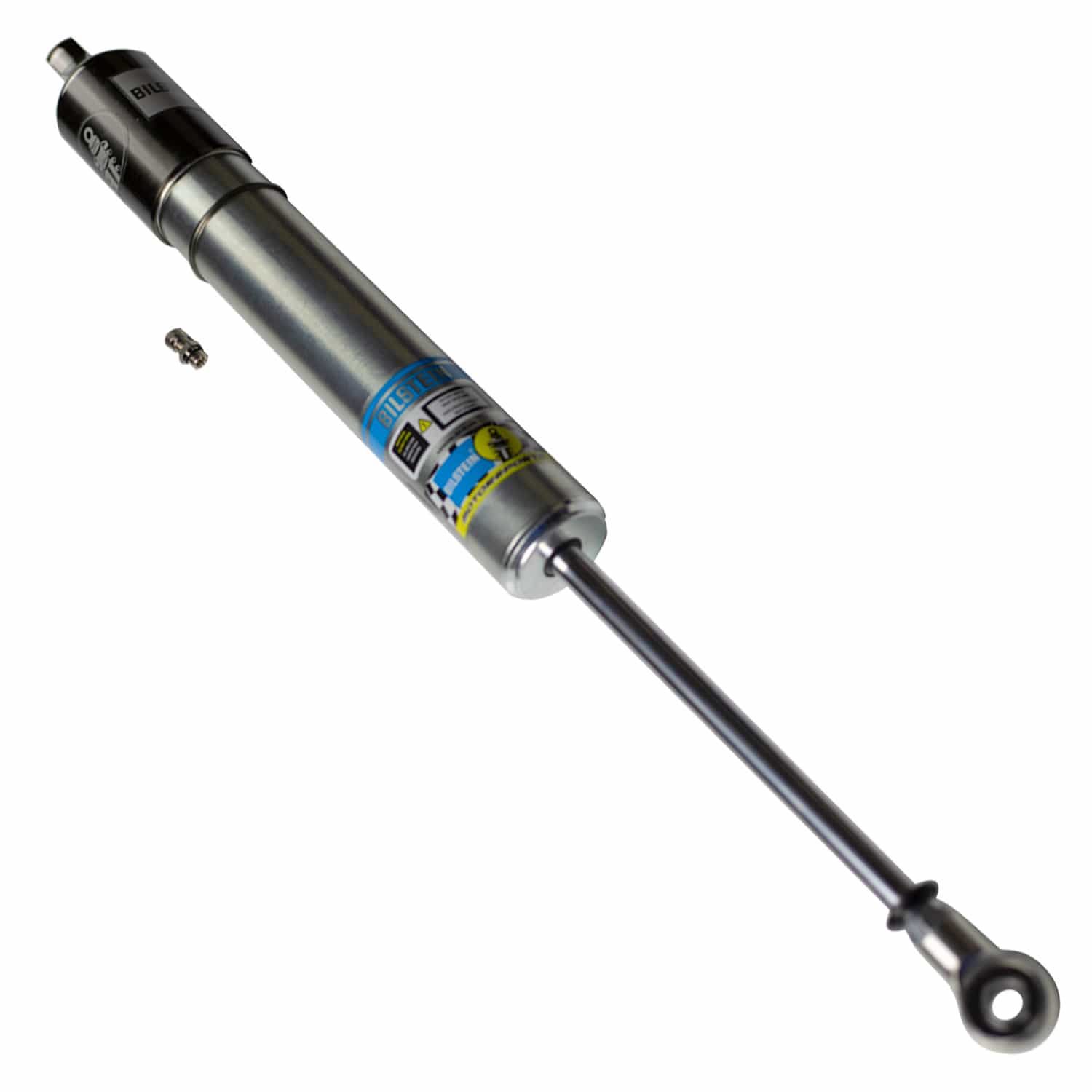

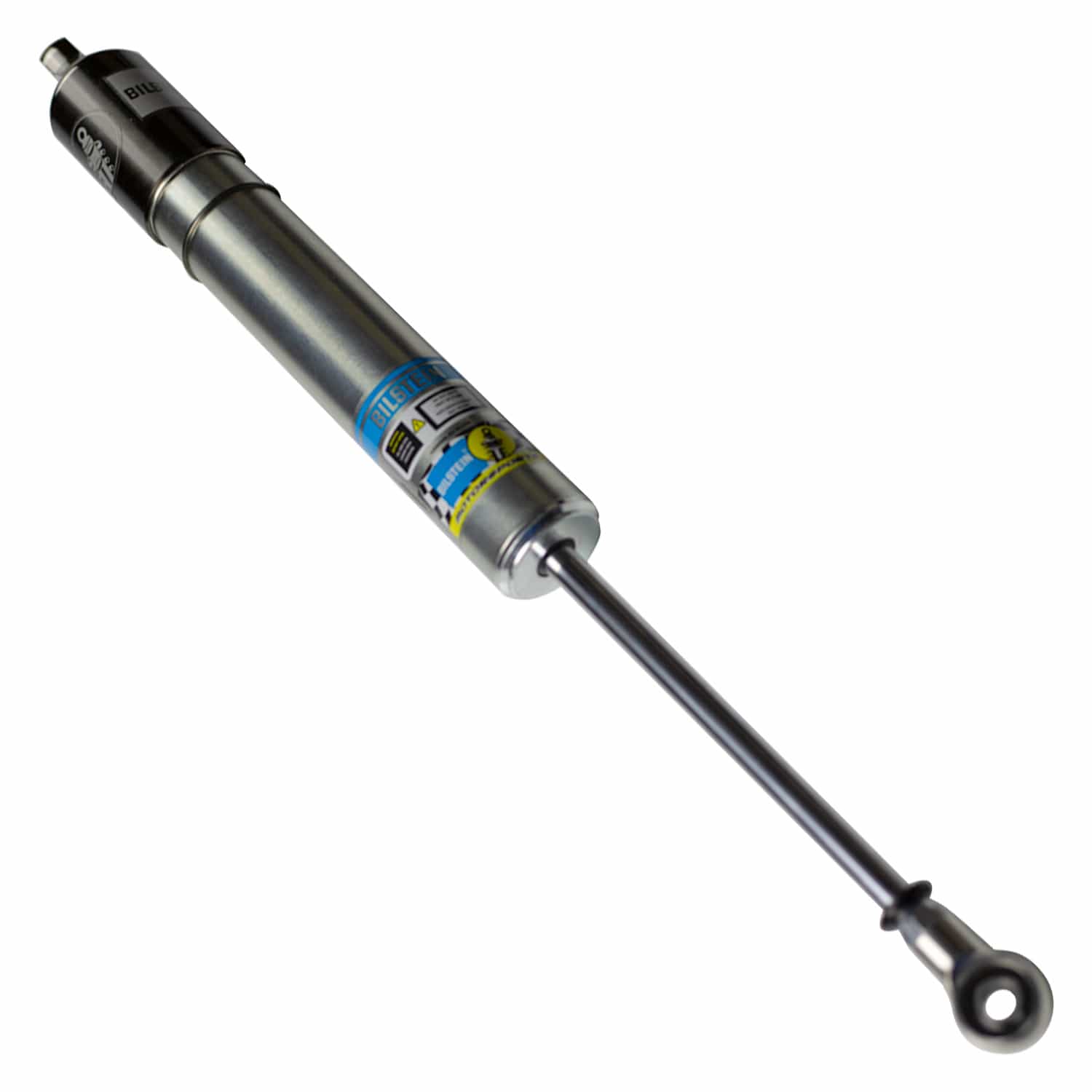

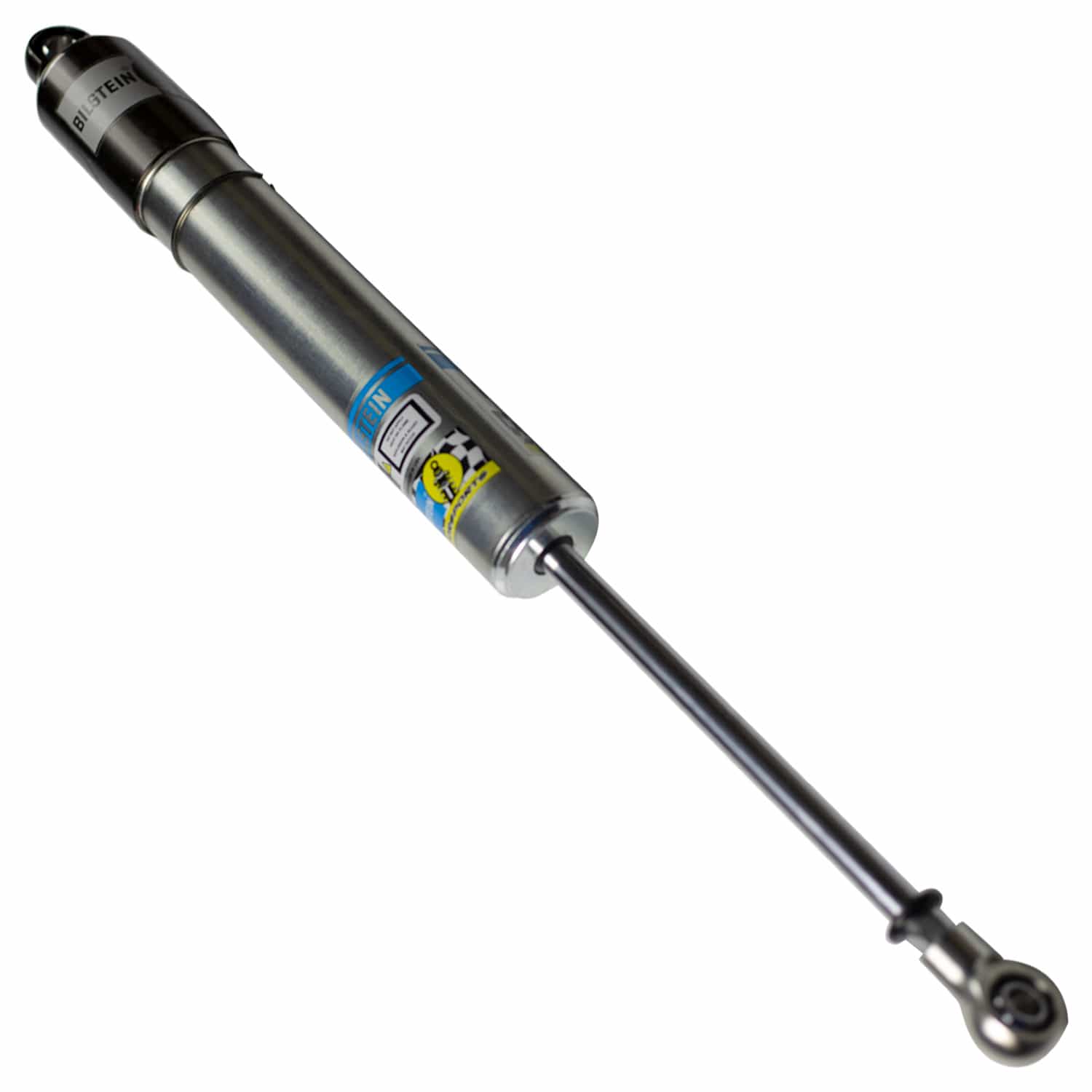

Bilstein 33-327792 - Suspension Shock Absorber SNS2 Series (BV) Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims. These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately). SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.
Features
- Base Valve design delivers ultra low rod pressures and elminates gas preload
- Modular steel body design allows racer rebuildability
- Comes with IMCA-legal plug assembly installed (SNS2 Series)
Specifications
| Lower Mount Type | 1/2in Heim |
| Upper Mount Type | 1/2in Heim |
| Collapsed Length (IN) | 13.35 |
| Extended Length (IN) | 19.16 |
| Collapsed Length (MM) | 339.1 |
| Extended Length (MM) | 486.7 |
| Piston Type | Digressive |
| Internal Design | Monotube |
| Segment | Motorsports |
| Boot Included | No |
| Spring Seat Included | No |
| Adjustable Damping | Non-Adjustable |
| Valving Identifier | RF PORTSMOUTH |
| PartType | Shocks / Struts |
| Body Design | Smooth Body Screw Top (Non-coilover) |
| Series | SNS2 Series (BV) |
| Body Material | Steel |
| Prop 65 (Y/N) | Y |
| Finish | Zinc Plated |
| Piston Diameter | 46mm |
| Stroke/Travel Length (mm) | 147.6 |
| Shaft Diameter | 14mm |
| Stroke/Travel Length (IN) | 5.81 |
Short Description: Shock
Invoice Description: SNS2-BV 7" NA, RF Portsmouth
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: 90 Day Warranty
