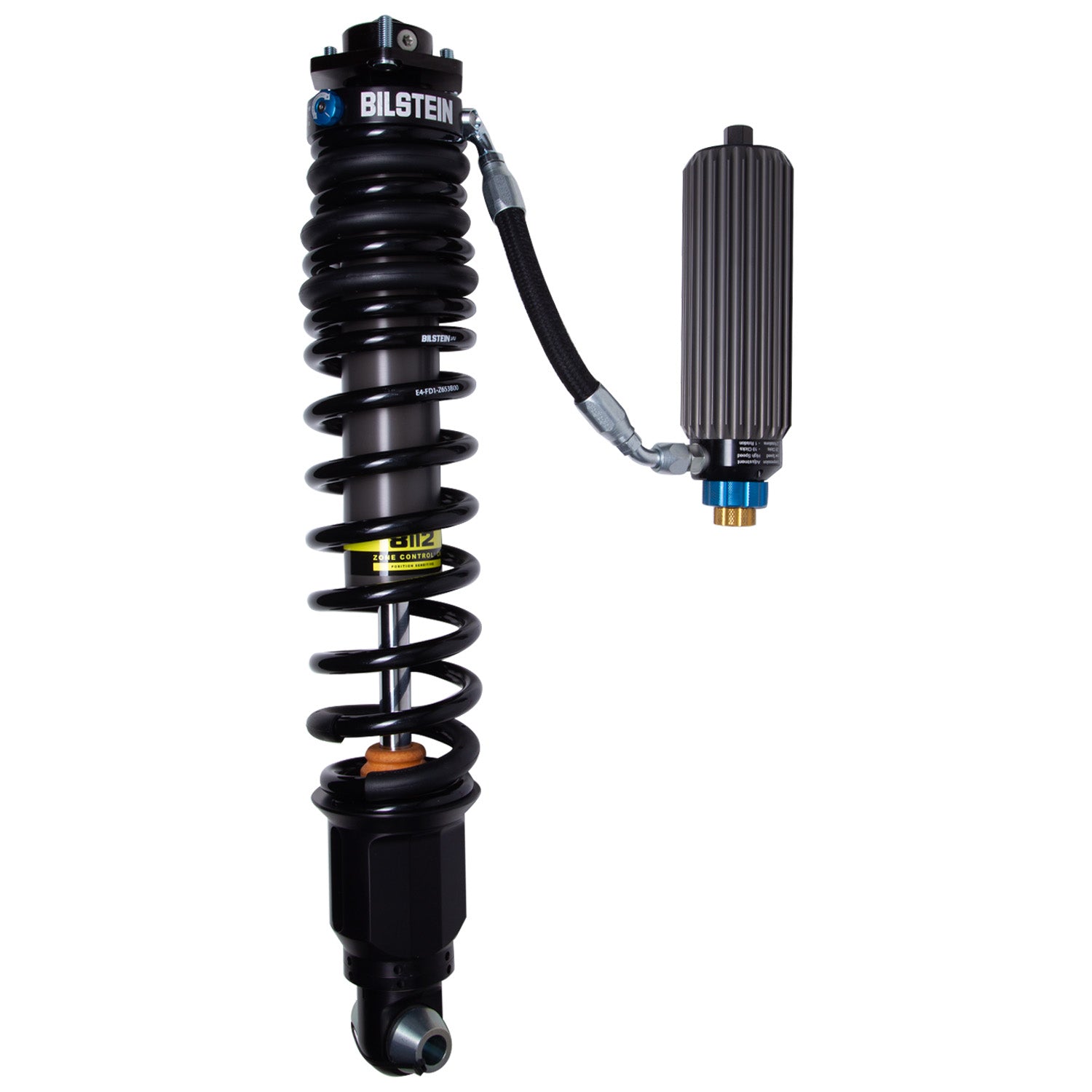

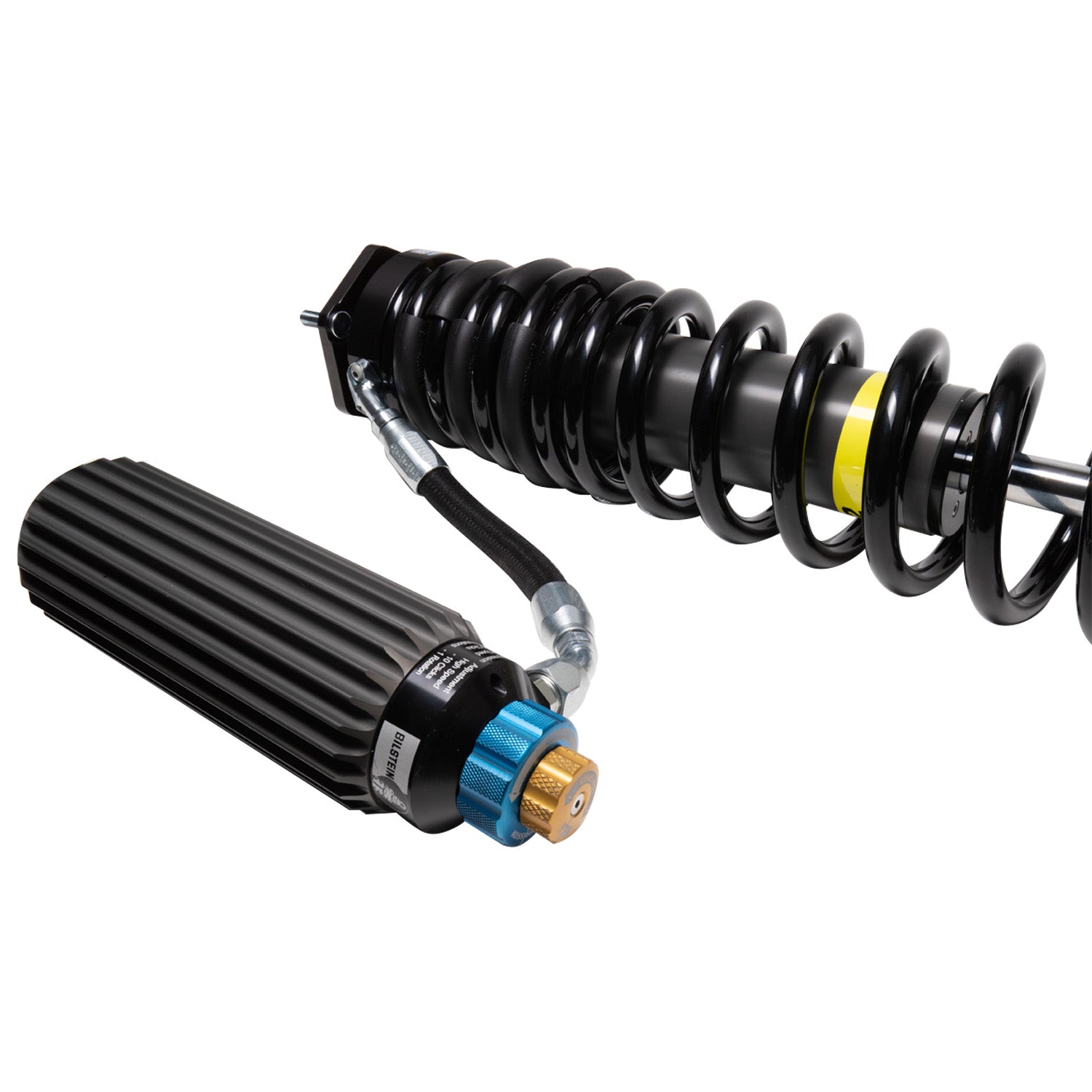

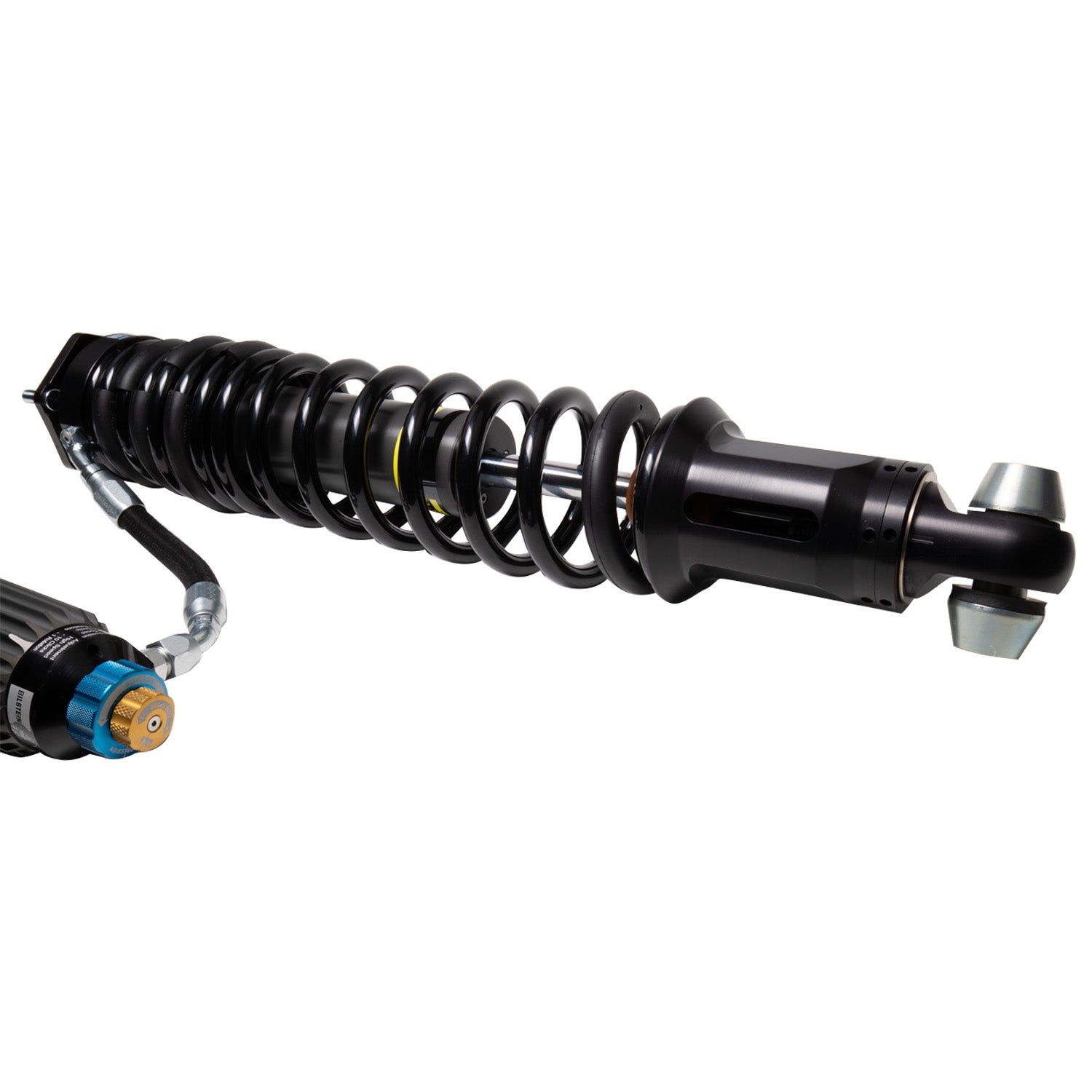

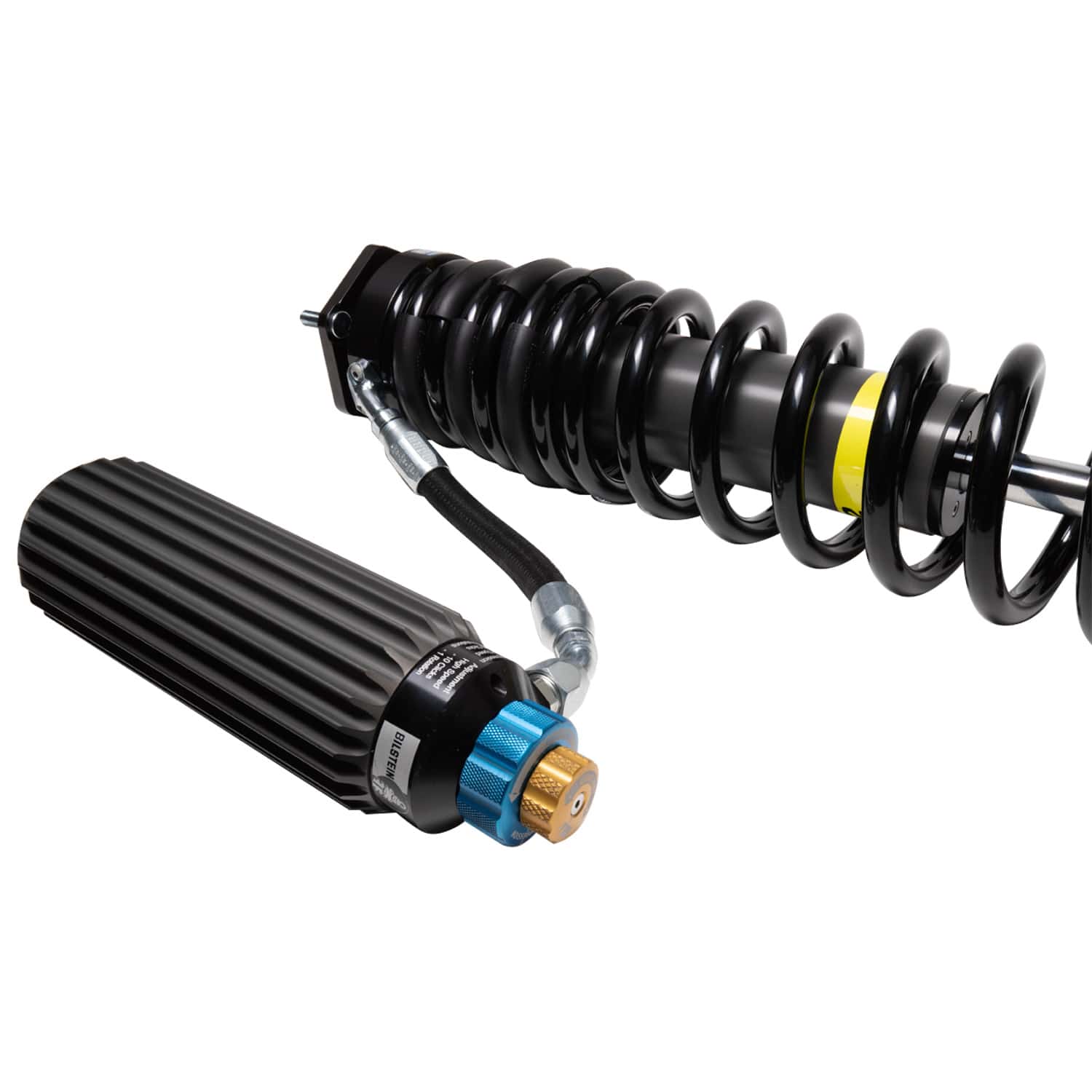

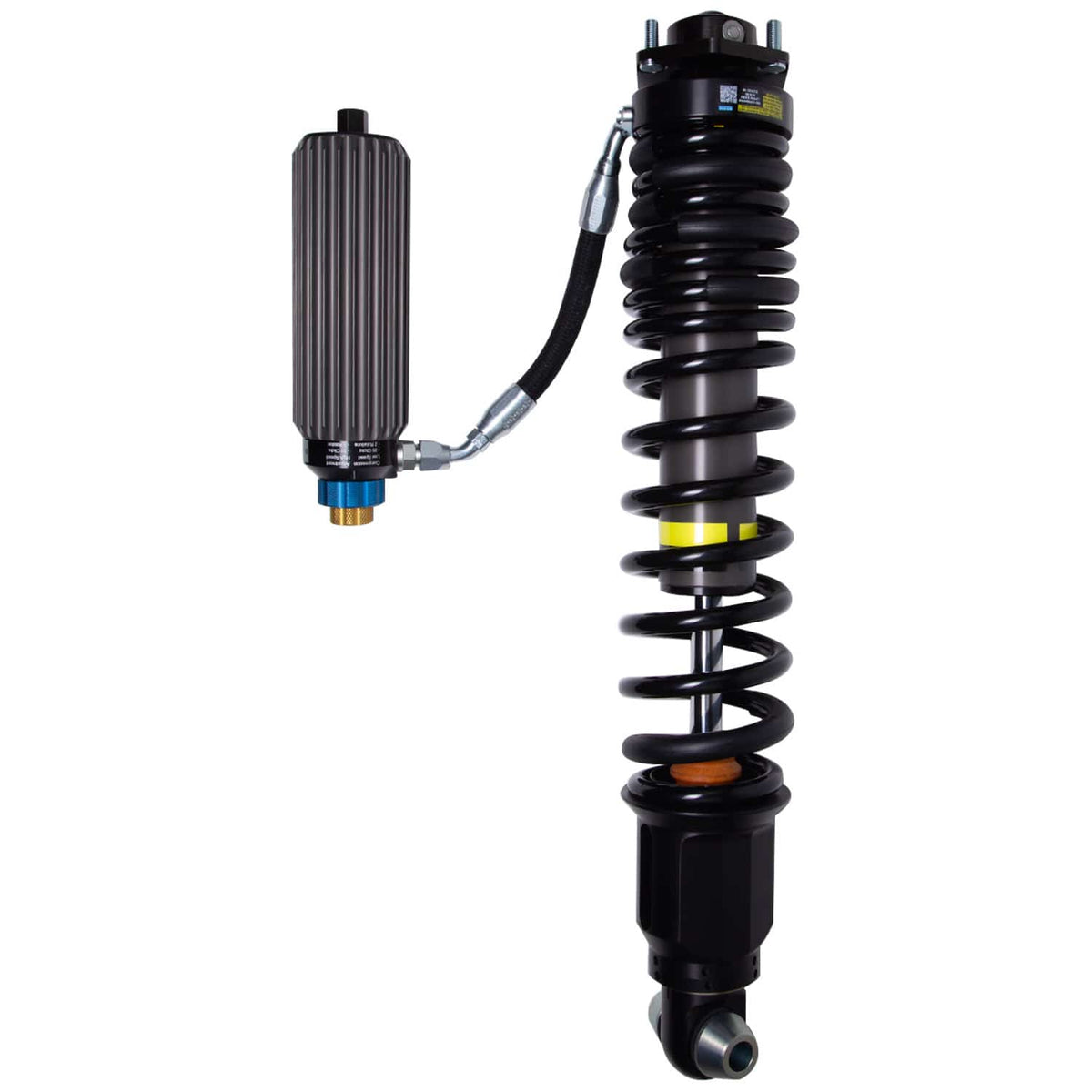

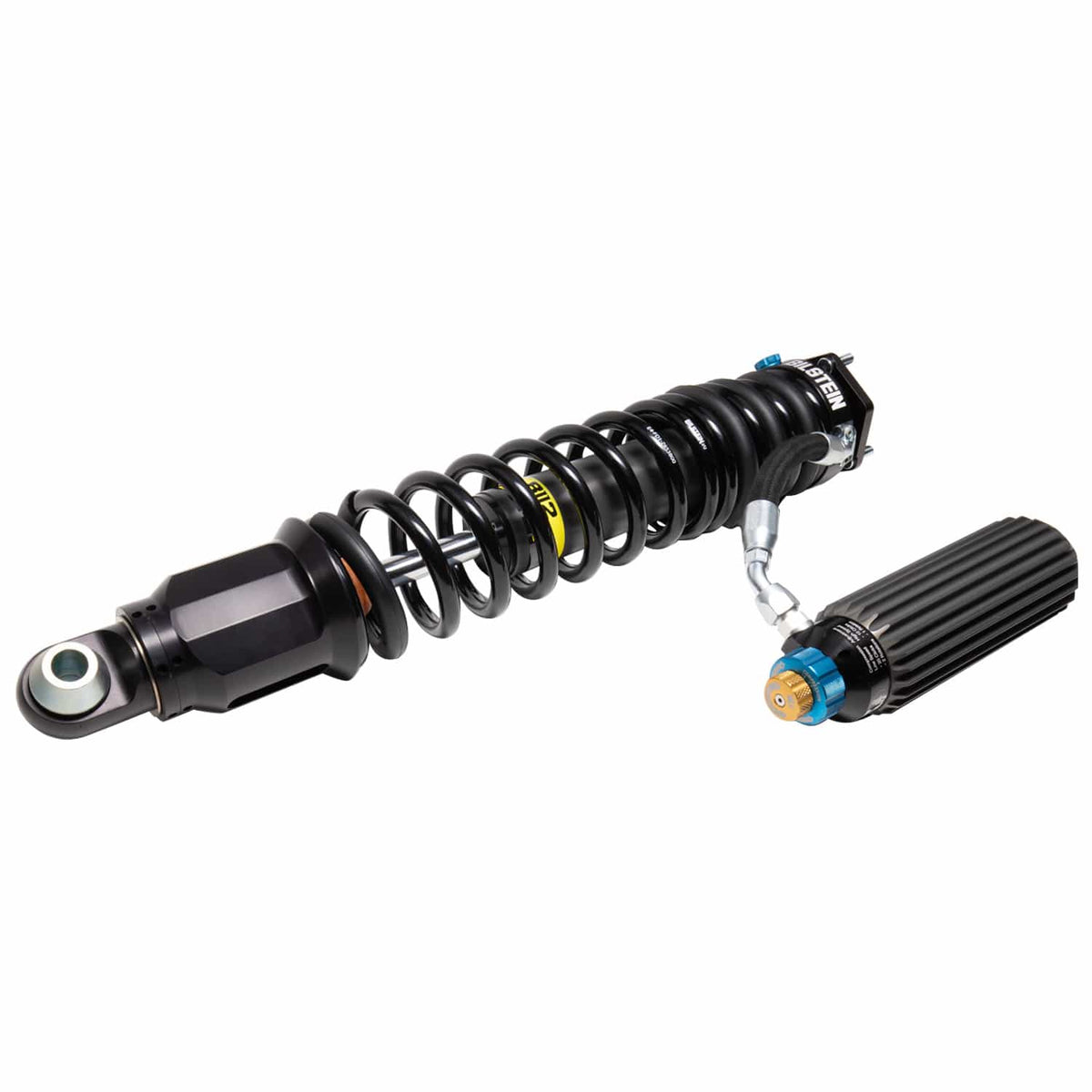

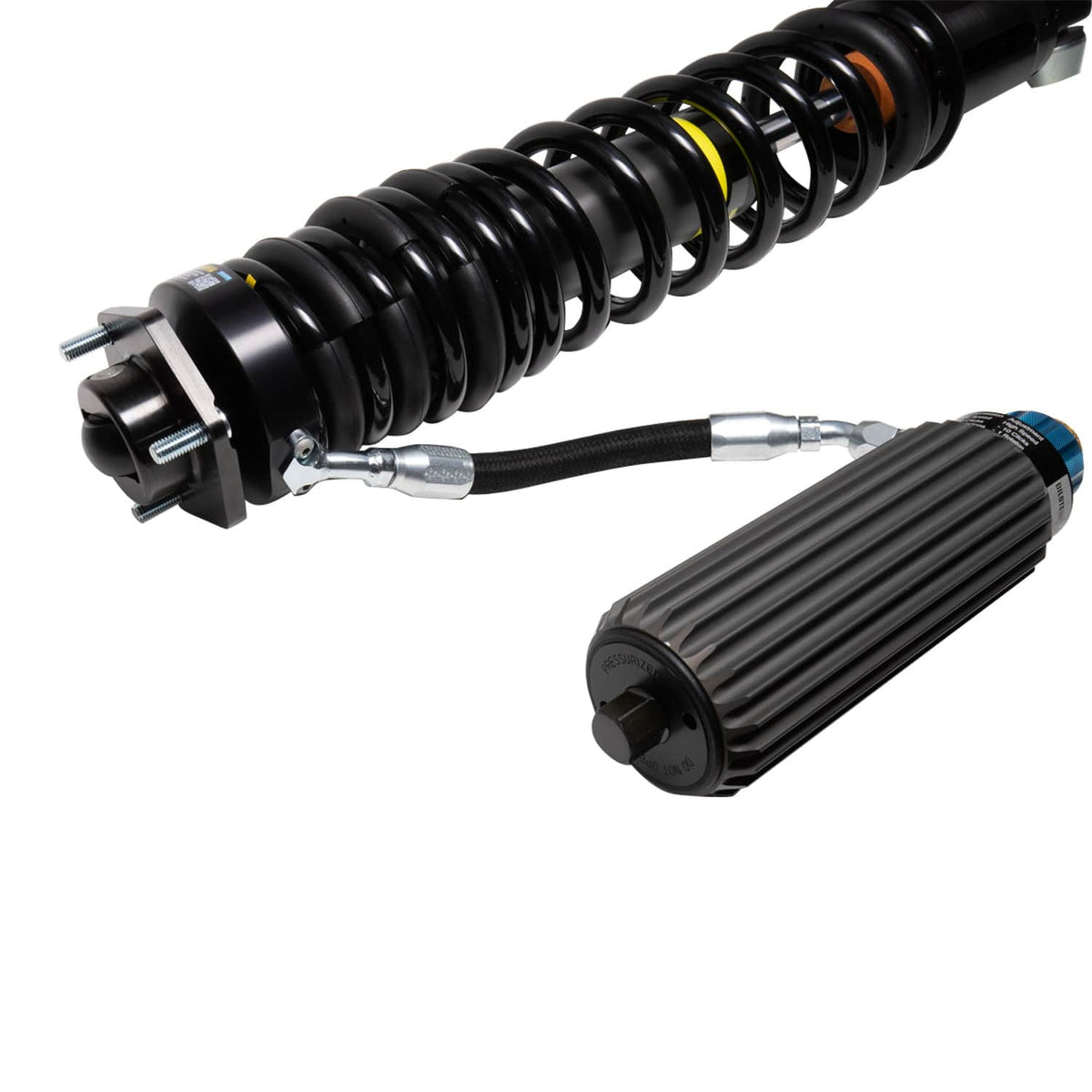

Bilstein 41-314333 - Suspension Shock Absorber and Coil Spring Assembly B8 8112 Black Hawk Smooth Body (Coilover) 2021-2026 Ford Bronco
Product Availability Request
Fill the form and our team will contact you.
60mm Rear Right Corner Module
BILSTEIN B8 8112 Black Hawk 3-Way adjustable coilovers are direct fit, feature packed solutions for trucks and SUVs. The large 2.65” OD Aluminum shock body paired with a unique finned remote reservoir offers ZoneControl® position sensitive damping in both compression and rebound. Plus, 3 external damping adjustments for high/low speed compression and the internal bump stop provides a wide range of damping option. The ZoneControl® offers a significant advantage by virtually eliminating hard bottoming and keeping the ride buttery smooth over the small stuff. Whether you’re driving rugged trails or paved roads, fully loaded or unloaded, the B8 8112 Black Hawk offers the “best in class” ride experience.
Features & Benefits
- Aluminum 2.65" body with finned aluminum remote reservoir for increased oil capacity and cooling
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high-speed compression plus an adjustable JCO (internal hydraulic bump stop
Specifications
| Extended Length (IN) | 26.60 |
| Collapsed Length (MM) | 467.1 |
| Extended Length (MM) | 674.6 |
| Body Material | Aluminum |
| Title | Bilstein Shock Absorbers |
| Adjustable Damping | Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO) |
| Finish | Dampers: EVO Grey/Springs: Black |
| Lower Mount Type | Eye 25.4mm with Heim Spacers |
| Segment | Light Truck |
| Boot Included | No |
| PartType | Shocks / Struts |
| Body Design | Smooth Body (Coilover) |
| Upper Mount Type | Special |
| Spring Seat Included | Yes |
| Reservoir | Yes - Finned Aluminum |
| Collapsed Length (IN) | 18.40 |
| Piston Diameter | 60mm |
| Shaft Diameter (mm) | 22.0 |
| Rear Main Spring Rate (lbs/in) | 288 |
| Series | B8 8112 Black Hawk |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
