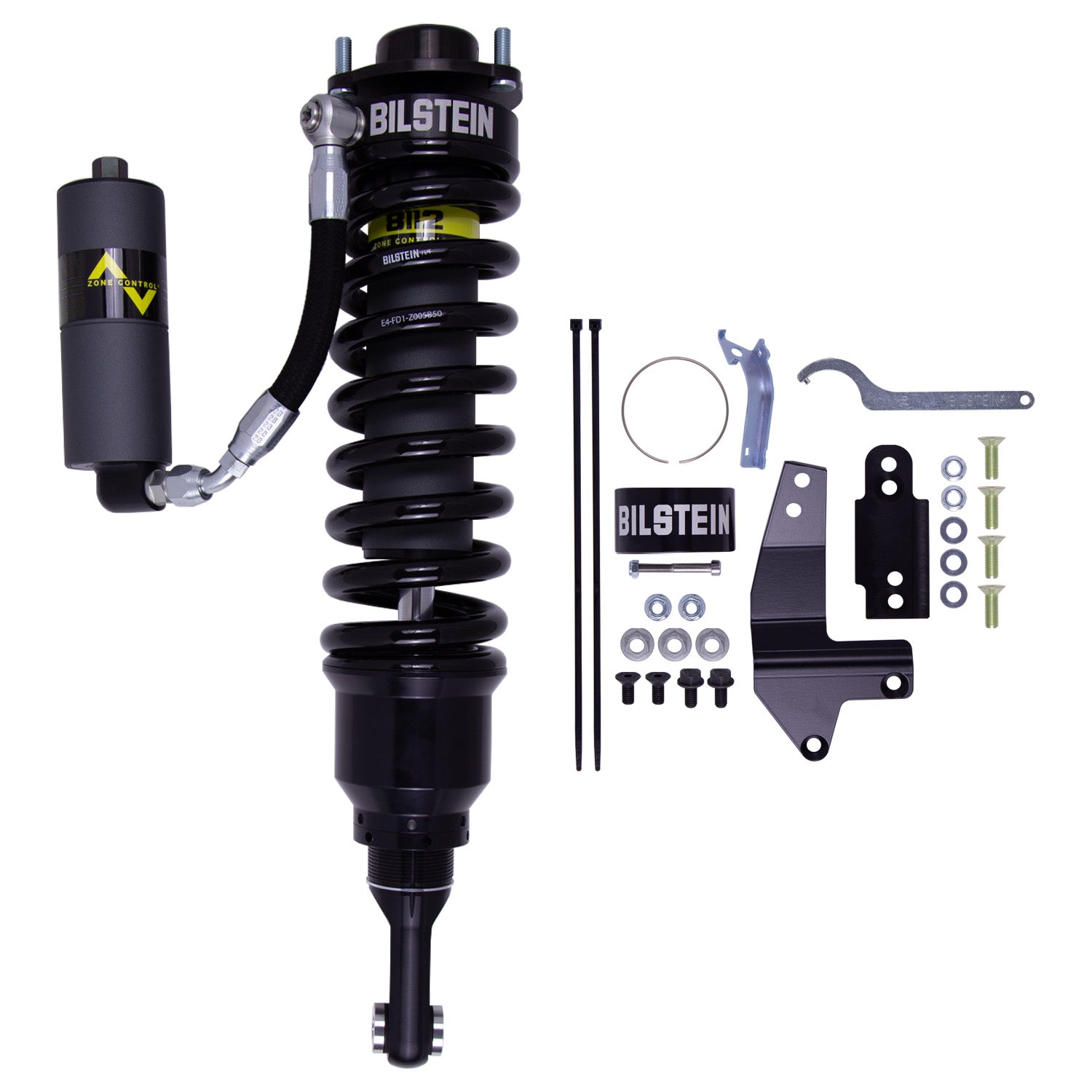

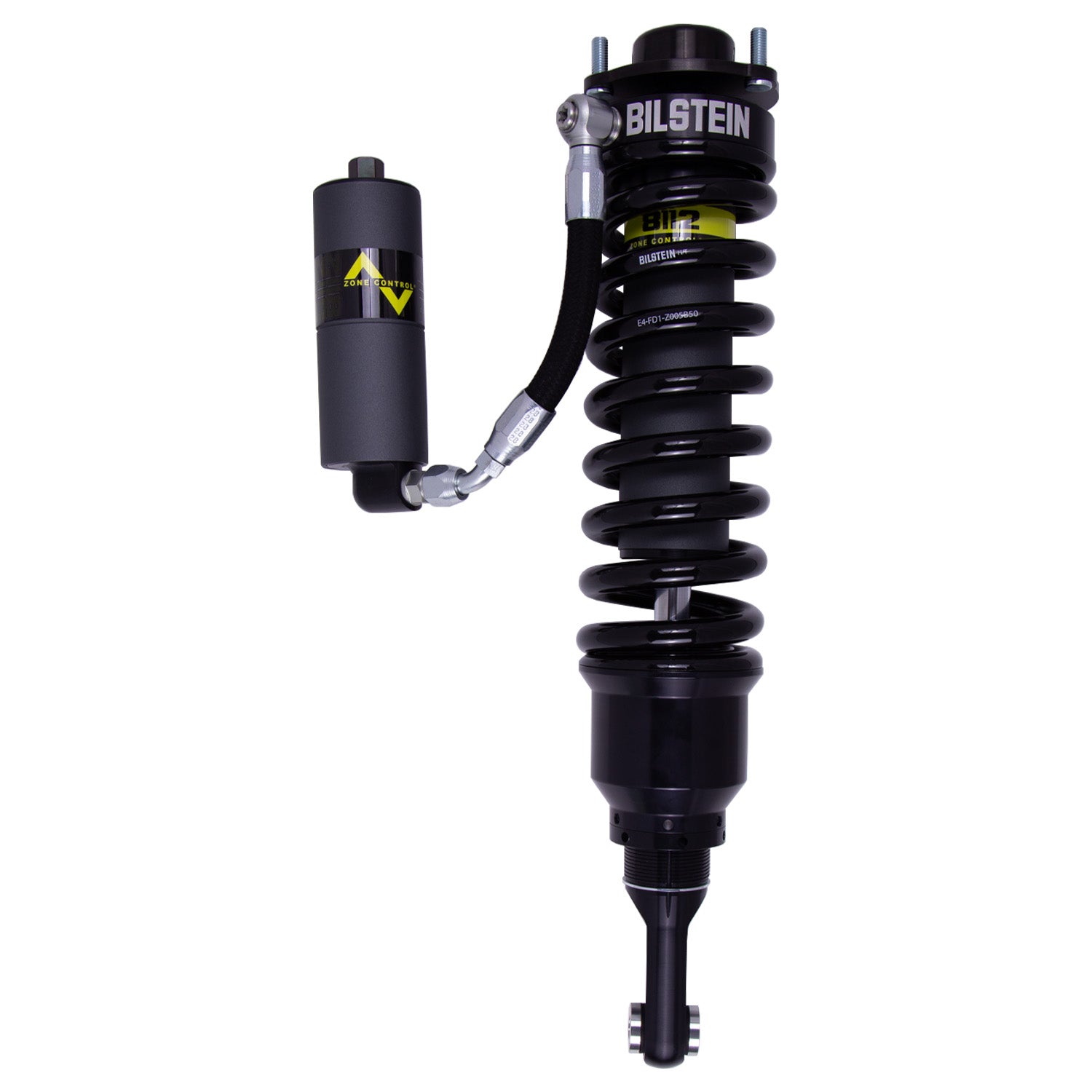

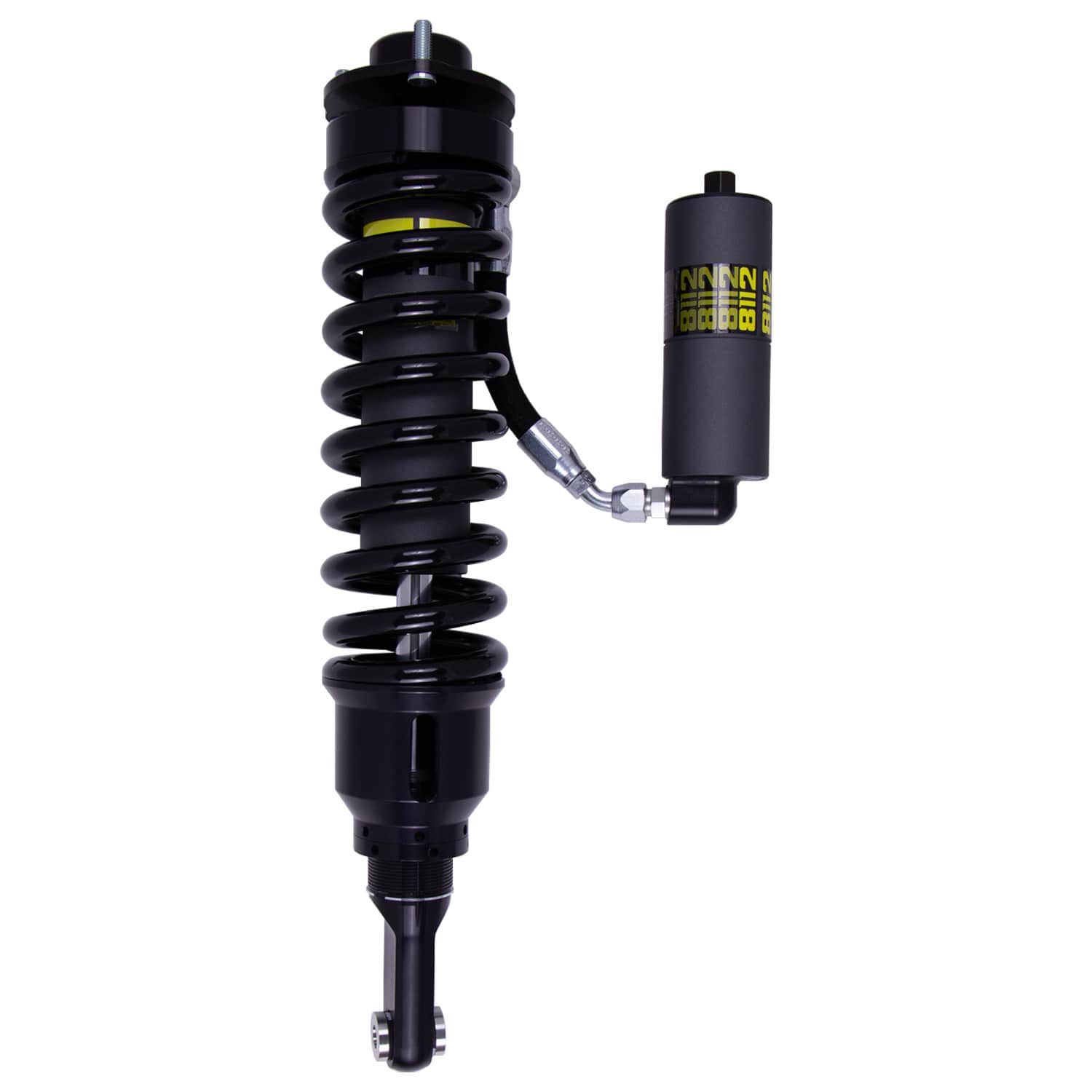

Bilstein 41-324172 - B8 8112 (ZoneControl CR) - Front Left Corner Module

Contact Us for Availability
$1,160.00 USD
✓ Need help confirming fitment?
✓ Ships in 2 - 5 business days
✓ Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Bilstein
  • SKU 41-324172
  • Barcode 651860896700

Do you have questions about this product?

Ask an expert!

Description Fitment Table Shipping information

60mm Front Left Corner Module

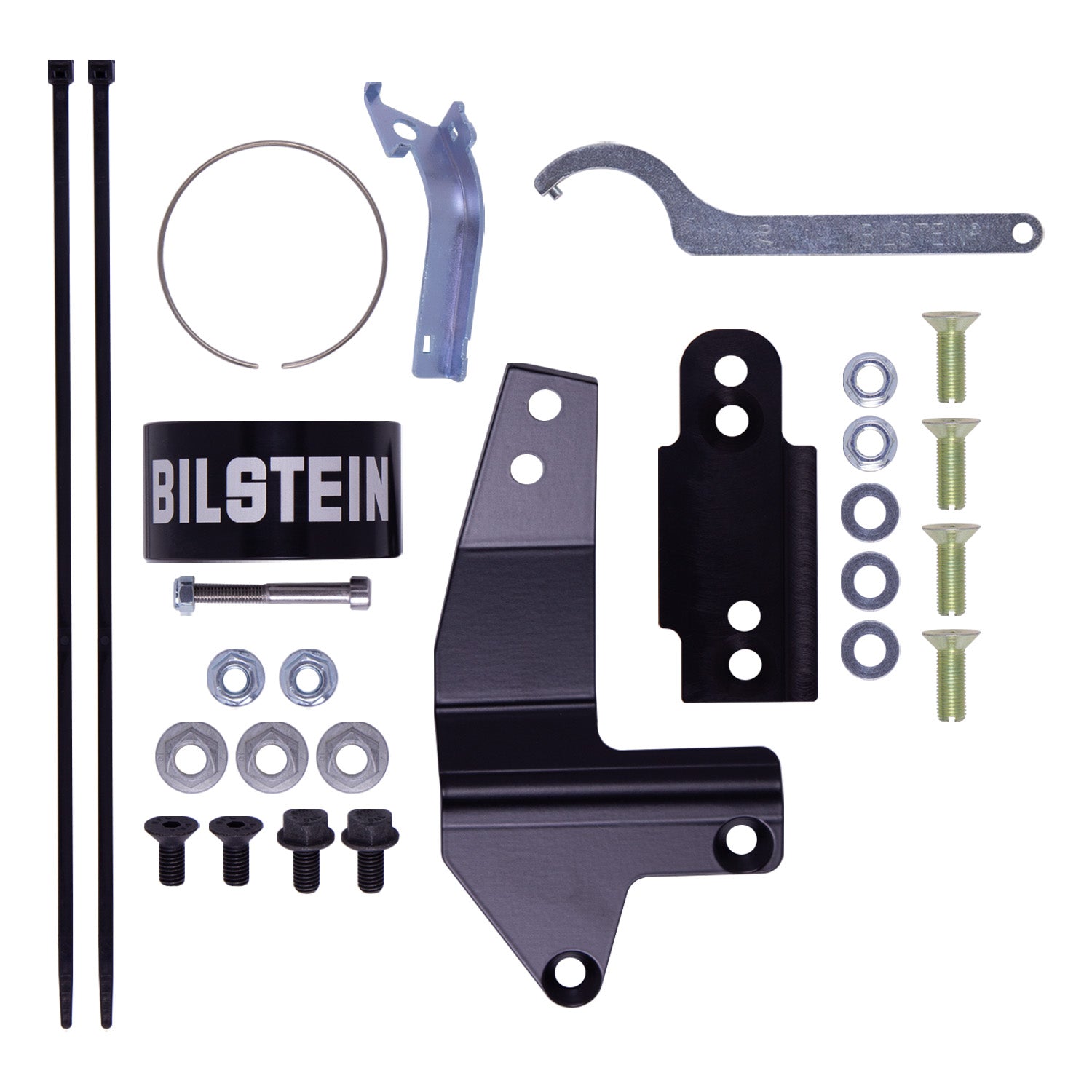

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Features & Benefits

  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling

Specifications

Boot Included No
Extended Length (MM) 579.1
Reservoir Yes
Upper Mount Type Special
Body Material Steel
Extended Length (IN) 22.80
Internal Design Monotube
Series B8 8112 (ZoneControl CR)
Adjustable Damping Non-Adjustable
Collapsed Length (MM) 456.9
Lower Mount Type Eye 14.1mm
Spring Seat Included Yes
Body Design Smooth Body (Coilover)
Collapsed Length (IN) 17.99
Finish Dampers: EVO Grey / Springs: Black
Optional Heavy Load Springs 53-291387, 53-332837
Title Bilstein Shock Absorbers
Segment Light Truck
PartType Shocks / Struts
Piston Diameter 60mm
Shaft Diameter (mm) 22.0
Front Main Spring Rate (lbs/in) 600 lbs

⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

Installation Guide: Download PDF
