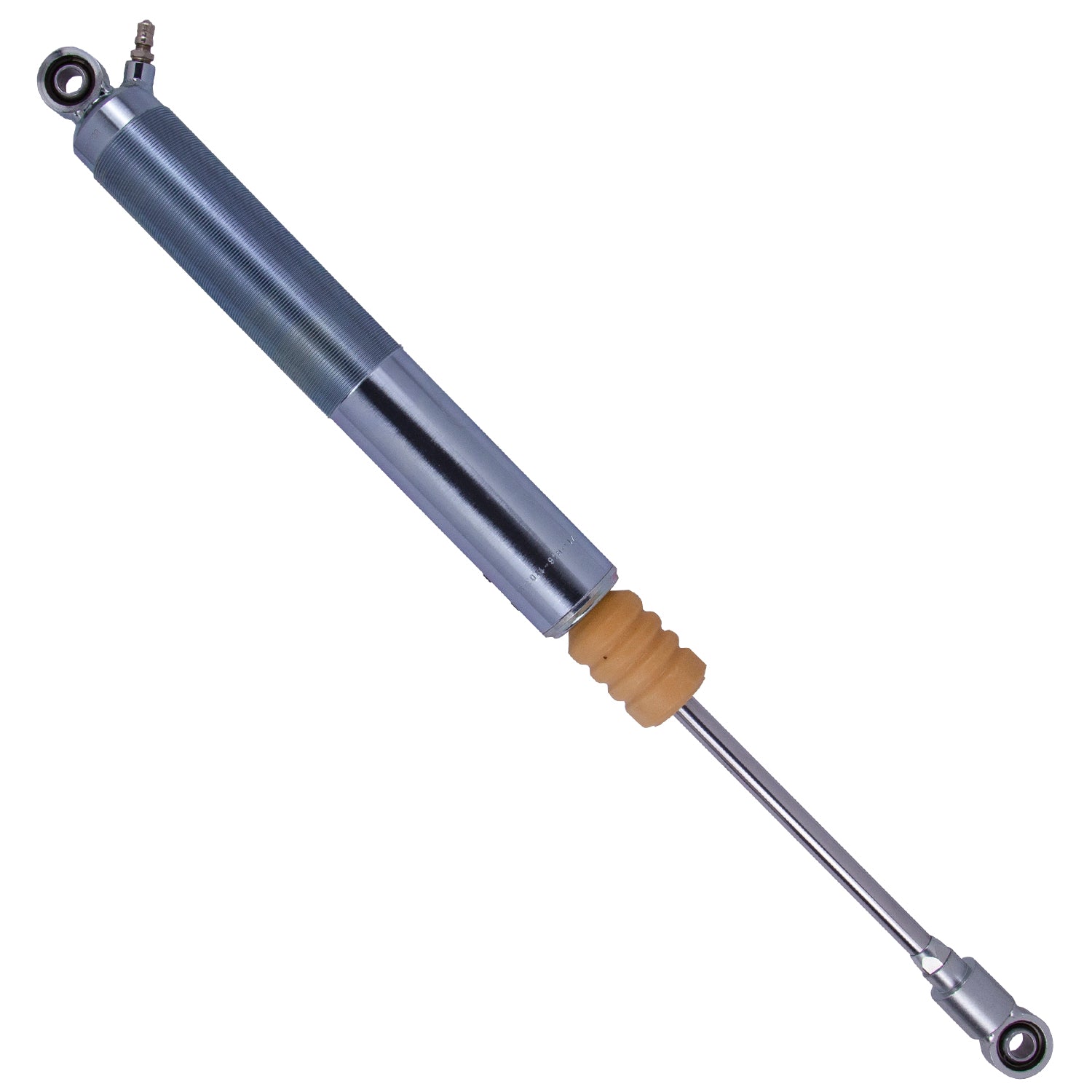

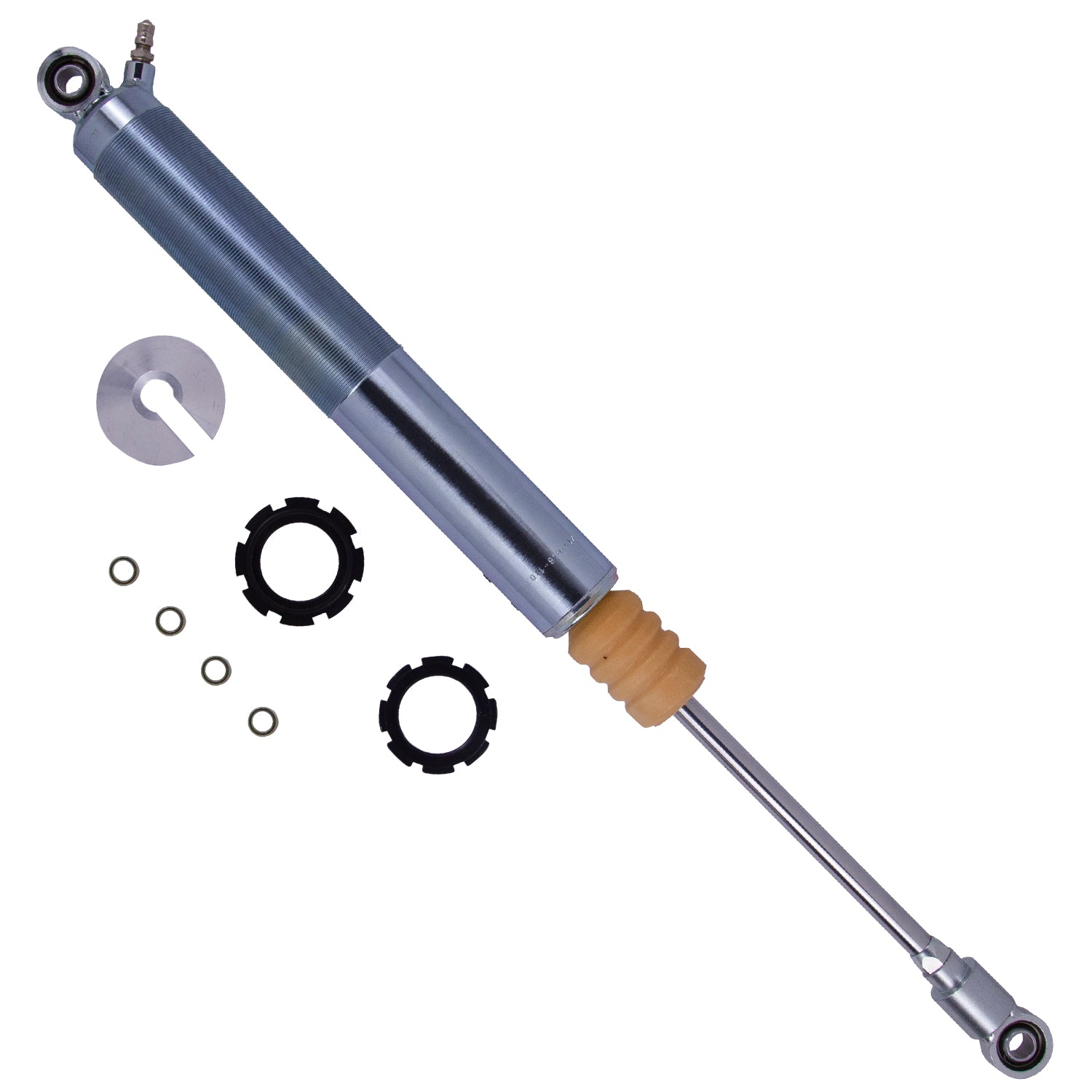

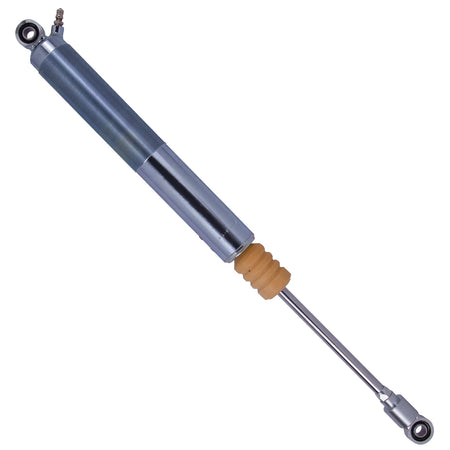

Bilstein B46-1103S - Suspension Shock Absorber M 7100 (Coilover) Monotube
Product Availability Request
Fill the form and our team will contact you.
46mm Monotube Shock Absorber
Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.
Features & Benefits
- 46mm monotube design ensures consistent, fade-free performance in all conditions
- Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
- High-flow piston reduces harshness
M 7100 (Coilover) - Suspension Shock Absorber
10" COILOVER W/SCHRDER 255/100
Specifications
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | 1/2in Heim |
| Lower Mount Type | 1/2in Heim |
| Reservoir | No |
| Extended Length (IN) | 26.65 |
| Internal Design | Monotube |
| Series | M 7100 (Coilover) |
| Mount Type | Eye-to-Eye |
| Finish | Nickel Plated with Clear Powder Coat |
| Compression @0.52m/s | 1000 |
| Rebound @0.52m/s | 2550 |
| Extended Length (MM) | 676.9 |
| Collapsed Length (IN) | 17.44 |
| Body Design | Threaded Body (Coilover) |
| Optional Reservoir Clamp | N/A |
| Spring Seat Included | Yes |
| Segment | Motorsports |
| PartType | Shocks / Struts |
| Spring Hardware | Single Rate (2.5in) |
| Piston Diameter | 46mm |
| Collapsed Length (MM) | 443.0 |
| Shaft Diameter (mm) | 14.0 |
| Stroke/Travel Length (mm) | 233.9 |
| Stroke/Travel Length (IN) | 9.21 |
⚠ WARNING: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Installation Guide: Download PDF
