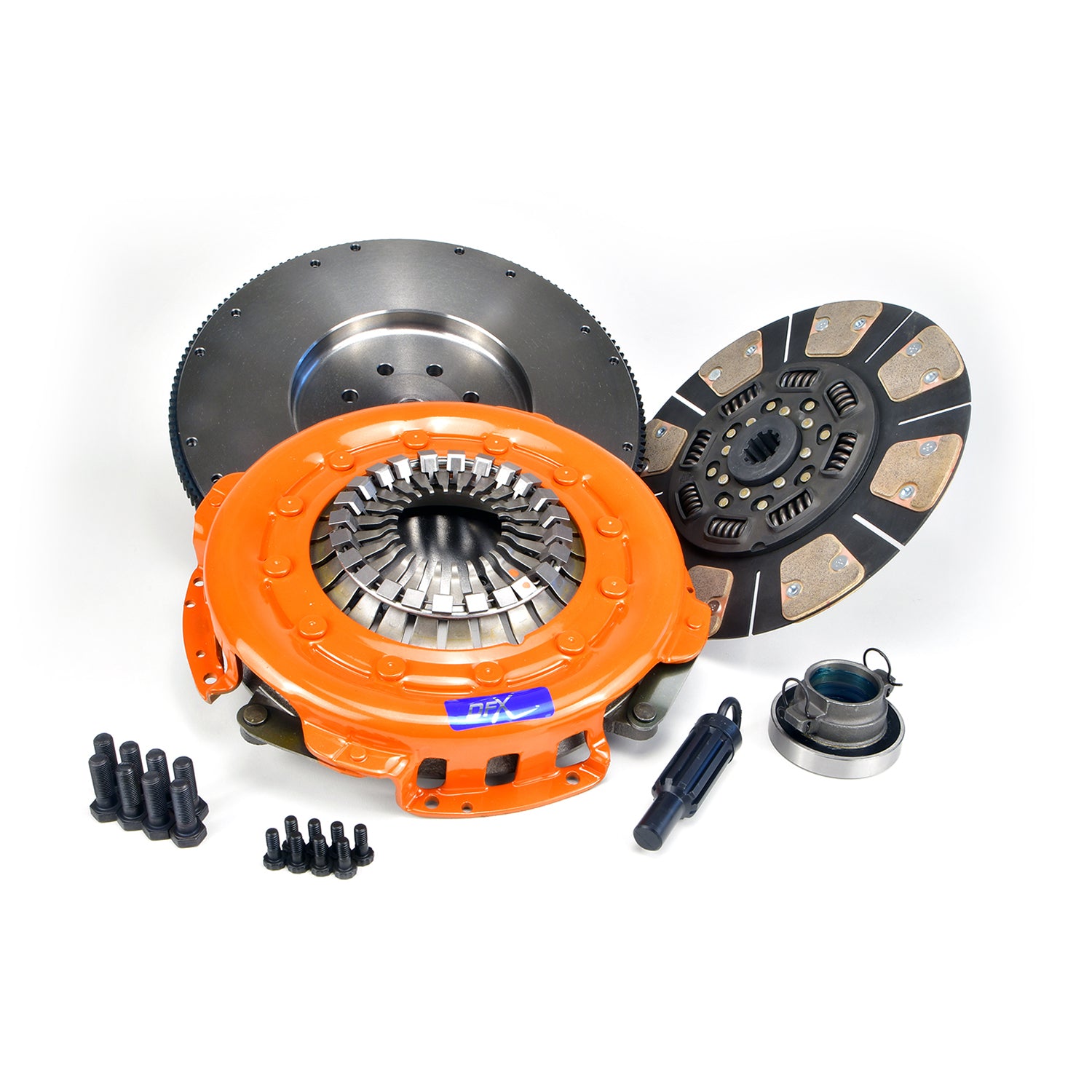

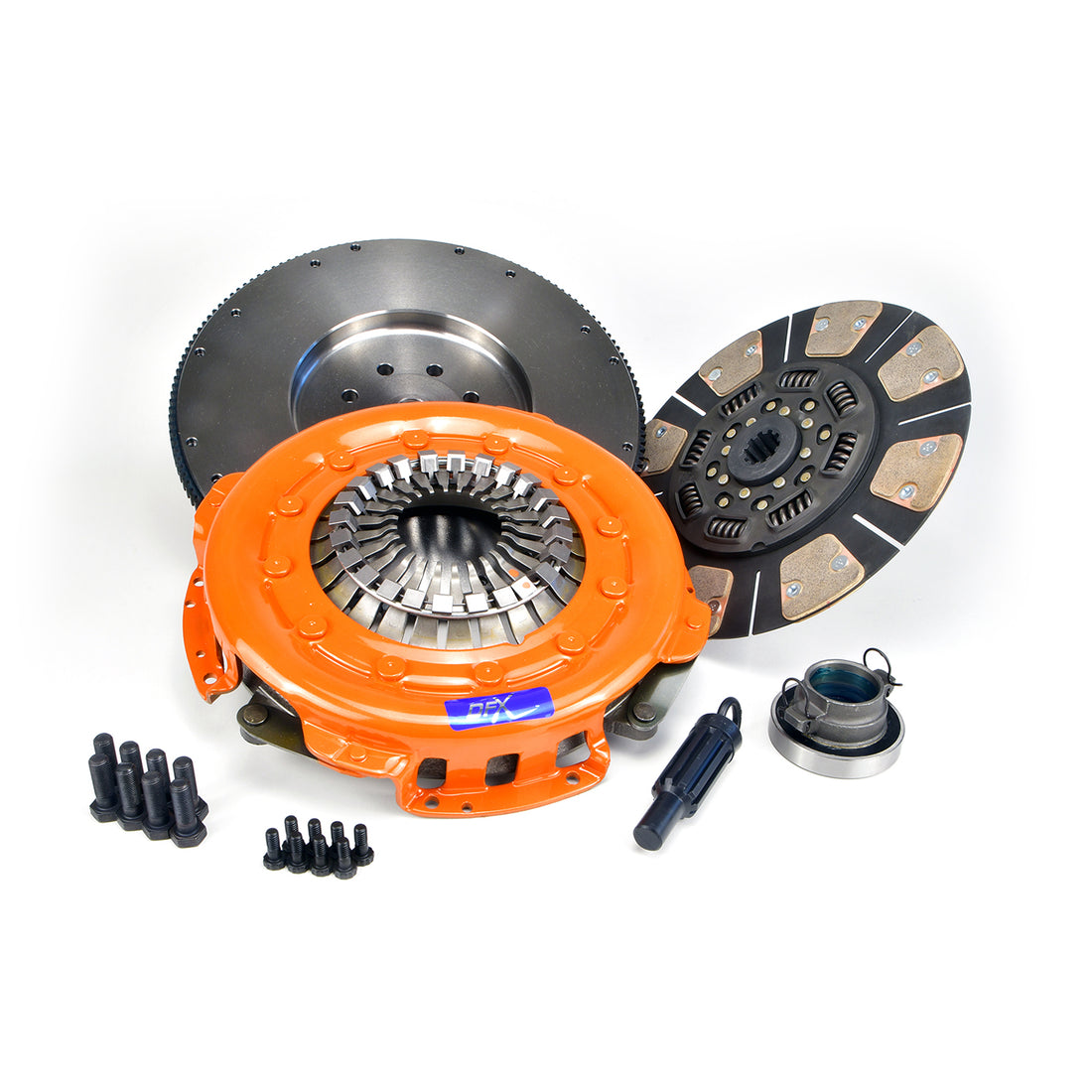

Centerforce 315474898 - DFX(R), Clutch Pressure Plate, Disc, and Flywheel Set
Couldn't load pickup availability
The Centerforce(R) DFX(R) Clutch Series is SFI approved and brings together various reinforcements and patenteds technologies for a great race-inspired single disc clutch.
The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system is SFI approved for competition with Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening
Specifications
| Out of Package Weight | 93.3 |
| Torque Capacity | 900 |
| SFI 1.1 Approved | N |
| Tooth Quantity | 152 |
| California Proposition 65 | WARNING - includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Disc Type Sprung Solid | Sprung |
| Disc Quantity | 1 |
| Input Shaft Diameter | 1-1/4 IN |
| Counterweight Assist | Yes |
| Input Spline Quantity | 10 |
| Disc Material | Cerametallic |
| Disc Type | 8-Paddle |
| Clutch Bolt Pattern | 22 |
| Ring Gear O.D. | 15.625 IN |
| Clutch Disc Diameter | 12.25 IN |
| Material | Cast Iron Pressure Plate / Cerametallic Button Style Friction |
| Clutch Bolt Type | with Shoulder Bolt |
| Crankshaft Bolt Hole Quantity | 8 |
| Flywheel Counter Balance Weight | 0 |
| Release Bearing Included | Yes |
| Pilot Bushing Included | Yes |
| Alignment Tool Included | Yes |
| Mounting Hardware Included | Yes |
| Title | Centerforce DFX ?, Extreme Performance Clutch Pressure Plate, Extreme Performance Disc, Extreme Performance and Flywheel Set, 93.3 lbs, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 900 ft/lbs Capacity, 12.25in Dia., 10-Spline, Fits Dodge Ram 2500 and Ram 3500 5.9L |
| Made In The USA | Assembled |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
