Centerforce 838264042 - TRIAD(R) XDS, Clutch and Flywheel Kit
Couldn't load pickup availability
The Centerforce(R) TRIAD XDS (eXtreme Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1200 ft/lbs.

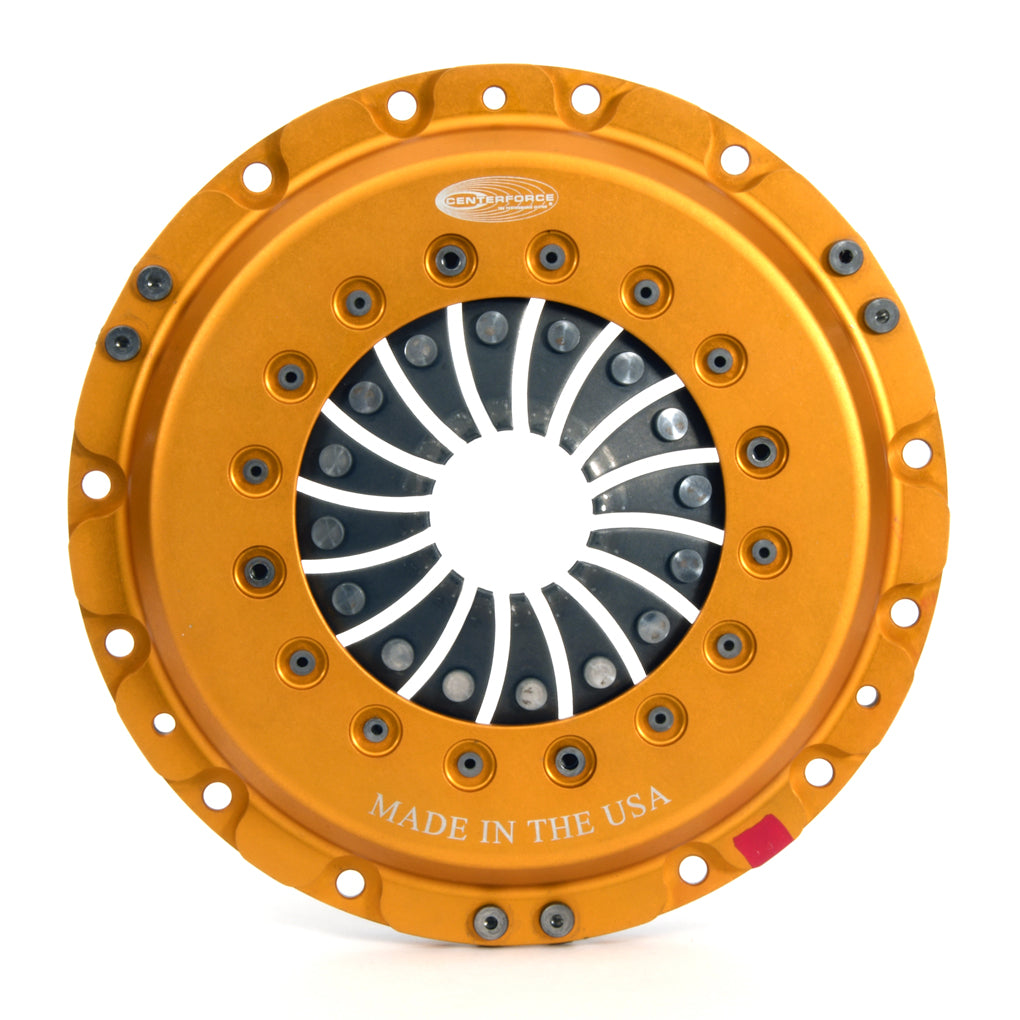

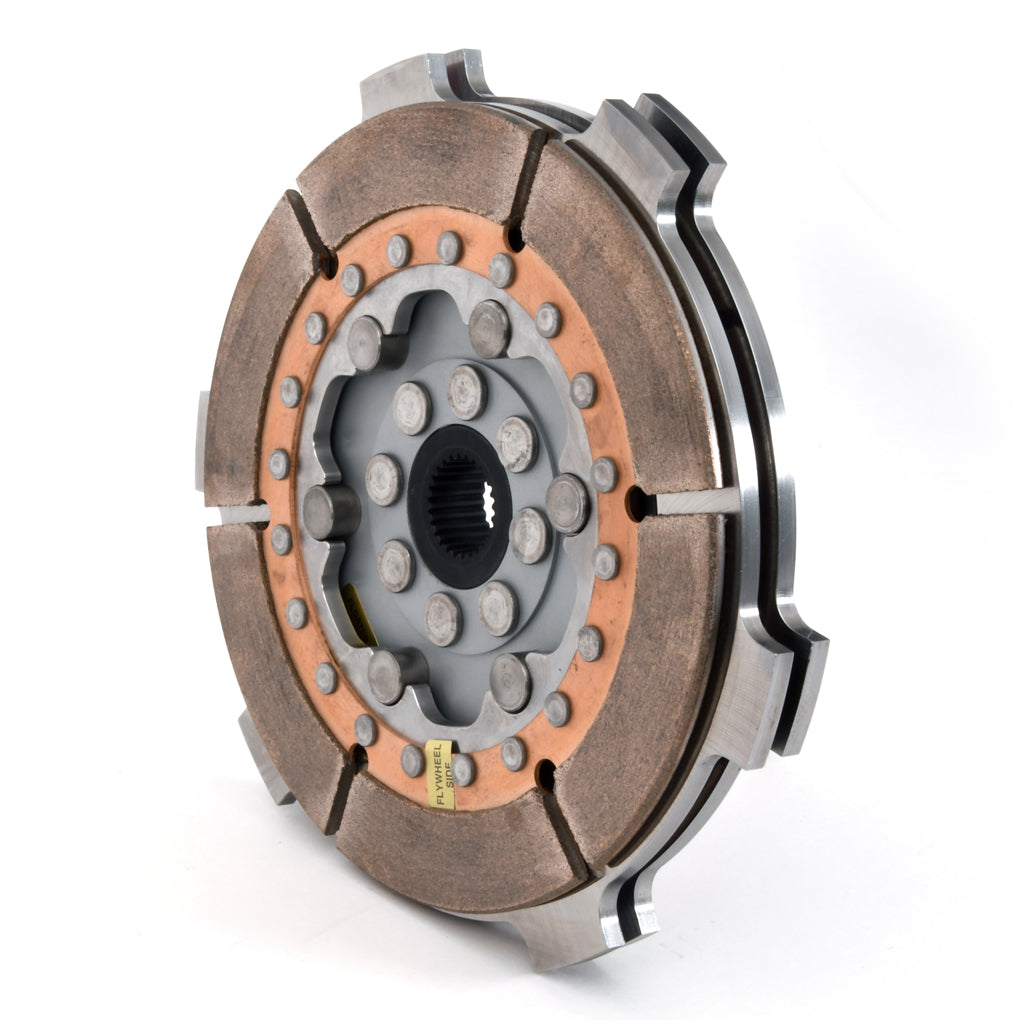

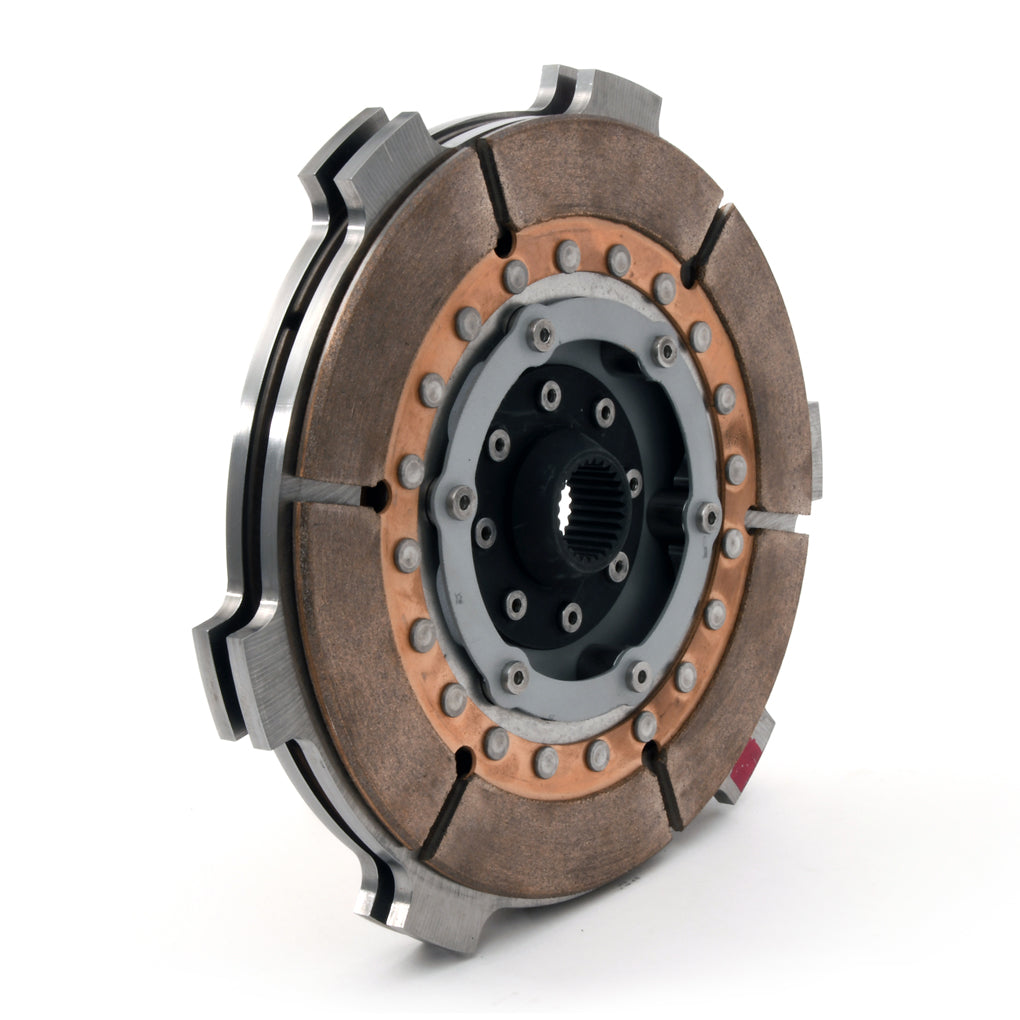

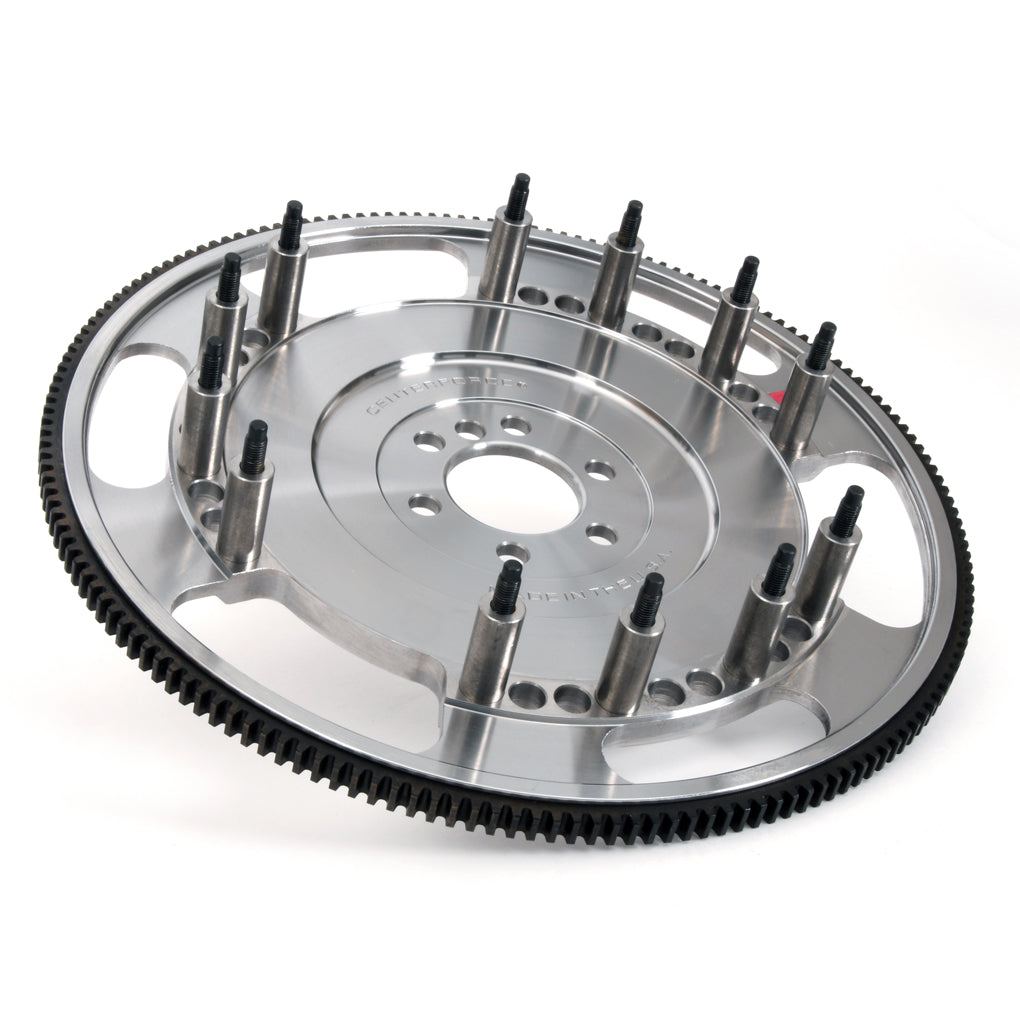

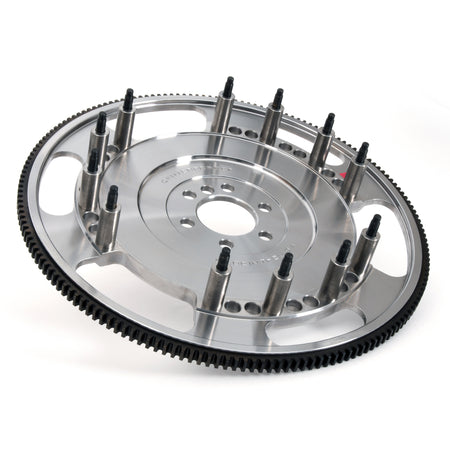

The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications
| Out of Package Weight | 34.30 |
| Torque Capacity | 1100 |
| Tooth Quantity | 168 |
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Disc Type Sprung Solid | Solid |
| Input Shaft Diameter | 1-1/8 IN |
| Counterweight Assist | No |
| Input Spline Quantity | 26 |
| Disc Material | Sintered Metallic |
| Disc Type | Full face |
| Ring Gear O.D. | 14.105 IN |
| Clutch Disc Diameter | 8.750 IN |
| Material | Billet Steel Flywheel / Nodular Iron Pressure Plate / Full Face Cerametallic Friction |
| Crankshaft Bolt Hole Quantity | 6 |
| Flywheel Crank Flange Register | 2.068 IN |
| Flywheel Counter Balance Weight | 0 |
| Flywheel Crank Bolt Size | MM11 x 1.50 x 23 MM |
| Installed Height | 2.890 IN |
| Pilot Bushing Included | Yes |
| Alignment Tool Included | Yes |
| Mounting Hardware Included | Yes |
| Title | Centerforce TRIAD ? XDS, Extreme Multi-Disc Clutch and Flywheel Kit, 34.30 lbs, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 1100 ft/lbs Capacity, 8.750in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl |
| Made In The USA | Assembled |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
