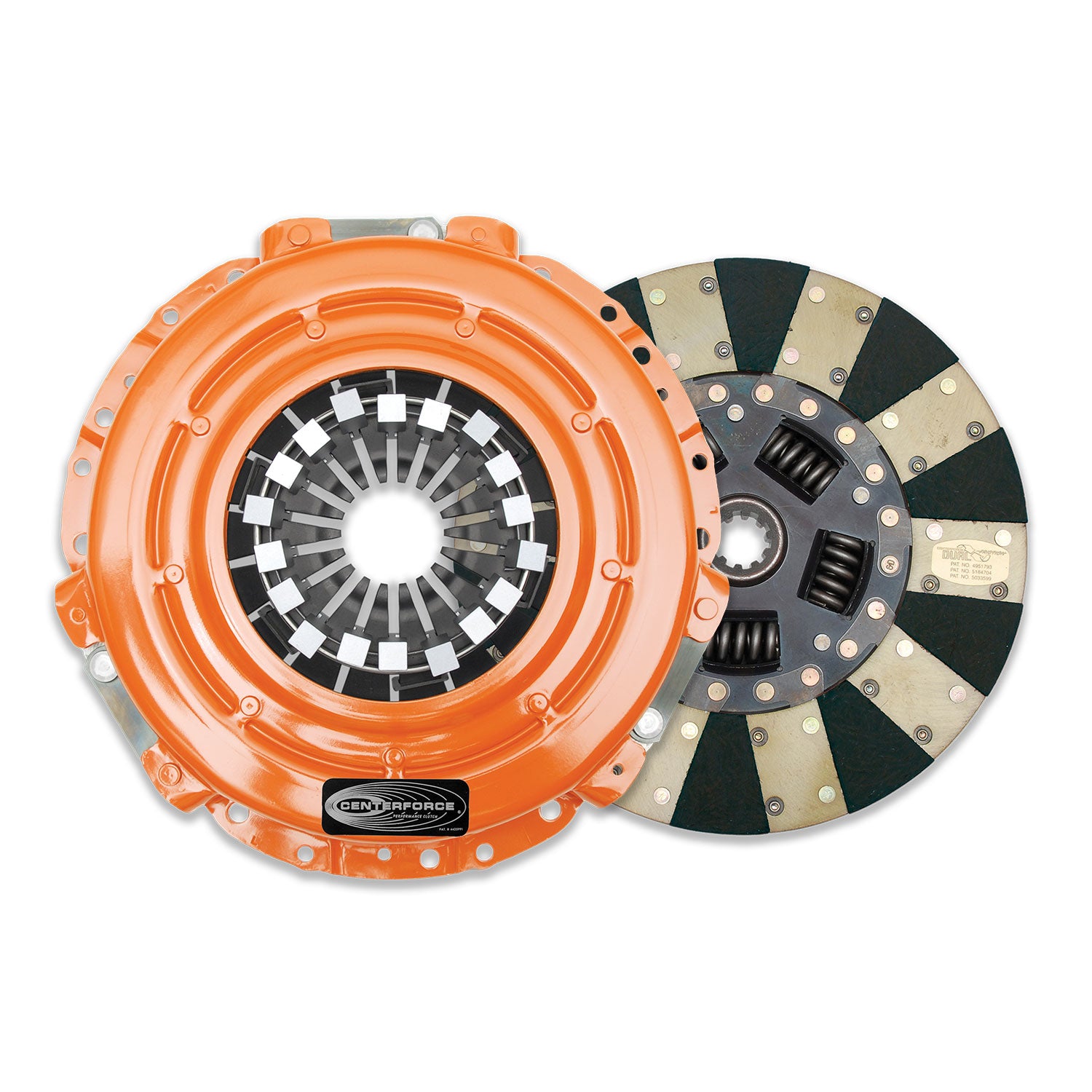

Centerforce DF504076 - Dual Friction(R), Clutch Pressure Plate and Disc Set
Couldn't load pickup availability
The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Specifications
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Torque Capacity | 393 |
| Clutch Disc Diameter | 9.690 IN |
| Input Shaft Diameter | 1-1/8 IN |
| Disc Type Sprung Solid | Sprung |
| Input Spline Quantity | 26 |
| Disc Material | Organic/Carbon composite |
| Material | Cast Iron Pressure Plate / Full Face and Segmented Organic Friction |
| Counterweight Assist | No |
| Disc Type | Full face/Segmented face |
| Title | Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 393 ft/lbs Capacity, 9.690in Dia., 26-Spline, Fits Chevrolet/Pontiac Camaro and Firebird Base 3.8L |
| Alignment Tool Included | Yes |
| Made In The USA | Assembled |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
