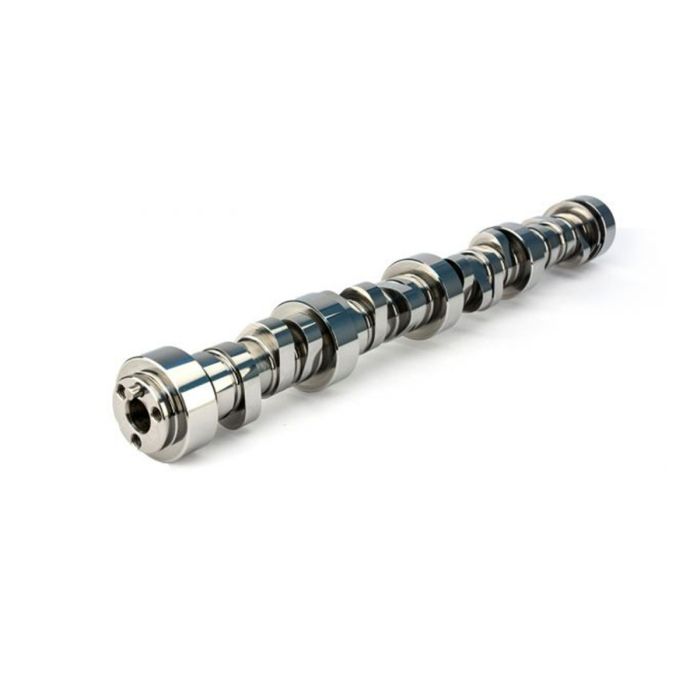

COMP Cams 54-275-11 HV Cam 226/234 .575/.570 Hyd Roller for GEN III/IV 4.8L/5.3L/6.0L
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.
This COMP Cams HV cam is designed with a focus towardeither drivability, towing and response in largerdisplacement (6.0L up) engines or moving peak torque tohigher RPM in smaller displacement (4.8L & 5.3L) applications.
This COMP Cams HV cam is designed with a focus toward either drivability, towing and response in larger displacement (6.0L up) engines or moving peak torque to higher RPM in smaller displacement (4.8L & 5.3L) applications. Awesome performance gains with +94 horsepower at peak and increased torque from 2800 rpm up. Get the most out of your cruiser or daily driver while enjoying great street manners. The HV cam will provide a deep rumble with a noticeable lope. At .575" lift, this cam is designed to take advantage of the inexpensive 26906 valve spring upgrade. Also compatible with stock converters.
Specifications
| Advertised Exhaust Duration | 286 DD |
| Camshaft Series | HV |
| Advertised Intake Duration | 279 DD |
| Usage | Street |
| Cam Type | Hydraulic Roller |
| Exhaust Duration at .050 inch Lift | 234 DD |
| Cam Type | Hydraulic Roller |
| Exhaust Valve Lift | 0.57 IN |
| Lifter Type | Roller Tappet |
| Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.57 IN |
| Camshaft Intake Centerline | 108 |
| Intake Duration at .050 Inch Lift | 226 DD |
| Advertised Intake Duration | 279 |
| Intake Valve Lift | 0.575 IN |
| Intake Valve Lift with Factory Rocker Arm Ratio | 0.575 IN |
| Advertised Exhaust Duration | 286 |
| Intake Duration at .050 Inch Lift | 226 |
| Lifter Type | Hydraulic Roller |
| Exhaust Duration at .050 inch Lift | 234 |
| Intake Lobe Lift | 0.338 |
| Exhaust Lobe Lift | 0.335 |
| Lobe Separation | 112.5 |
| Advance | 4.5 |
| Exhaust Open BBDC | 54 |
| Intake Open BTDC | 5 |
| Exhaust Close ATDC | 0 |
| Intake Close ABDC | 41 |
| Factory Rocker Ratio | 1.7 |
| Intake Valve Lash | Hyd |
| Exhaust Valve Lash | Hyd |
| Intake Valve Lift with Factory Rocker Arm Ratio | 0.575 |
| Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.57 |
| Basic Operating RPM Range | 2700 - 6500 |
| Direct Injection | No |
| VVT Compatible | No |
| Phaser Requirement | None |
| Fuel Management Strategy Compatible | No |
| Computer Controlled Compatible | Yes |
| Valve Springs Required | Yes |
| Engine Platform | GM LS GEN III/IV |
| Lobe Separation | 112 DD |
| Grind Number | LS279HV12 |
| Grind Number | LS279HV12 |
