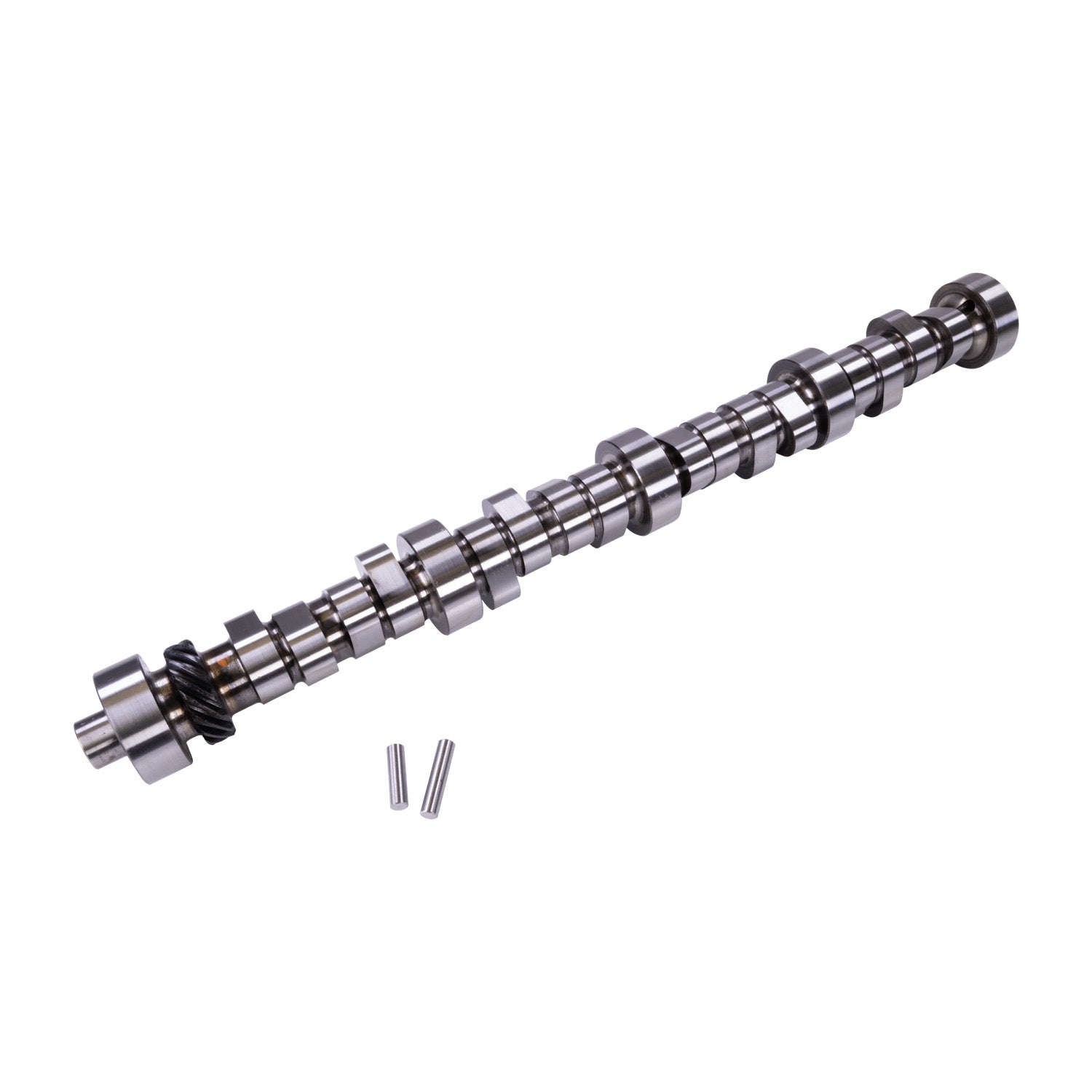

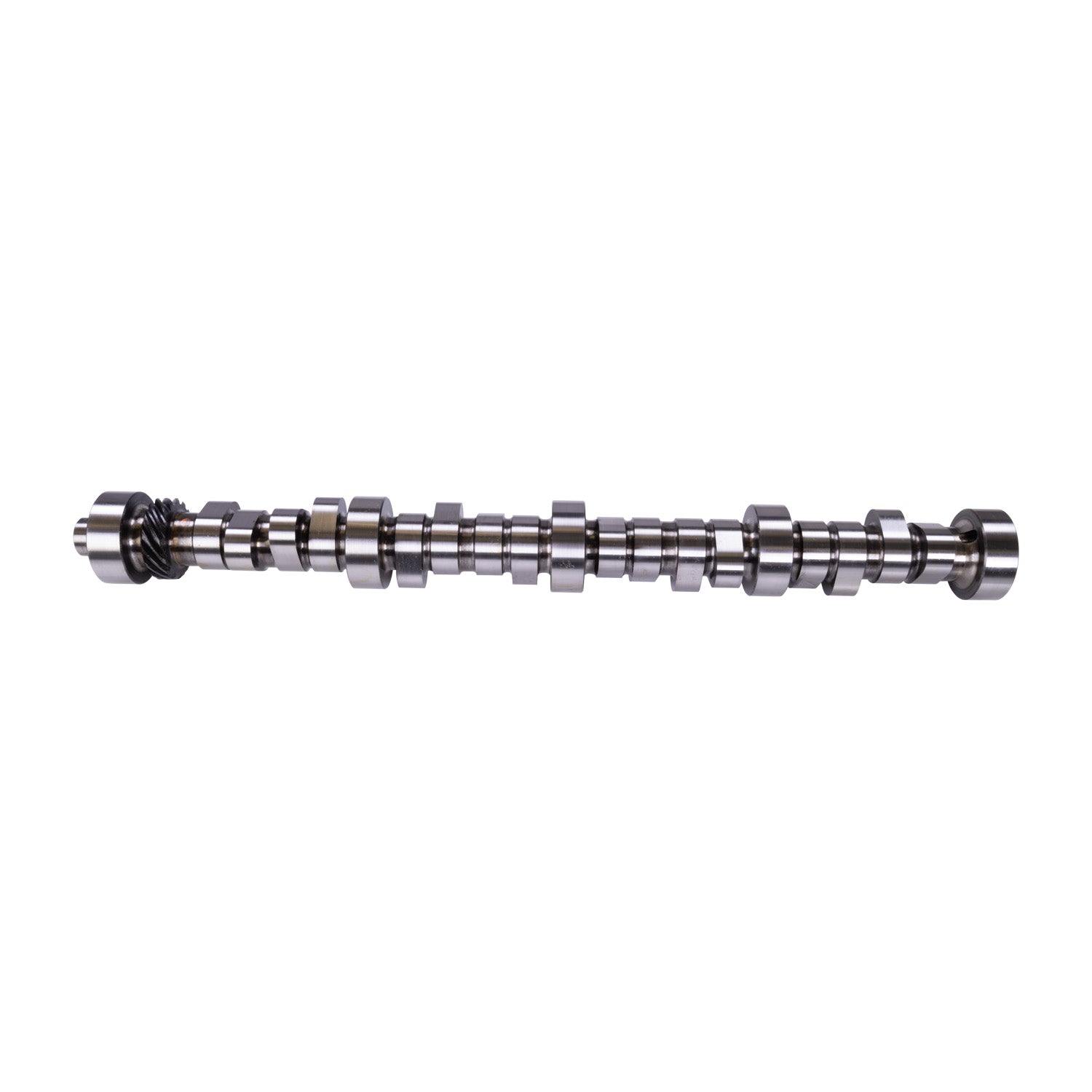

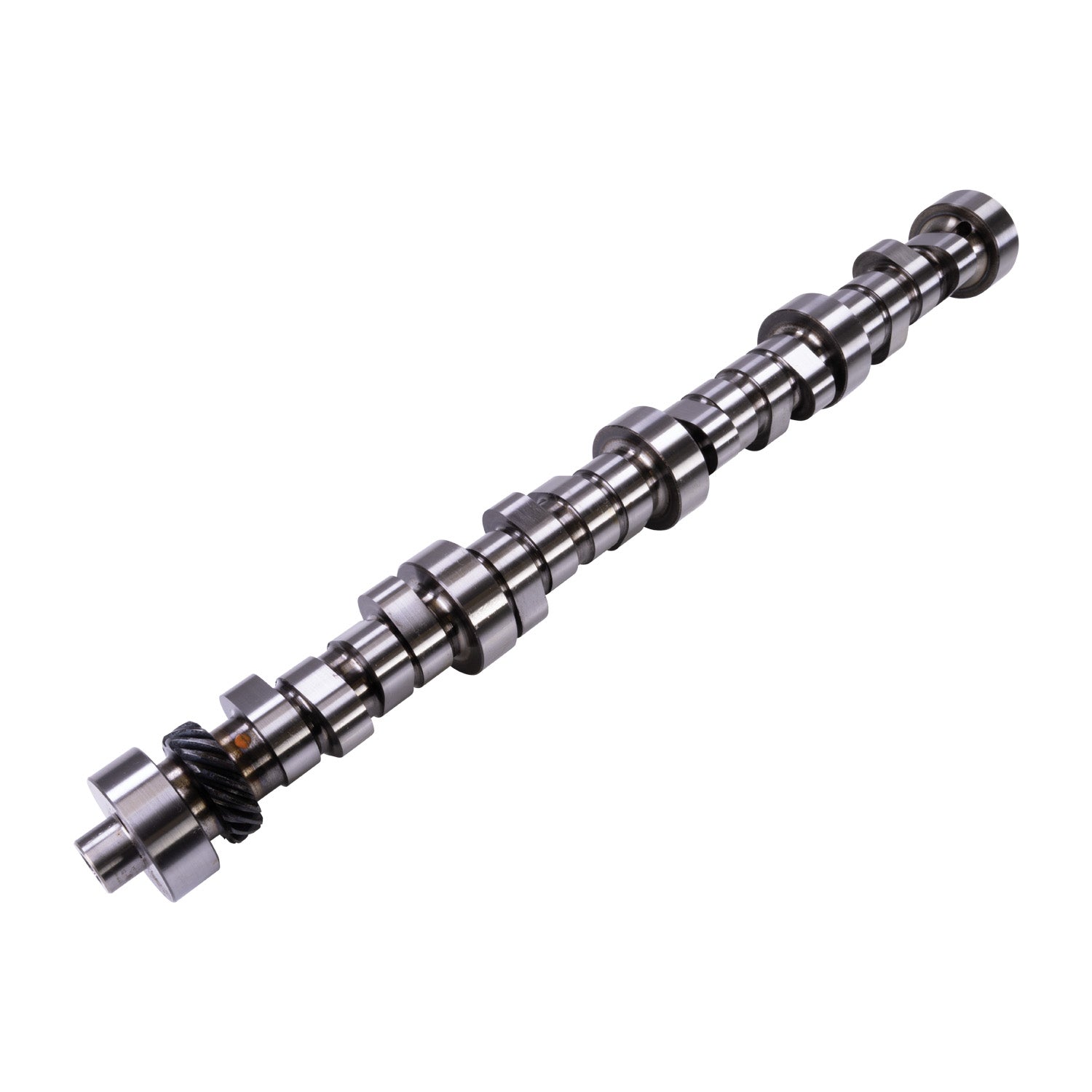

COMP Cams 31-491-9 Xtreme Energy 206/212 Hydraulic Roller, Ford 221-302
This part has no CARB Executive Order, so it is not legal for sale or use on emissions controlled vehicles in California. Some other states follow California rules for many vehicles. Please check your state's rules before ordering.
This part fits specific vehicles. Select your vehicle to check the fit. You can still add it to your cart.
Product Availability Request
Fill the form and our team will contact you.
The COMP Cams Xtreme Energy series delivers enhanced street performance, offering strong midrange torque and horsepower gains with smooth idle and responsive throttle—ideal for mild performance upgrades.
The COMP Cams Xtreme Energy camshaft delivers enhanced street performance for Ford Small Block engines, producing very strong torque and horsepower gains with a smooth idle and responsive throttle—ideal for mild performance upgrades and heavy vehicle applications. Engineered for excellent low- to mid-range power, it performs best with proven combinations such as the Edelbrock Performer intake manifold and a TCI Street Rodder or stock torque converter. Featuring full-size base circles, this camshaft works seamlessly with COMP Cams Evolution hydraulic roller tappets and eliminates the need for dog bones and lifter retainers—components never intended for pre-1985 applications. This camshaft supersedes part number 31-412-8, offering a dependable upgrade designed for improved drivability and consistent performance.
Features
- Features full-size base circles, works seamlessly with our Comp Cams Evolution hydraulic roller tappets.
- Eliminates the need for dog bones and lifter retainers, which were never intended for use in pre-1985 applications.
- Supersedes 31-412-8
Specifications
| Intake Lobe Lift | 0.3 IN |
| Exhaust Lobe Lift | 0.3 IN |
| Exhaust Valve Lift with Factory Rocker Arm Ratio | 0.48 IN |
| Intake Valve Lift with Factory Rocker Arm Ratio | 0.48 IN |
| Factory Rocker Ratio | 1.6 |
| Intake Centerline | 106 deg |
| Lobe Separation | 110 deg |
| Basic Operating RPM Range | 1200-4800 RPM |
| Intake Duration at .050 Inch Lift | 206 deg |
| Exhaust Duration at .050 inch Lift | 212 deg |
| Advertised Intake Duration | 258 deg |
| Advertised Exhaust Duration | 266 deg |
| Advance | 4 deg |
| Cross sell / Upsell Part Numbers | 89311-16, 1431-16, 431M, 26986-16 |
| Material | Billet Steel |
| Engine Platform | Ford Small Block |
| Firing Order | FS/FF |
| Exhaust Valve Lash | Hyd |
| Intake Valve Lash | Hyd |
| Cam Type | Hydraulic Roller |
| Computer Controlled Compatible | No |
| Direct Injection | No |
| Fuel Management Strategy Compatible | No |
| VVT Compatible | No |
| Lifter Type | Roller Tappet |
| Camshaft Series | Xtreme Energy |
| Valve Springs Required | Yes |
Installation Guide: Download PDF
