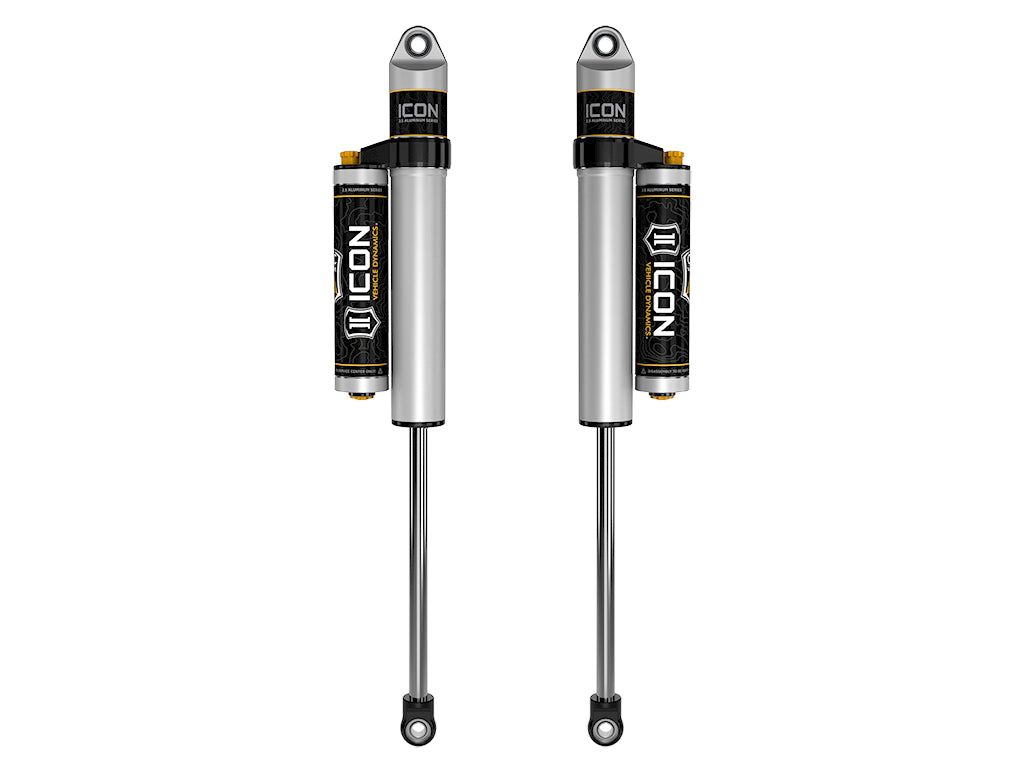

ICON Vehicle Dynamics 217701CP Suspension Shock Absorber Set

Name: ICON Vehicle Dynamics 217701CP Suspension Shock Absorber Set
Brand: ICON Vehicle Dynamics
SKU: 217701CP
Price: 489.95 USD
Availability: InStock

$489.95 USD

In Stock

Free shipping — 2+ weeks - Up to 50lbs.

30-day returns — free, no restocking fees

3-year manufacturer warranty

2003-2012 RAM HD 2-3" LIFT REAR 2.5 VS PIGGYBACK CDCV SOCK PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Features

ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components

Specifications

AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable	Yes
Attributed Description	ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: Yes; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 18.63 IN; Fully Open Length: 30.95 IN; Gas Charged: Yes; Lower Mount Type: Eyelet; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Stroke Length Rear: 12.3 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Eyelet; External Reservoir: Yes
Boot Included	NO
Bore Diameter	2.25 IN
Shaft Diameter	0.875 IN
Damping Type	Oil
Grade Type	Performance
Cylinder Color	Silver
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included	Yes
Gas Charged	Yes
California Prop 65 Warning	Yes
External Reservoir	Yes
Cylinder Material	Aluminum
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shock Absorber Body End Measuring Point	CENTER OF EYELET
Shaft Material	Chrome
Lower Mount Type	EYELET
Upper Mount Type	EYELET
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts	252001 - 2.5 FIXED SPANNER WRENCH
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts	257342 - 7/8 SHAFT 16.85 OAL, 12.00 TRAVEL
Service Parts	191015 - 10" FINNED RESI UPGRADE KIT
Service Parts	252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
