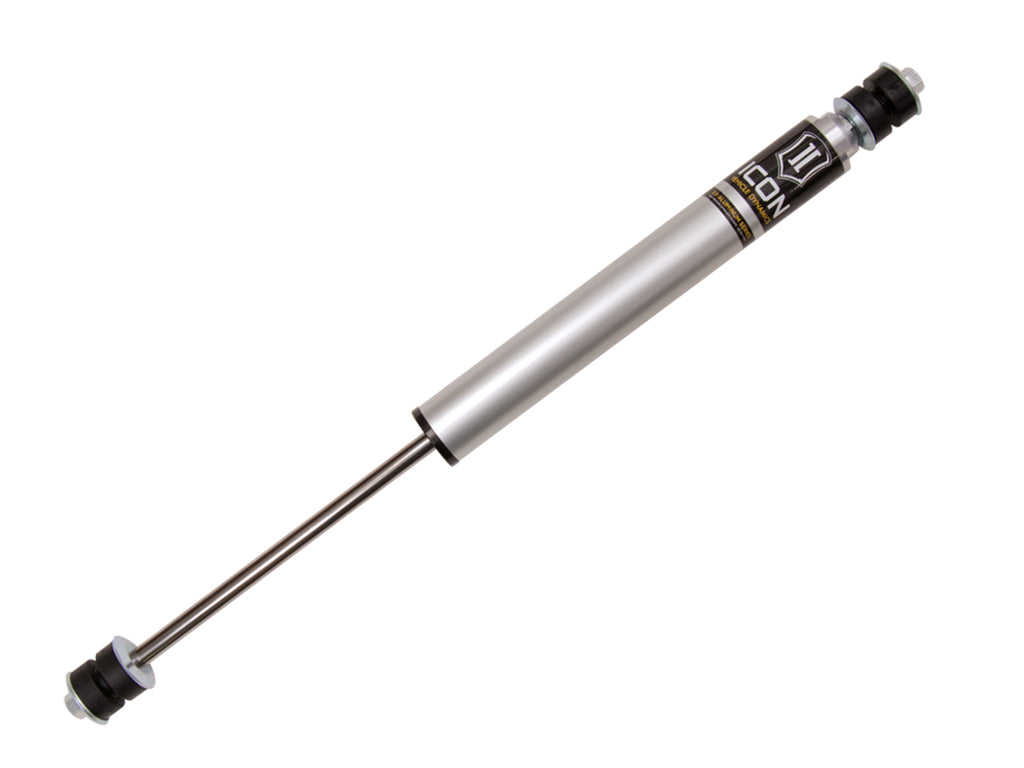

1991-1997 LAND CRUISER 80 4-6" LIFT FRONT 2.0 VS INTERNAL RESERVOIR SHOCK
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 100% revalveable
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8β chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Attributed Description | ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Stem; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Shoulder of Stem; Upper Mount Type: Stem; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.850 IN; Fully Open Length: 11.32 IN; Shock Stroke: 11.32 IN; Travel Length: 11.32 IN |
| Body Diameter | 2 IN |
| Boot Included | NO |
| Adjustable | NO |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Finish | Anodized |
| Coil Over Springs Included | NO |
| Dust Shield | NO |
| Remote Reservoir | NO |
| Grade Type | Performance |
| Shock Absorber Rod End Measuring Point | Shoulder of Stem |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Lower Mount Type | Stem |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| California Prop 65 Warning | Yes |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
Short Description: FRNT SHOCK ABSORBER
Invoice Description: 91-97 LC 80 4-6" FRONT 2.0 VS IR
Definition: Suspension Shock Absorber
Warranty: 1 Year
| Year | Make | Model |
|---|---|---|
| 1991-1997 | Toyota | Land Cruiser |
1 application listed.
